Pinpoint Test 7: The Front Fog Lamp Switch Illumination Is Inoperative (If Equipped)

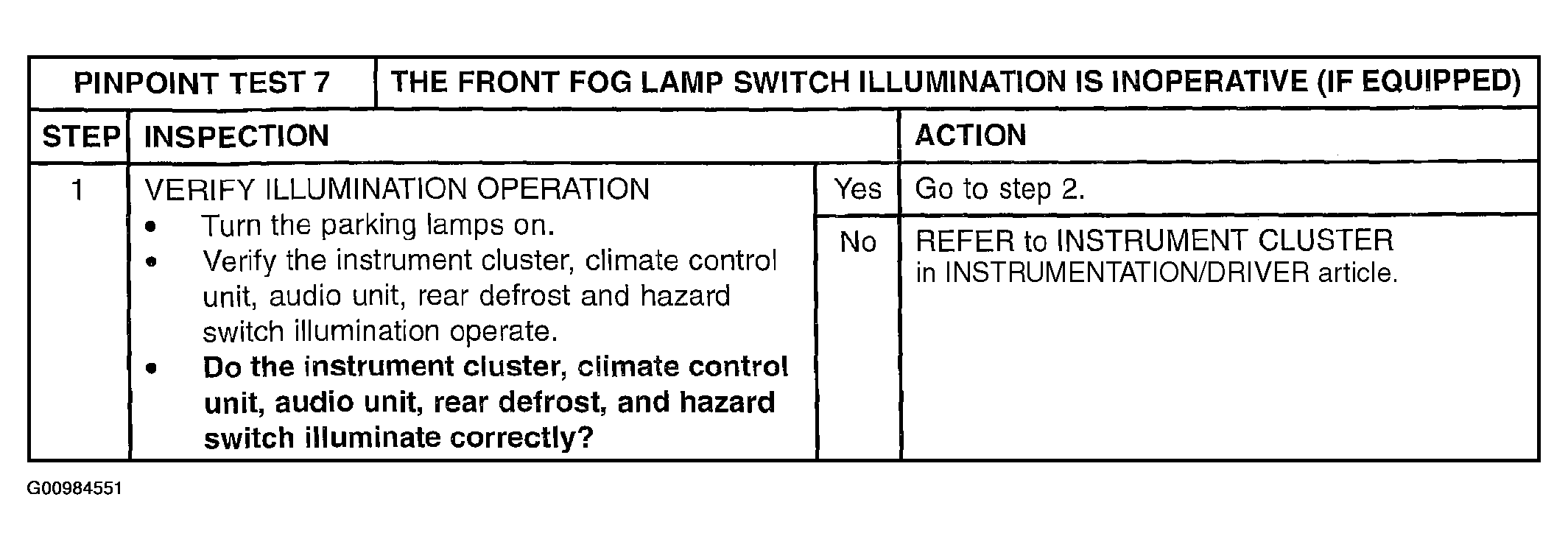

Fig 1: Pinpoint Test 7: The Front Fog Lamp Switch Illumination Is Inoperative (If Equipped) - Test Procedure (Step 1)

Courtesy of MAZDA MOTORS CORP.

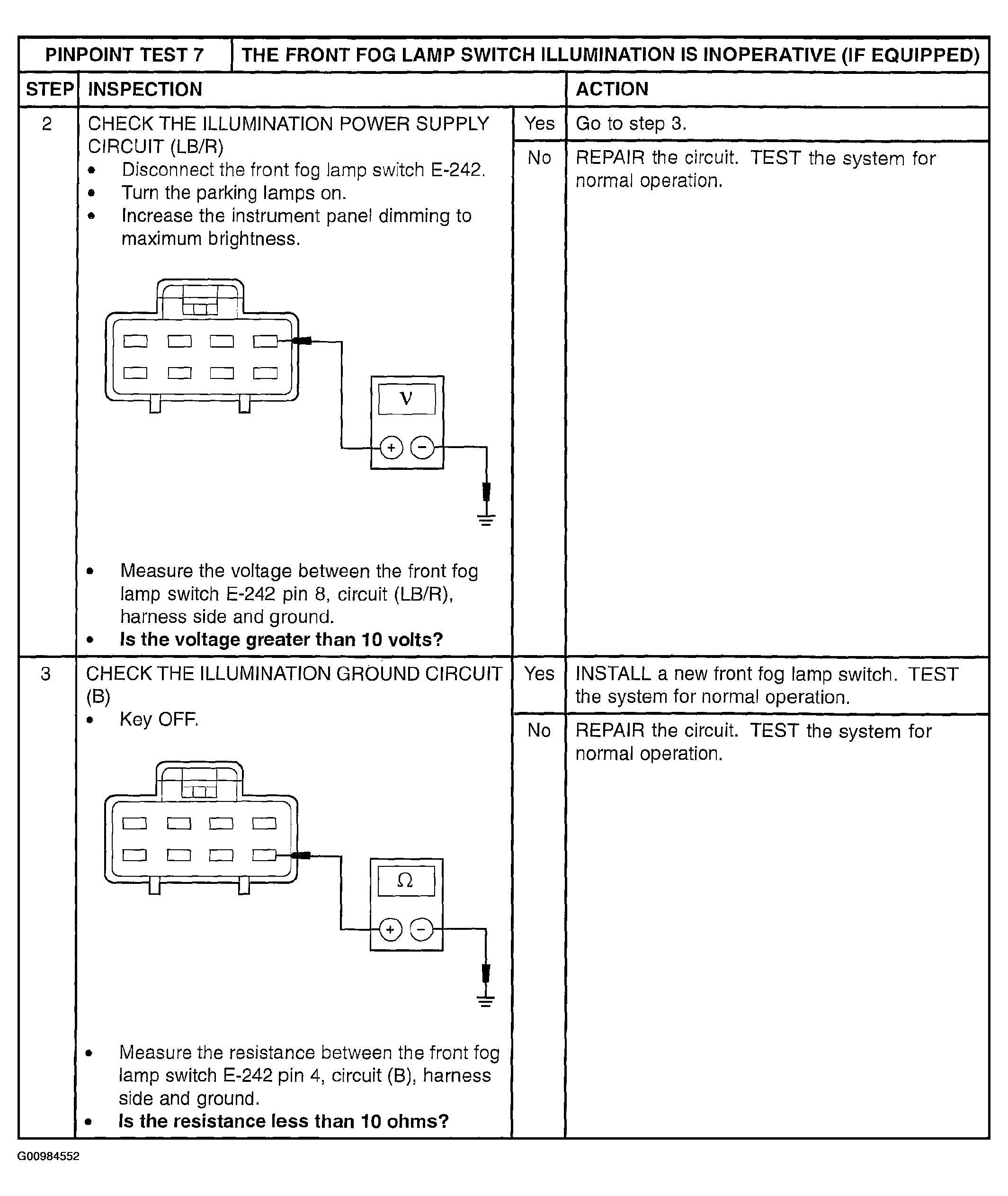

Fig 2: Pinpoint Test 7: The Front Fog Lamp Switch Illumination Is Inoperative (If Equipped) - Test Procedure (Step 2 & 3)

Courtesy of MAZDA MOTORS CORP.
