Pinpoint Test 3: The Instrument Panel Illumination Does Not Dim

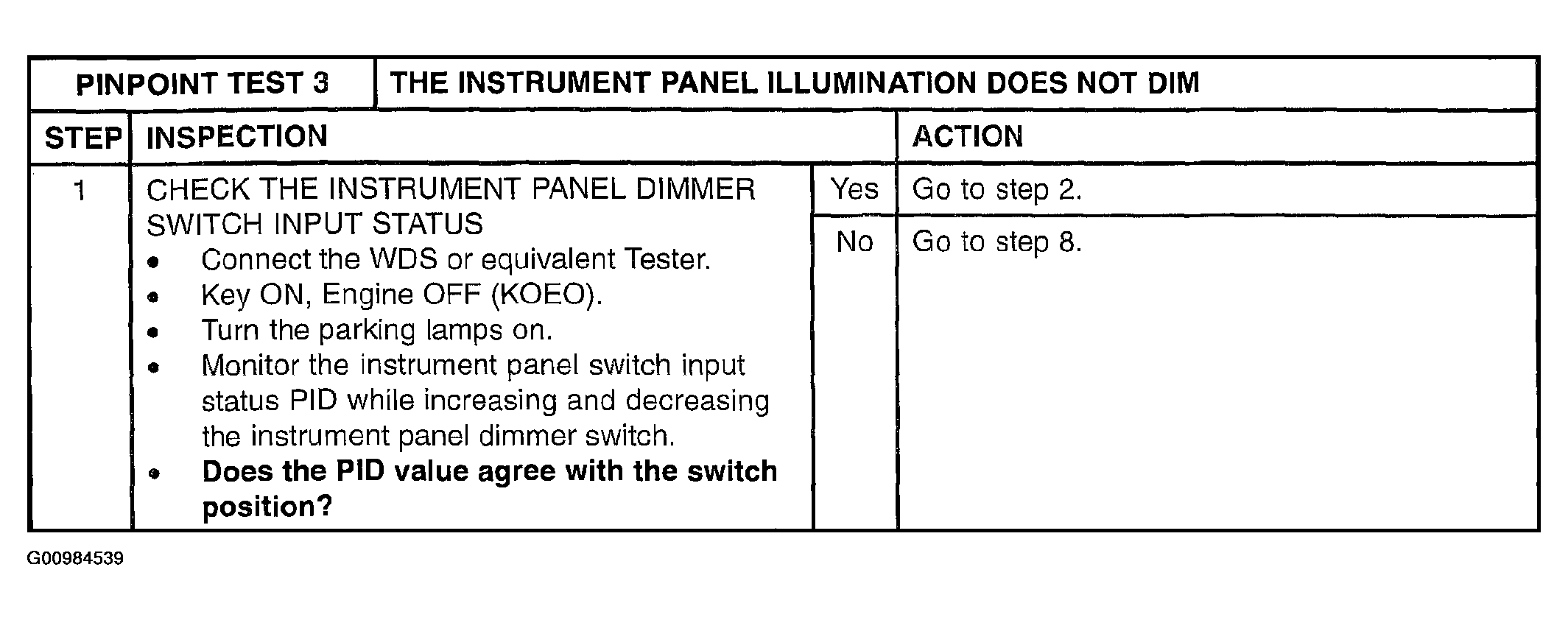

Fig 1: Pinpoint Test 3: The Instrument Panel Illumination Does Not Dim - Test Procedure (Step 1)

Courtesy of MAZDA MOTORS CORP.

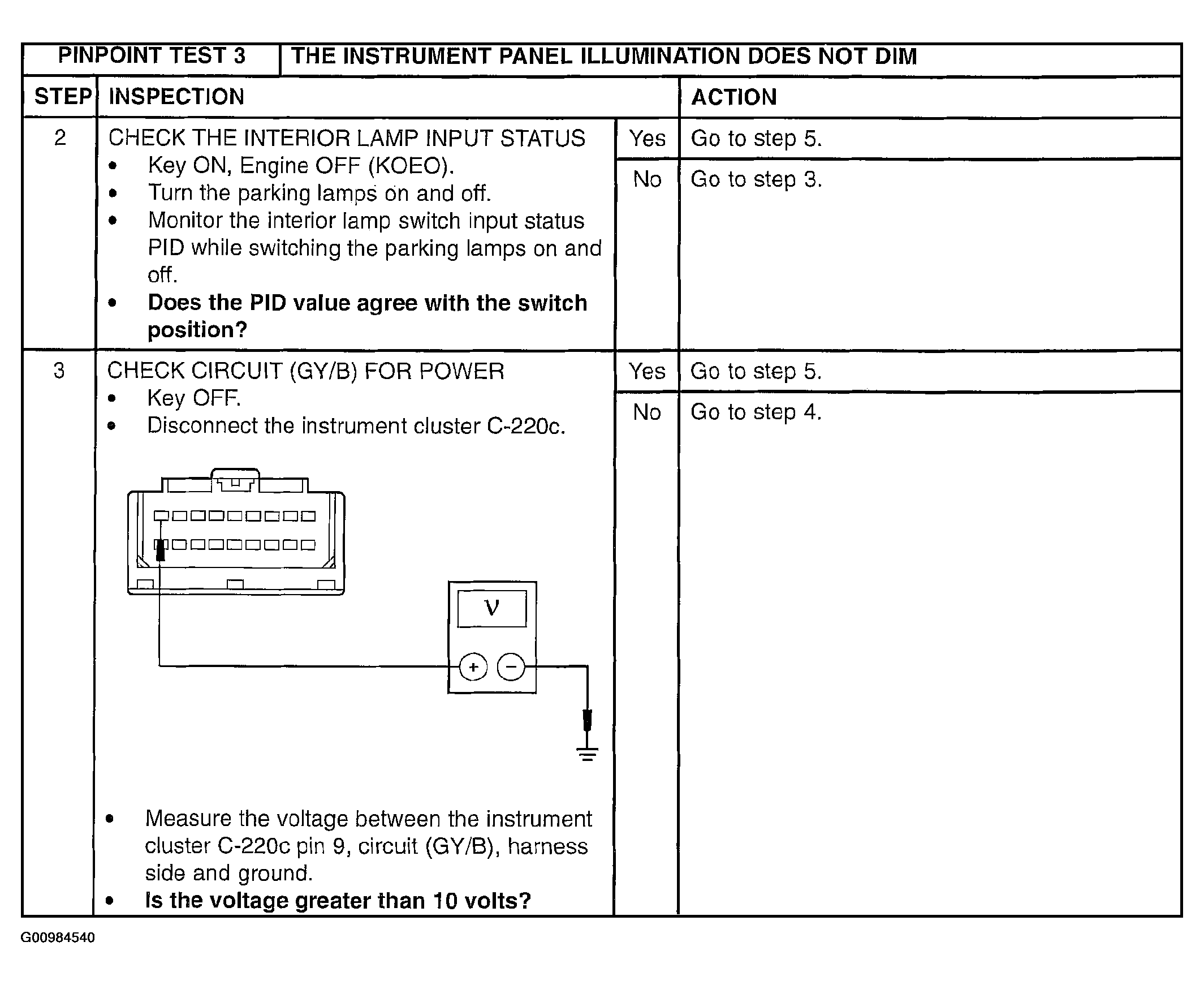

Fig 2: Pinpoint Test 3: The Instrument Panel Illumination Does Not Dim - Test Procedure (Steps 2 & 3)

Courtesy of MAZDA MOTORS CORP.

Fig 3: Pinpoint Test 3: The Instrument Panel Illumination Does Not Dim - Test Procedure (Step 4)

Courtesy of MAZDA MOTORS CORP.

Fig 4: Pinpoint Test 3: The Instrument Panel Illumination Does Not Dim - Test Procedure (Steps 5 & 6)

Courtesy of MAZDA MOTORS CORP.

Fig 5: Pinpoint Test 3: The Instrument Panel Illumination Does Not Dim - Test Procedure (Steps 7 & 8)

Courtesy of MAZDA MOTORS CORP.

Fig 6: Pinpoint Test 3: The Instrument Panel Illumination Does Not Dim - Test Procedure (Steps 9 & 10)

Courtesy of MAZDA MOTORS CORP.
