Gauges & Instrument Panels
>>
Troubleshooting (Instrumentation/Driver Information)
>>
Instrument Cluster
>>
Self-Diagnostic Mode
>>
Instrument Cluster Self-Diagnostic Mode
Instrument Cluster Self-Diagnostic Mode

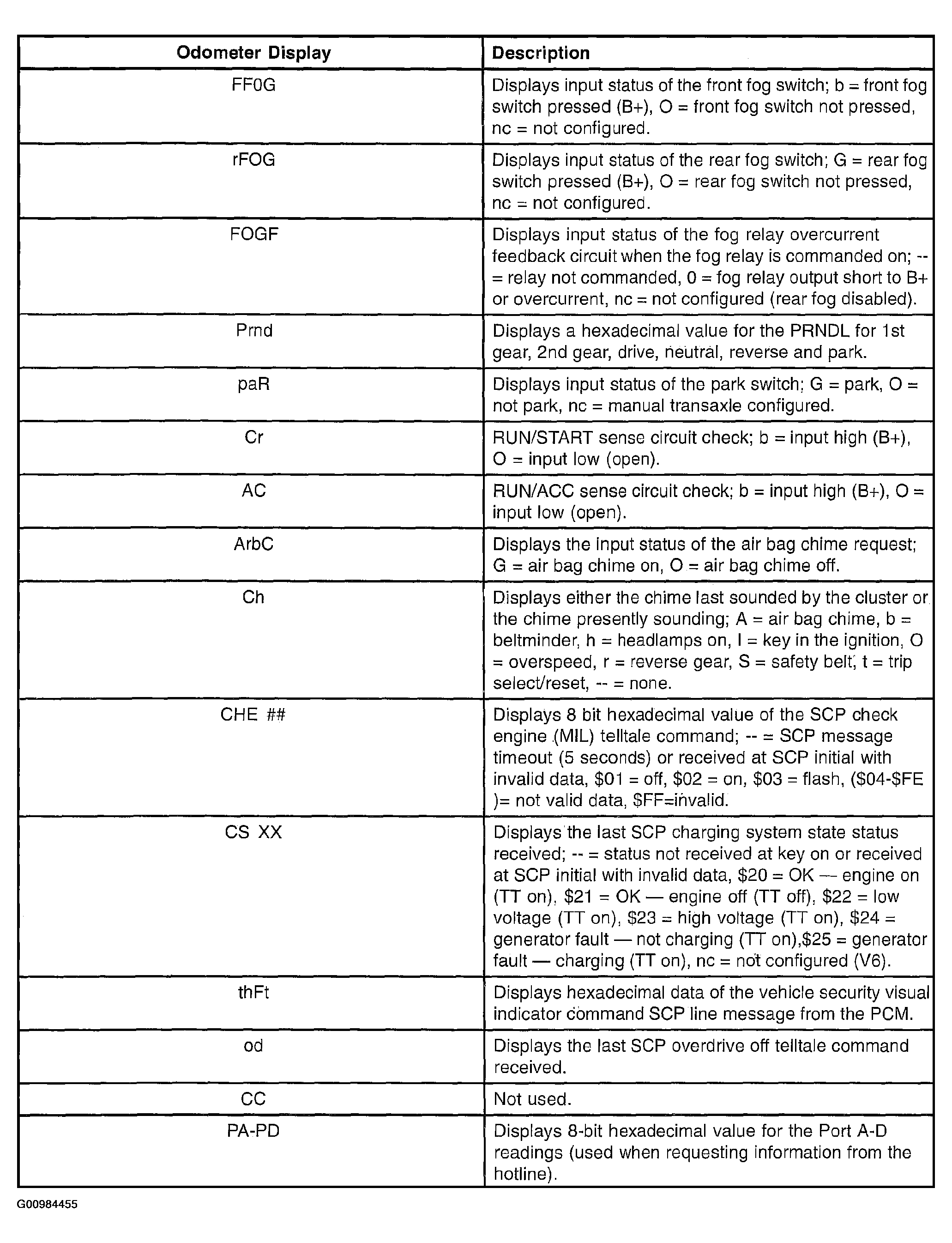

Fig 1: Instrument Cluster Self-Diagnostic Mode Chart (1 Of 4)
Courtesy of MAZDA MOTORS CORP.

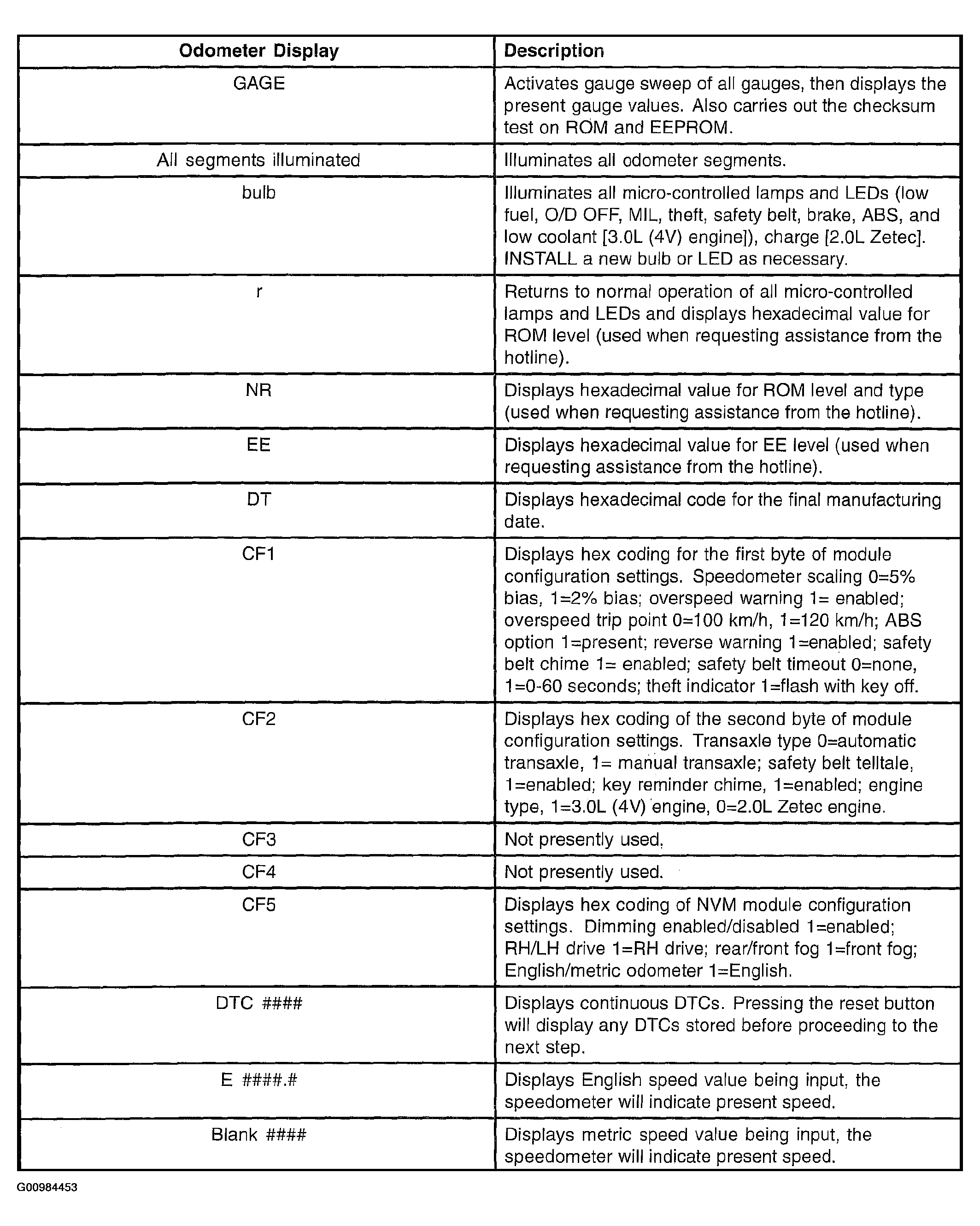

Fig 2: Instrument Cluster Self-Diagnostic Mode Chart (2 Of 4)
Courtesy of MAZDA MOTORS CORP.

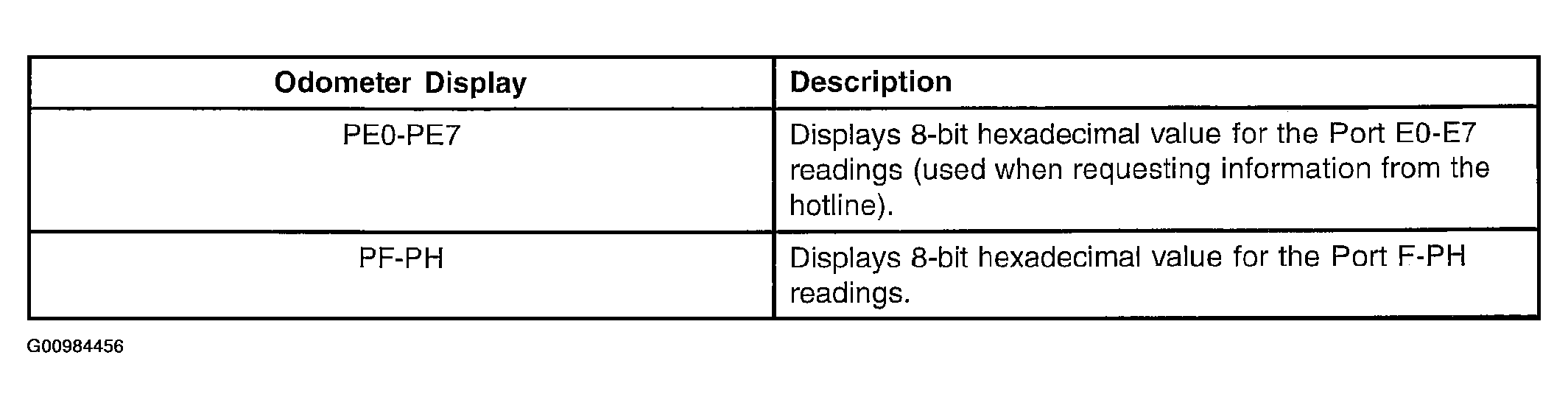

Fig 3: Instrument Cluster Self-Diagnostic Mode Chart (3 Of 4)
Courtesy of MAZDA MOTORS CORP.

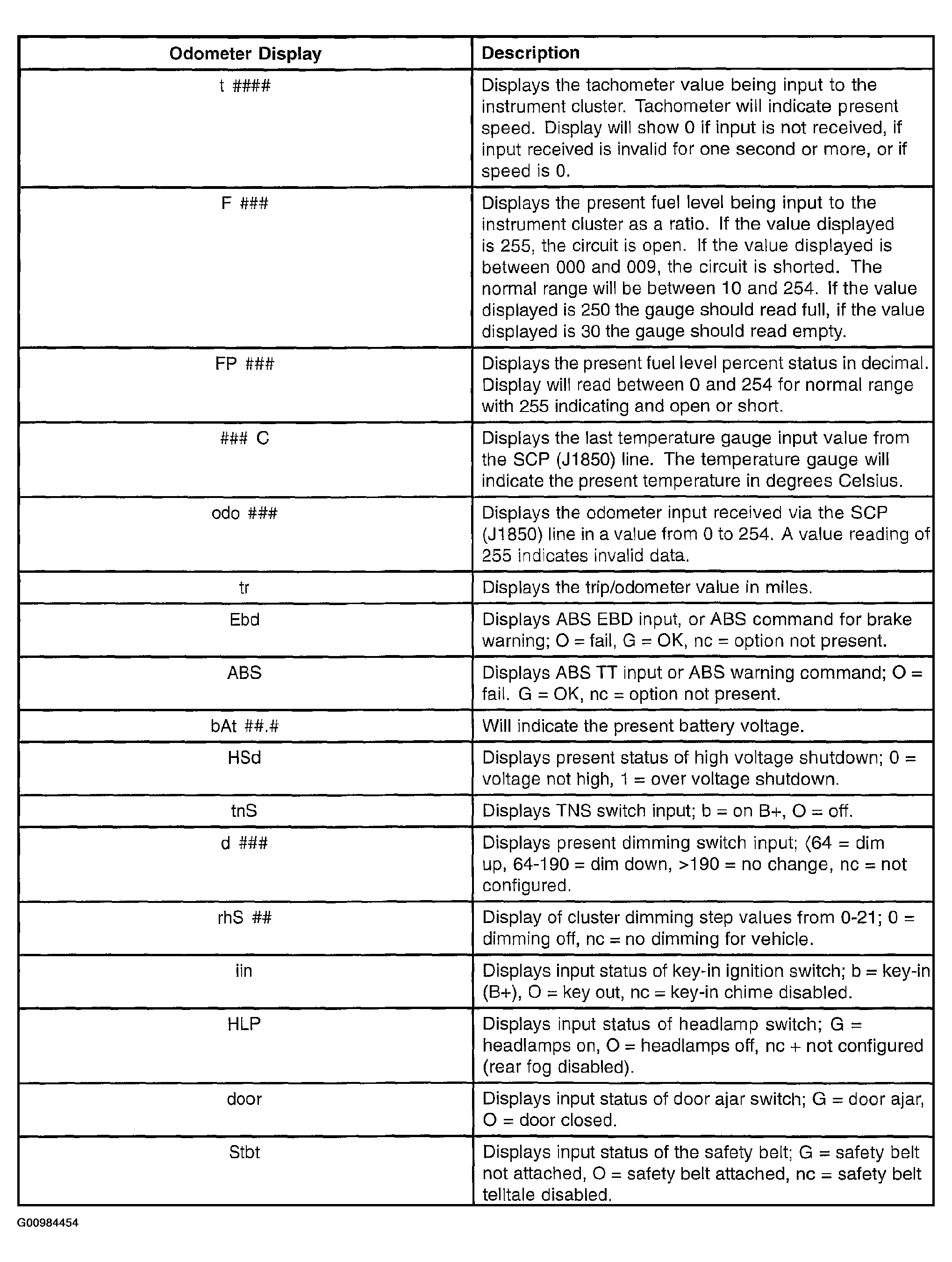

Fig 4: Instrument Cluster Self-Diagnostic Mode Chart (4 Of 4)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
