Instrument Cluster Diagnostic Trouble Code (DTC) Index

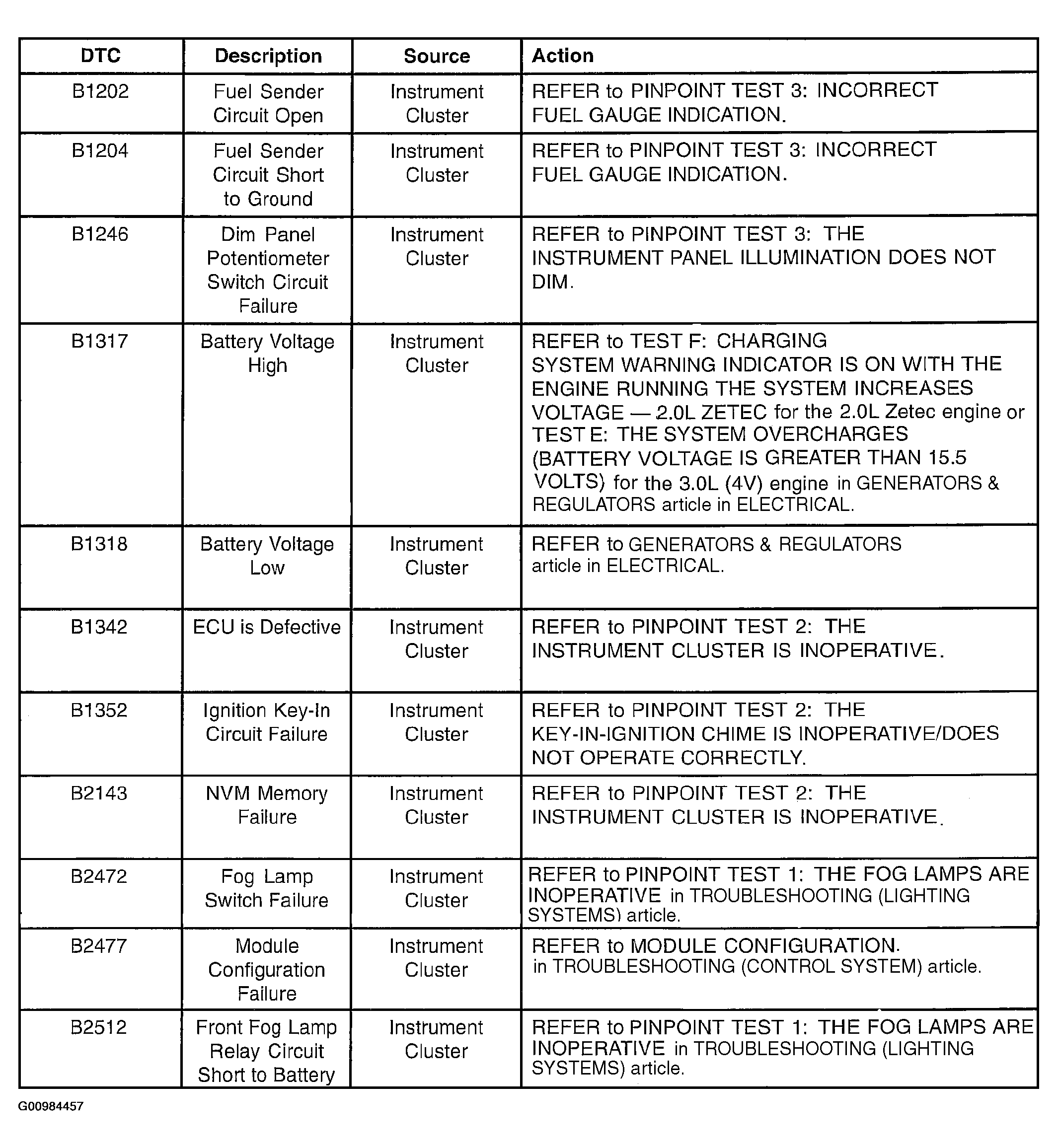

Fig 1: Instrument Cluster DTC's B1202, B1204, B1246, B1317, B1318, B1342, B1352, B2143, B2472, B2477 & B2512 Descriptions
G00984457Courtesy of MAZDA MOTORS CORP.

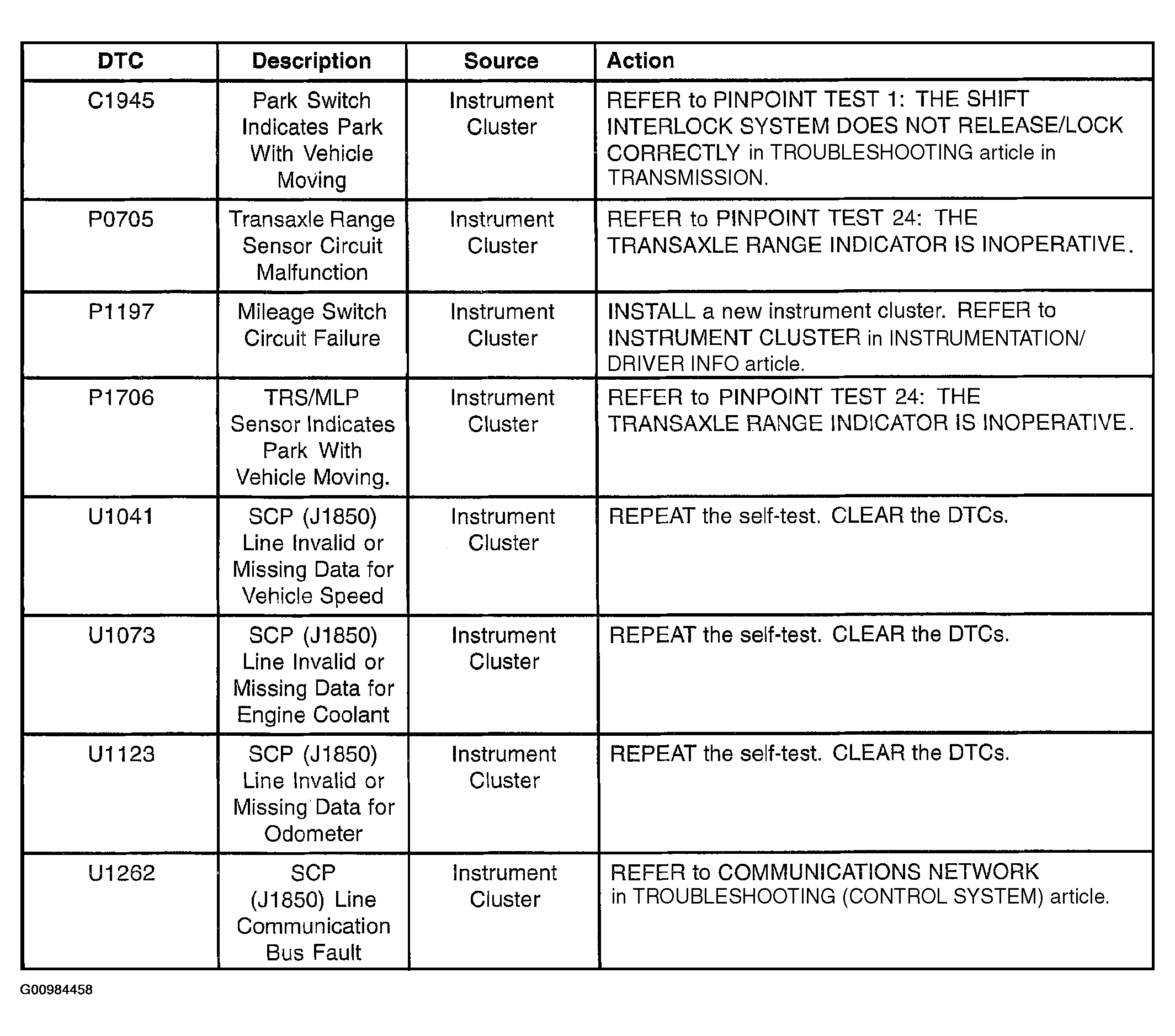

Fig 2: Instrument Cluster DTC's C1945, PC0705, P1197, P1706, U1041, U1073, U1123 & U1262 Descriptions
G00984458Courtesy of MAZDA MOTORS CORP.
