DTC P0651, P0352, P0353, P0354, P0355, P0356: Integrated Ignition Coil 1, 2, 3, 4, 5, Or 6 Failure

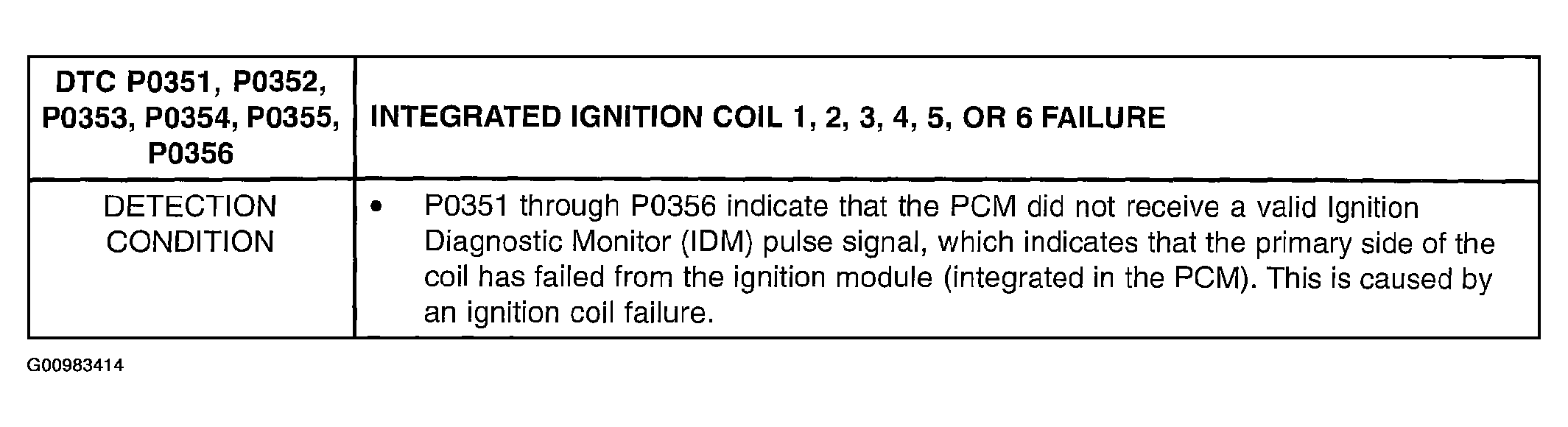

Fig 1: DTC P0651, P0352, P0353, P0354, P0355, P0356 Integrated Ignition Coil 1, 2, 3, 4, 5, Or 6 Failure: Detection Condition

Courtesy of MAZDA MOTORS CORP.

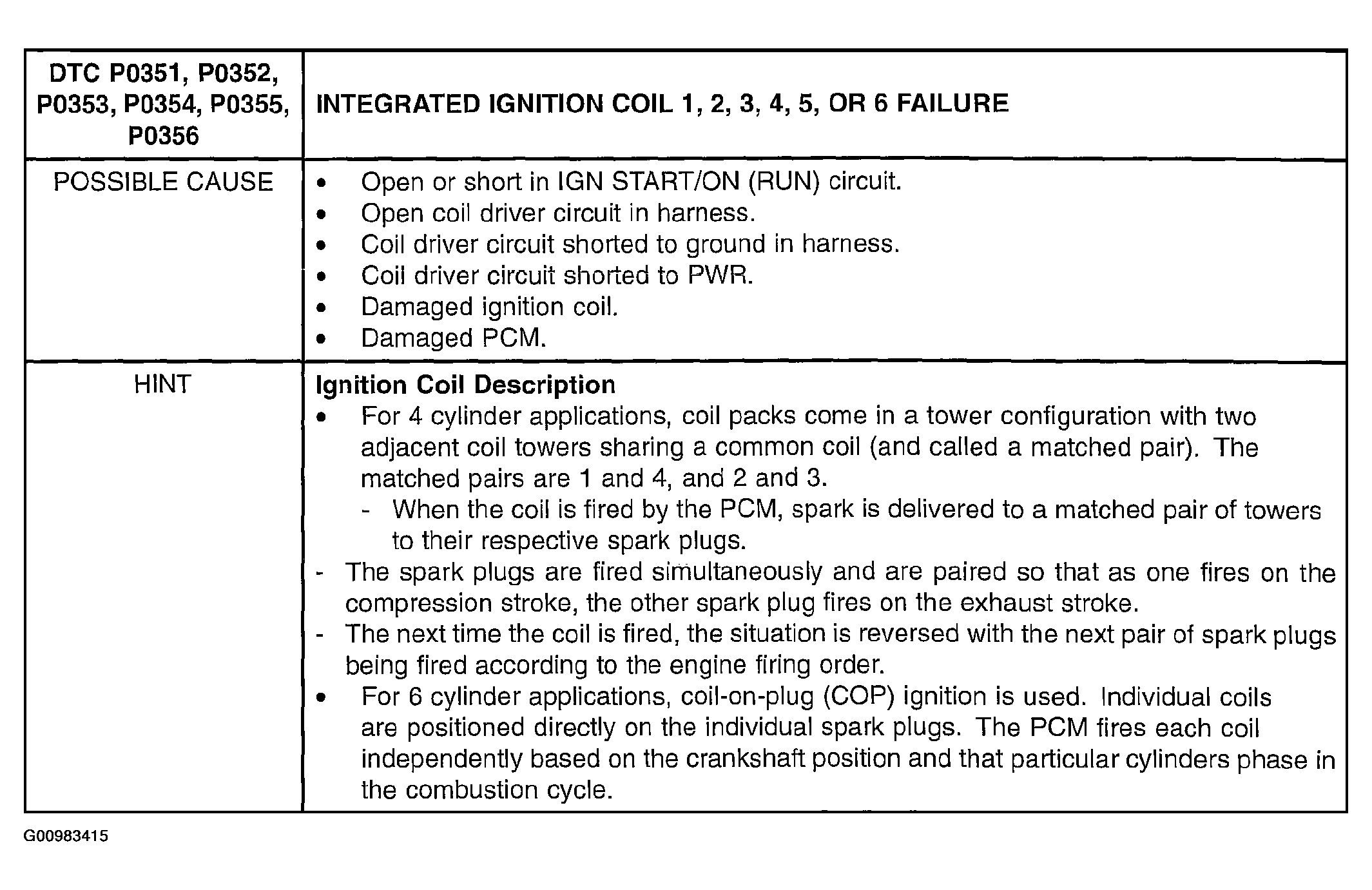

Fig 2: DTC P0651, P0352, P0353, P0354, P0355, P0356 Integrated Ignition Coil 1, 2, 3, 4, 5, Or 6 Failure: Possible Cause & Hint

Courtesy of MAZDA MOTORS CORP.

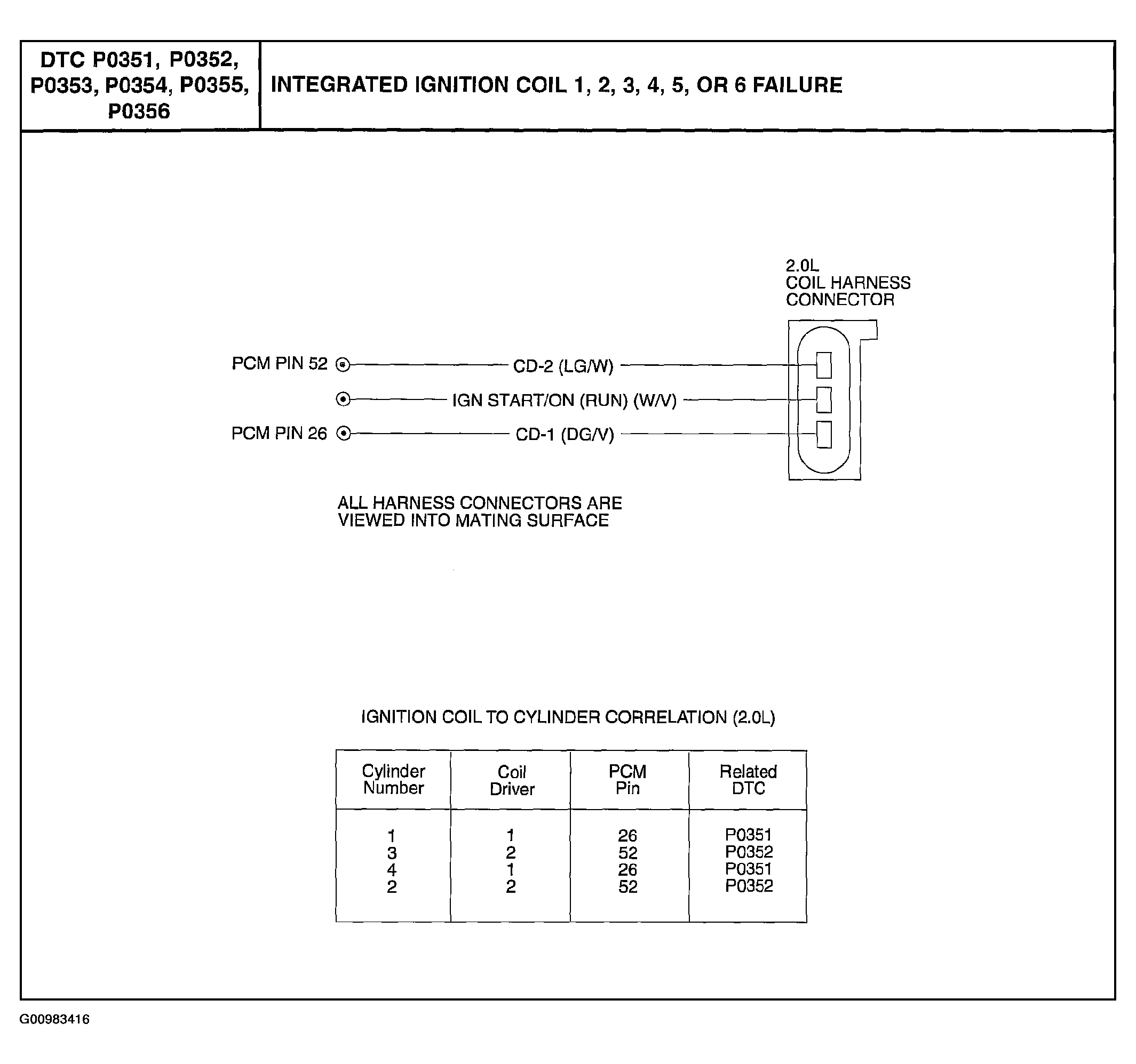

Fig 3: DTC P0651, P0352, P0353, P0354, P0355, P0356 Integrated Ignition Coil 1, 2, 3, 4, 5, Or 6 Failure: 2.0L Coil Harness Connector View & Ignition Coil To Cylinder Correlation

Courtesy of MAZDA MOTORS CORP.

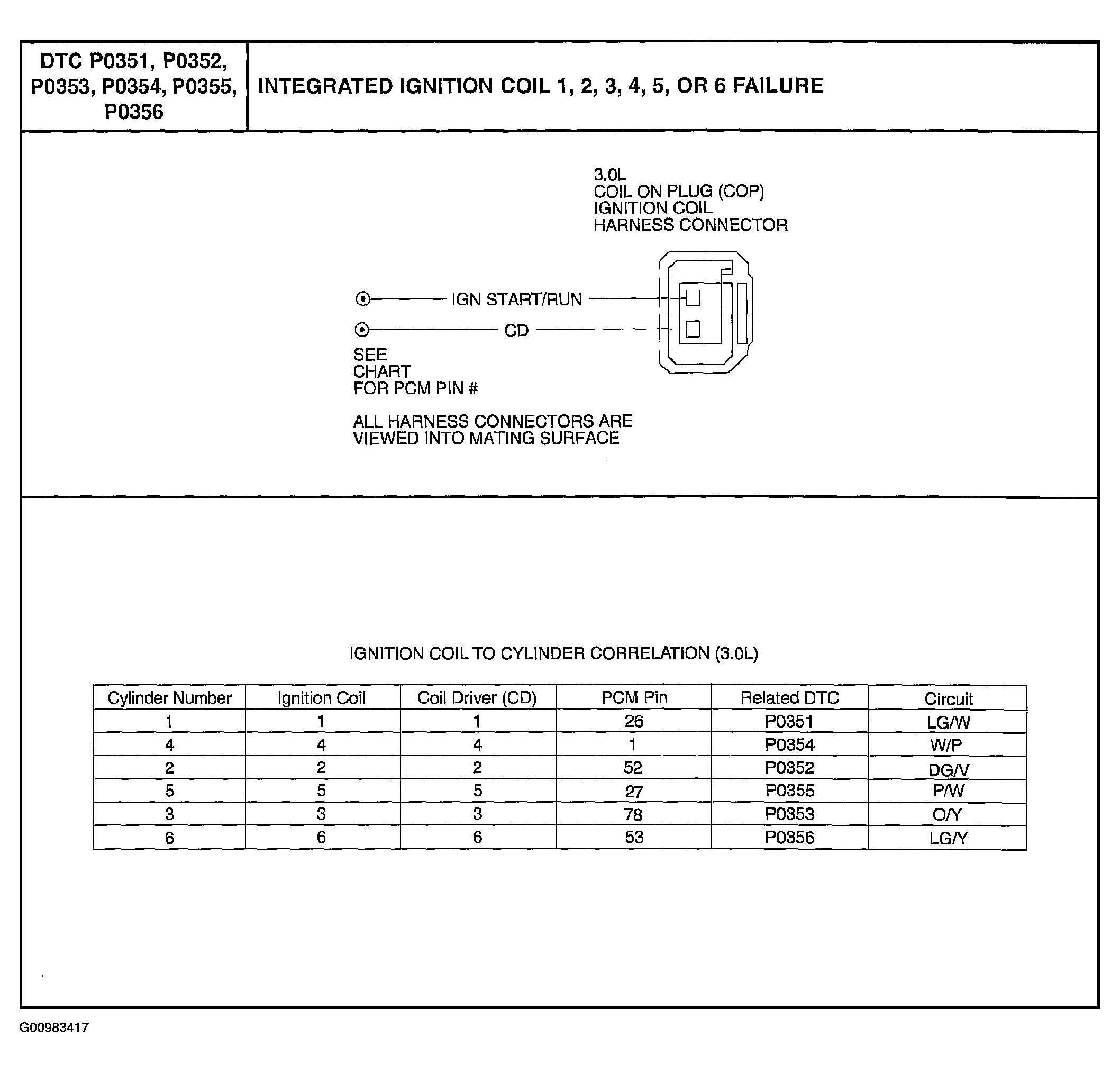

Fig 4: DTC P0651, P0352, P0353, P0354, P0355, P0356 Integrated Ignition Coil 1, 2, 3, 4, 5, Or 6 Failure: 3.0L Coil Harness Connector View & Ignition Coil To Cylinder Correlation

Courtesy of MAZDA MOTORS CORP.

Fig 5: DTC P0651, P0352, P0353, P0354, P0355, P0356 Integrated Ignition Coil 1, 2, 3, 4, 5, Or 6 Failure: Inspection (Step 1)

Courtesy of MAZDA MOTORS CORP.

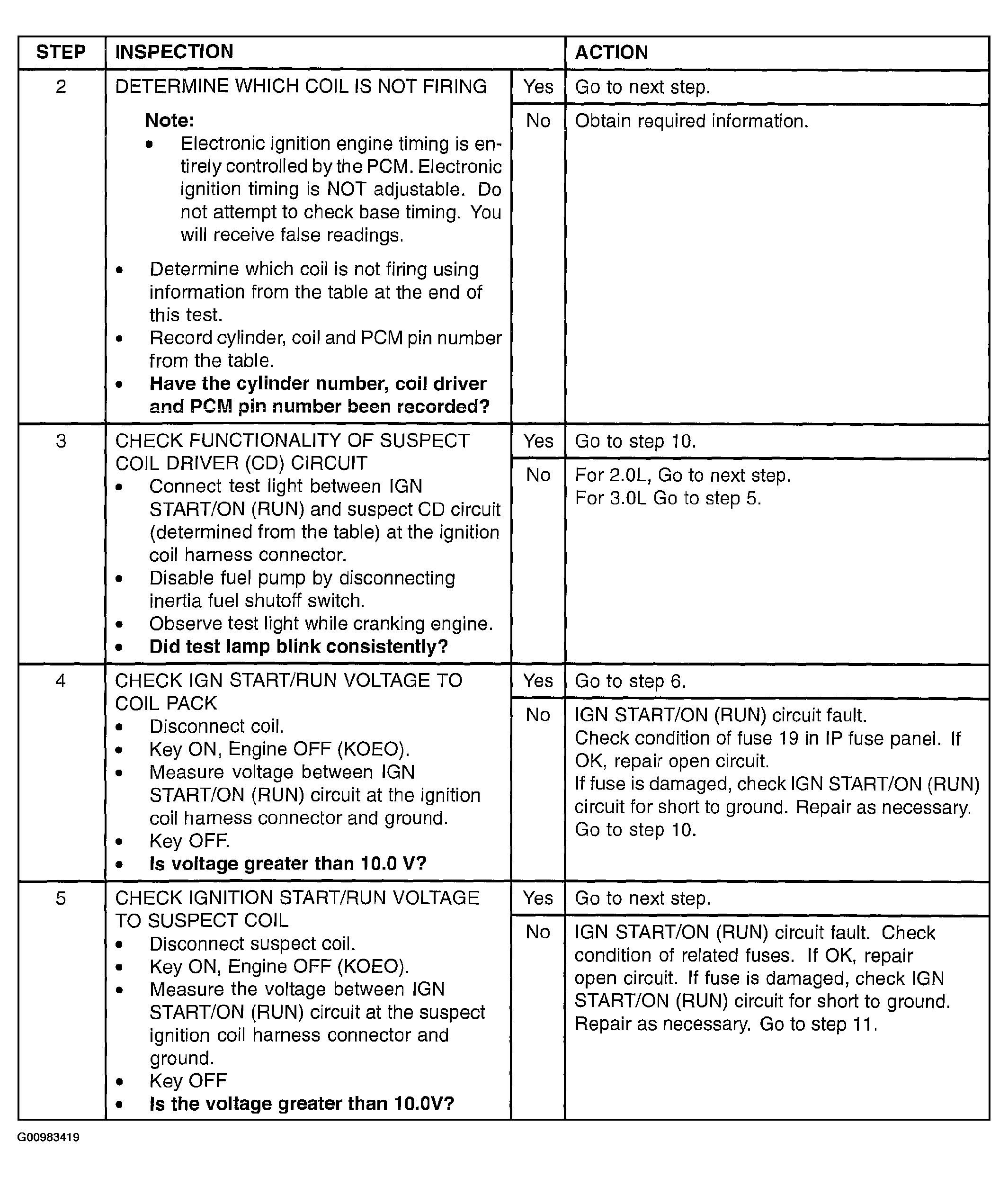

Fig 6: DTC P0651, P0352, P0353, P0354, P0355, P0356 Integrated Ignition Coil 1, 2, 3, 4, 5, Or 6 Failure: Inspection (Steps 2-5)

Courtesy of MAZDA MOTORS CORP.

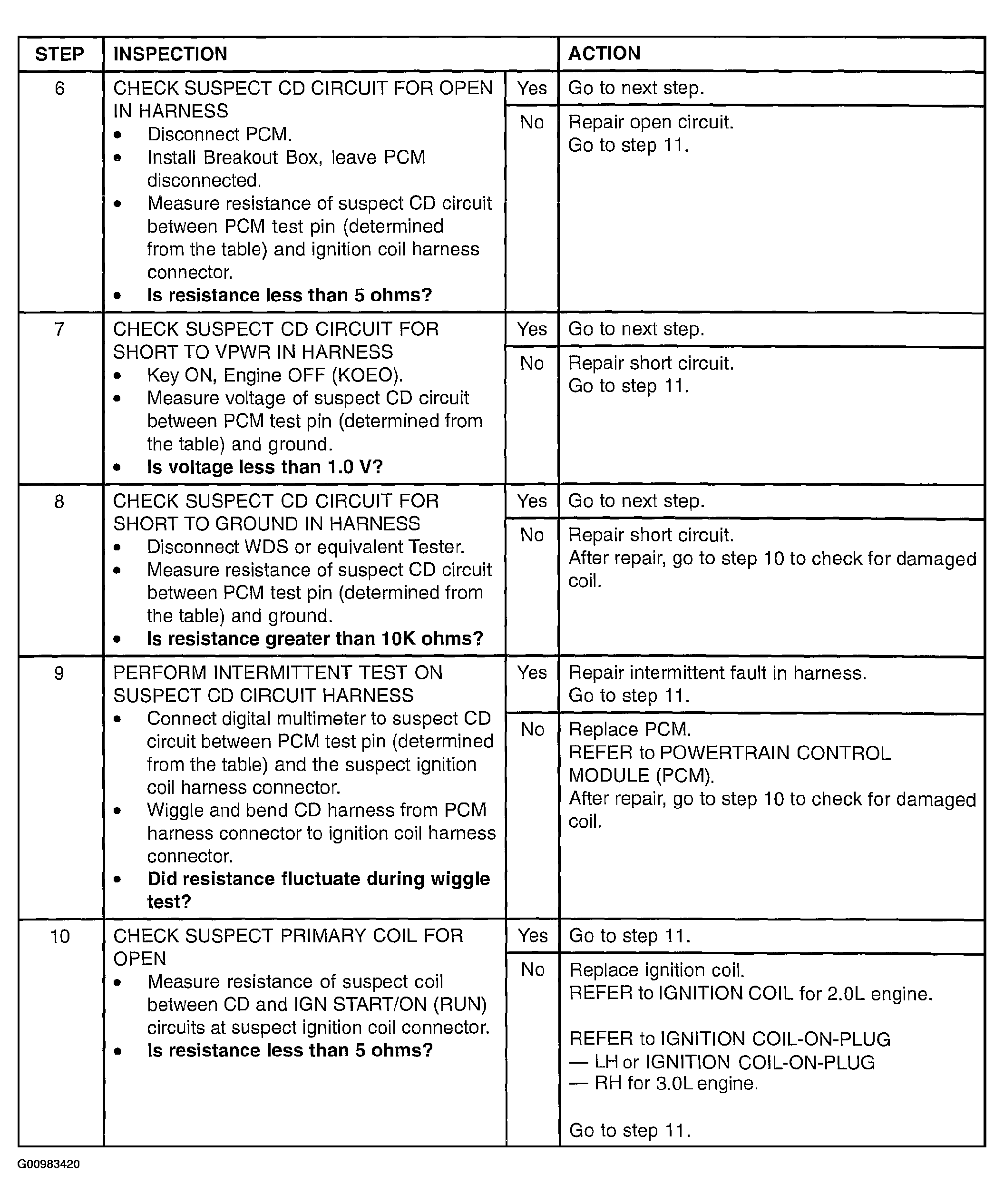

Fig 7: DTC P0651, P0352, P0353, P0354, P0355, P0356 Integrated Ignition Coil 1, 2, 3, 4, 5, Or 6 Failure: Inspection (Steps 6-10)

Courtesy of MAZDA MOTORS CORP.

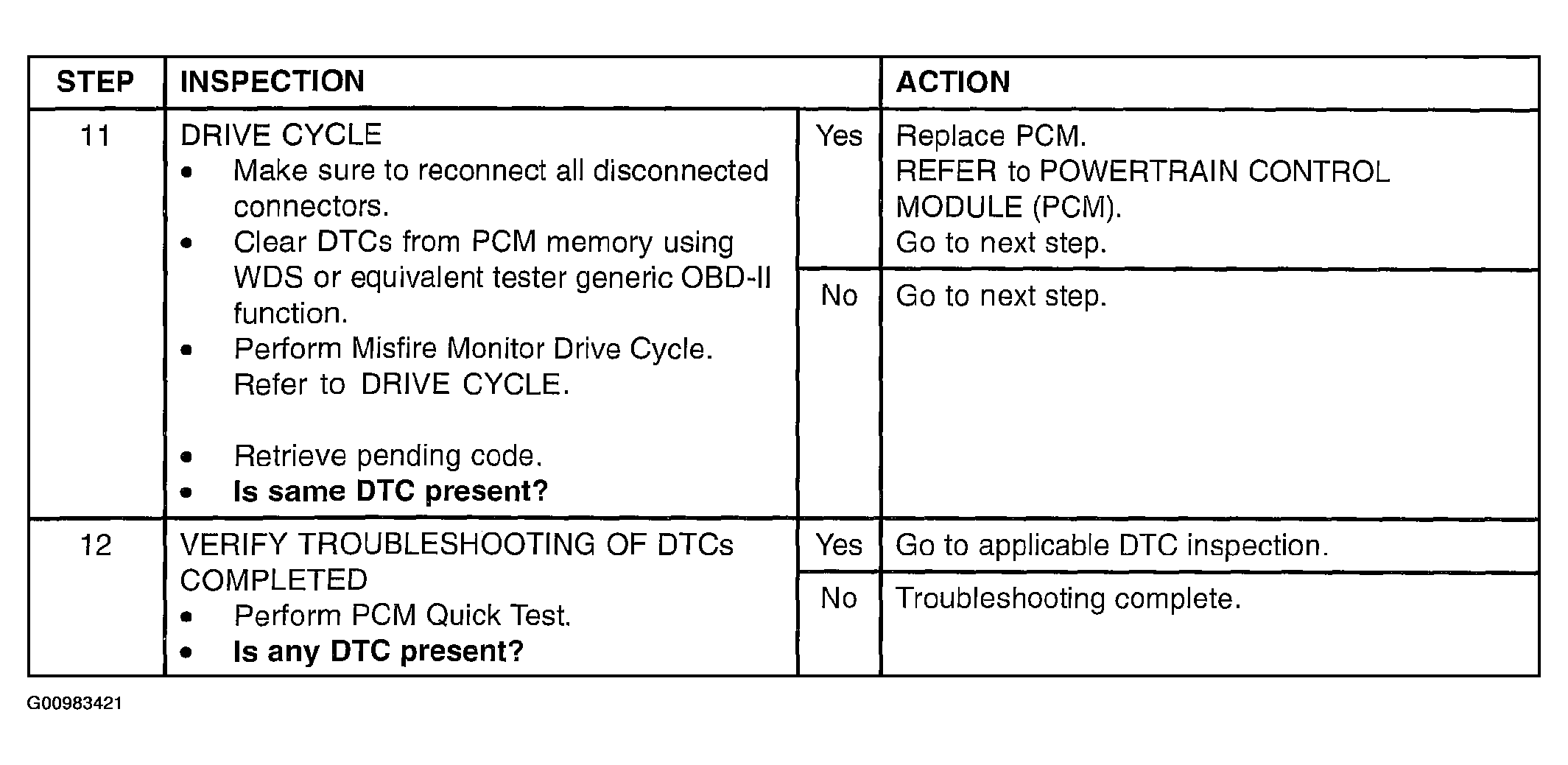

Fig 8: DTC P0651, P0352, P0353, P0354, P0355, P0356 Integrated Ignition Coil 1, 2, 3, 4, 5, Or 6 Failure: Inspection (Steps 11-12)

Courtesy of MAZDA MOTORS CORP.
