Home >> Mazda >> 2004 >> Tribute 2WD L4-2.0L >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - HVAC >> Blower Motor Switch >> Locations

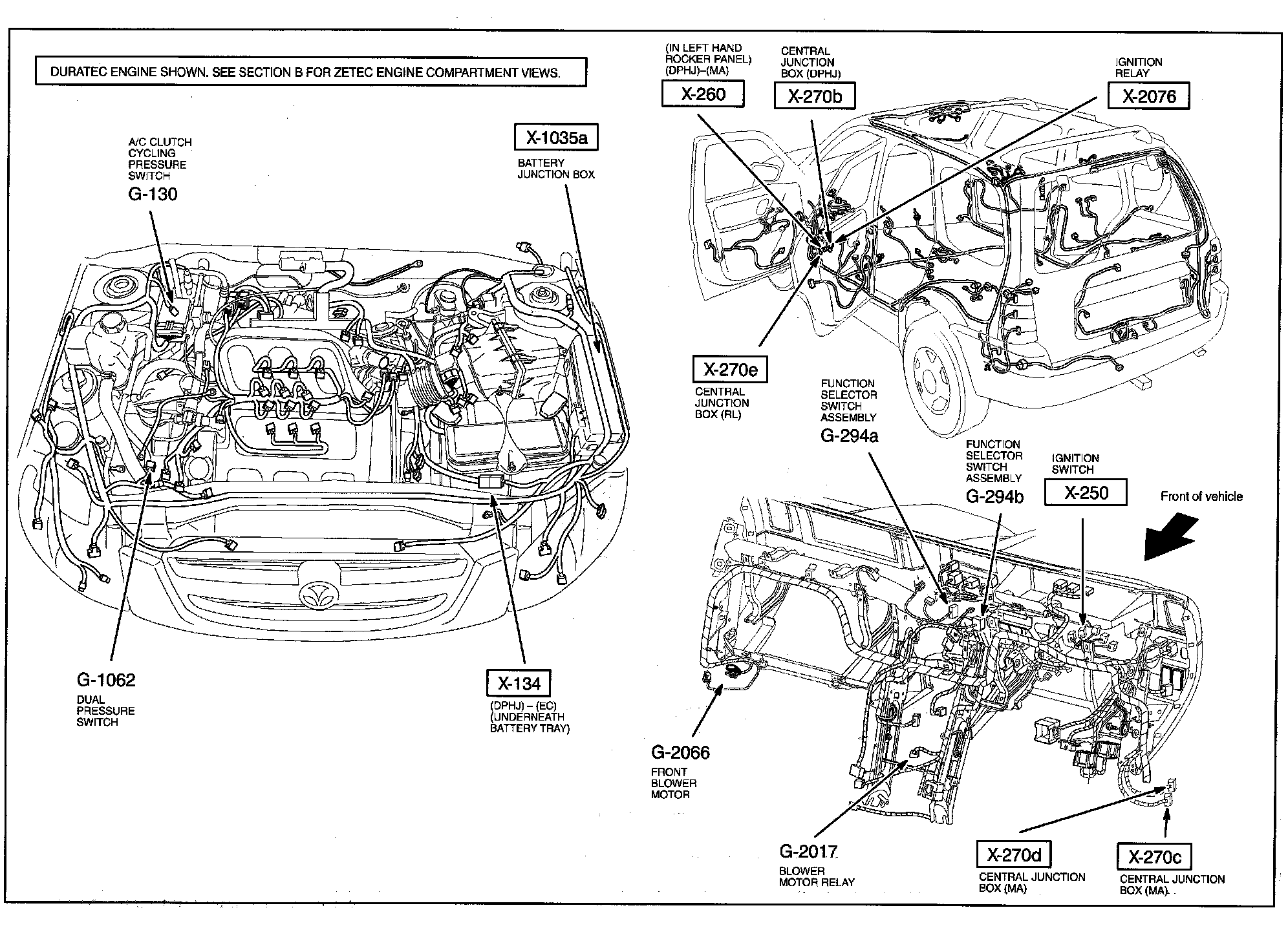

Blower Motor Switch: Locations

Routing View G-a:
