Home >> Mazda >> 2004 >> Tribute 2WD L4-2.0L >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Engine >> Oil Pressure Sender >> Locations

Oil Pressure Sender: Locations

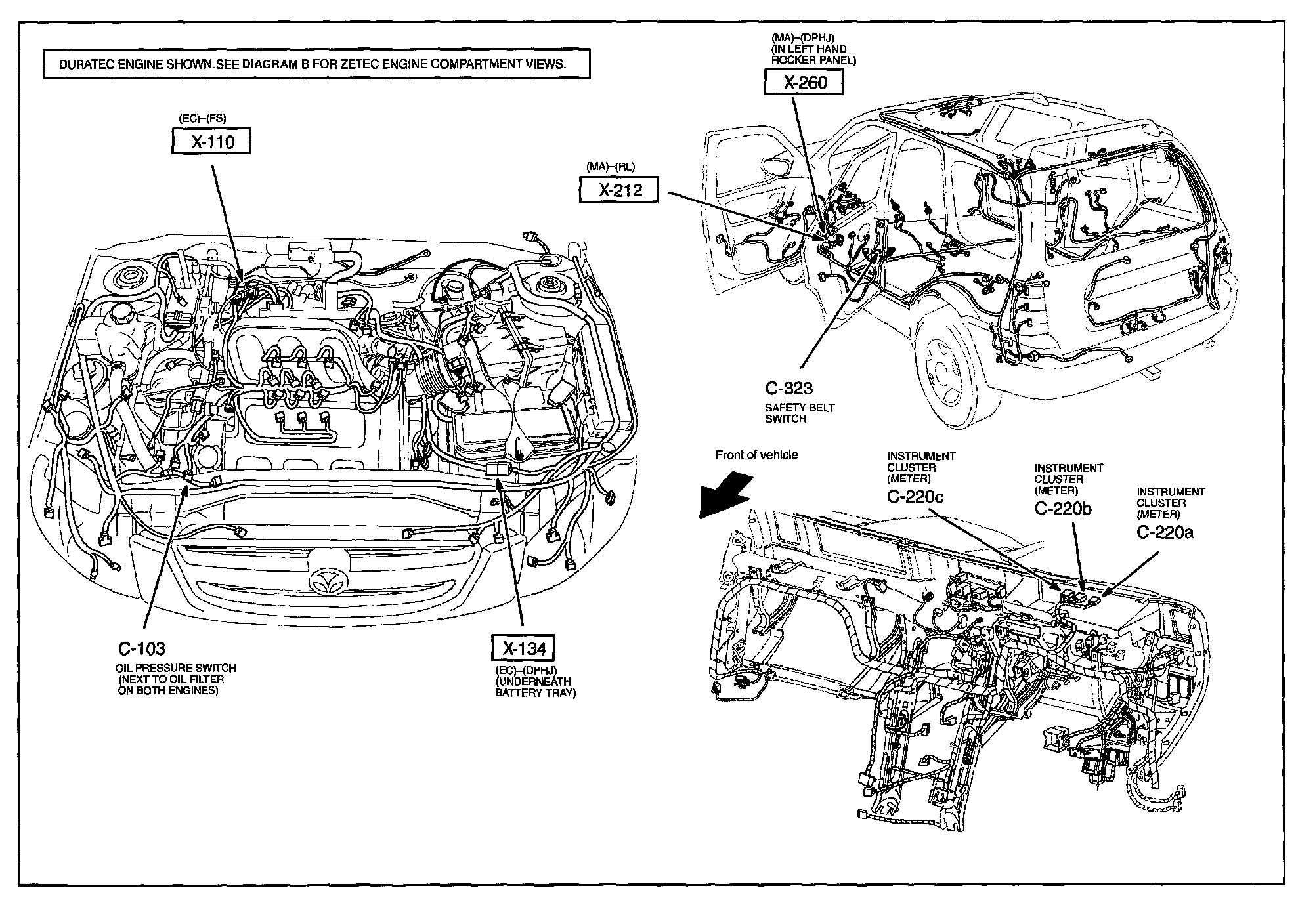

Routing View C-d:

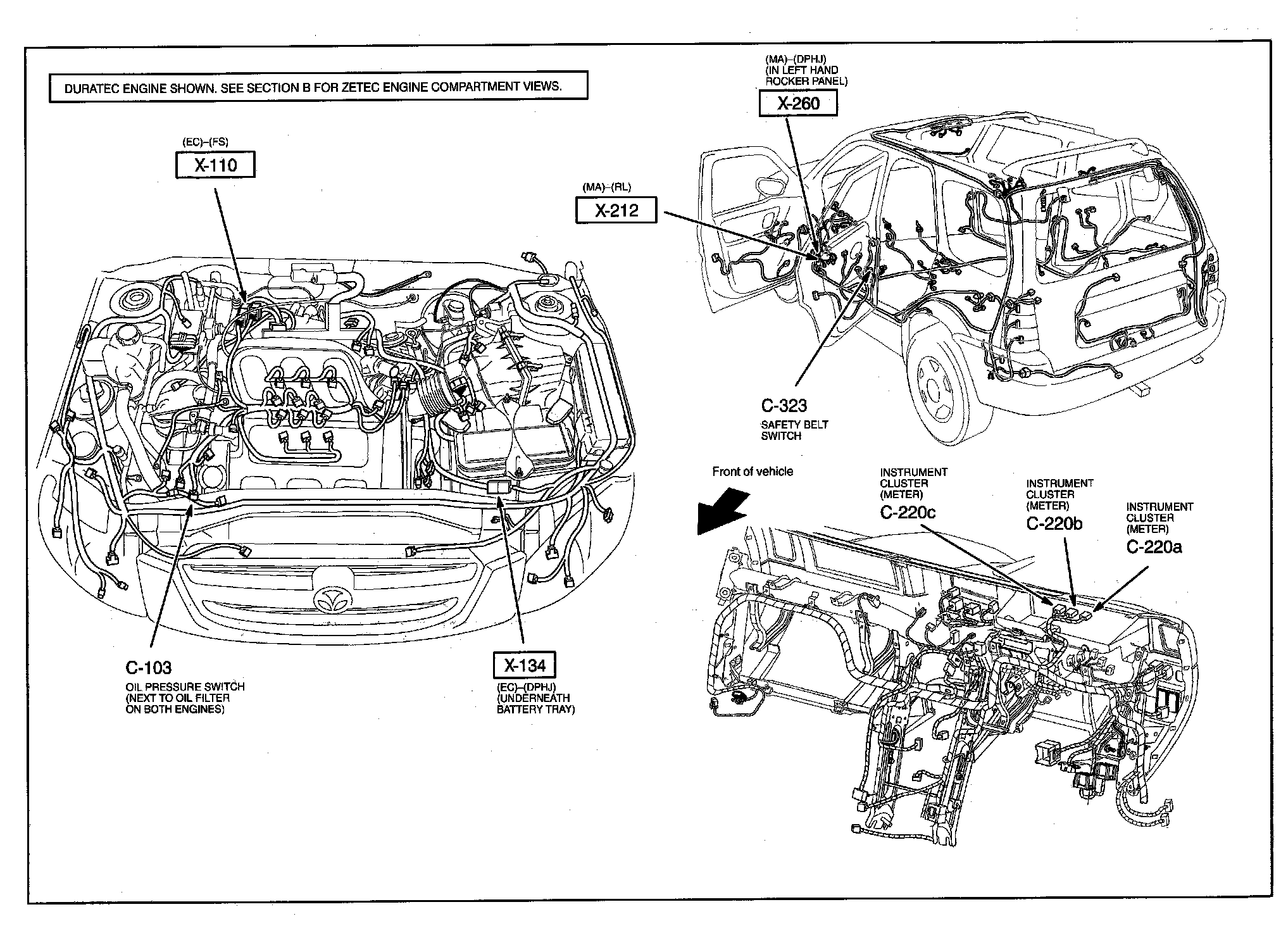

Routing View C-d:
