Home >> Mazda >> 2004 >> Tribute 2WD L4-2.0L >> Repair and Diagnosis >> Powertrain Management >> Fuel Delivery and Air Induction >> Sensors and Switches - Fuel Delivery and Air Induction >> Fuel Pressure Sensor/Switch >> Locations

Fuel Pressure Sensor/Switch: Locations

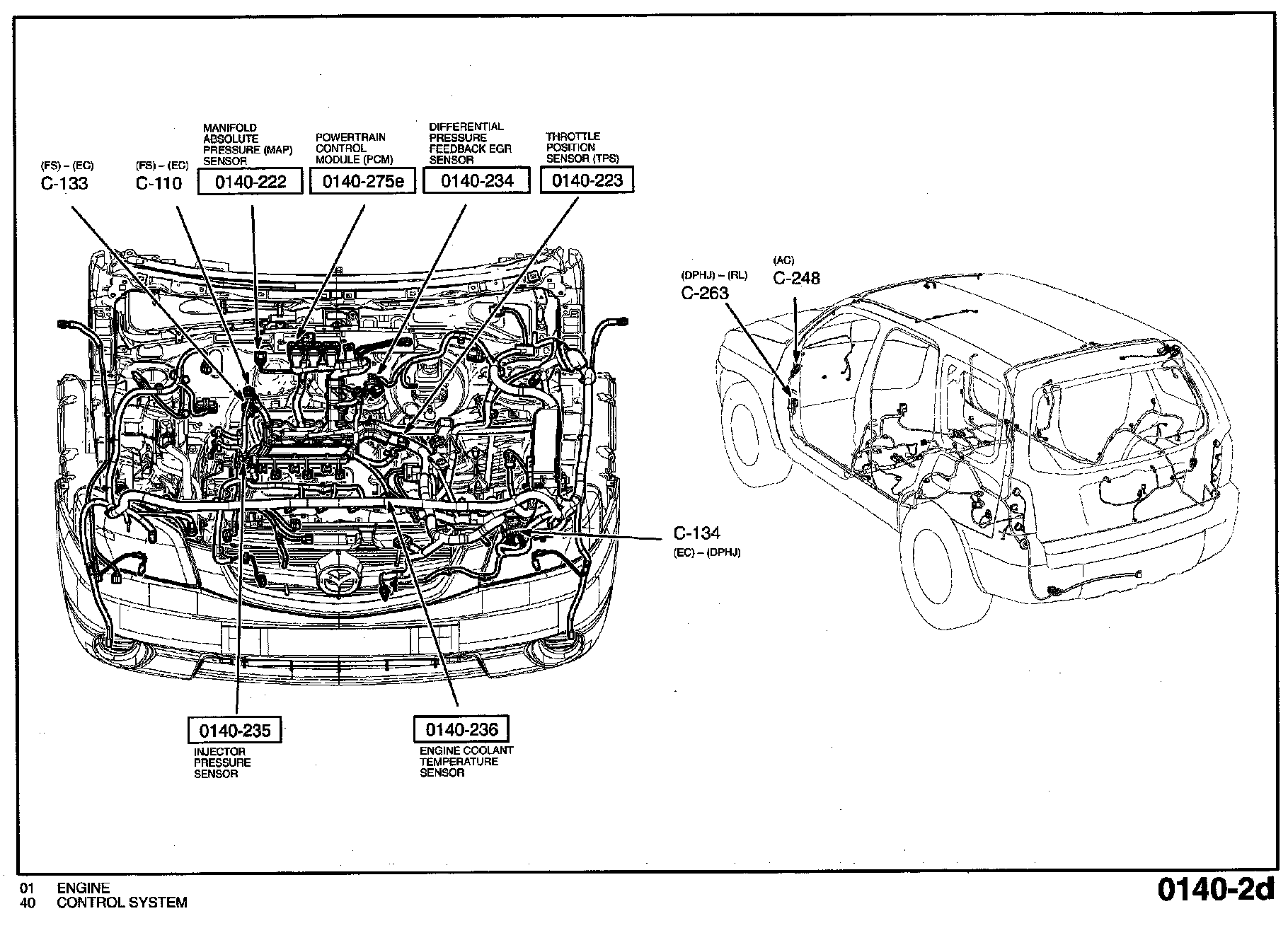

Routing View 0140-2d:
