Home >> Mazda >> 2004 >> Tribute 2WD L4-2.0L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Diagrams By Diagram Name >> Diagram H-1

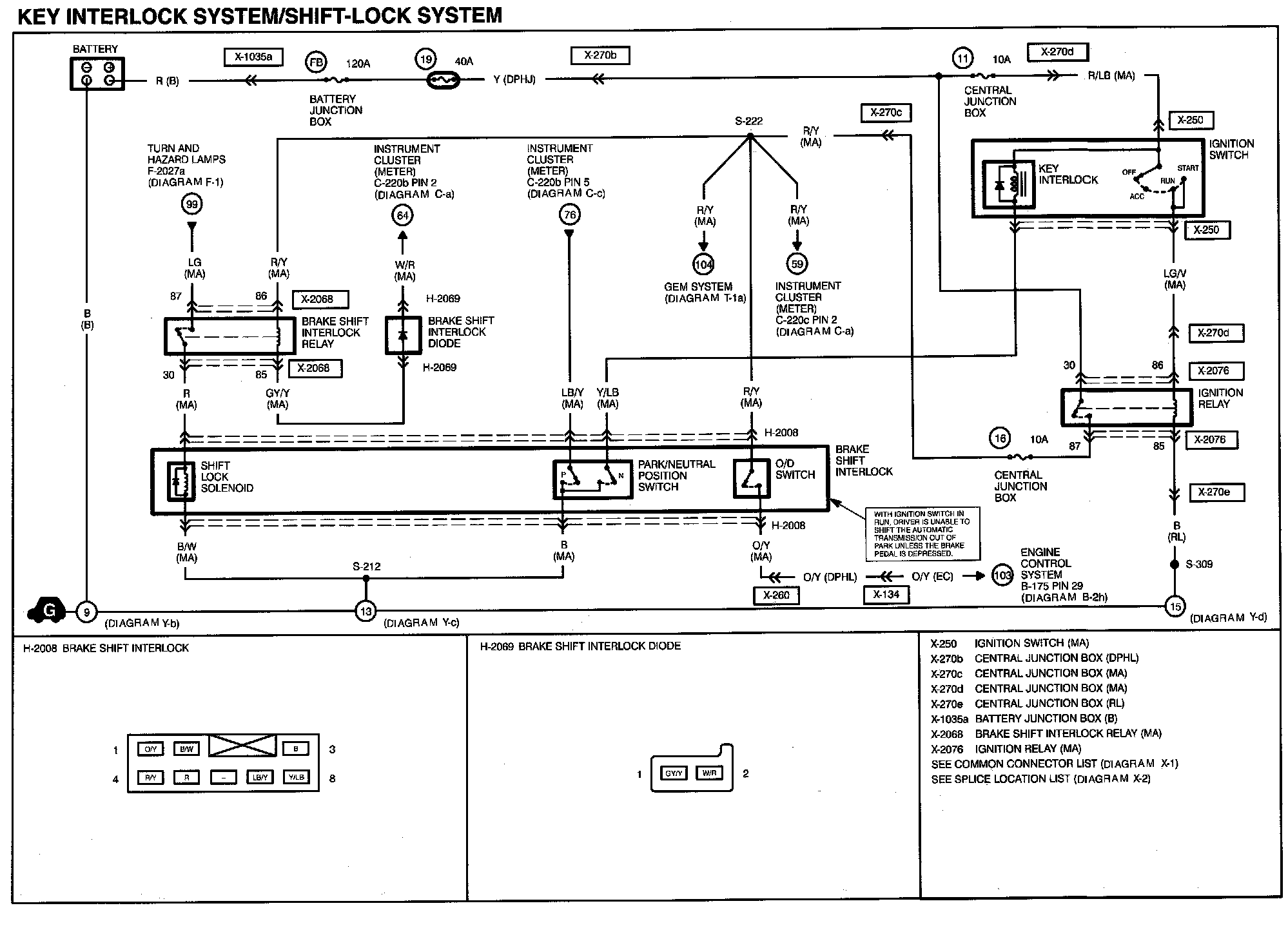

Diagram H-1

Diagram H-1:
