Intermittent Rear Wiper Relay Removal/Installation [5-Door, Sport Wagon]: 5-Door

WARNING: This page is about a different car, the 2005 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Remove the trunk side trim. (See TRUNK SIDE TRIM REMOVAL/INSTALLATION )
  3. Remove in the order indicated in the table.

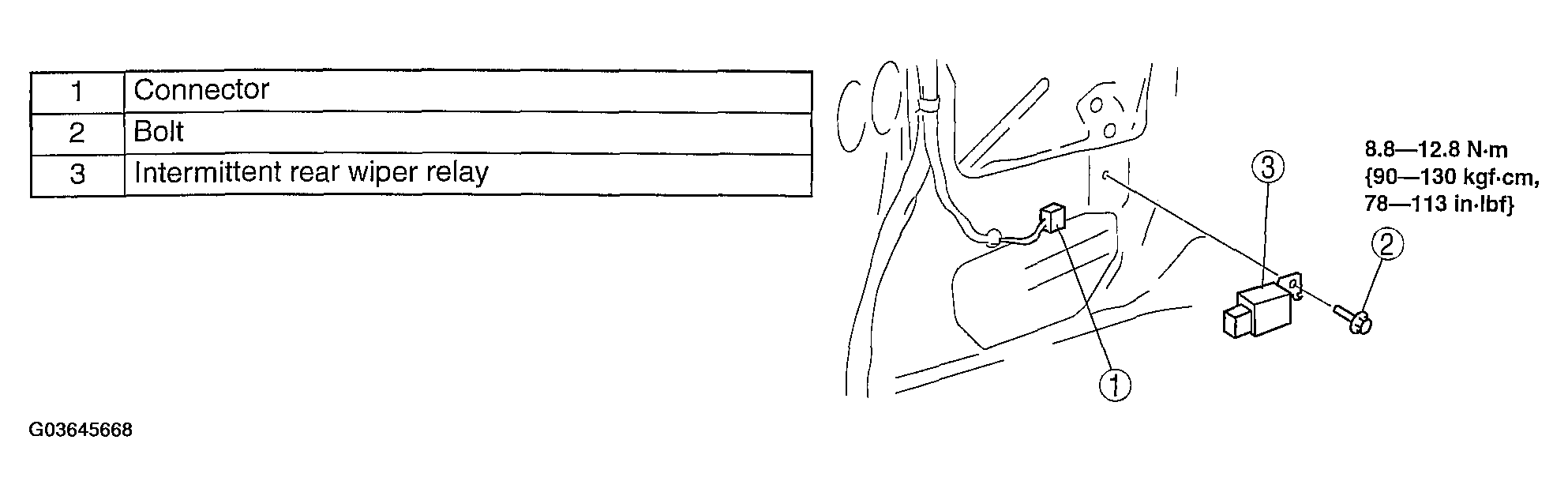

    Fig 1: Intermittent Rear Wiper Relay Removal Sequence (5-Door) (Torque Specs)
    G03645668Courtesy of MAZDA MOTORS CORP.
  4. Install in the reverse order of removal.
