Rear seat removal note

WARNING: This page is about a different car, the 2005 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front hinge installation bolts.
  2. Lift the rear seat cushion, then remove the rear hinge installation bolts.

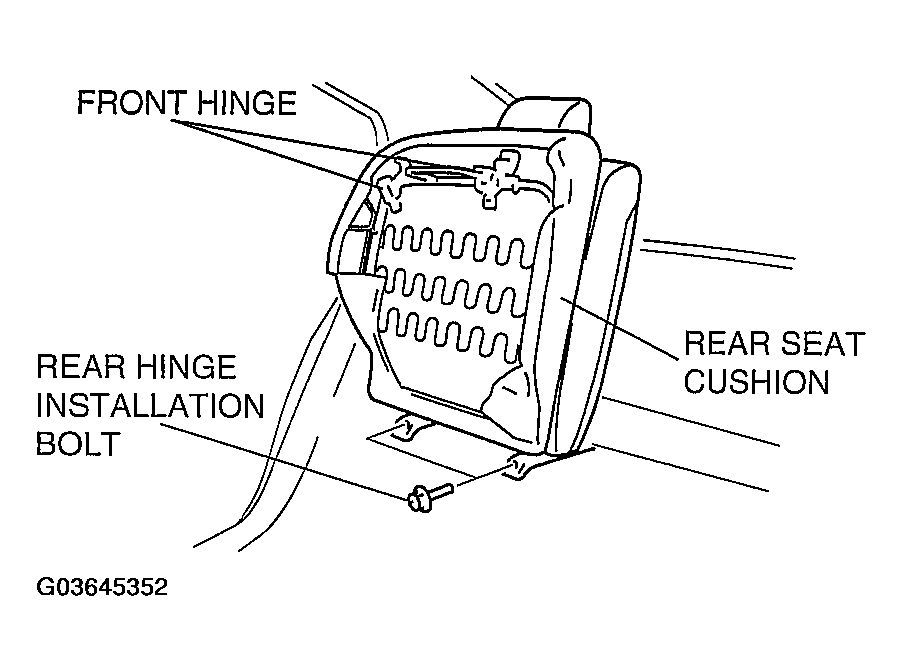

    Fig 1: Locating Rear Hinge Bolts
    G03645352Courtesy of MAZDA MOTORS CORP.
