Rear Center Seat Belt Removal/Installation [Sport Wagon]

WARNING: This page is about a different car, the 2005 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

The ELR has a spring that will unwind if the retractor's cover is removed. The spring cannot be rewound by hand. If this occurs, the ELR will not work properly. Therefore, do not disassemble the retractor.

Remove the headliner. (See HEADLINER REMOVAL/INSTALLATION .)
Remove the bolts.

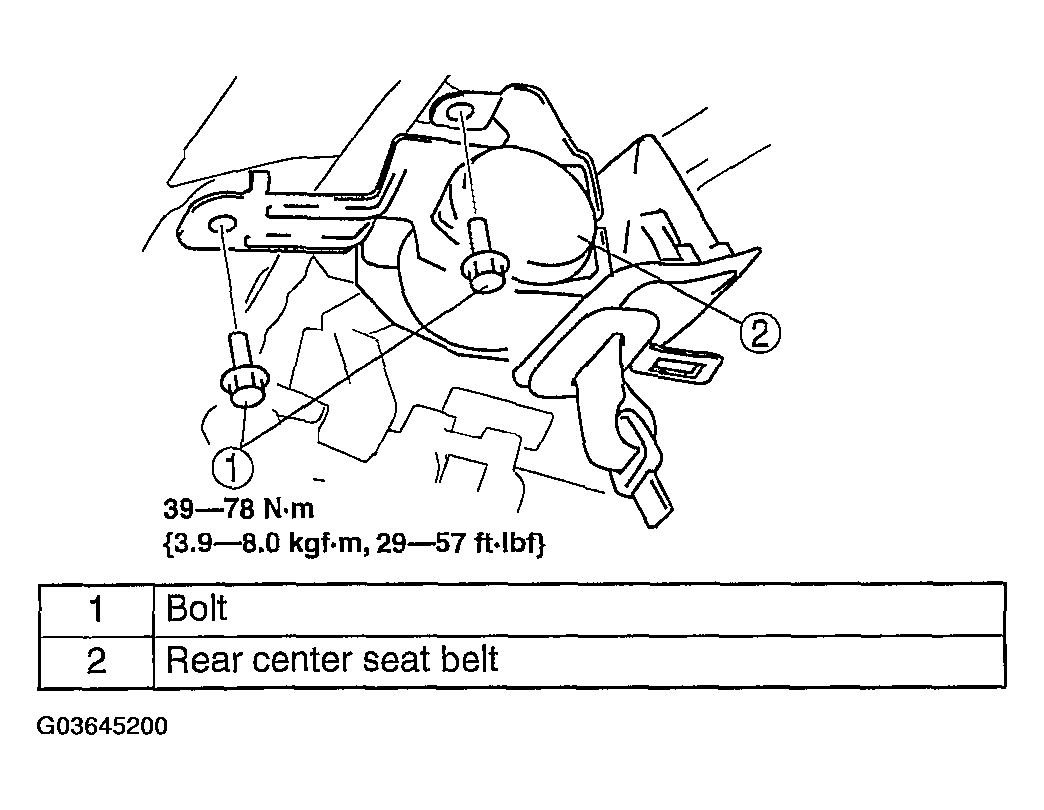

Fig 1: Removing Bolts (Torque Specs)
Courtesy of MAZDA MOTORS CORP.
Remove the rear center seat belt.
Install in the reverse order of removal.
