DTC C1148, C1158, C1168, C1178, C1233, C1234, C1235, C1236: Notes

WARNING: This page is about a different car, the 2005 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

When attaching the tester lead to the ABS/TCS HU/CM harness connector, the SST (49 G066 001 [Adapter harness]) must be used. (See ABS/TCS HU/CM INSPECTION .)

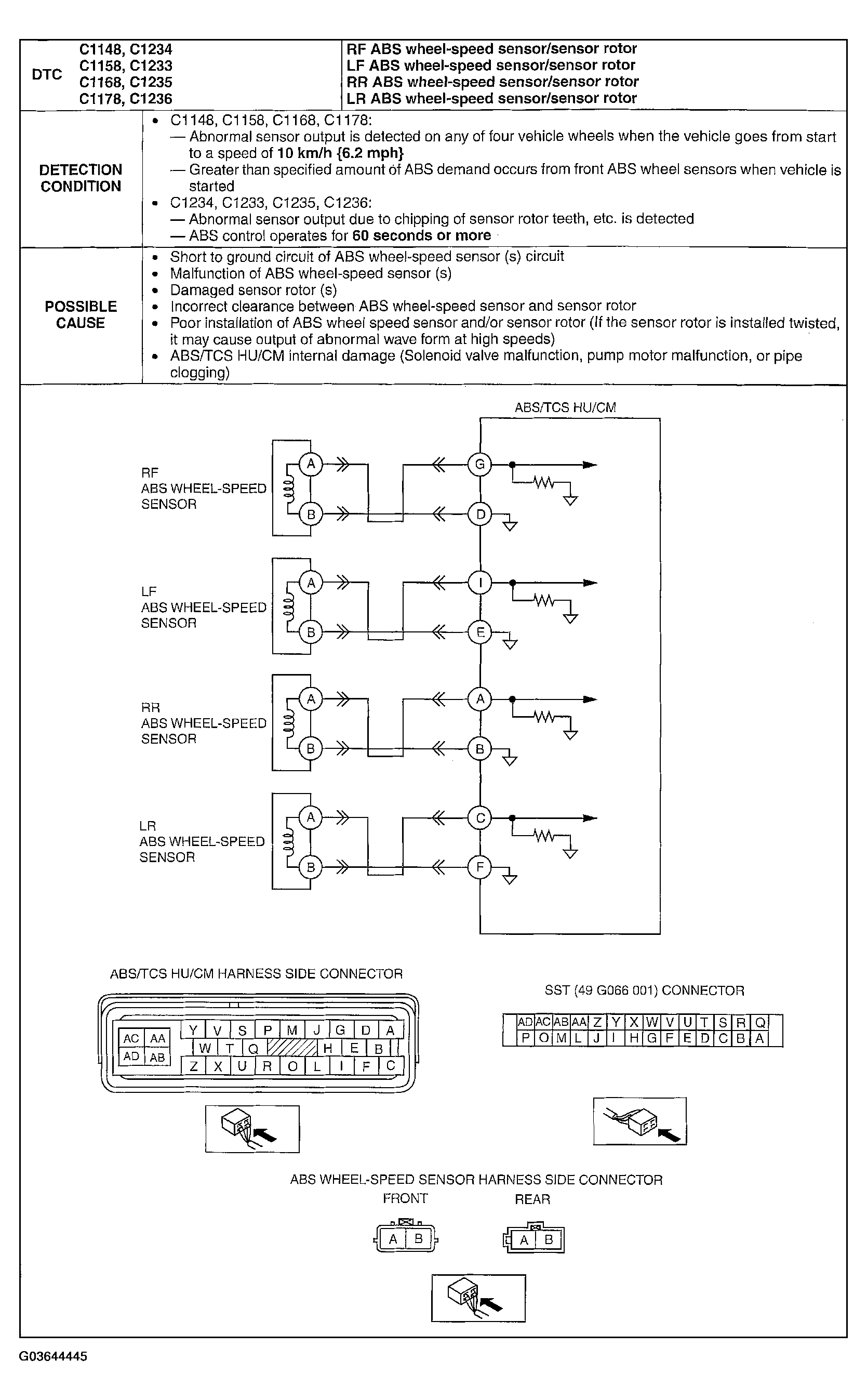

Fig 1: DTC C1148, C1158, C1168, C1178, C1233, C1234, C1235, C1236 Detection Condition And Possible Causes
Courtesy of MAZDA MOTORS CORP.
