Removal & Installation (Except B2300, Miata & Tribute 2.0L)
WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2002 Mazda Tribute, 2002 Mazda Protege5, 2002 Mazda Protege, 2002 Mazda Millenia, and 2002 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.

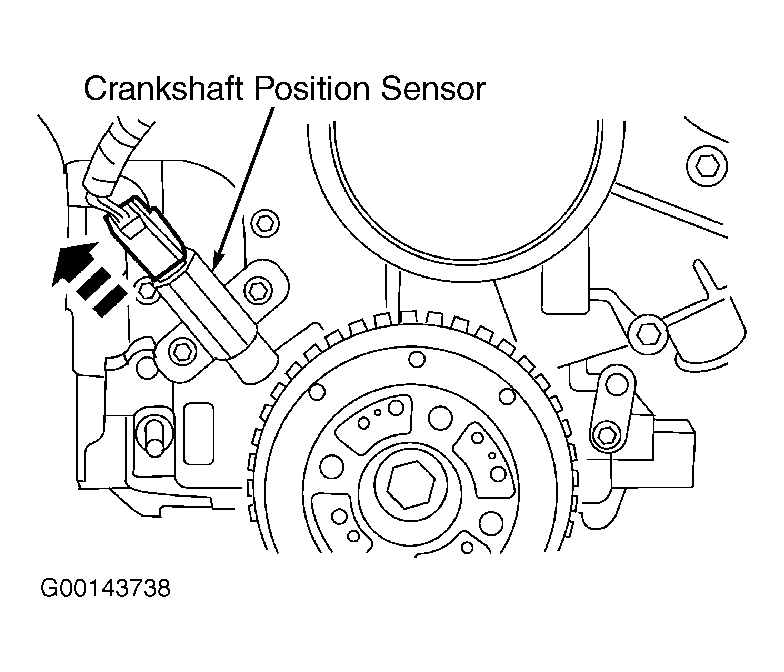

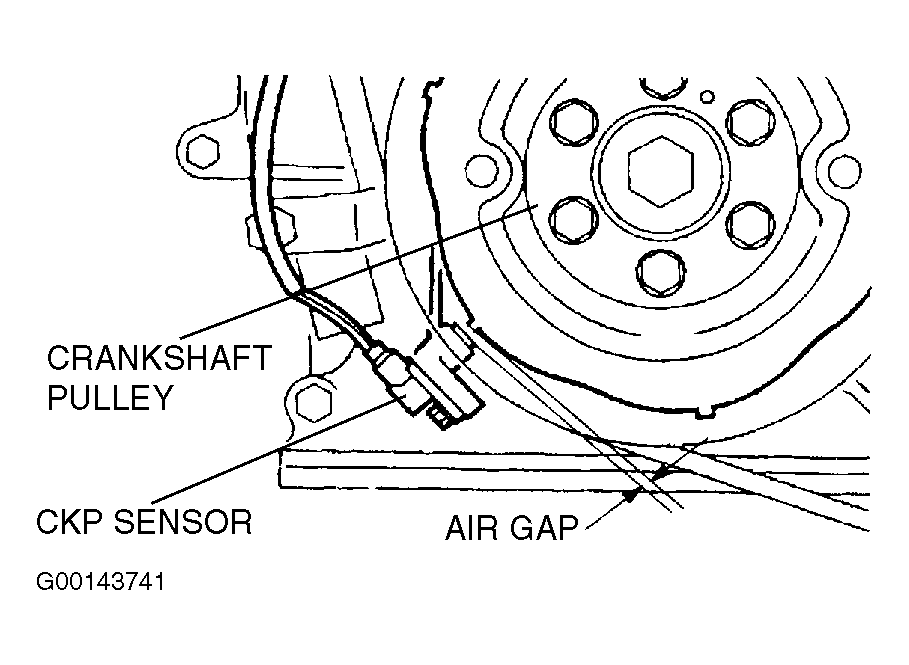

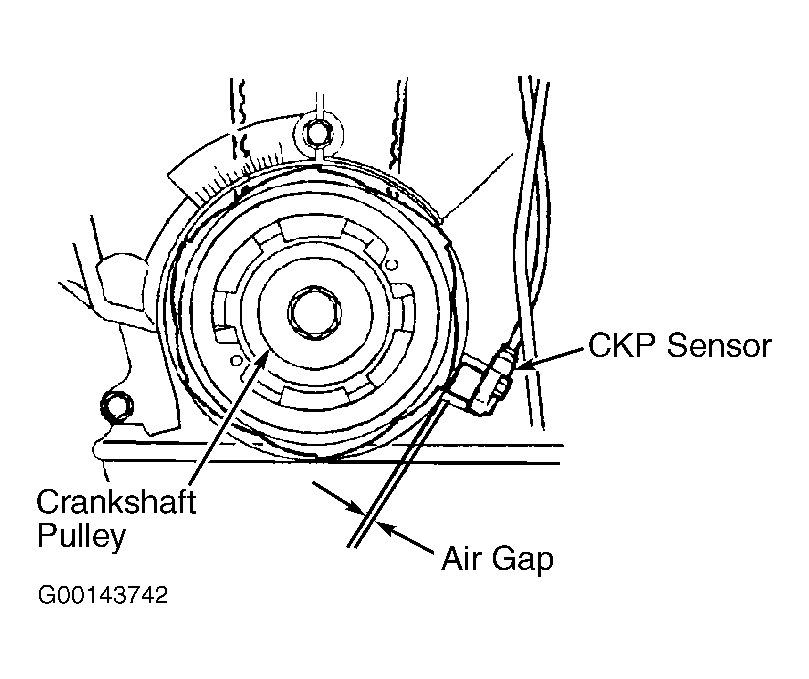

Disconnect negative battery cable. Crankshaft Position (CKP) sensor is located on front of engine, near crankshaft pulley. See Fig 1-Fig 6 . Remove engine undercover. Disconnect CKP harness connector. Remove sensor bolts and sensor. On Protege and Protege5 models only, some adjustment is possible. To install, reverse removal procedure. Tighten bolts to specification. See TORQUE SPECIFICATIONS .
