Stub Shaft Pilot Bearing Housing And Seal: Removal

WARNING: This page is about a different car, the 2003 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.

Remove the halfshaft assembly. Refer to HALFSHAFT -- REAR .

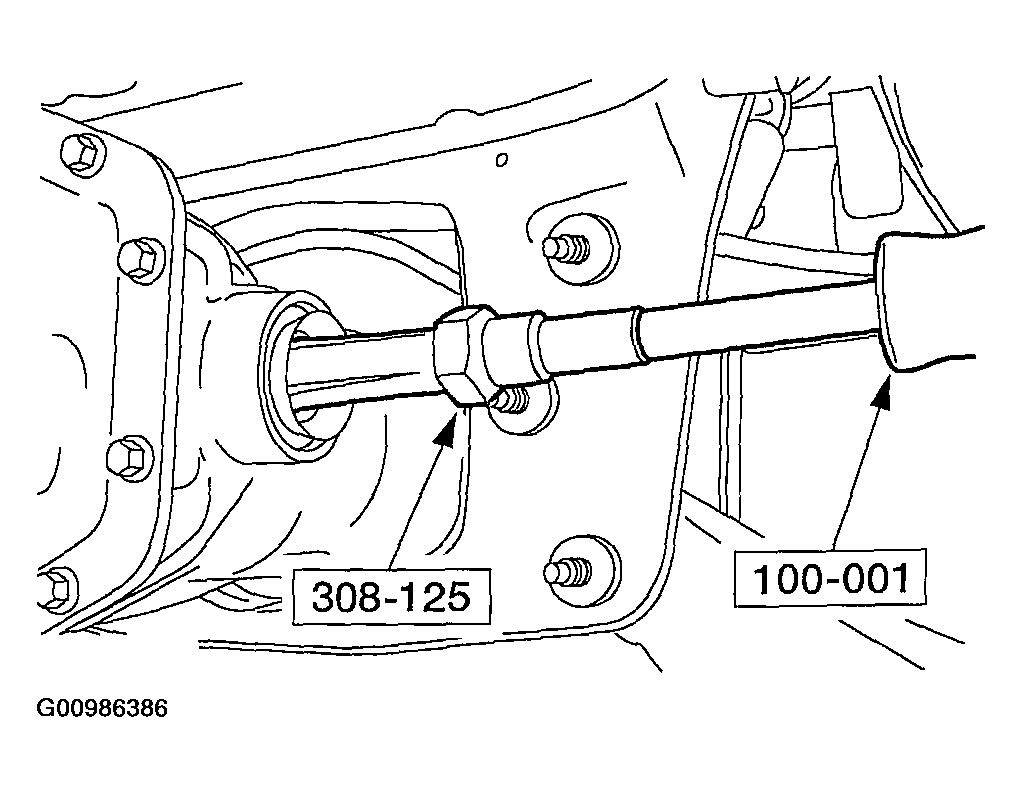

Fig 1: Removing Stub Shaft Seal
Courtesy of MAZDA MOTORS CORP.
To remove the seal only, use the special tools and remove the stub shaft seal.

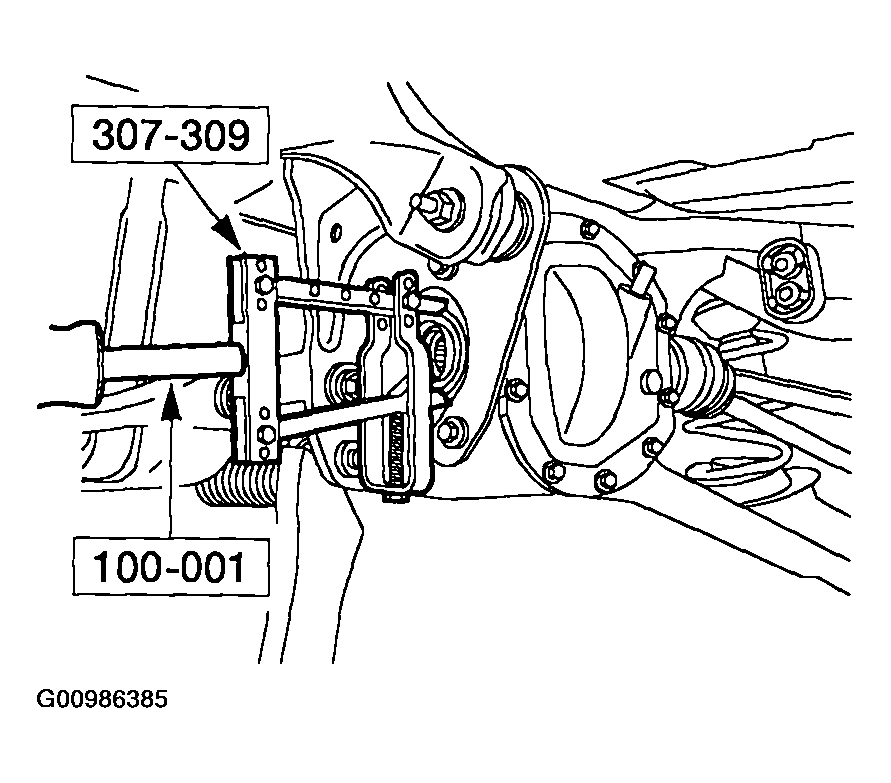

Fig 2: Removing Stub Shaft Pilot Bearing And Seal
Courtesy of MAZDA MOTORS CORP.
To remove the bearing and seal use the special tools and remove the stub shaft pilot bearing and seal.
