Removal and Installation

WARNING: This page is about a different car, the 2003 Mazda Tribute, 2002 Mazda Tribute, and 2001 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.

Drain the engine cooling system. Refer to COOLING SYSTEM DRAINING, FILLING AND BLEEDING .
Remove the air cleaner outlet tube.
Remove the water pump belt tensioner, if equipped. Refer to BELT TENSIONER - WATER PUMP .

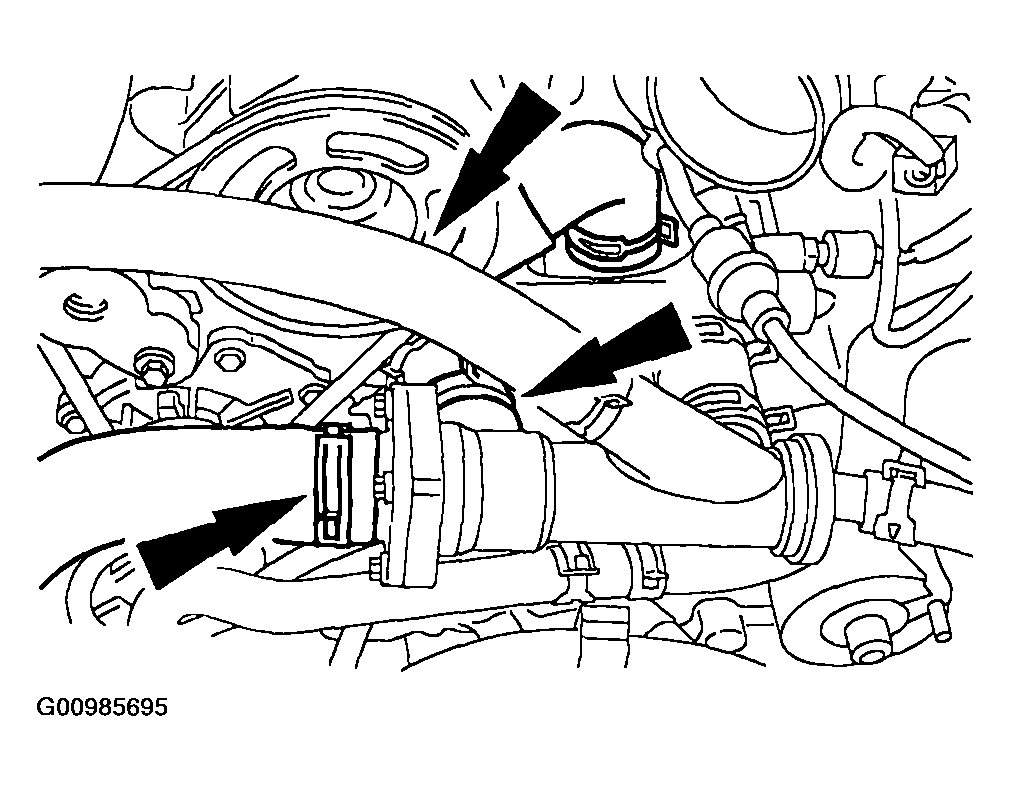

Fig 1: Locating Three Hoses Of Water Pump
Courtesy of MAZDA MOTORS CORP.
Disconnect the three hoses.

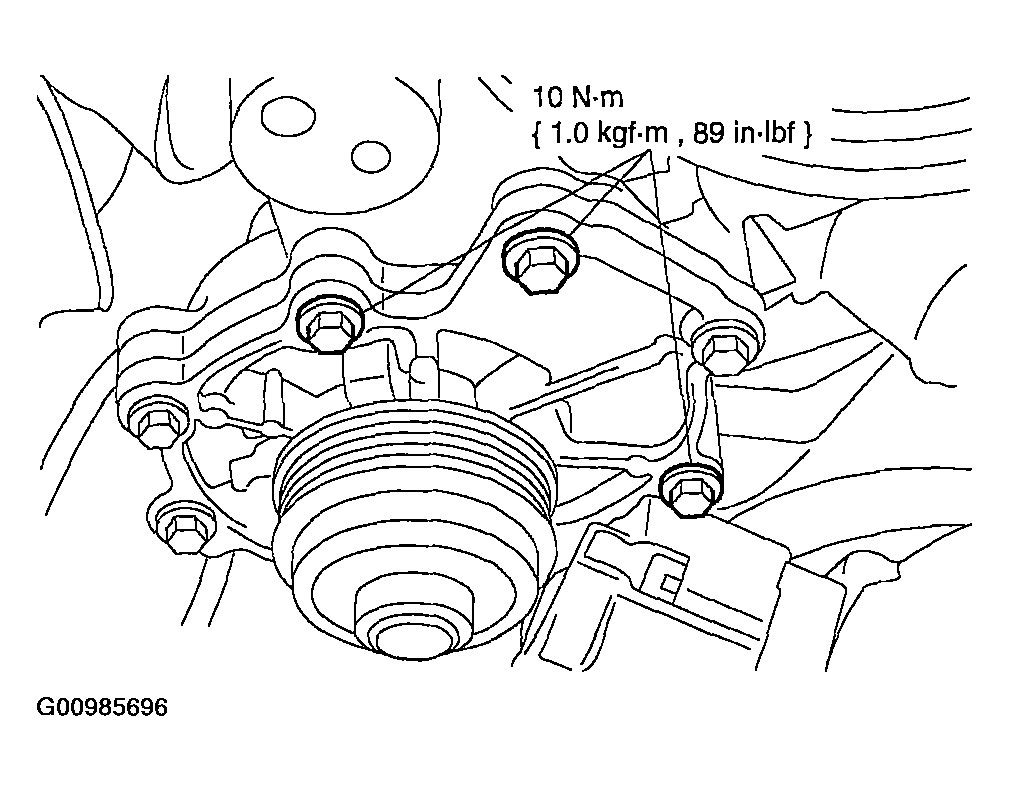

Fig 2: Locating Bolts For Water Pump Removal
Courtesy of MAZDA MOTORS CORP.
Remove the bolts and the water pump assembly.

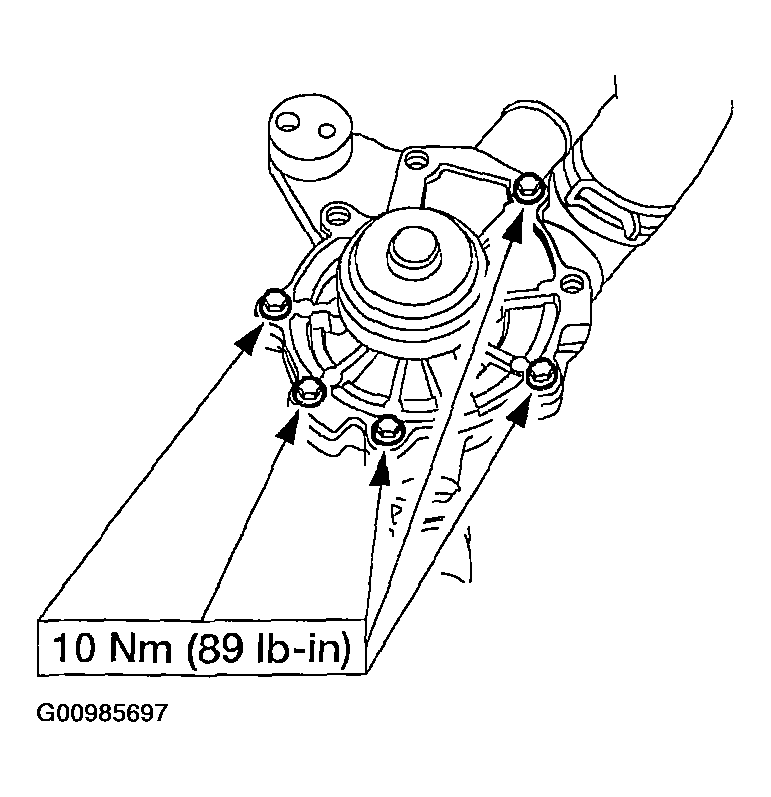

Fig 3: Locating Water Pump Removal Bolts
Courtesy of MAZDA MOTORS CORP.
Separate the water pump from the water pump housing.
NOTE:
- Clean and inspect the sealing surfaces.
To install, reverse the removal procedure.
