Hard Start / Long Crank / Erratic Start / Erratic Crank
WARNING: This page is about a different car, the 2003 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.

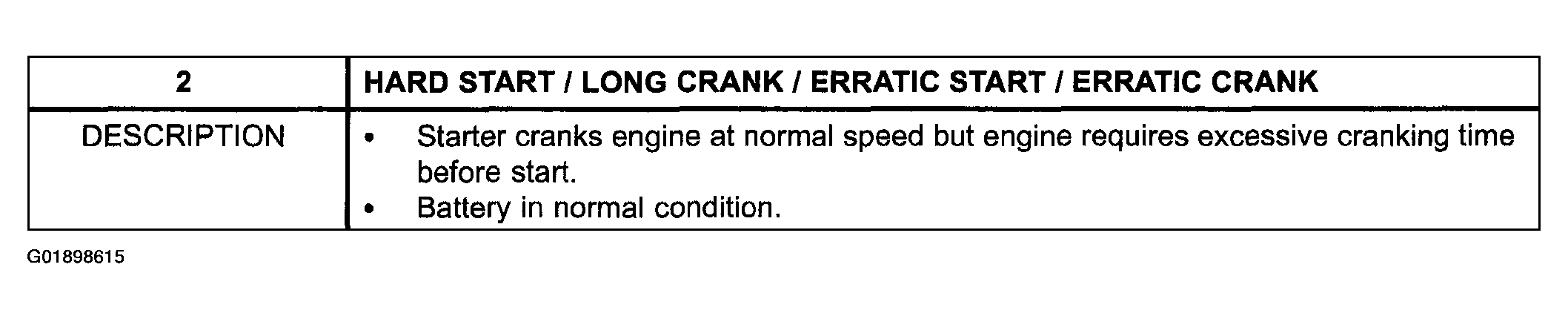

Fig 1: Hard Start / Long Crank / Erratic Start / Erratic Crank Diagnostic Procedure
Courtesy of FORD MOTOR CO.

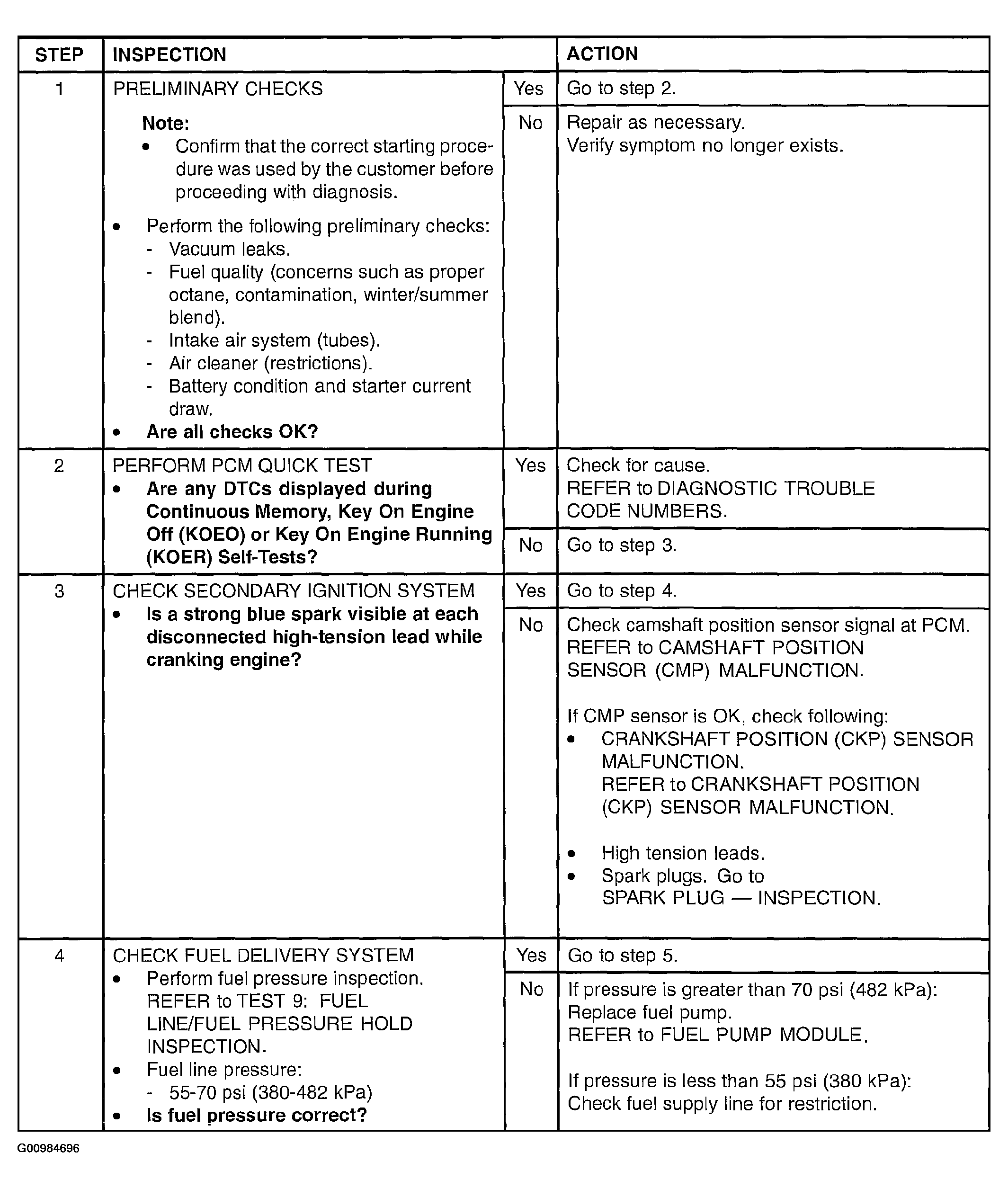

Fig 2: Hard Start / Long Crank / Erratic Start / Erratic Crank Inspection Procedure (1 Of 3)
Courtesy of FORD MOTOR CO.

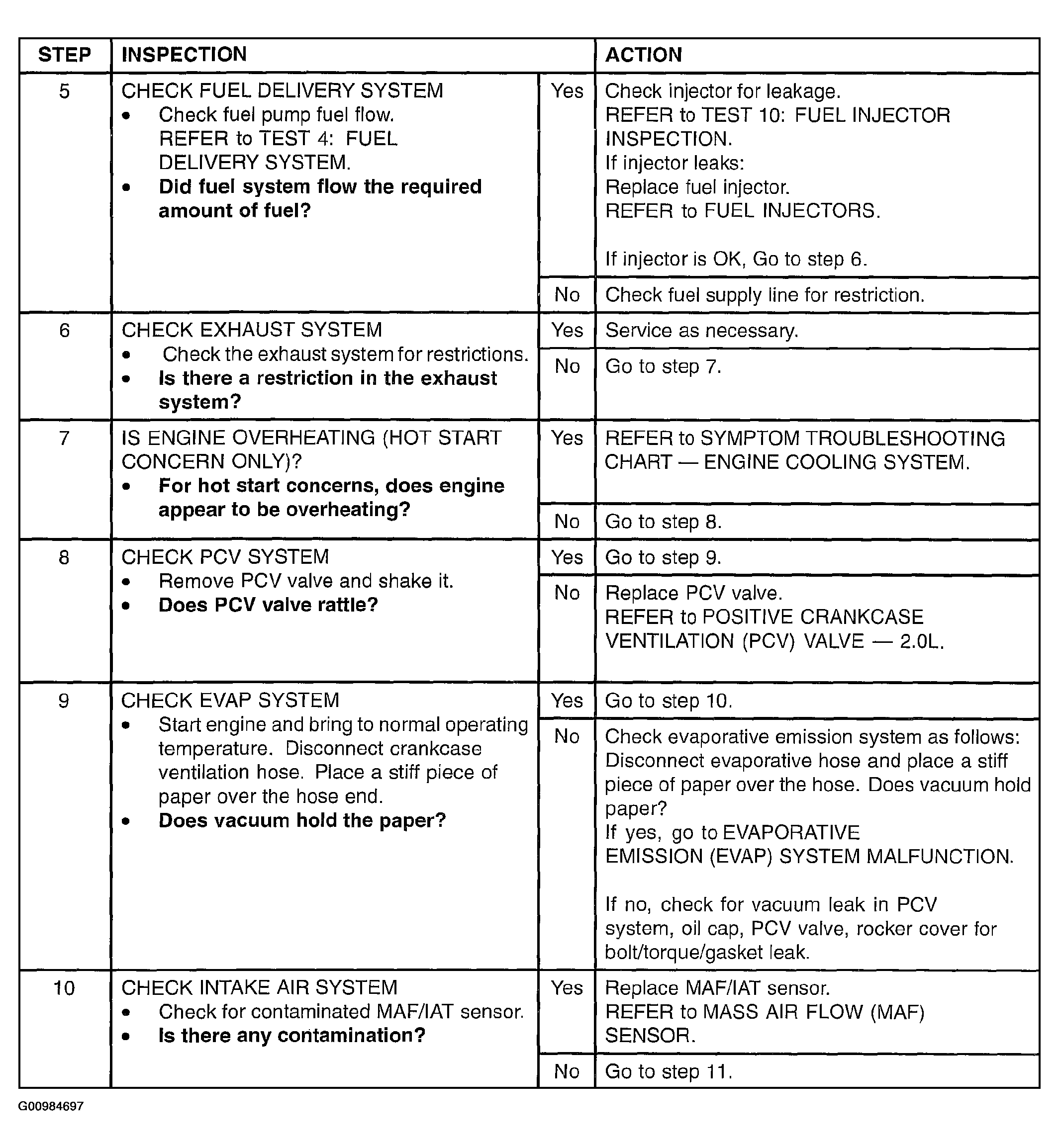

Fig 3: Hard Start / Long Crank / Erratic Start / Erratic Crank Inspection Procedure (2 Of 3)
Courtesy of FORD MOTOR CO.

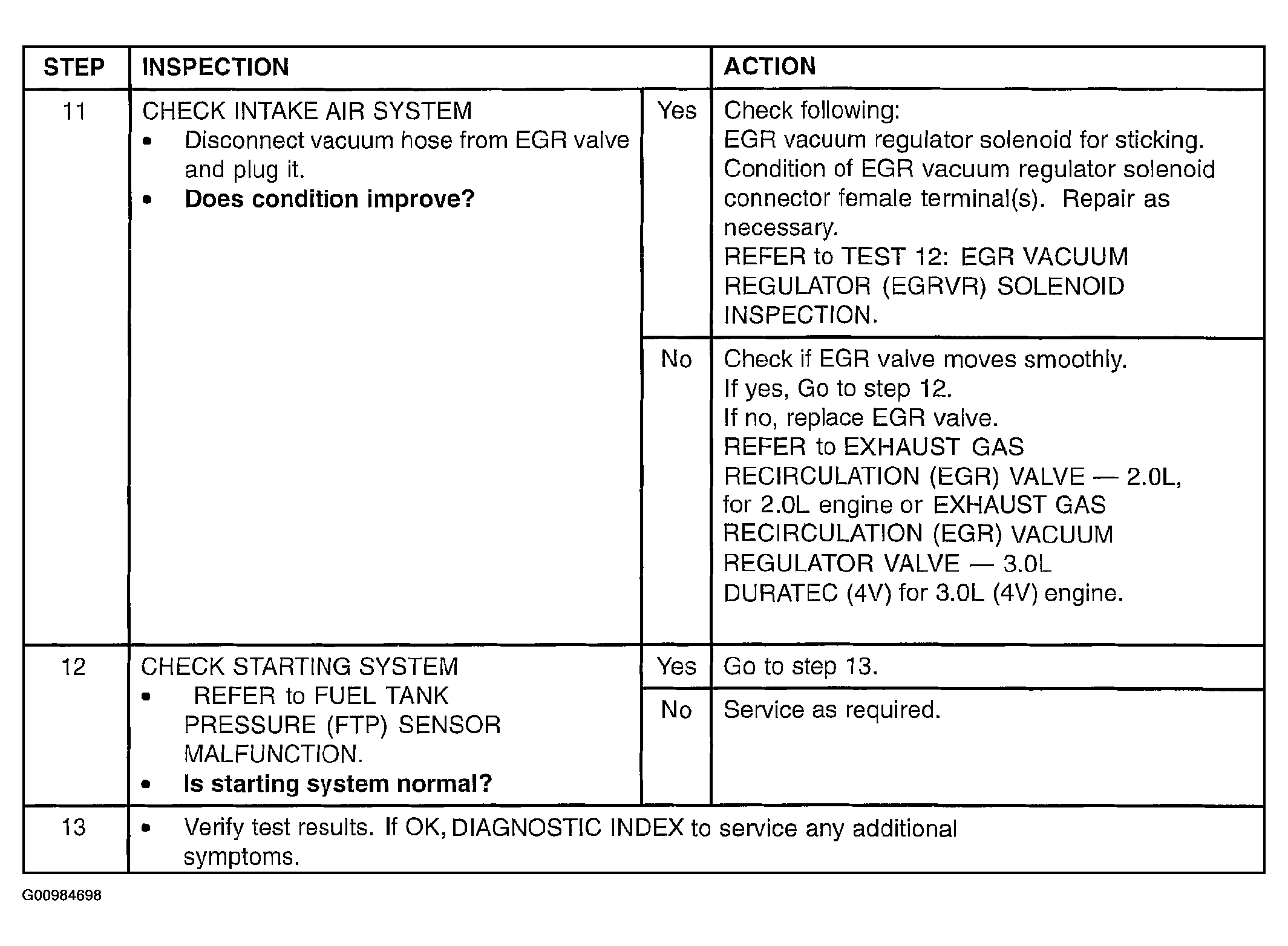

Fig 4: Hard Start / Long Crank / Erratic Start / Erratic Crank Inspection Procedure (3 Of 3)
