DTC P1451: Canister Vent (CV) Solenoid Malfunction

WARNING: This page is about a different car, the 2003 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.

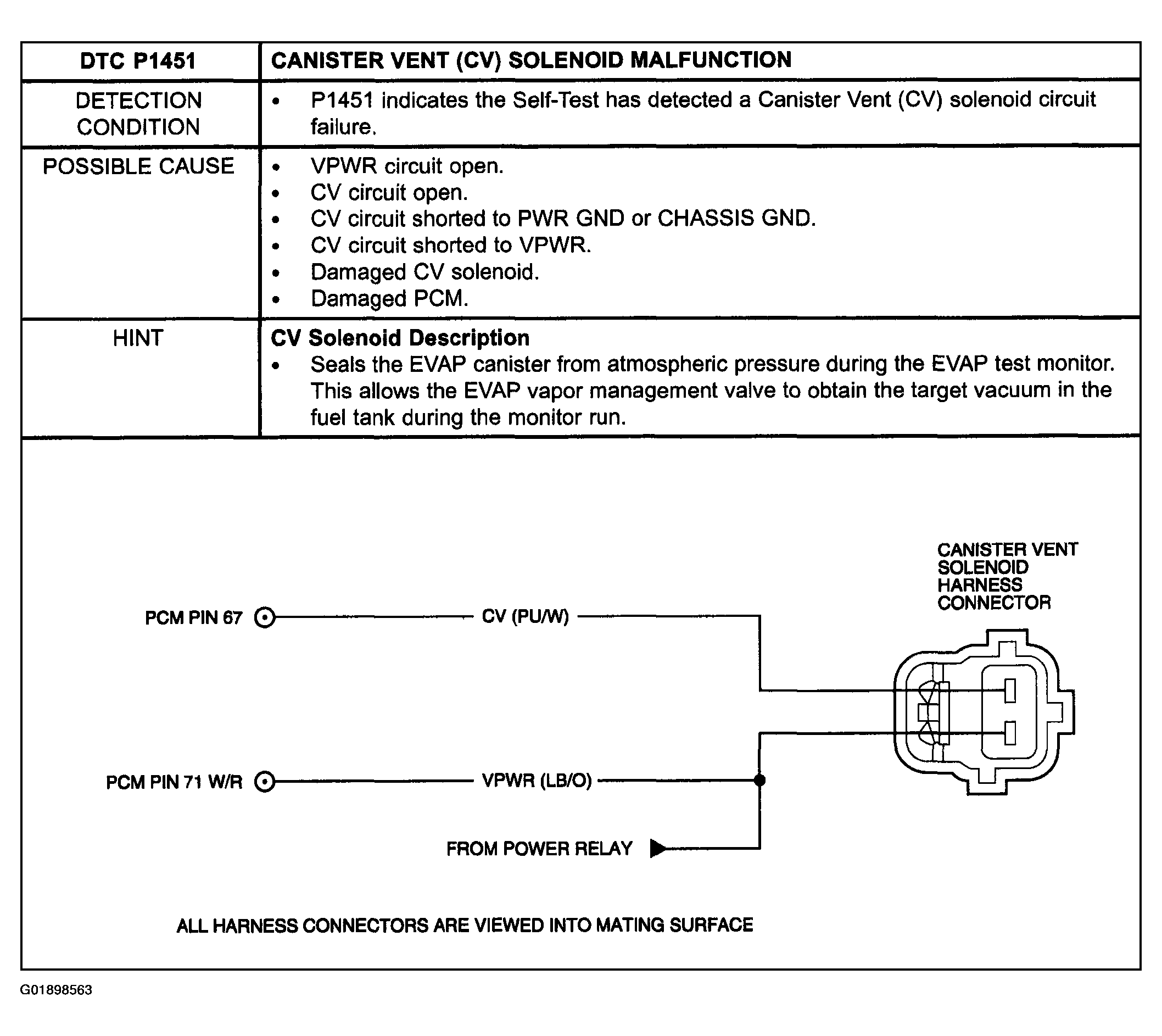

Fig 1: Canister Vent Solenoid Malfunctioned Troubleshooting Procedure

Courtesy of FORD MOTOR CO.

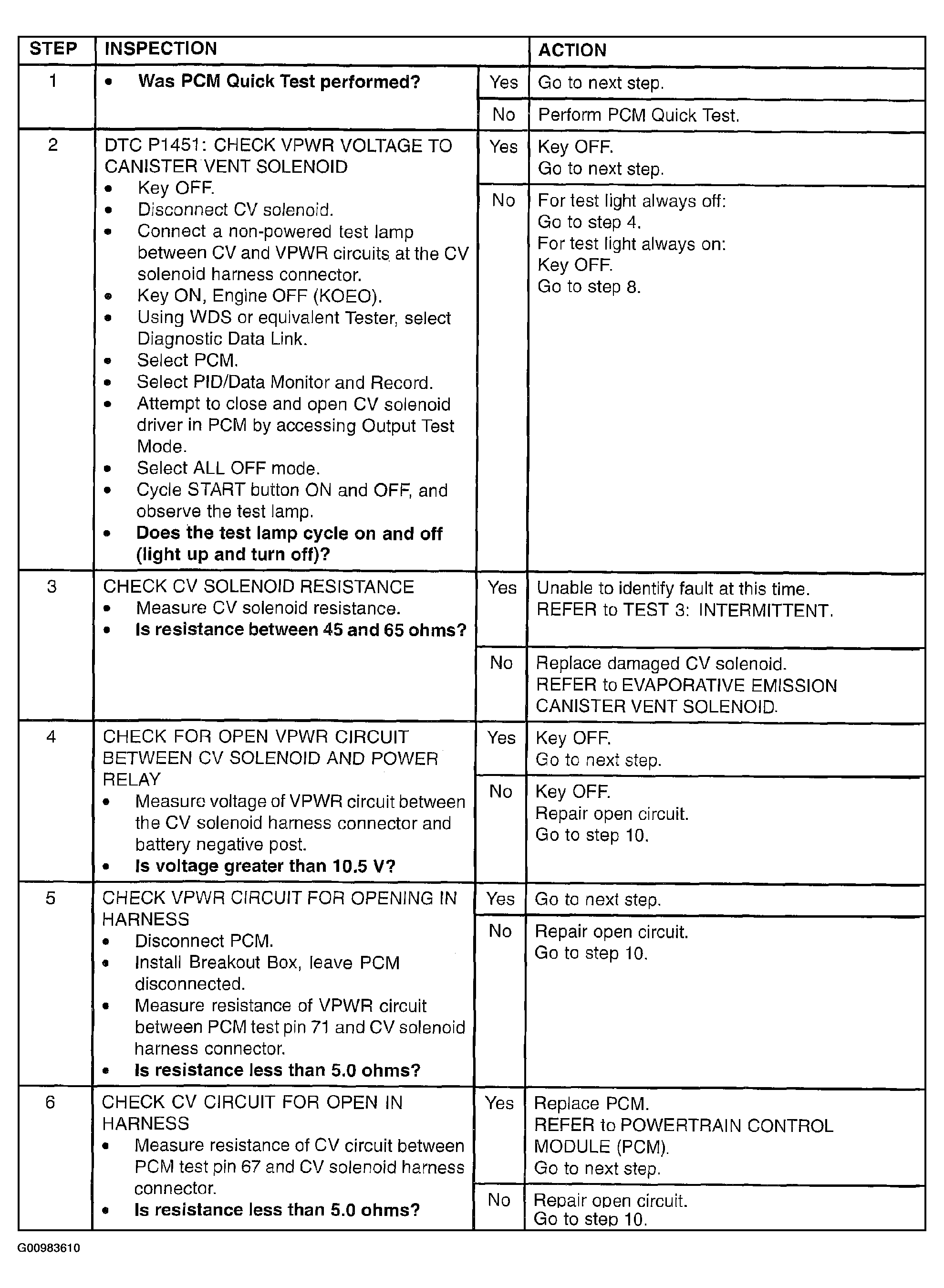

Fig 2: Canister Vent Solenoid Malfunctioned Inspection Procedure (1 Of 2)

Courtesy of FORD MOTOR CO.

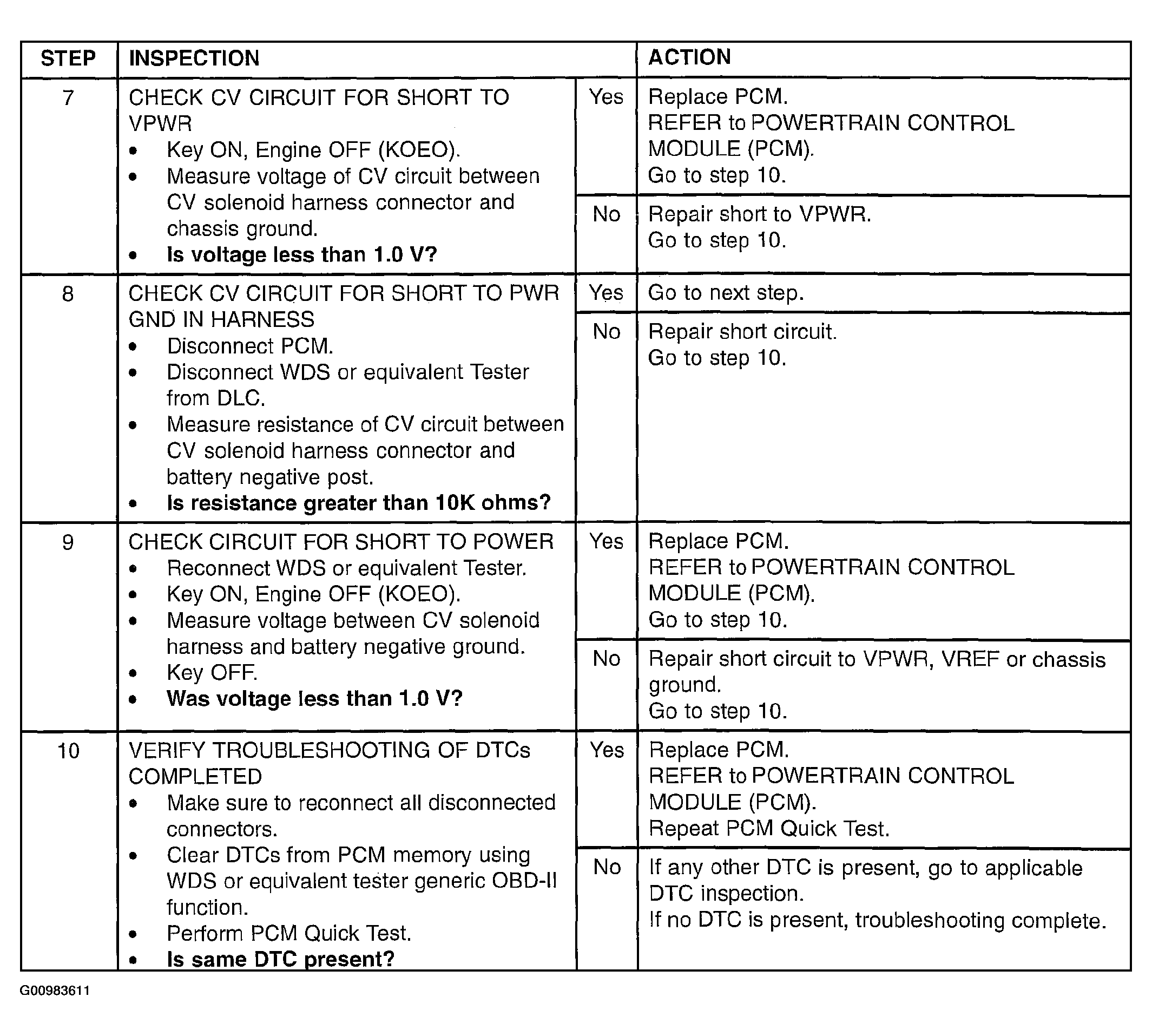

Fig 3: Canister Vent Solenoid Malfunctioned Inspection Procedure (2 Of 2)

Courtesy of FORD MOTOR CO.
