DTC P1400, P1401, P1402, P1407, P1485, P1486, P1487, P1496, P1497, P1498, P1499: DPFEGR Sensor Malfunction

WARNING: This page is about a different car, the 2003 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.

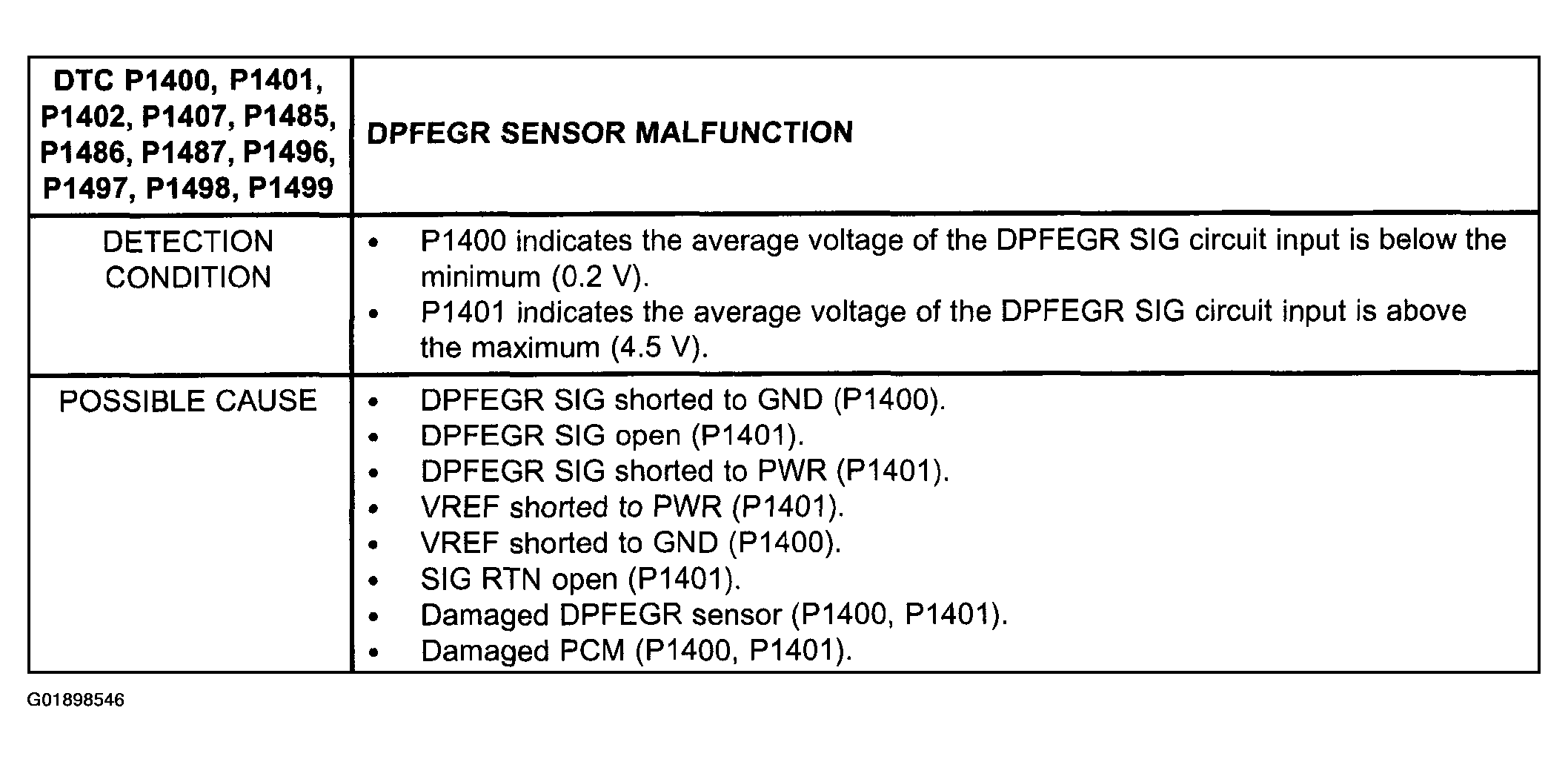

Fig 1: Differential Pressure Feedback (DPFEGR) Sensor Malfunction Troubleshooting Procedure (1 Of 2)

Courtesy of FORD MOTOR CO.

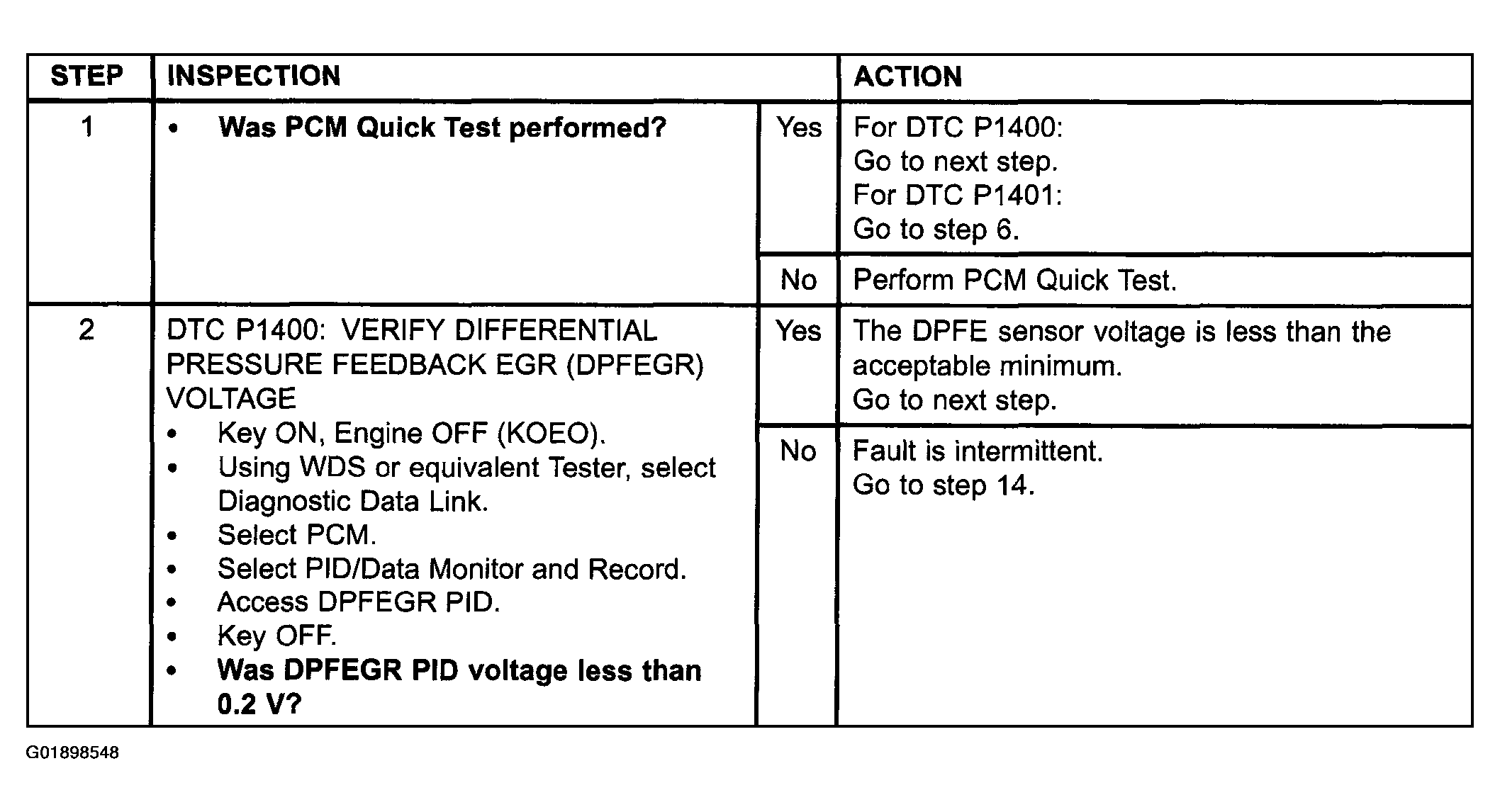

Fig 2: Differential Pressure Feedback (DPFEGR) Sensor Malfunction Troubleshooting Procedure (2 Of 2)

Courtesy of FORD MOTOR CO.

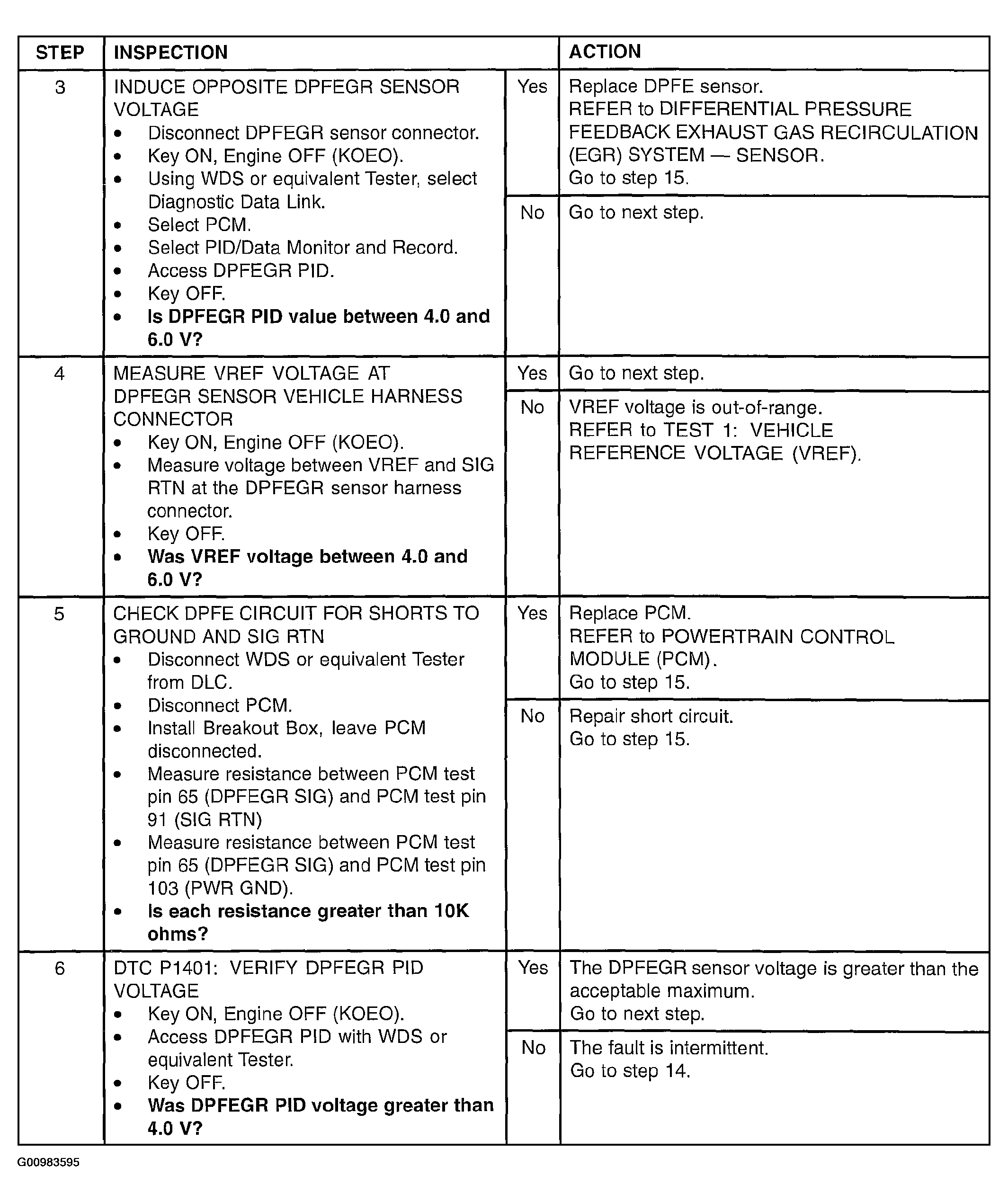

Fig 3: Differential Pressure Feedback (DPFEGR) Sensor Malfunction Inspection Procedure (1 Of 4)

Courtesy of FORD MOTOR CO.

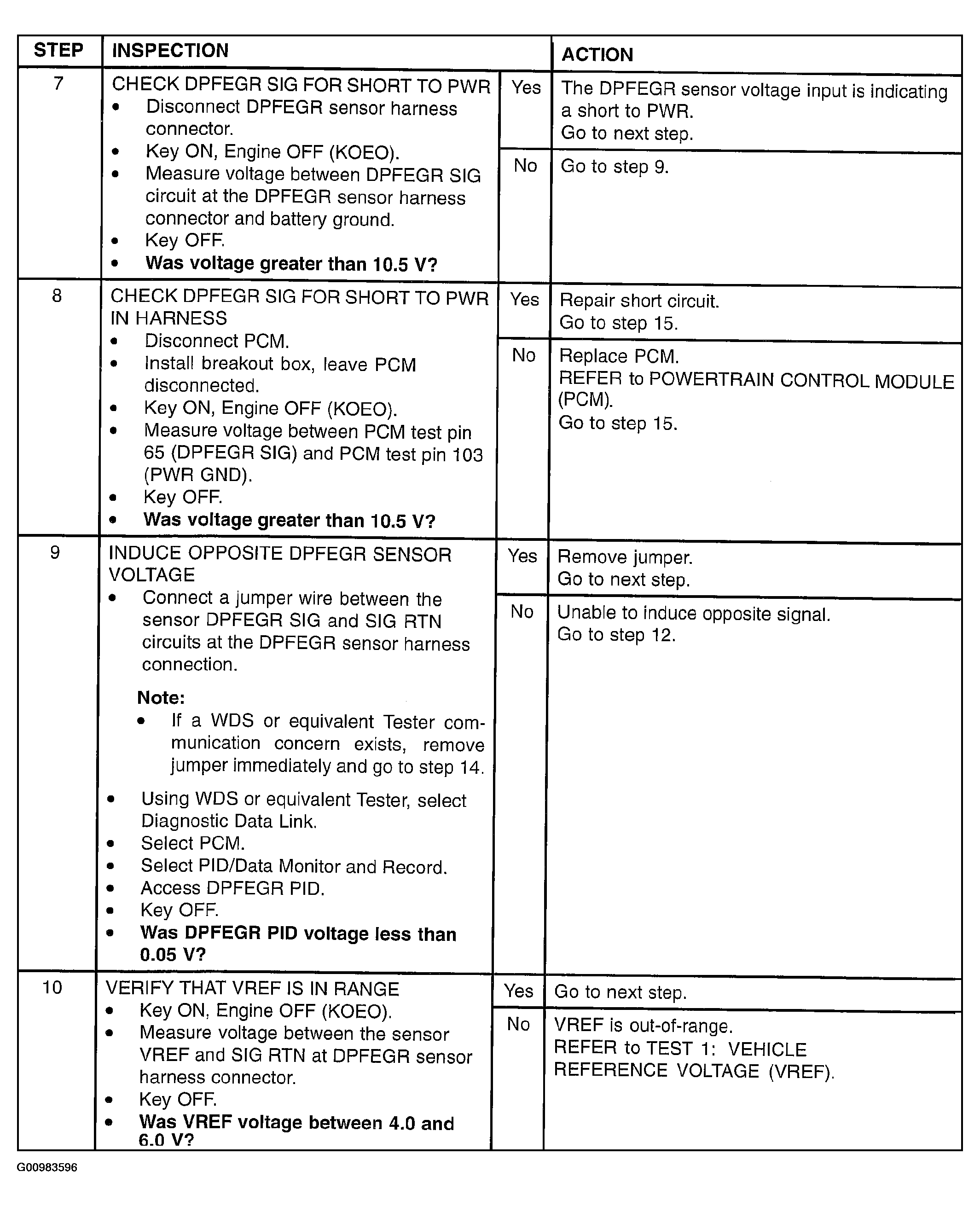

Fig 4: Differential Pressure Feedback (DPFEGR) Sensor Malfunction Inspection Procedure (2 Of 4)

Courtesy of FORD MOTOR CO.

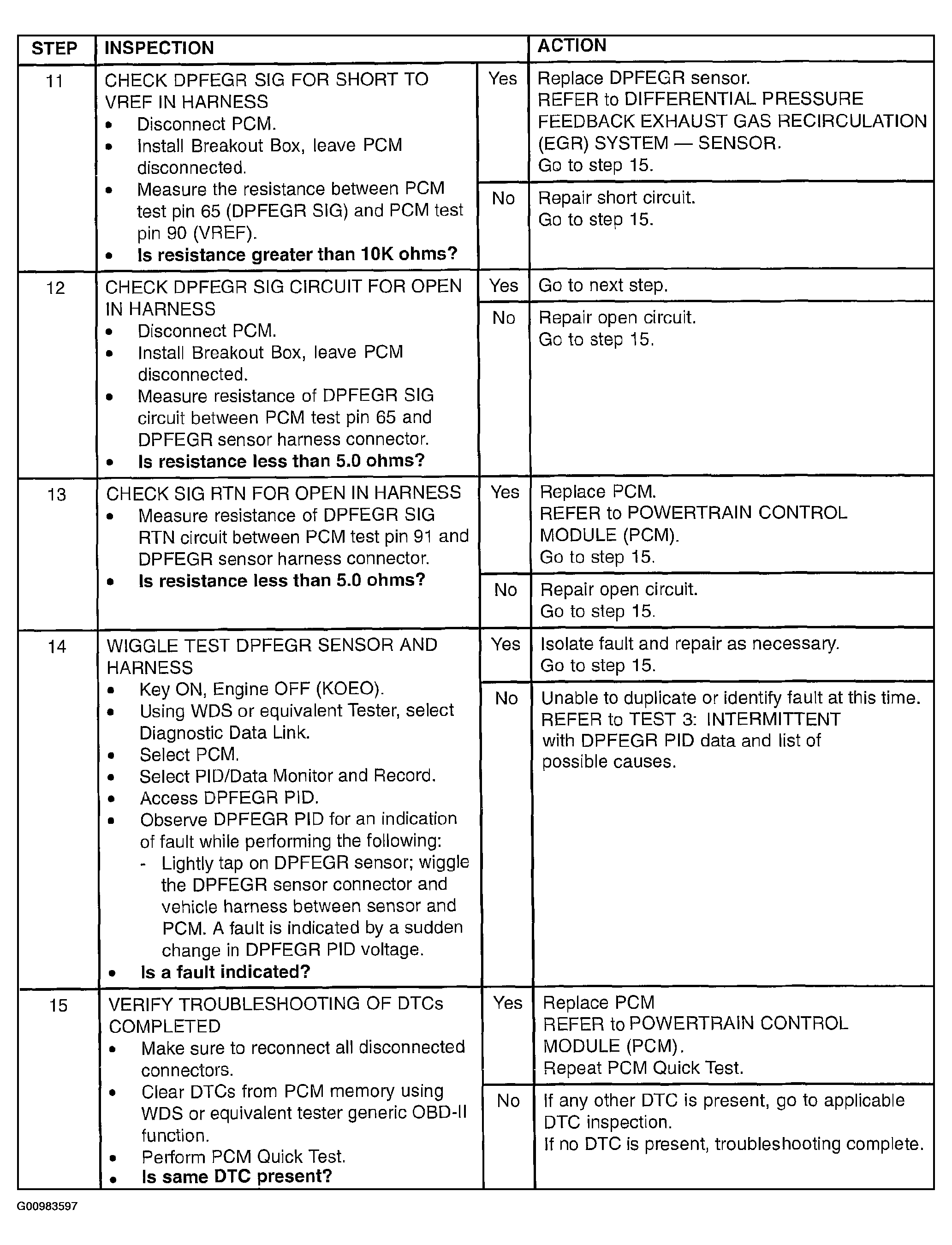

Fig 5: Differential Pressure Feedback (DPFEGR) Sensor Malfunction Inspection Procedure (3 Of 4)

Courtesy of FORD MOTOR CO.

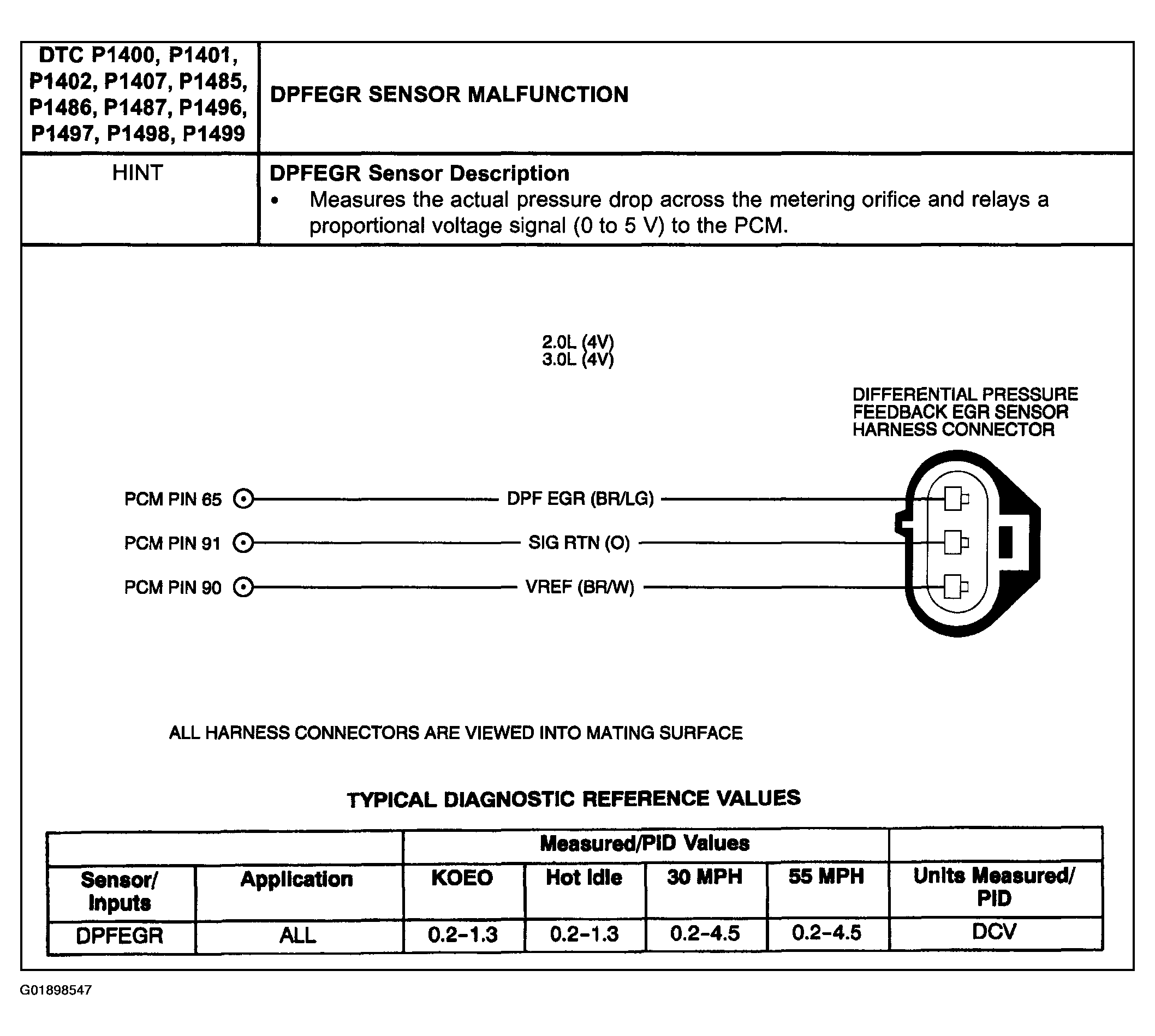

Fig 6: Differential Pressure Feedback (DPFEGR) Sensor Malfunction Inspection Procedure (4 Of 4)

Courtesy of FORD MOTOR CO.
