DTC P0651, P0352, P0353, P0354, P0355, P0356: Integrated Ignition Coil 1, 2, 3, 4, 5, Or 6 Failure

WARNING: This page is about a different car, the 2003 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.

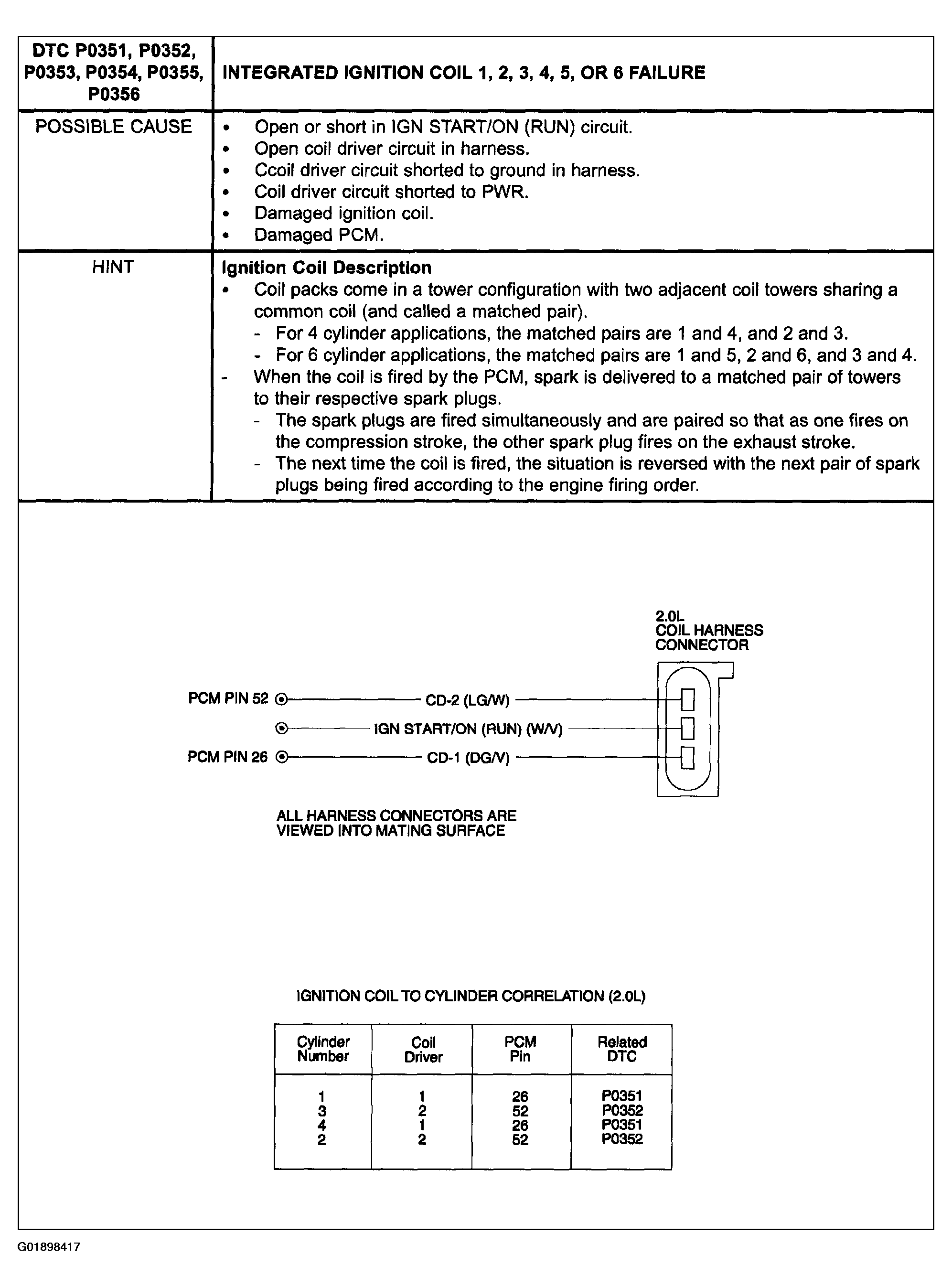

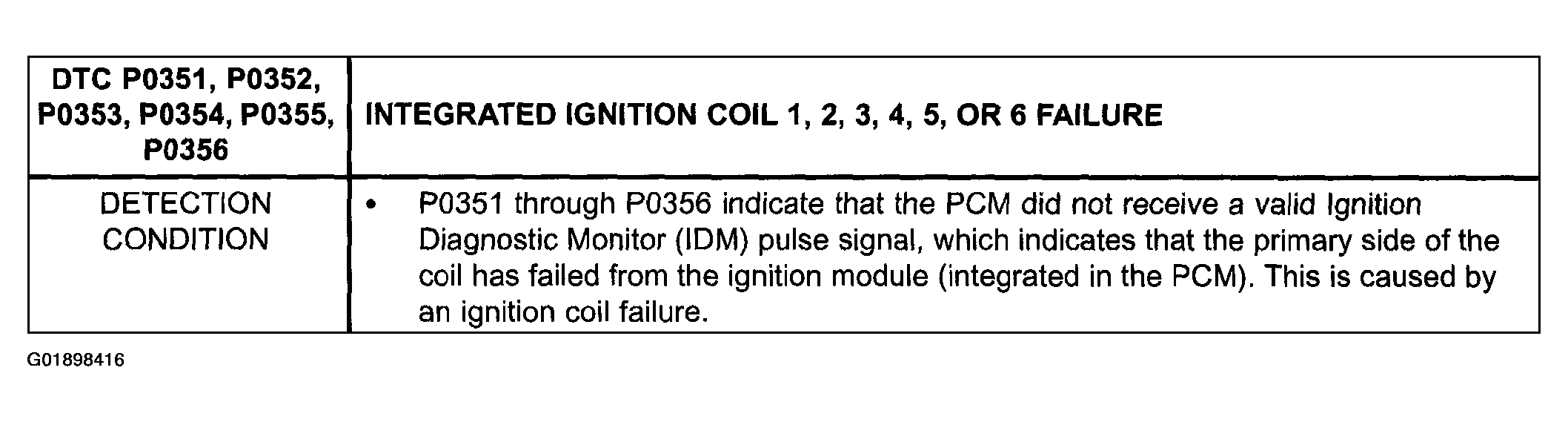

Fig 1: Integrated Ignition Coil 1, 2, 3, 4, 5, Or 6 Failure Troubleshooting Procedure (1 Of 3)

Courtesy of FORD MOTOR CO.

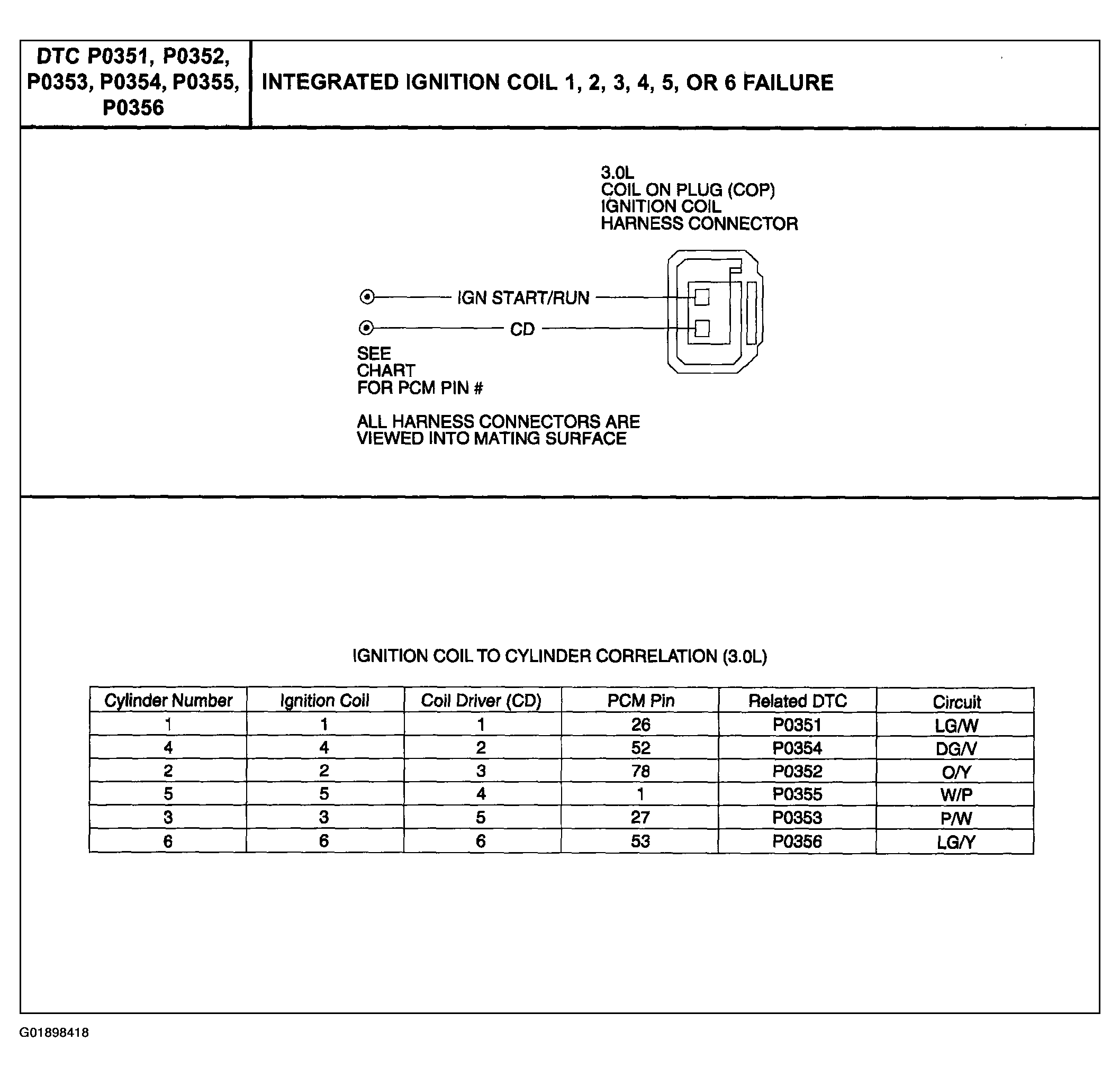

Fig 2: Integrated Ignition Coil 1, 2, 3, 4, 5, Or 6 Failure Troubleshooting Procedure (2 Of 3)

Courtesy of FORD MOTOR CO.

Fig 3: Integrated Ignition Coil 1, 2, 3, 4, 5, Or 6 Failure Troubleshooting Procedure (3 Of 3)

Courtesy of FORD MOTOR CO.

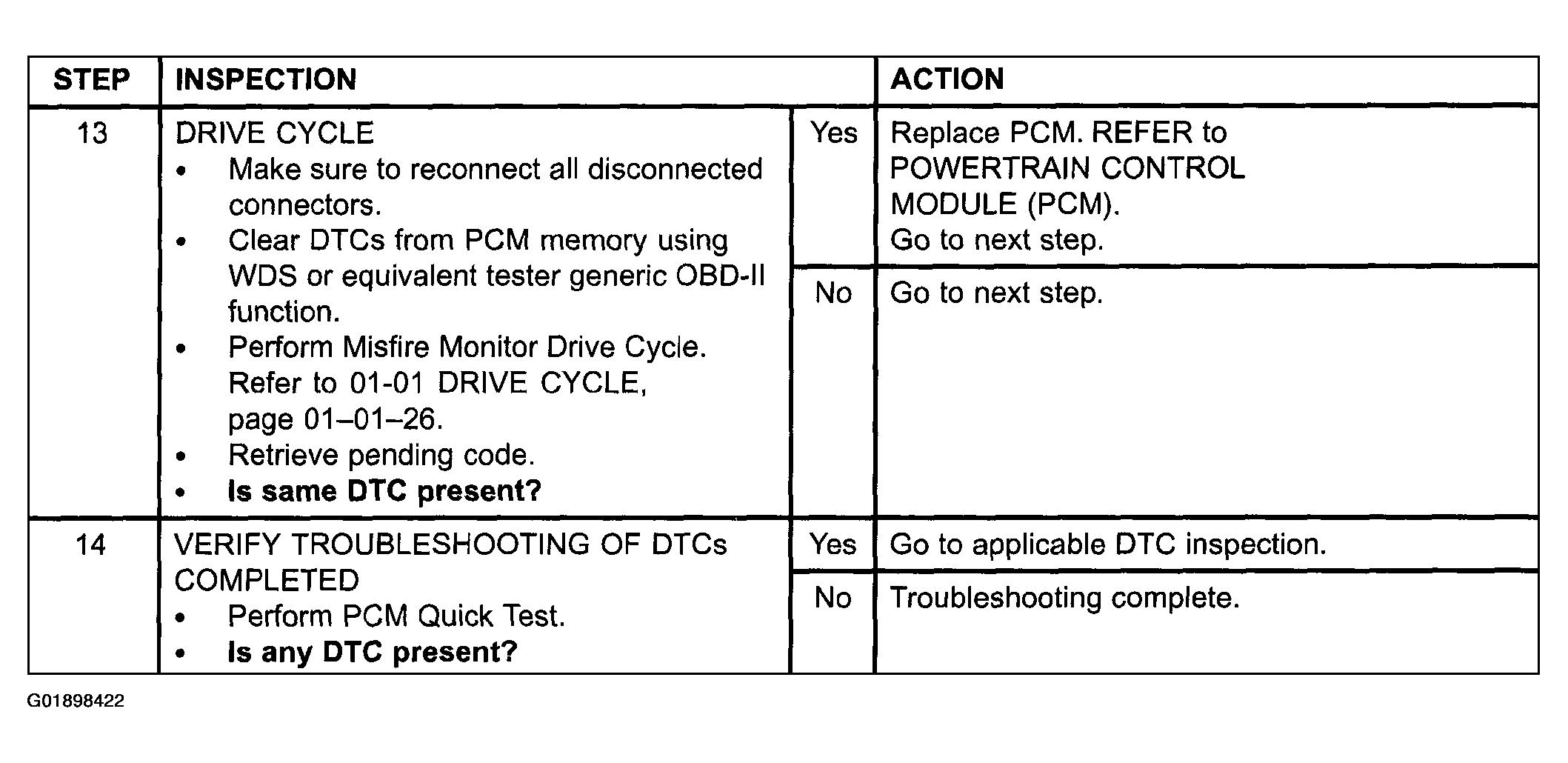

Fig 4: Integrated Ignition Coil 1, 2, 3, 4, 5, Or 6 Failure Inspection Procedure (1 Of 4)

Courtesy of FORD MOTOR CO.

Fig 5: Integrated Ignition Coil 1, 2, 3, 4, 5, Or 6 Failure Inspection Procedure (2 Of 4)

Courtesy of FORD MOTOR CO.

Fig 6: Integrated Ignition Coil 1, 2, 3, 4, 5, Or 6 Failure Inspection Procedure (3 Of 4)

Courtesy of FORD MOTOR CO.

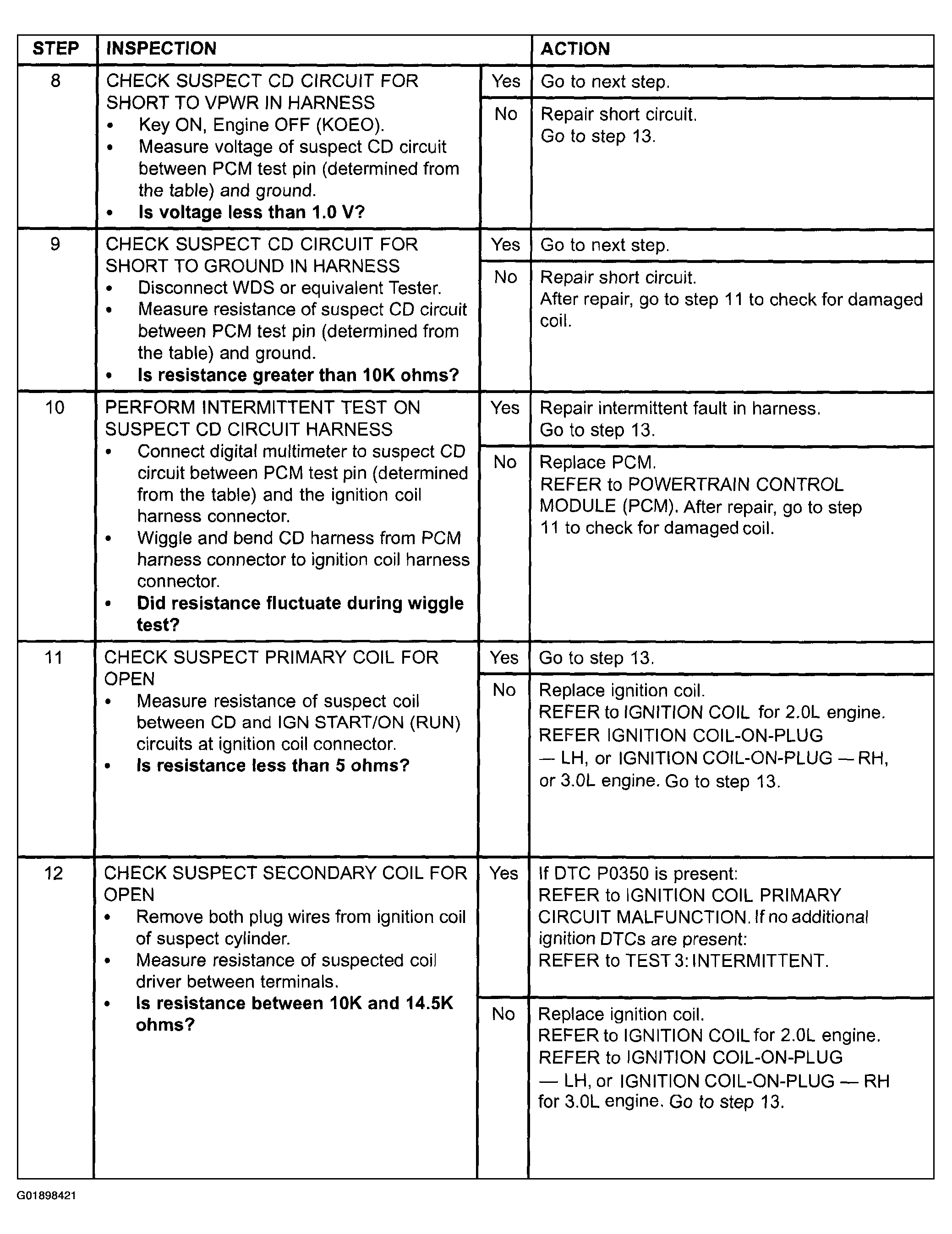

Fig 7: Integrated Ignition Coil 1, 2, 3, 4, 5, Or 6 Failure Inspection Procedure (4 Of 4)

Courtesy of FORD MOTOR CO.
