WARNING: This page is about a different car, the 2003 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.

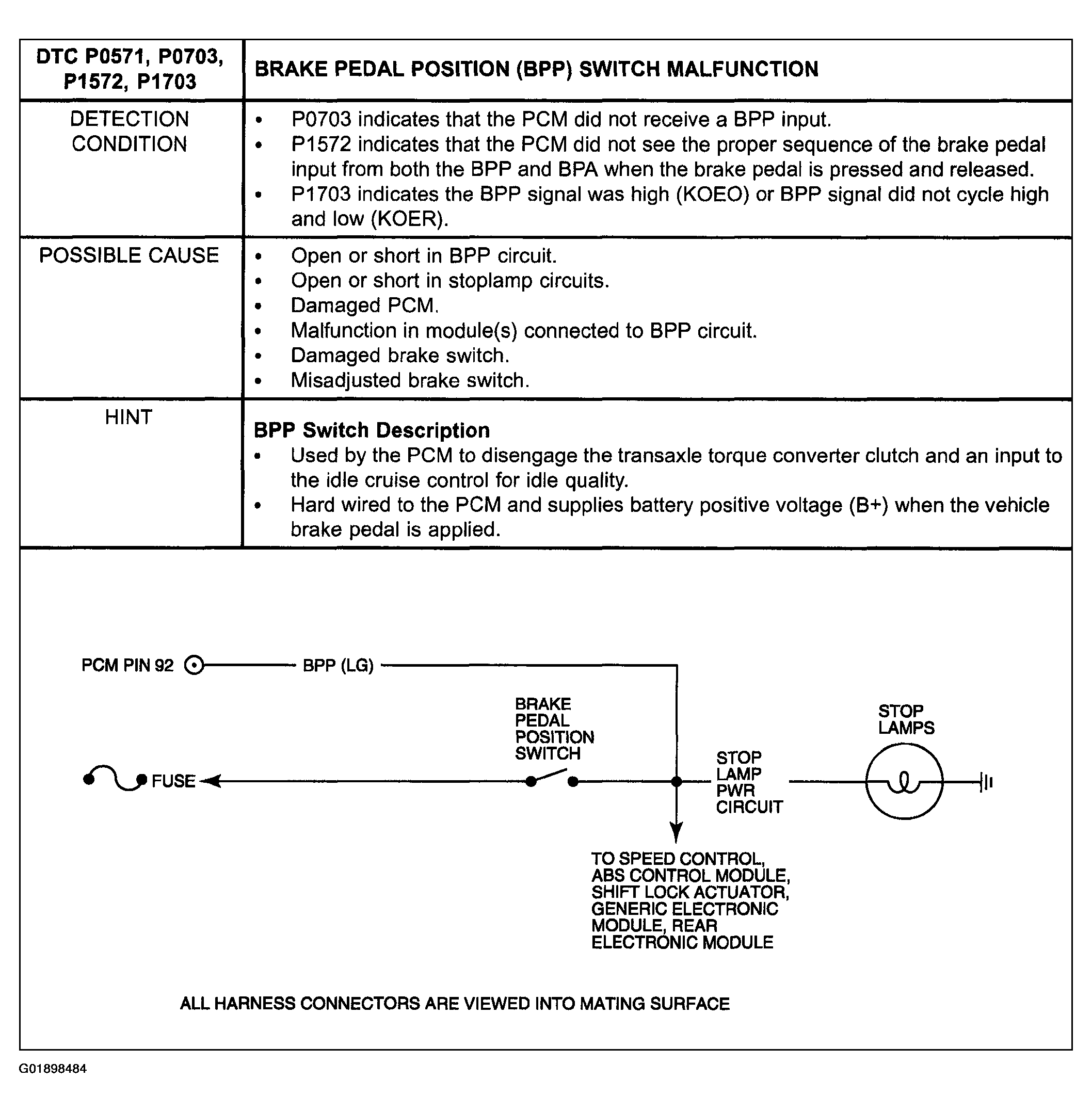

Fig 1: Brake Pedal Position Switch Malfunction Troubleshooting Procedure
Courtesy of FORD MOTOR CO.

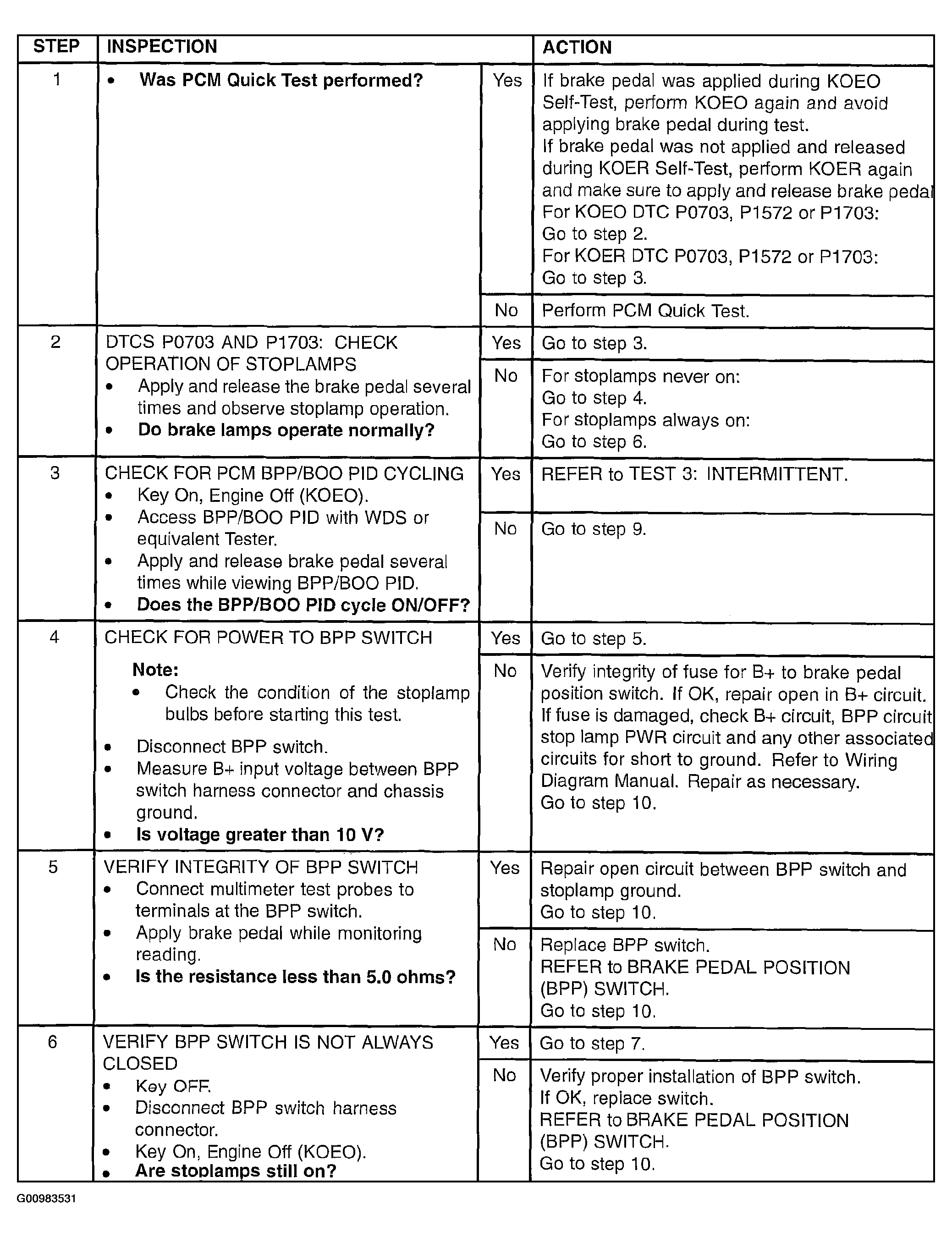

Fig 2: Brake Pedal Position Switch Malfunction Inspection Procedure (1 Of 2)
Courtesy of FORD MOTOR CO.

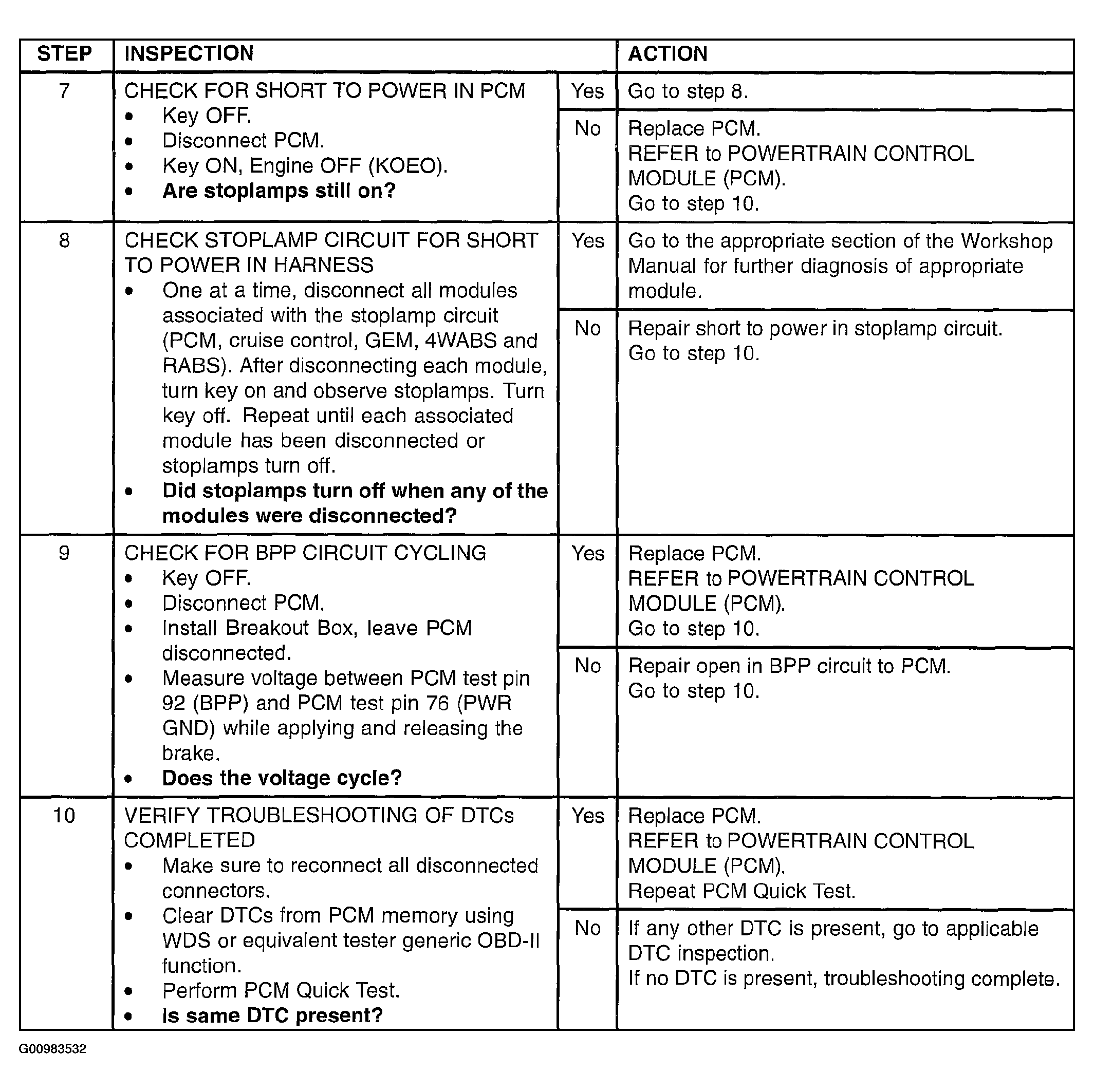

Fig 3: Brake Pedal Position Switch Malfunction Inspection Procedure (2 Of 2)
