DTC P0481, P1473-P1477, P1479, P1480, P1481: Cooling Fan Malfunction
WARNING: This page is about a different car, the 2003 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.

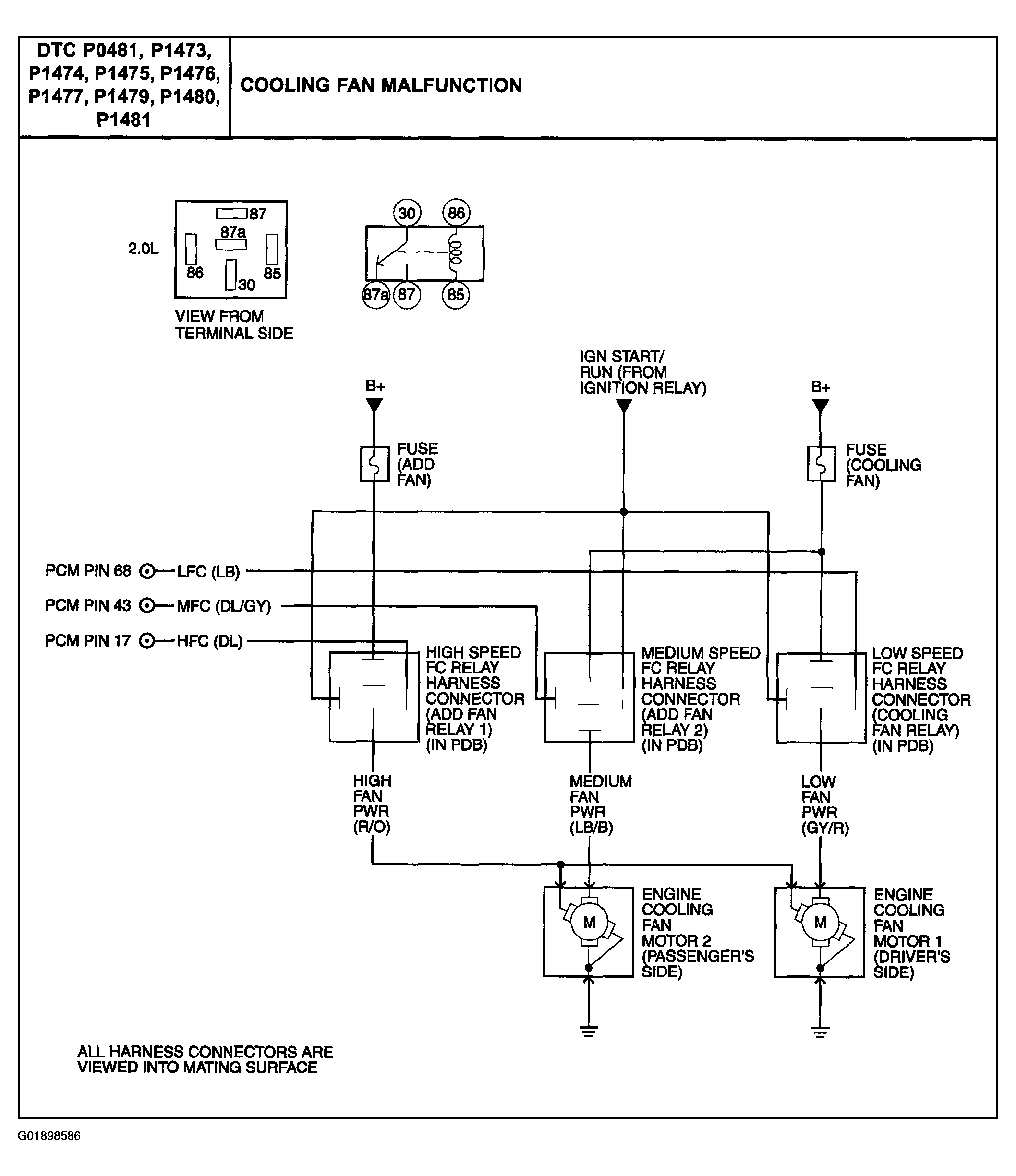

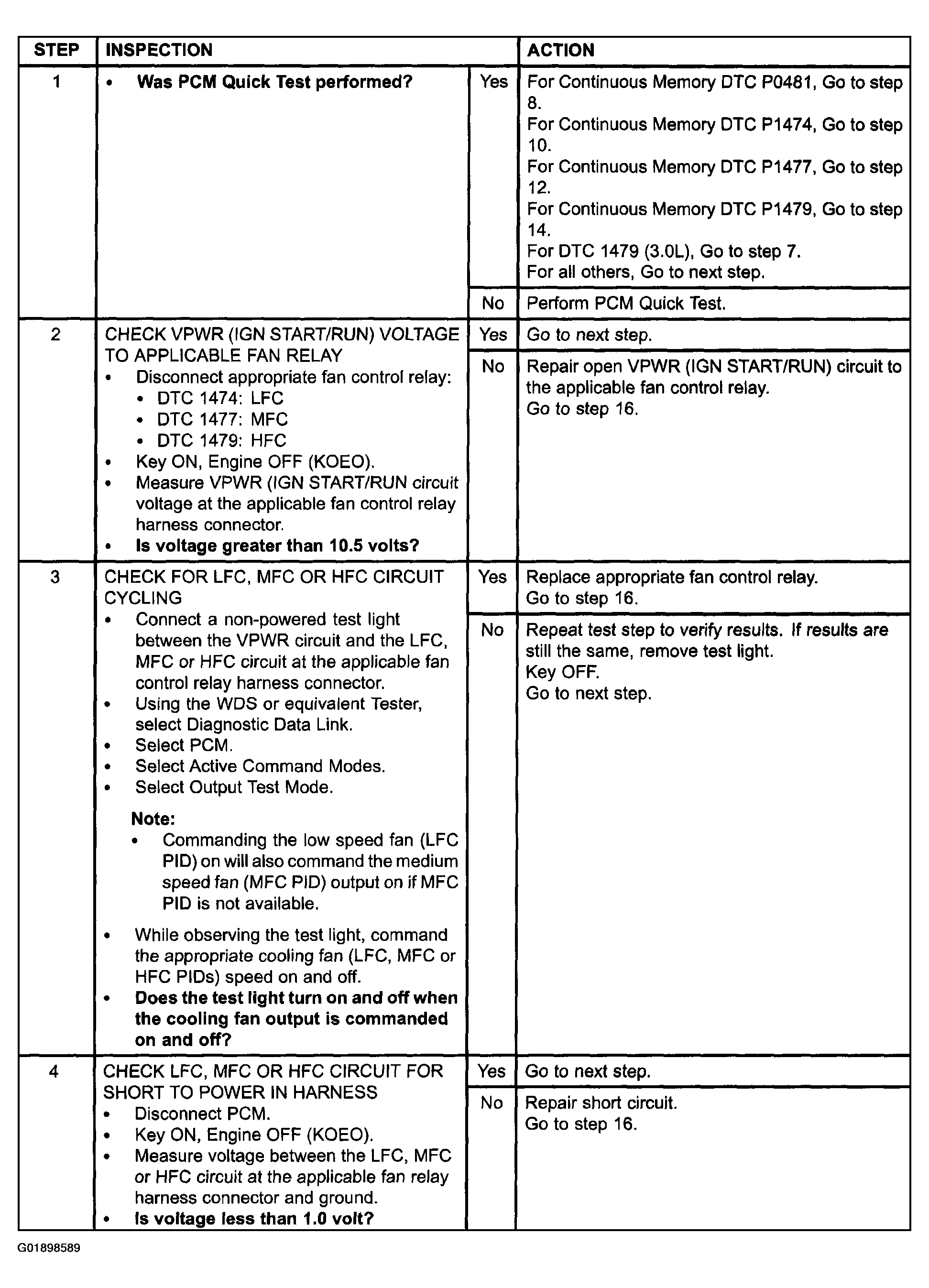

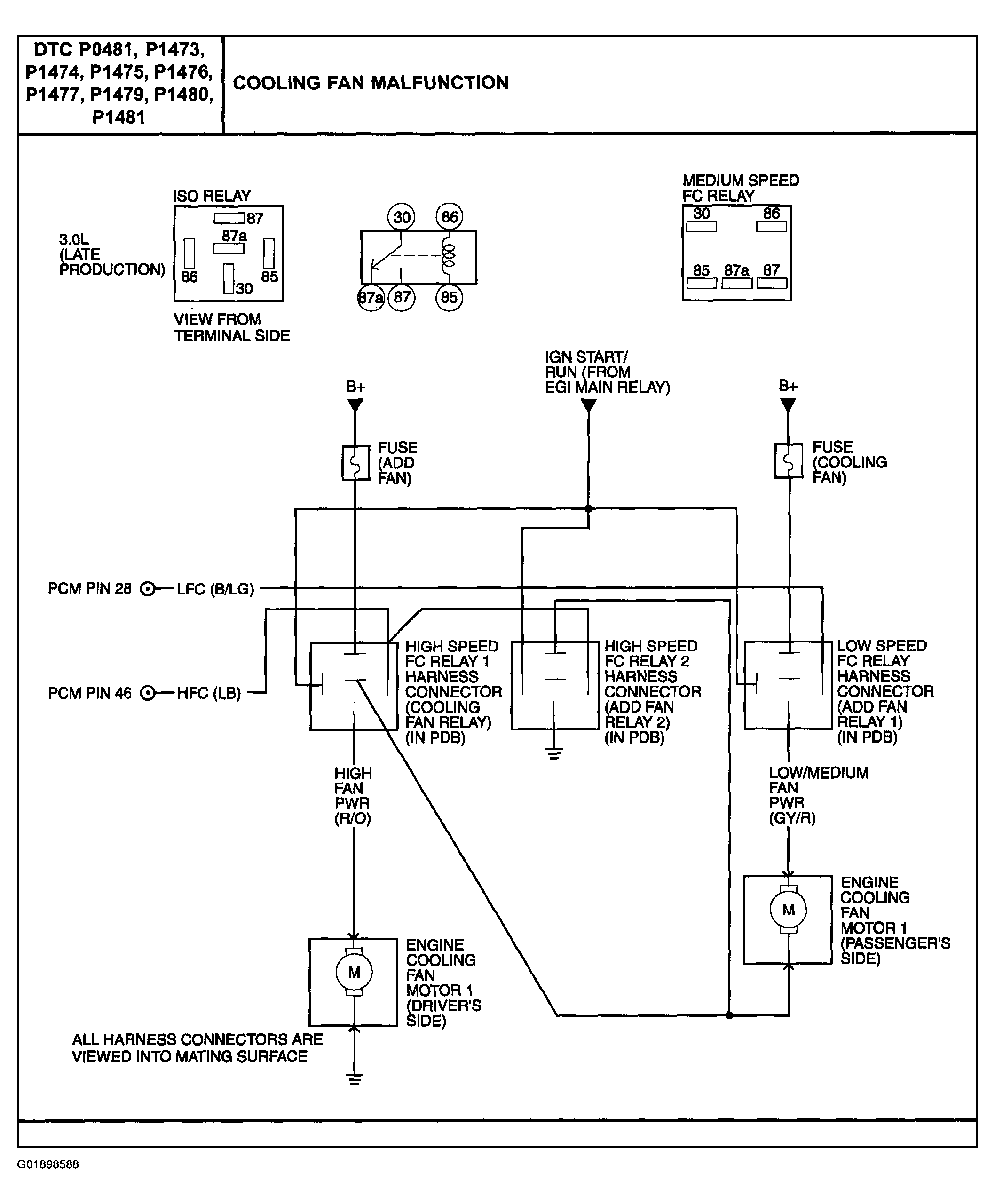

Fig 1: Cooling Fan Malfunction Troubleshooting Procedure (1 Of 4)
Courtesy of FORD MOTOR CO.

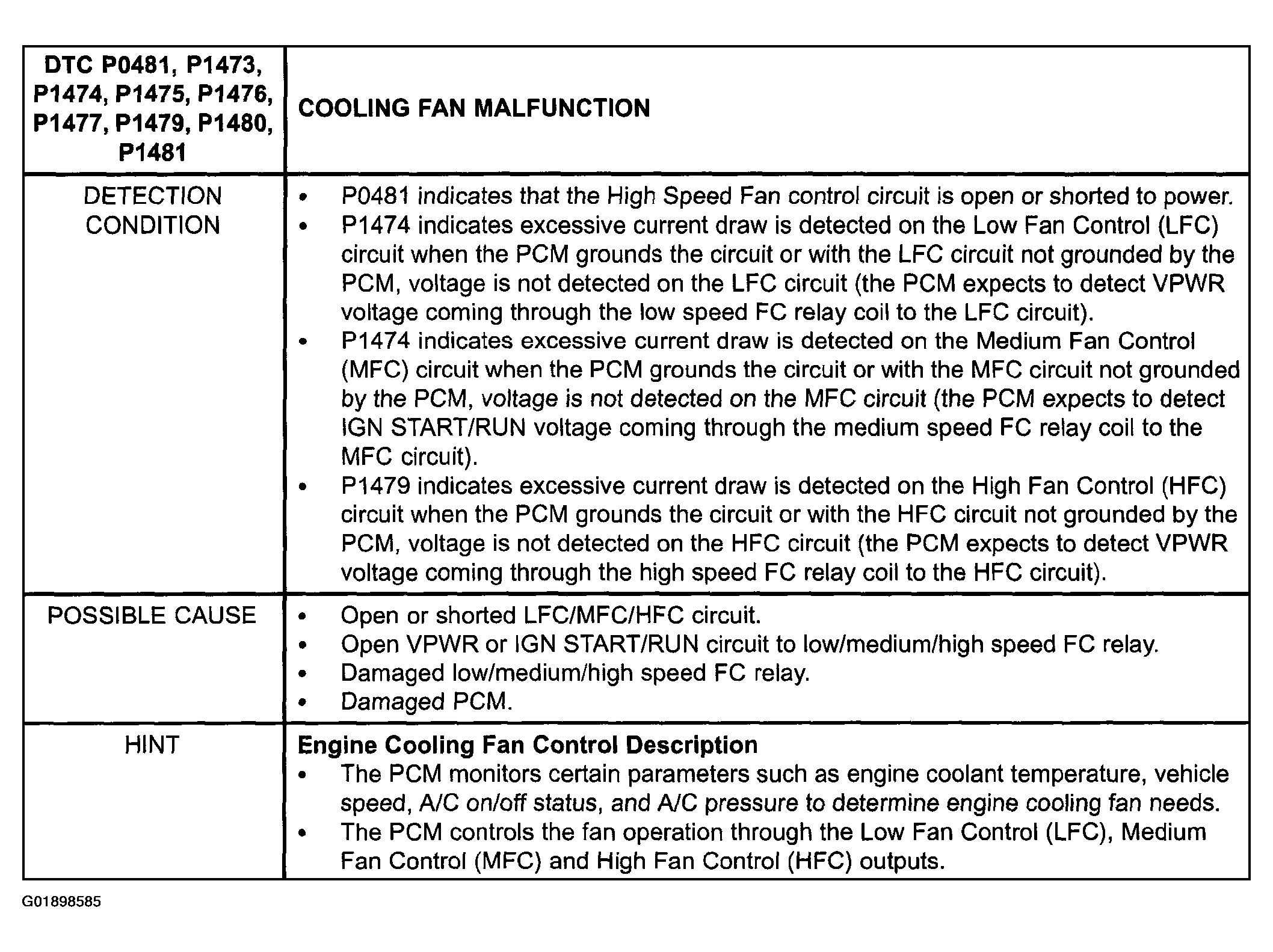

Fig 2: Cooling Fan Malfunction Troubleshooting Procedure (2 Of 4)
Courtesy of FORD MOTOR CO.

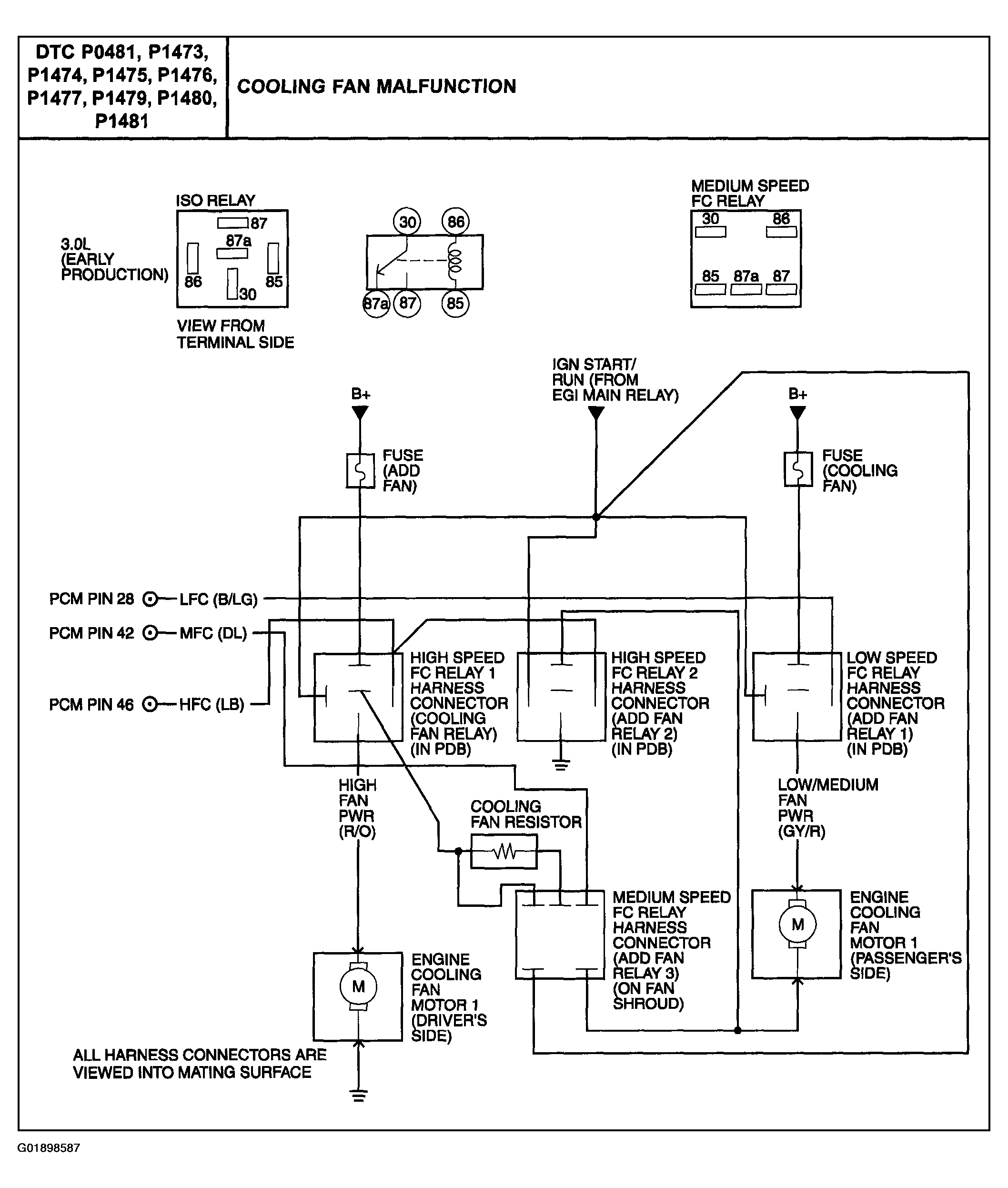

Fig 3: Cooling Fan Malfunction Troubleshooting Procedure (3 Of 4)
Courtesy of FORD MOTOR CO.
Fig 4: Cooling Fan Malfunction Troubleshooting Procedure (4 Of 4)
Courtesy of FORD MOTOR CO.

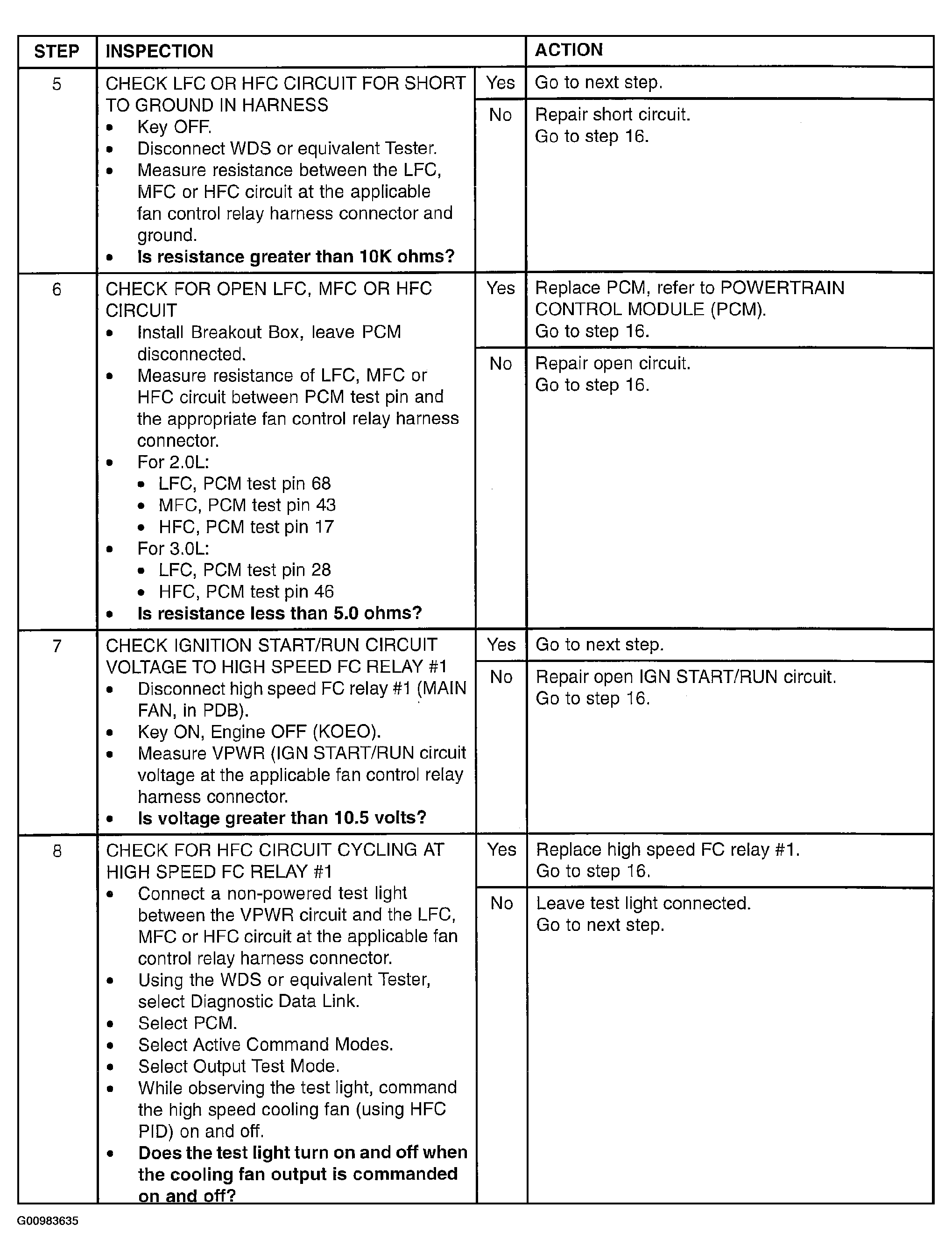

Fig 5: Cooling Fan Malfunction Inspection Procedure (1 Of 7)
Courtesy of FORD MOTOR CO.
Fig 6: Cooling Fan Malfunction Inspection Procedure (2 Of 7)
Courtesy of FORD MOTOR CO.

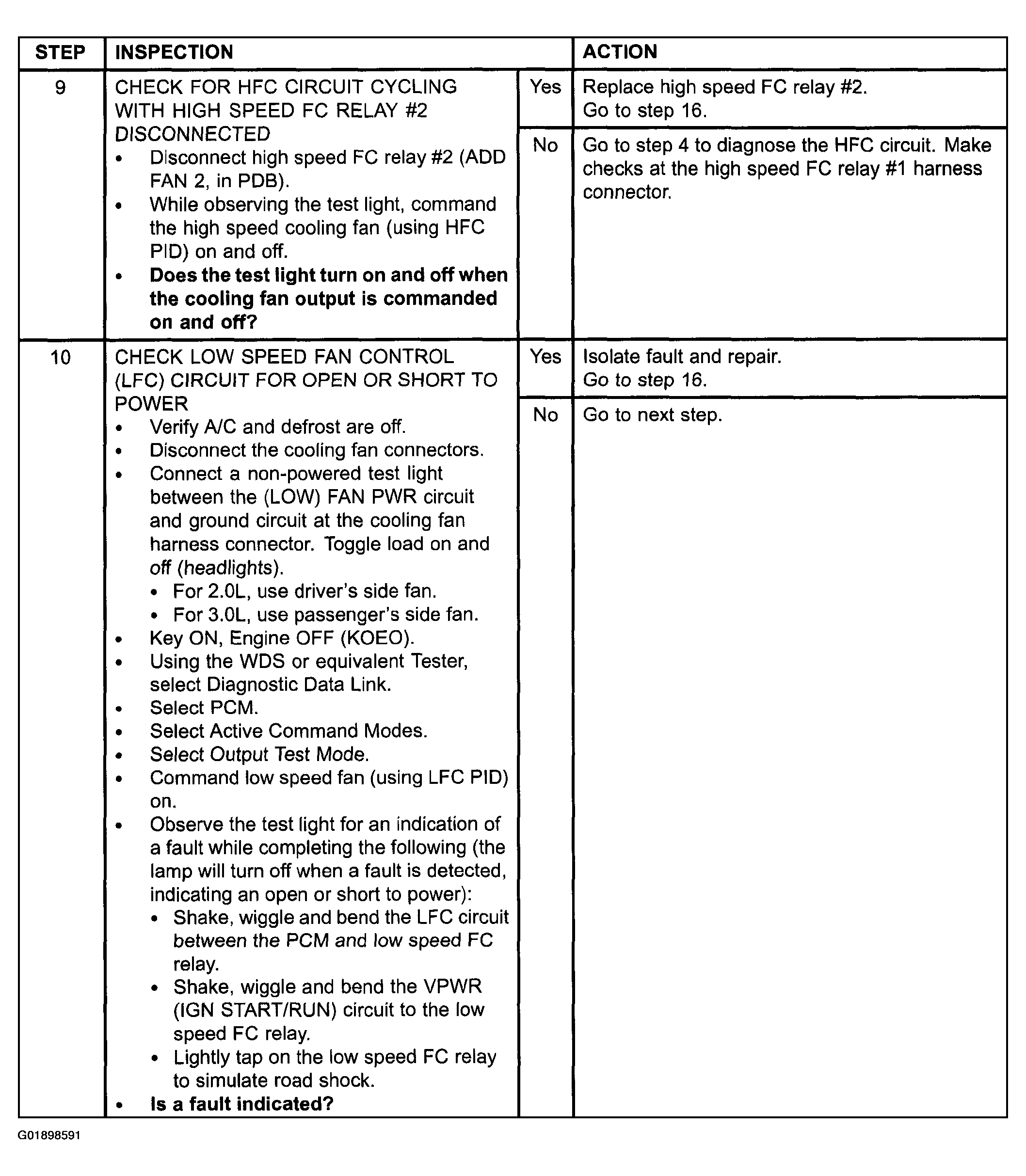

Fig 7: Cooling Fan Malfunction Inspection Procedure (3 Of 7)
Courtesy of FORD MOTOR CO.

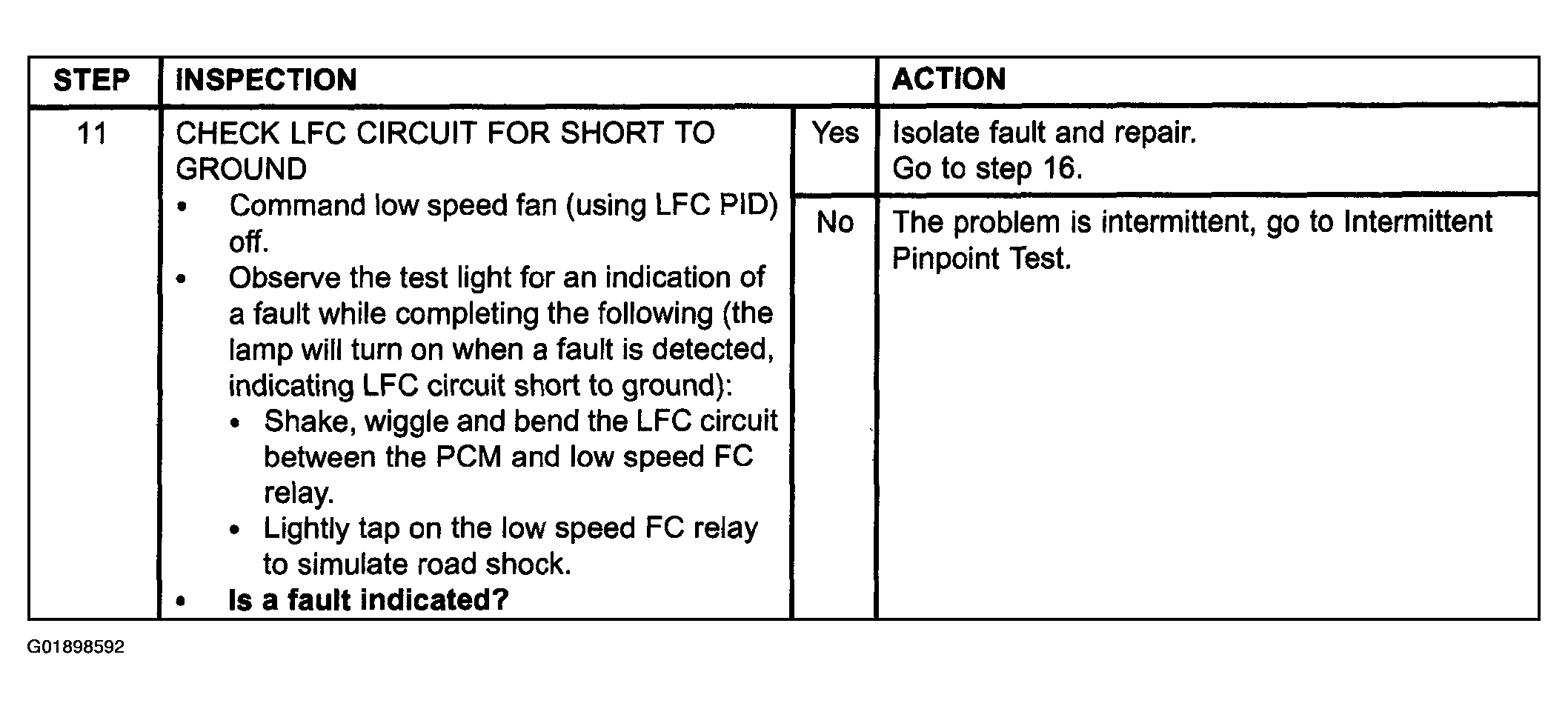

Fig 8: Cooling Fan Malfunction Inspection Procedure (4 Of 7)
Courtesy of FORD MOTOR CO.

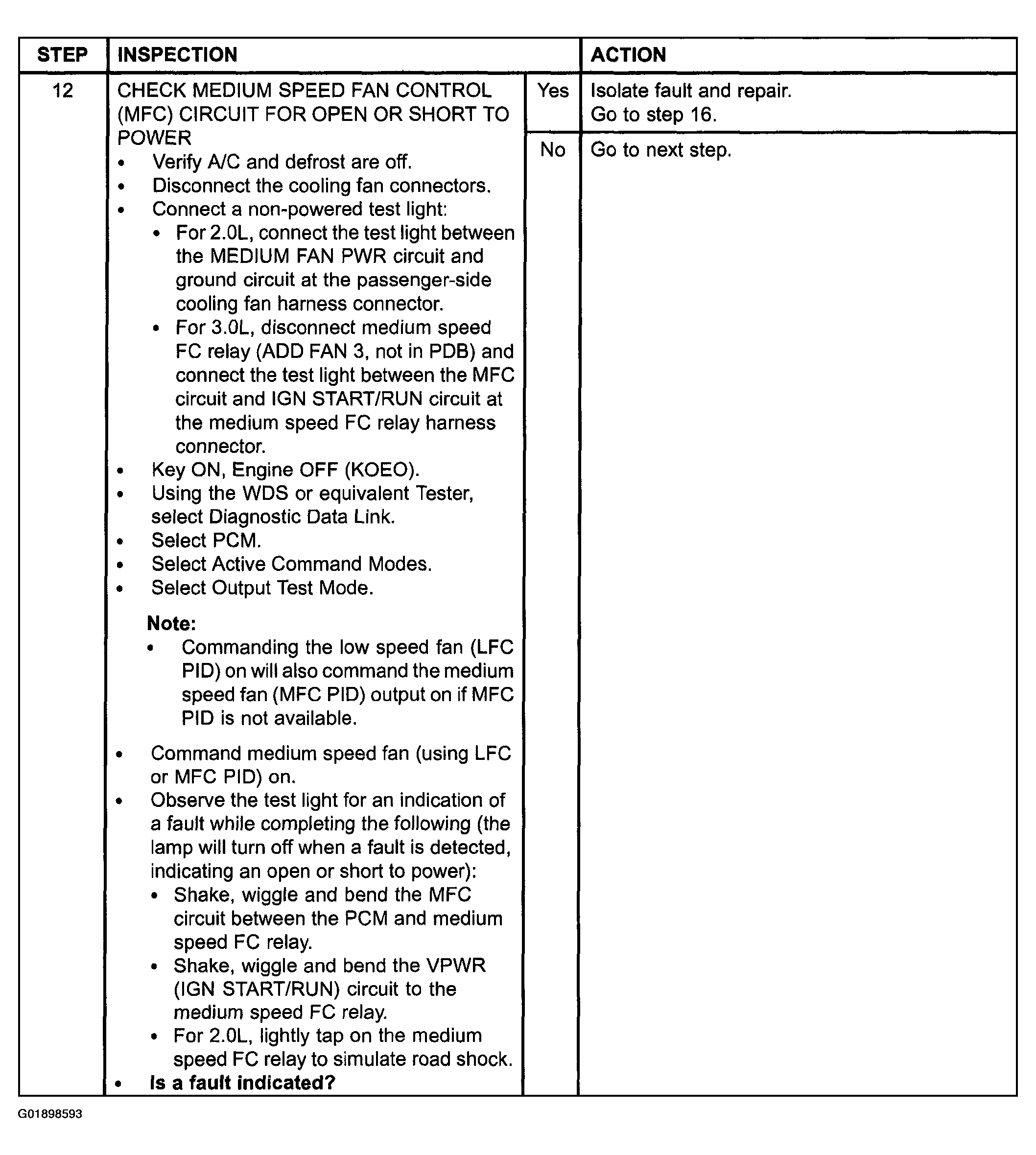

Fig 9: Cooling Fan Malfunction Inspection Procedure (5 Of 7)
Courtesy of FORD MOTOR CO.

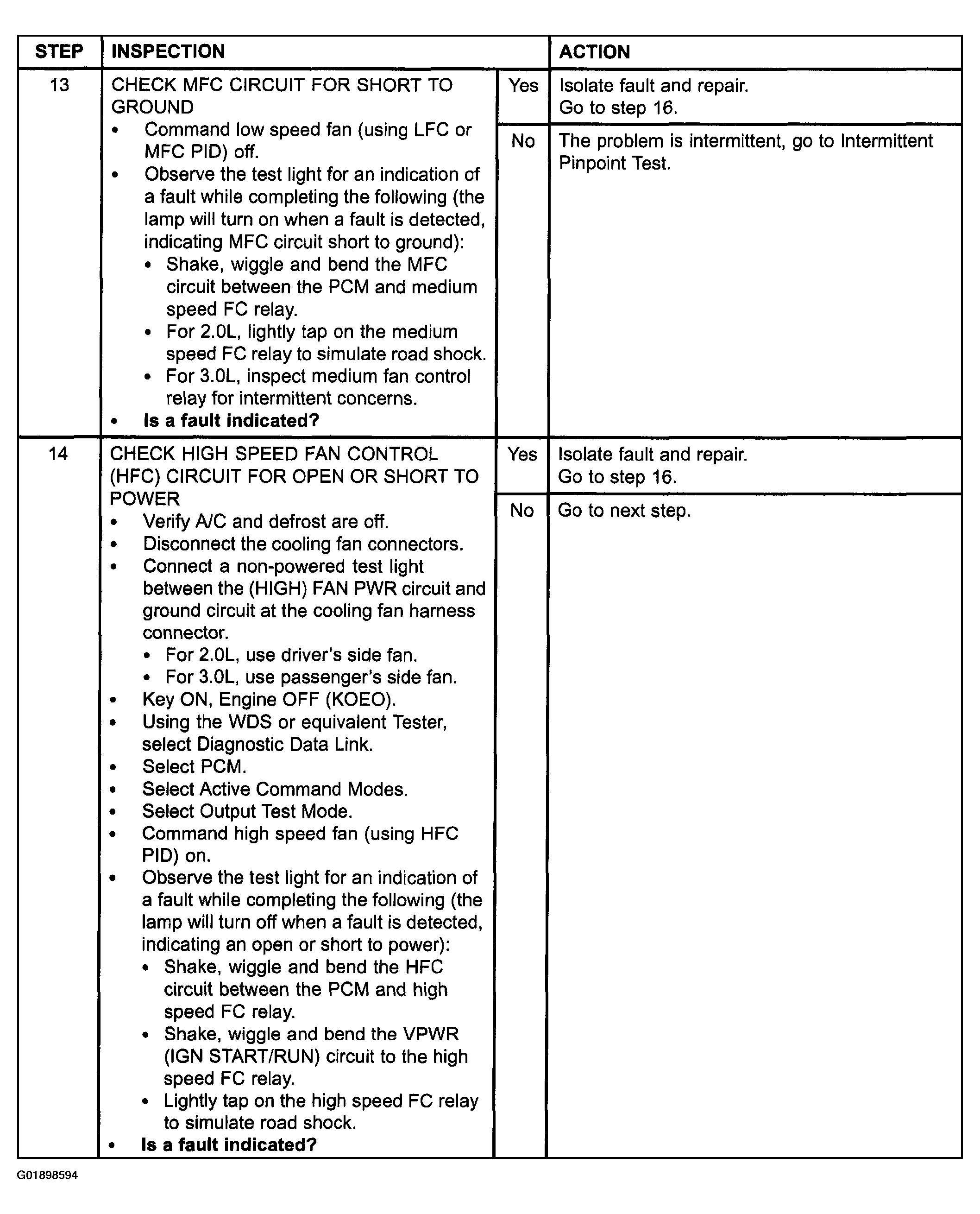

Fig 10: Cooling Fan Malfunction Inspection Procedure (6 Of 7)
Courtesy of FORD MOTOR CO.

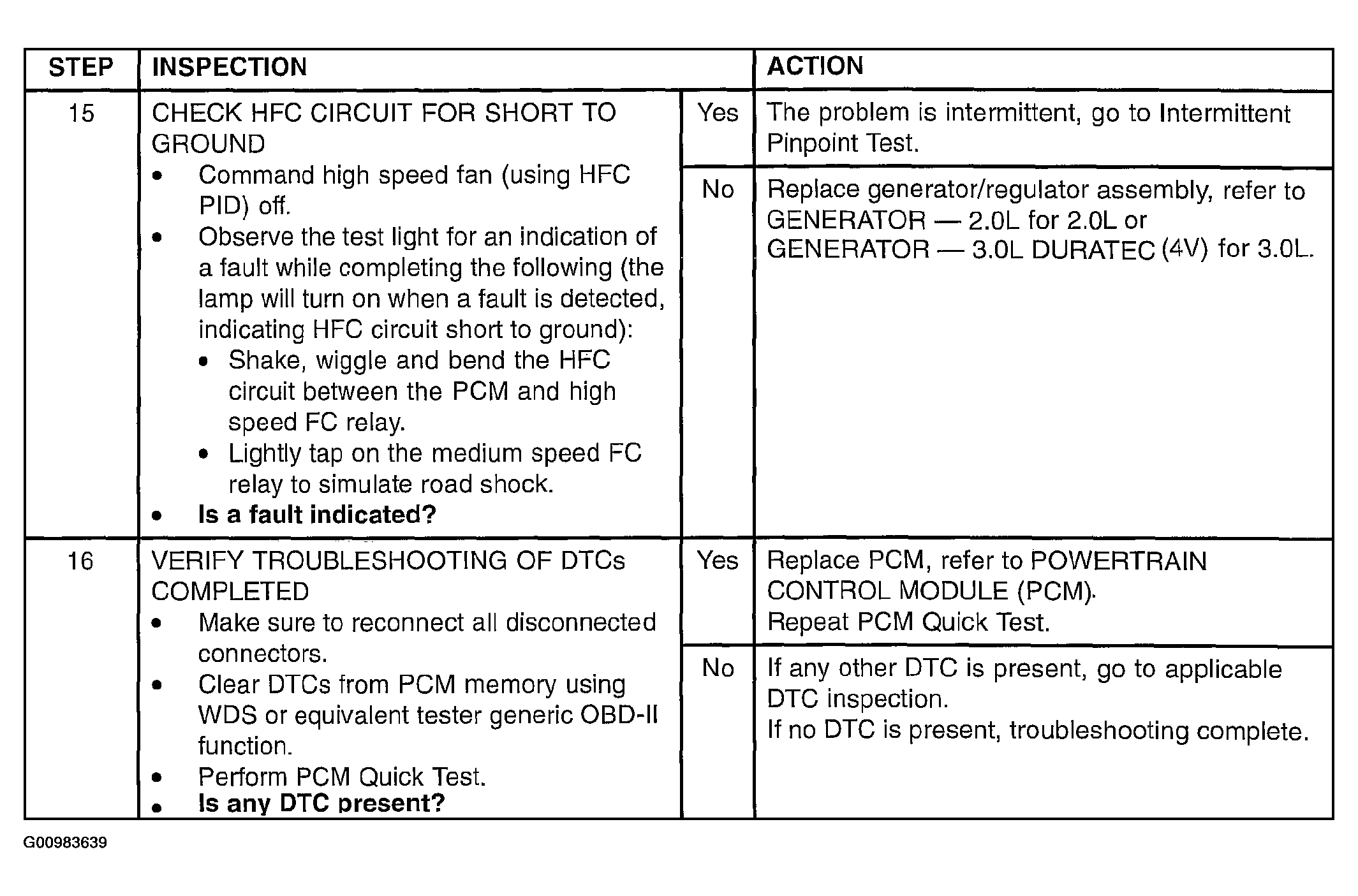

Fig 11: Cooling Fan Malfunction Inspection Procedure (7 Of 7)
