Pinpoint Test 3: The High Beam Headlamps Are Inoperative

WARNING: This page is about a different car, the 2003 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.

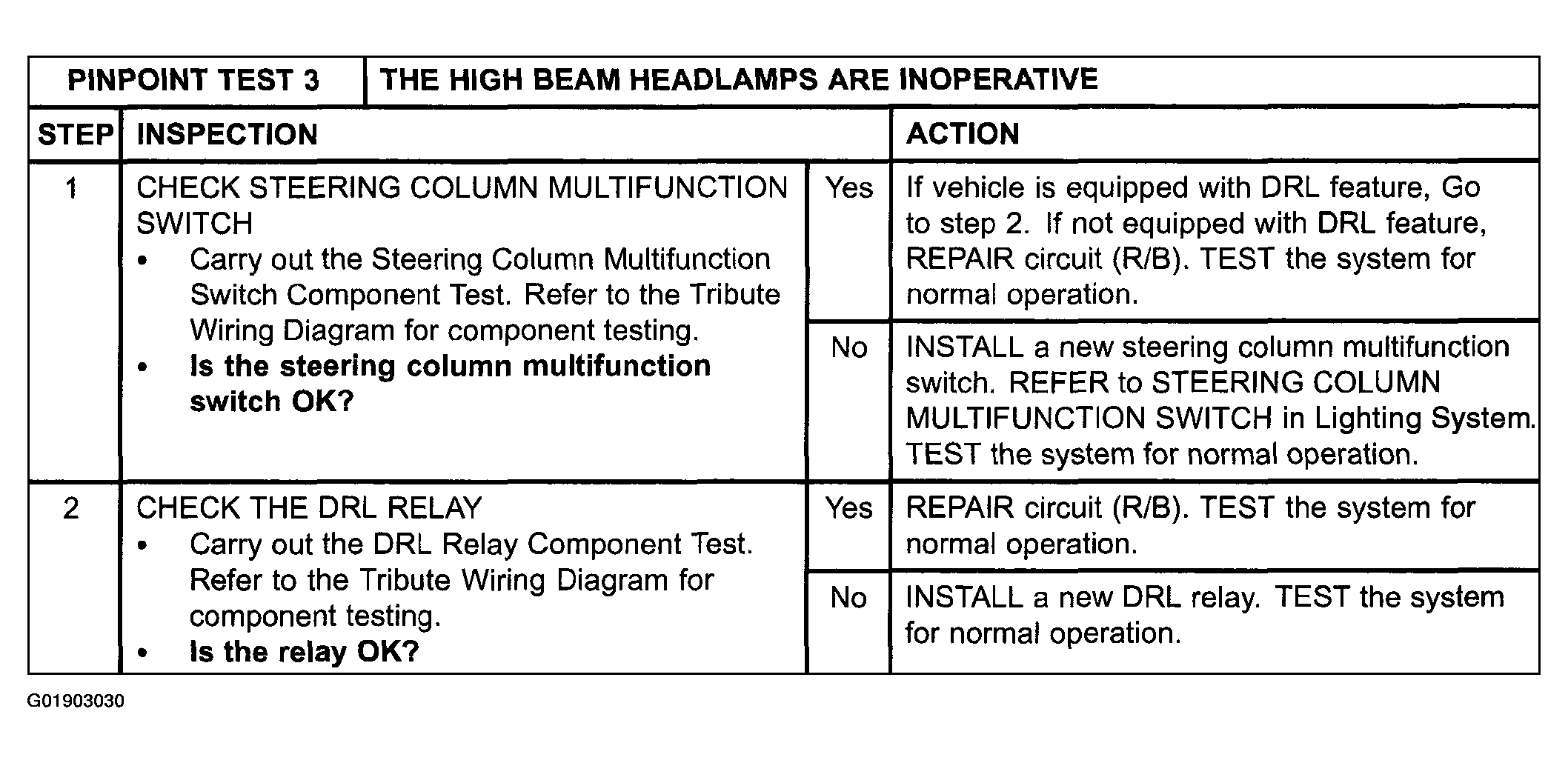

Fig 1: Pinpoint Test 3: High Beam Headlamps Are Inoperative
G01903030Courtesy of MAZDA MOTORS CORP.
