Pinpoint Test 2: One Or More Parking, Rear Or License Lamp Is Inoperative
WARNING: This page is about a different car, the 2003 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.

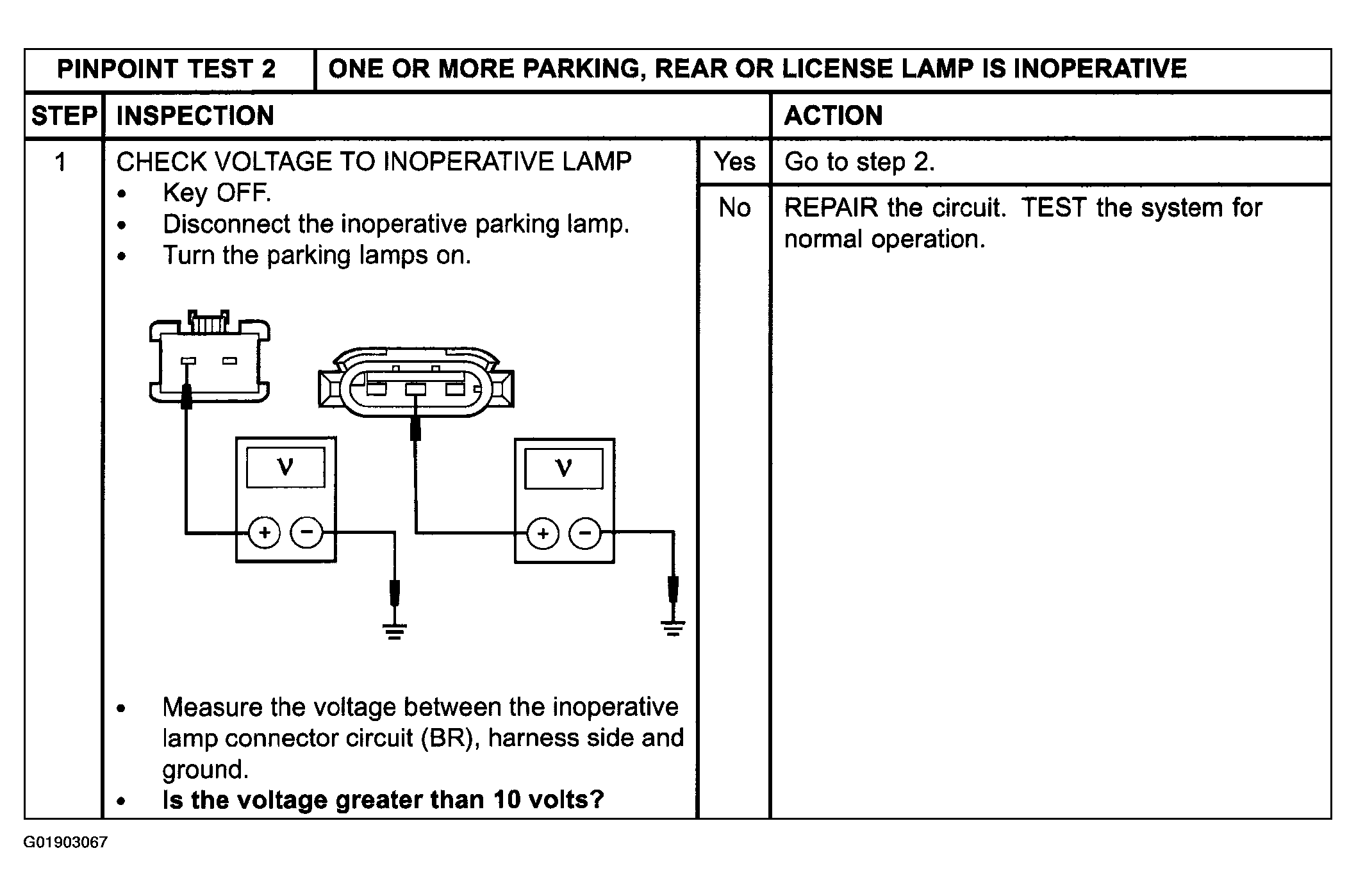

Fig 1: Pinpoint Test 2: One Or More Parking, Rear Or License Lamp Is Inoperative (Step 1)
Courtesy of MAZDA MOTORS CORP.

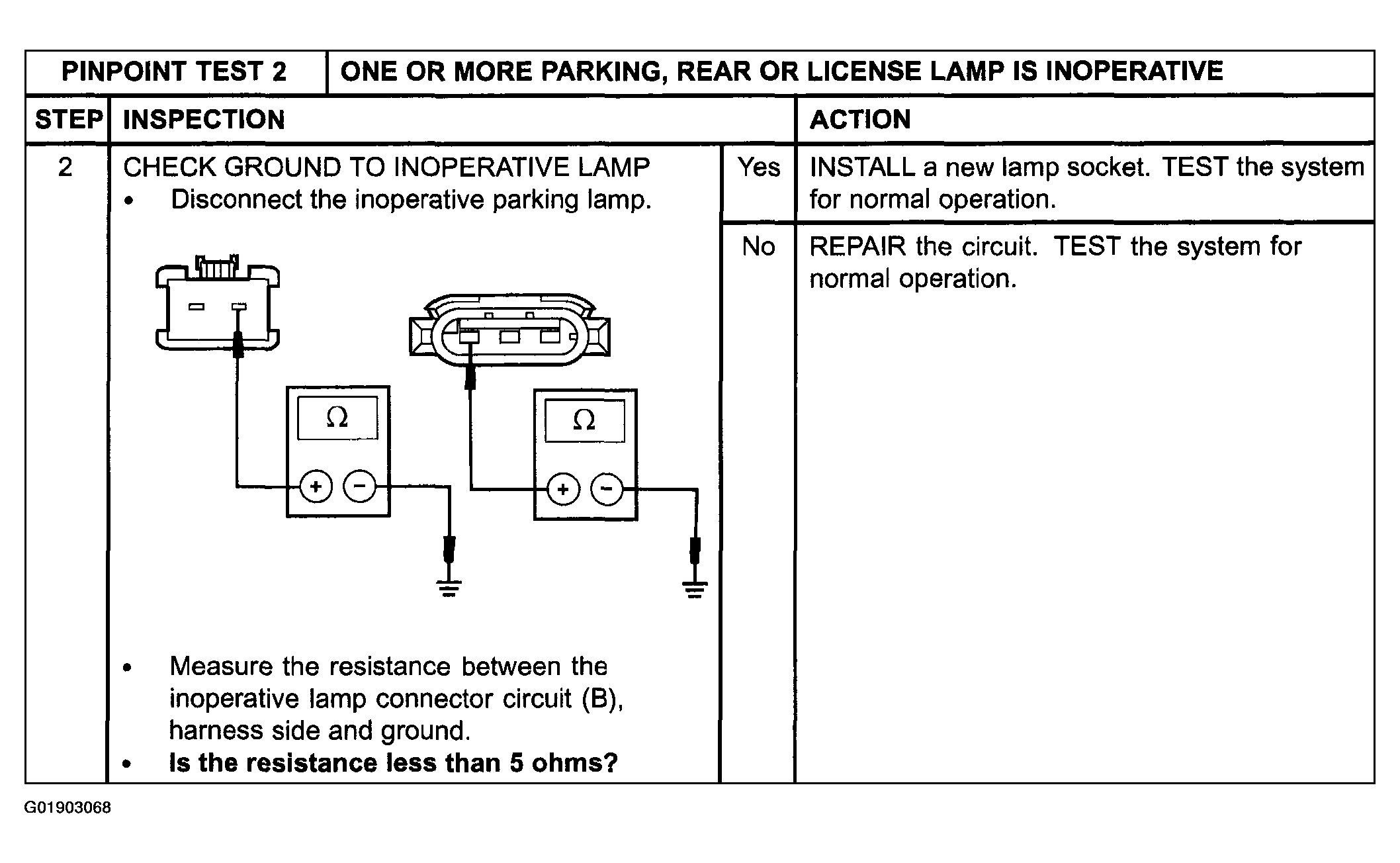

Fig 2: Pinpoint Test 2: One Or More Parking, Rear Or License Lamp Is Inoperative (Step 2)
