Pinpoint Test 1: The Exterior Lamp(S) Are Inoperative

WARNING: This page is about a different car, the 2003 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.

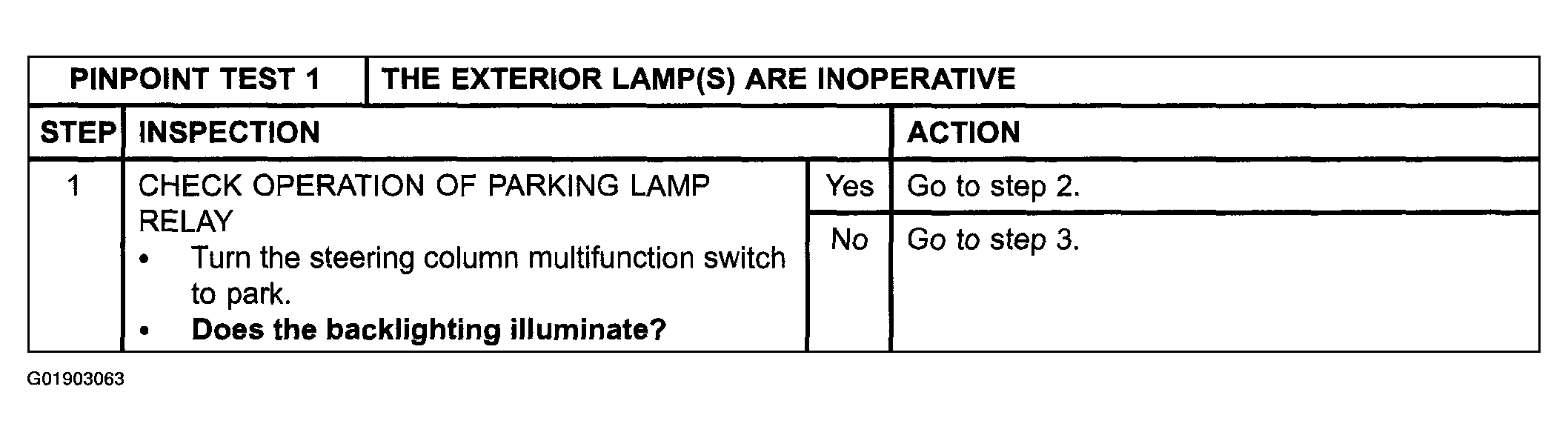

Fig 1: Pinpoint Test 1: Exterior Lamp(s) Are Inoperative (Step 1)

Courtesy of MAZDA MOTORS CORP.

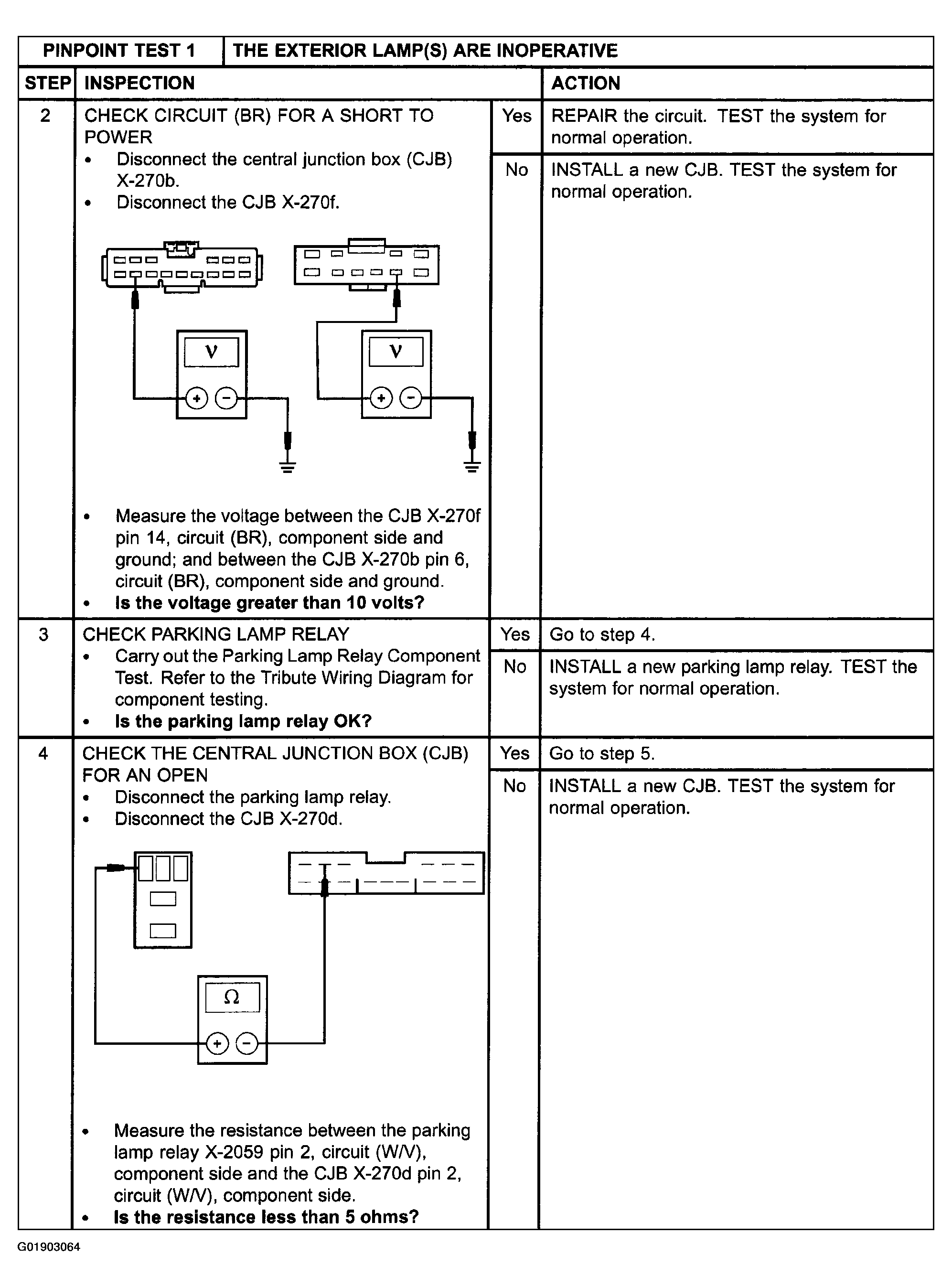

Fig 2: Pinpoint Test 1: Exterior Lamp(s) Are Inoperative (Steps 2-4)

Courtesy of MAZDA MOTORS CORP.

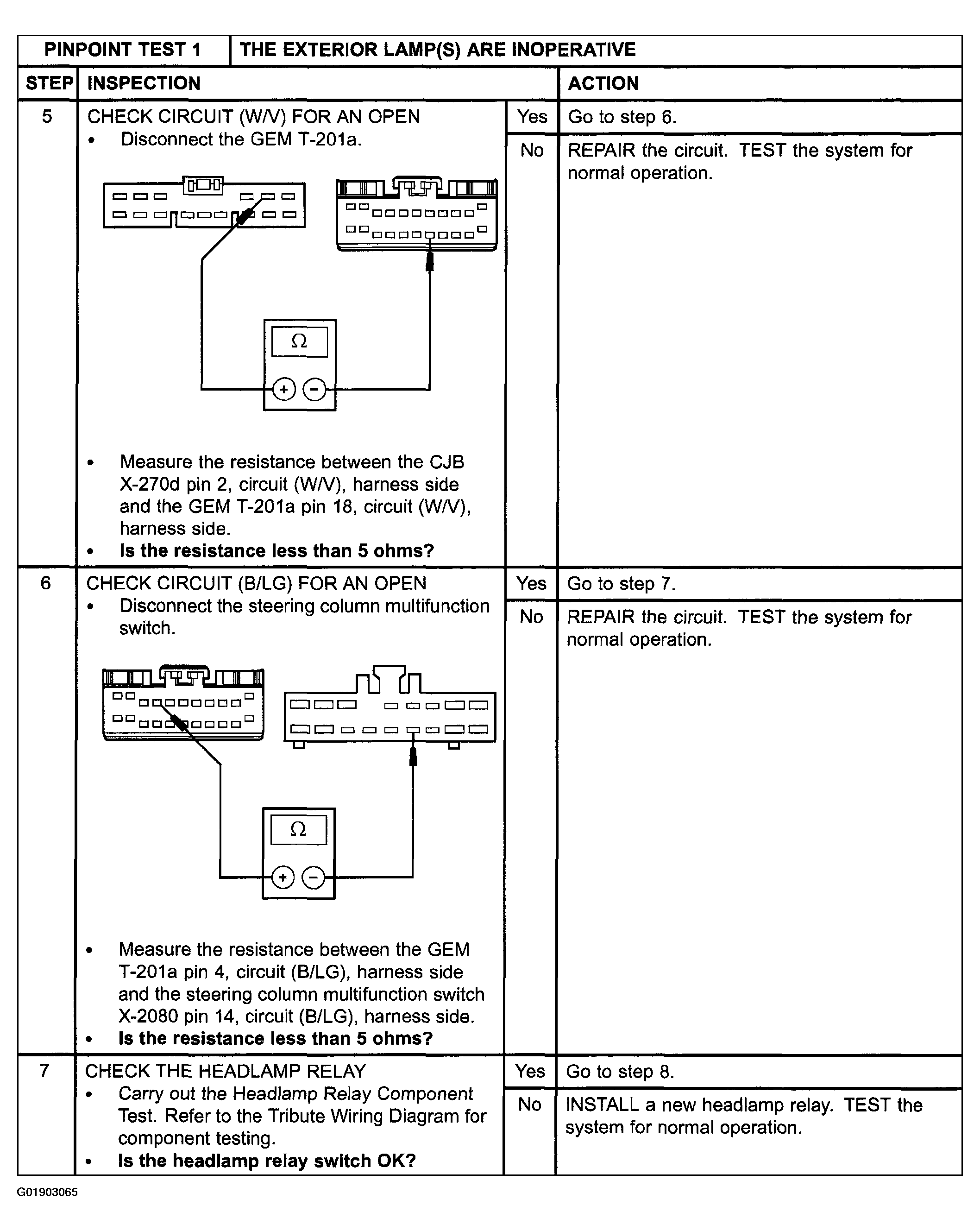

Fig 3: Pinpoint Test 1: Exterior Lamp(s) Are Inoperative (Steps 5-7)

Courtesy of MAZDA MOTORS CORP.

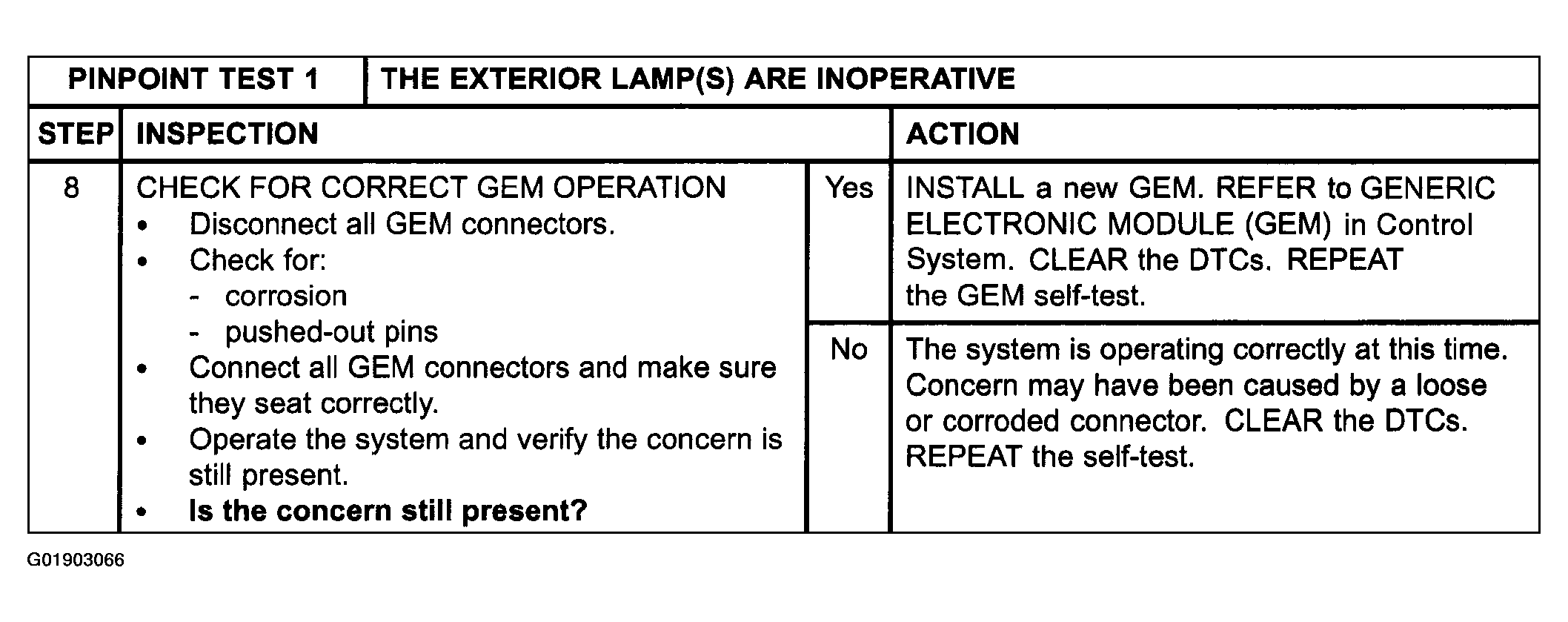

Fig 4: Pinpoint Test 1: Exterior Lamp(s) Are Inoperative (Step 8)

Courtesy of MAZDA MOTORS CORP.
