Pinpoint Test 3: The Daytime Running Lamps Are Inoperative - Low Beam Headlamps On At Full Intensity With Key On

WARNING: This page is about a different car, the 2003 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.

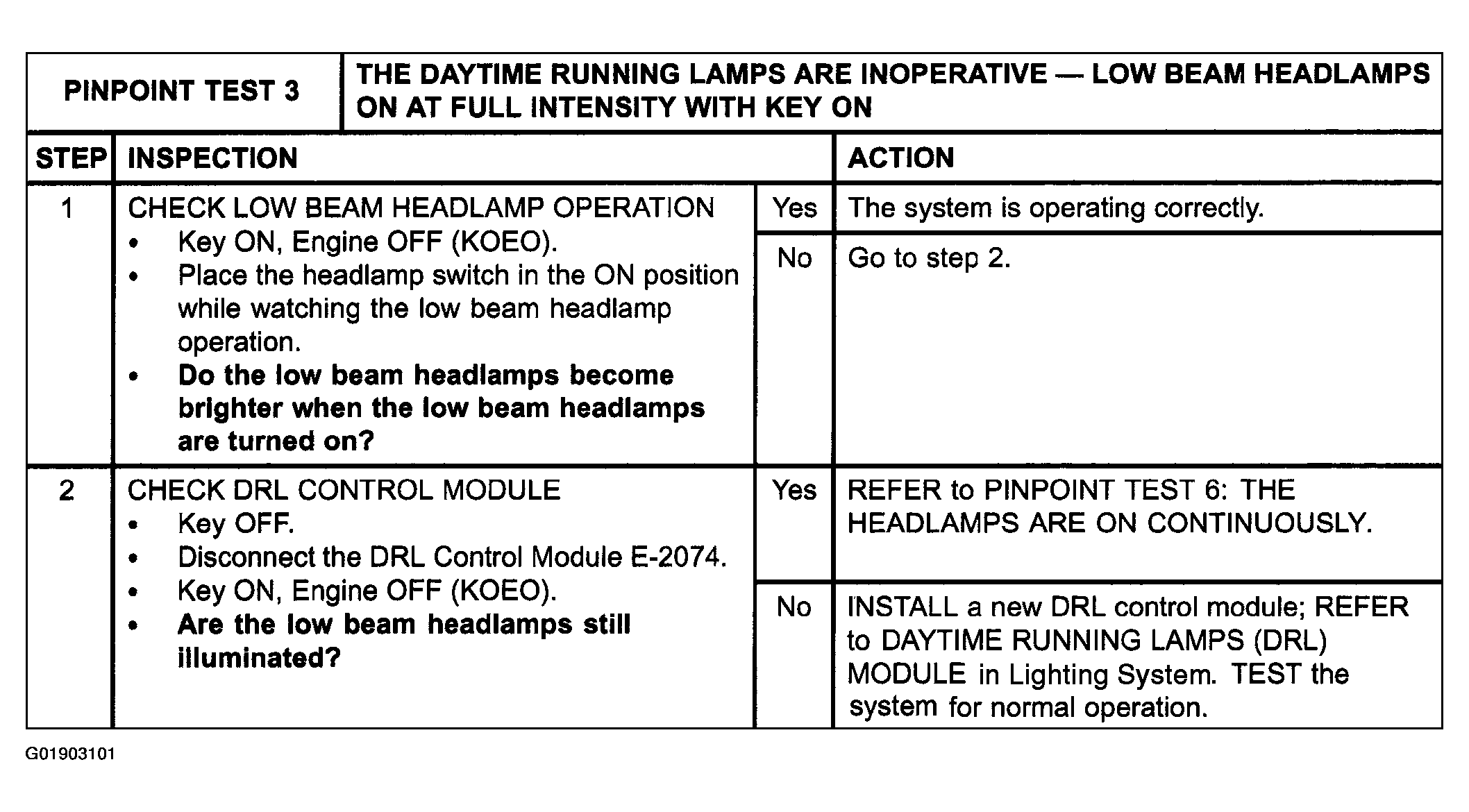

Fig 1: Pinpoint Test 3: Daytime Running Lamps Are Inoperative - Low Beam Headlamps On At Full Intensity With Key On
G01903101Courtesy of MAZDA MOTORS CORP.
