Clutch Pedal Height
WARNING: This page is about a different car, the 2003 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

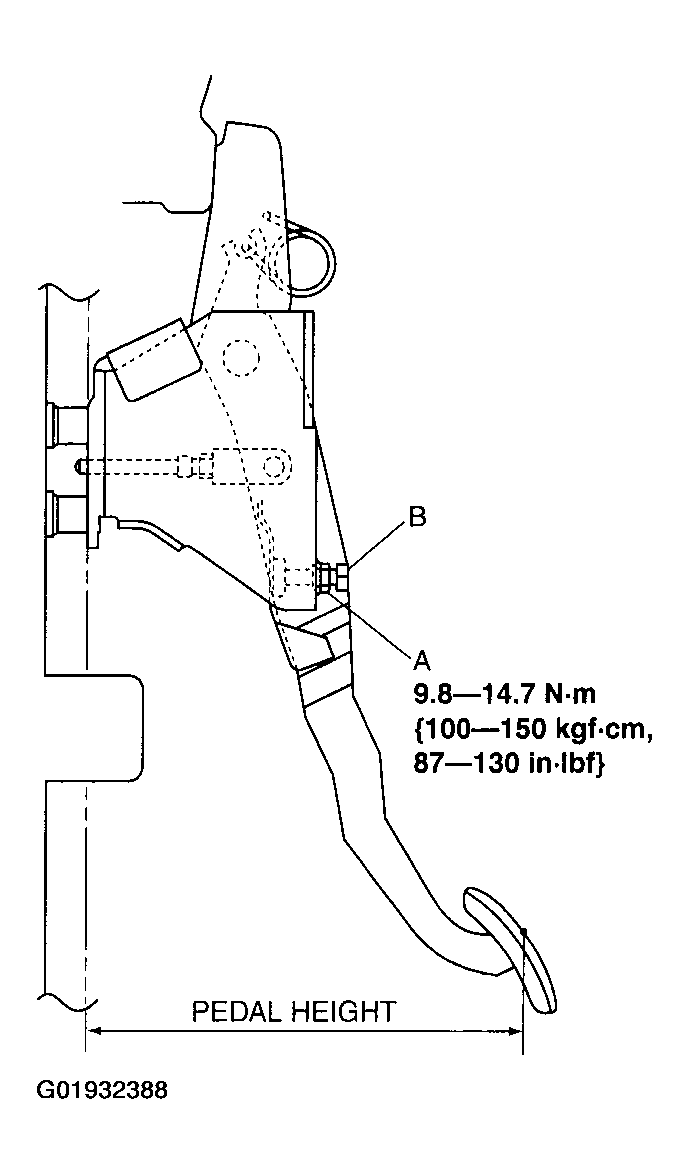

- Measure the distance from the upper surface of the pedal pad.
- If not as specified, adjust the pedal height by turning adjustment bolt B and locknut A.
- Pedal height (Reference value) 210-216 mm {8.27-8.50 in}
Courtesy of MAZDA MOTORS CORP.
