Camshaft End Play Inspection

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 Mazda 6, 2007 Mazda 6, 2006 Mazda 6, 2005 Mazda 6, and 2004 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Measure the camshaft end play.
- If the camshaft end play exceeds the maximum end play, replace the cylinder head or camshaft.
  Standard End Play

  0.025-0.165 mm {0.0010-0.0064 in}

  Maximum End Play

  0.190 mm{0.00748 in}
Remove the camshaft cap. (See CAMSHAFT CAP (RH) DISASSEMBLY NOTE .) (See CAMSHAFT CAP (LH) DISASSEMBLY NOTE .)

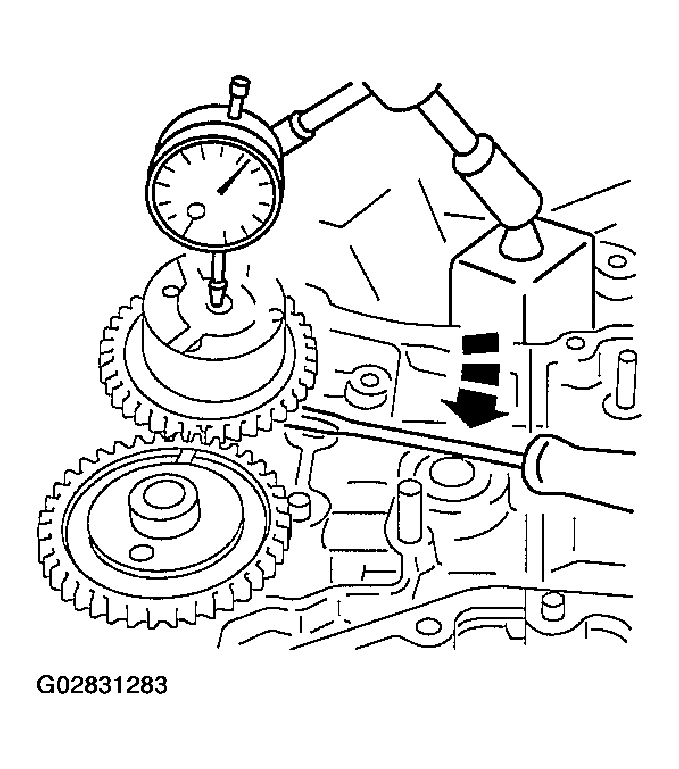

Fig 1: Measuring Camshaft End Play
Courtesy of MAZDA MOTORS CORP.
