Second Gear (2 Range): Outline
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2006 Mazda MPV, 2005 Mazda MPV, 2004 Mazda MPV, 2004 Mazda 6, and 2003 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.

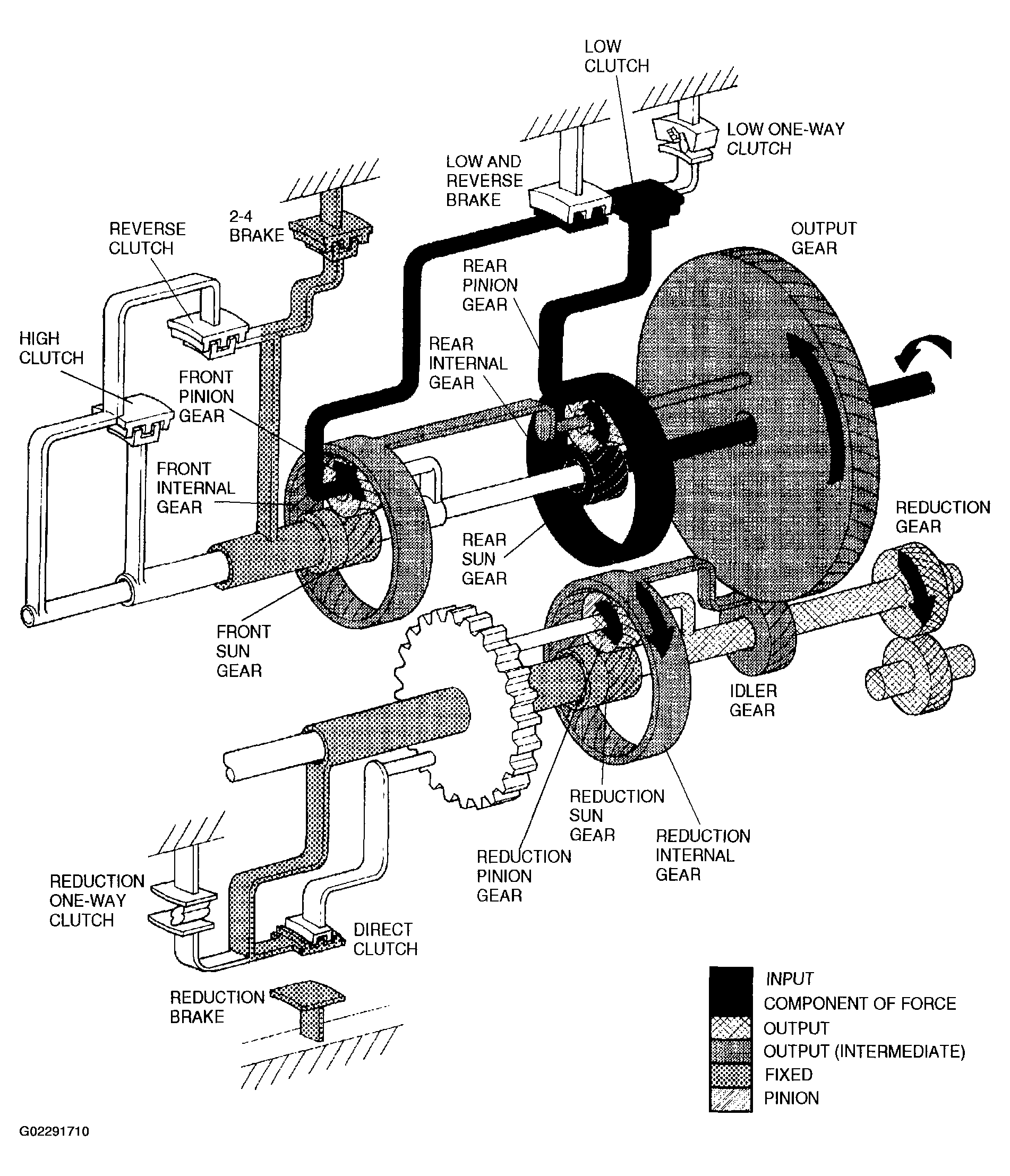

- The driving force of the input shaft is transmitted to the rear sun gear, causing the rear pinion gear to rotate clockwise and as in 1GR, also causes the rear planetary carrier to rotate counterclockwise. The front internal gear rotates counterclockwise together with the rear planetary carrier. Because the front sun gear is locked by the 2-4 brake, the front pinion gear rotates counterclockwise on its own axis and the front planetary carrier also rotates counterclockwise. This driving force is transmitted to the low clutch before causing the rear internal gear to rotate counterclockwise. Due to this, the output gear rotates counterclockwise and the driving force is transmitted to the reduction internal gear via the idler gear. This rotational speed increases because the rear internal gear rotates faster than when in 1GR.
- Though the reduction internal gear rotates clockwise, trying to revolve the reduction pinion gear clockwise, the reduction pinion gear tries to rotate clockwise as the load from the vehicle (force that prevents the reduction carrier from rotating clockwise) is applied to the reduction carrier.
- The force of the reduction pinion gear, which tries to rotate clockwise, tries to rotate the reduction sun gear counterclockwise. However, counterclockwise rotation of the reduction sun gear is locked by the reduction brake. Due to this, driving force of the reduction pinion gear overcomes the load from the vehicle to revolve clockwise while rotating clockwise, and rotates the reduction carrier clockwise.
- Therefore, the reduction gear also rotates clockwise and the driving force is transmitted to the driving wheels.
- During deceleration, engine breaking is transmitted in the opposite direction during acceleration.
