Second Gear (2 Range): Operation
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2006 Mazda MPV, 2005 Mazda MPV, 2004 Mazda MPV, 2004 Mazda 6, and 2003 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.

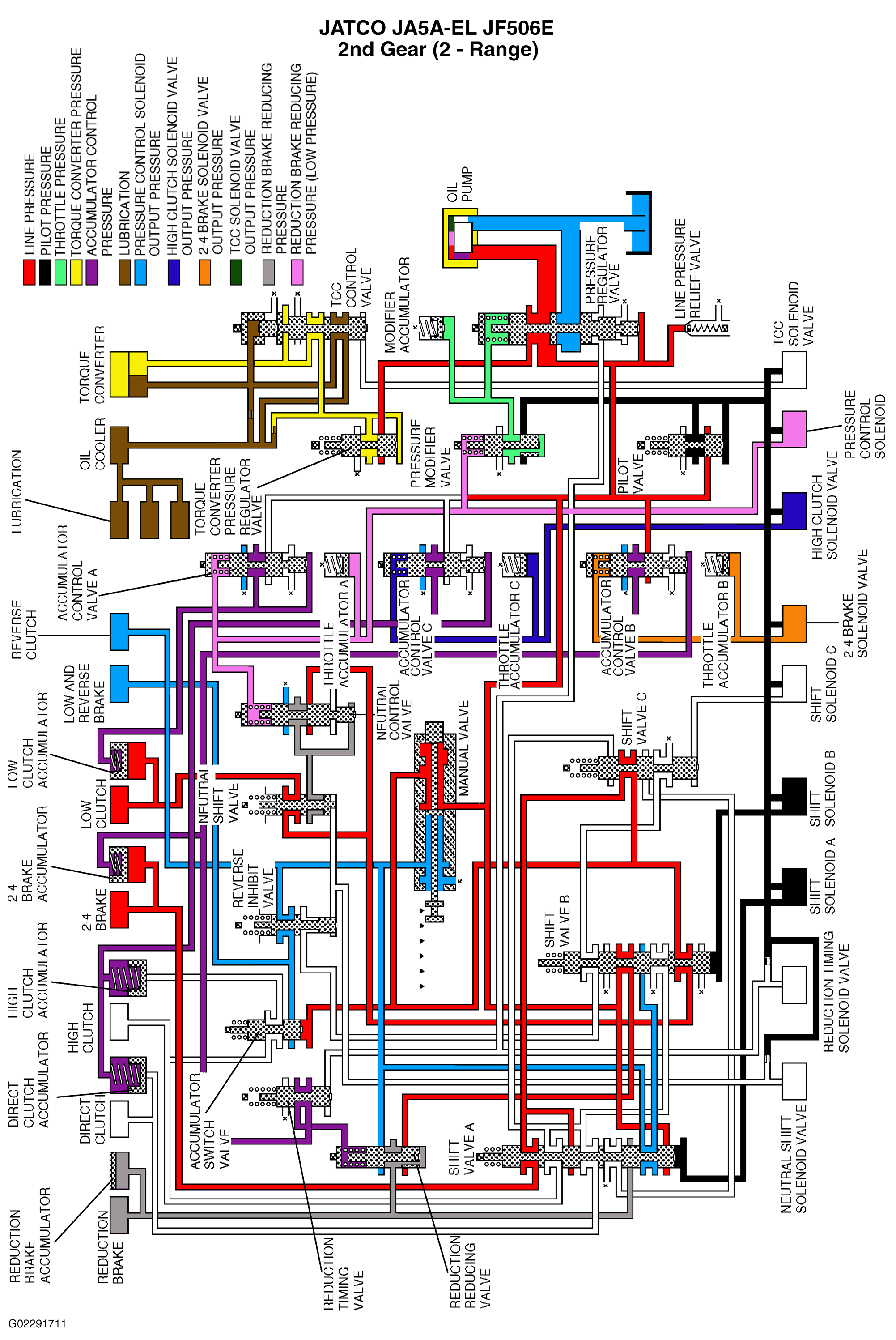

- With shift solenoid B ON, pilot pressure is applied to the bottom end of shift valve B, and the shift valve B is positioned on the upper side.
- Line pressure is applied to the low clutch accumulator, and the engages the low clutch through shift valve B.
- With shift solenoid A ON, pilot pressure is applied to bottom end of shift valve A, and shift valve A is positioned on the upper side.
- With shift solenoid C OFF, the spring force is applied to upper end of shift valve C and the shift valve C is position on the lower side.
- Line pressure is applied to the 2-4 accumulator, and engages the 2-4 brake through shift valve C and shift valve A.
- Line pressure delivered to the pressure regulator valve is sent to the torque converter through the TCC control valve as torque converter pressure.
