Gear Rotation Speed
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2006 Mazda MPV, 2005 Mazda MPV, 2004 Mazda MPV, 2004 Mazda 6, and 2003 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.

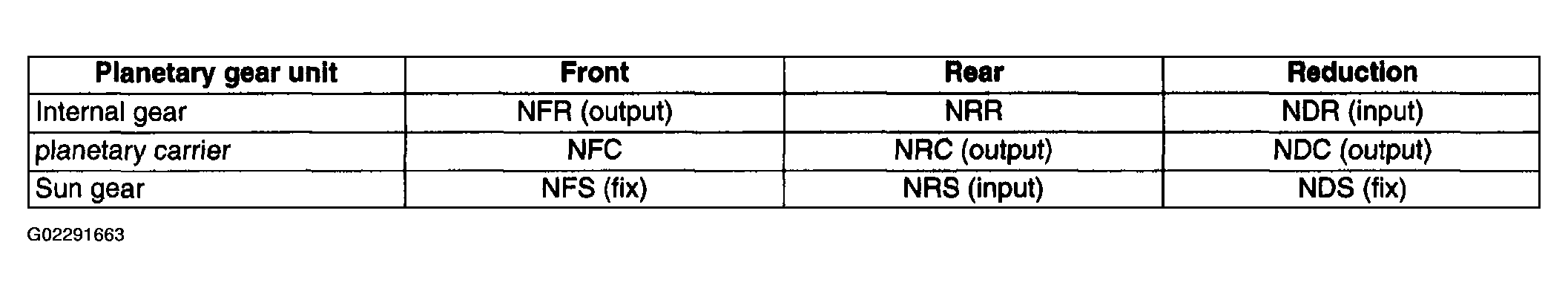

Suppose gear ratio in second gear is i2,
i2=front and rear planetary gear ratio (i2')x reduction planetary gear ratio (iRD)
i2'=NRS/NRR
NRC=NFR, NRR=NFC: condition A
- From formula (1), the relation between the gear ratio in second gear and the rotation speeds of the front and the rear planetary gar sets is indicated in formulas (2) and (3).
(ZFR+ZFS)xNFC=ZFRxNFR+ZFSxNFS: (2)
(ZRR+ZRS)xNRC=ZRRxNRR+ZRSxNRS: (3)
- From the result NFS=0 in formula (2)
NFC=ZFR/(ZFR+ZFS)xNFR: (4)
- According to condition A
NFC=NRR=ZFR/(ZFR+ZFS)xNRC
- Here we substitute condition A in formula (3)
(ZRR+ZRS)xNRC=ZRRxZFR/(ZFR+ZFS)xNRC+ZRSxNRS
i2'=NRS/NRC=((ZRR+ZRS)-ZRRxZFR/(ZFR+ZFS))/ZRS
i2=i2'xiRD=((ZRR+ZRS)-ZRRxZFS/(ZFR+ZFS))/ZRSx(ZDR+ZDS)/ZDR
=((75+42)-75x74/(74+34))/42x(85+31)/85
=2.132
