Gear Rotation Speed
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2006 Mazda MPV, 2005 Mazda MPV, 2004 Mazda MPV, 2004 Mazda 6, and 2003 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.
l4=i4'xiRD
i4'=NFC/NFR

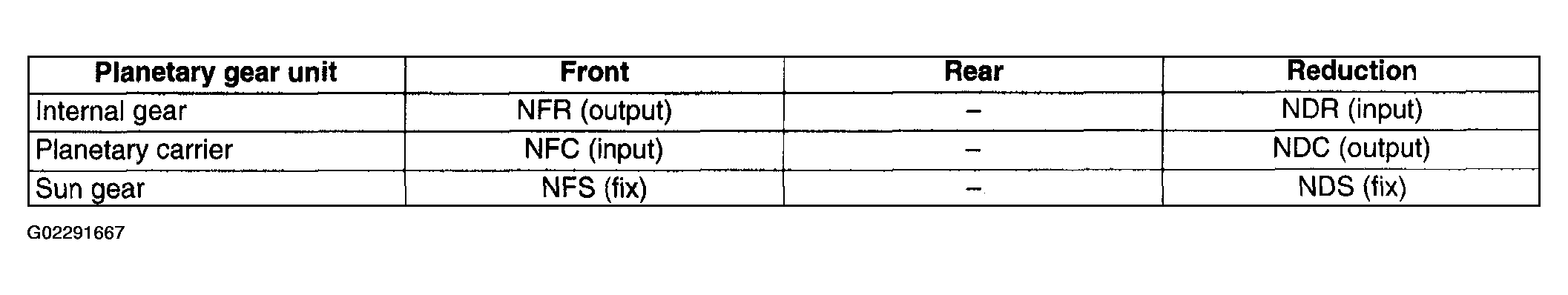

- From the result of NFS=0, in formula (1), the relation between the gear ratio in fourth gear and the rotation speed of the planetary gear set indicated in the formula below.
(ZFR+ZFS)xNFC=ZFRxNFR
i4'=NFC/NFR=ZFR/(ZFR+ZFS)
i4=ZFR/(ZFR+ZFS)x(ZDR+ZDS)/ZDR
=74/(74+34)x(85+31)/85
=0.935
