Wheel Knuckle - 4WD: Removal

WARNING: This page is about a different car, the 2004 Mazda Tribute, 2003 Mazda Tribute, and 2002 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: When a new wheel knuckle is installed a new wheel bearing must also be installed.
  1. Raise and support the vehicle on the hoist.
  2. Remove the wheel and tire assembly.
    • If necessary, remove the center cap.
    • Remove the nuts.

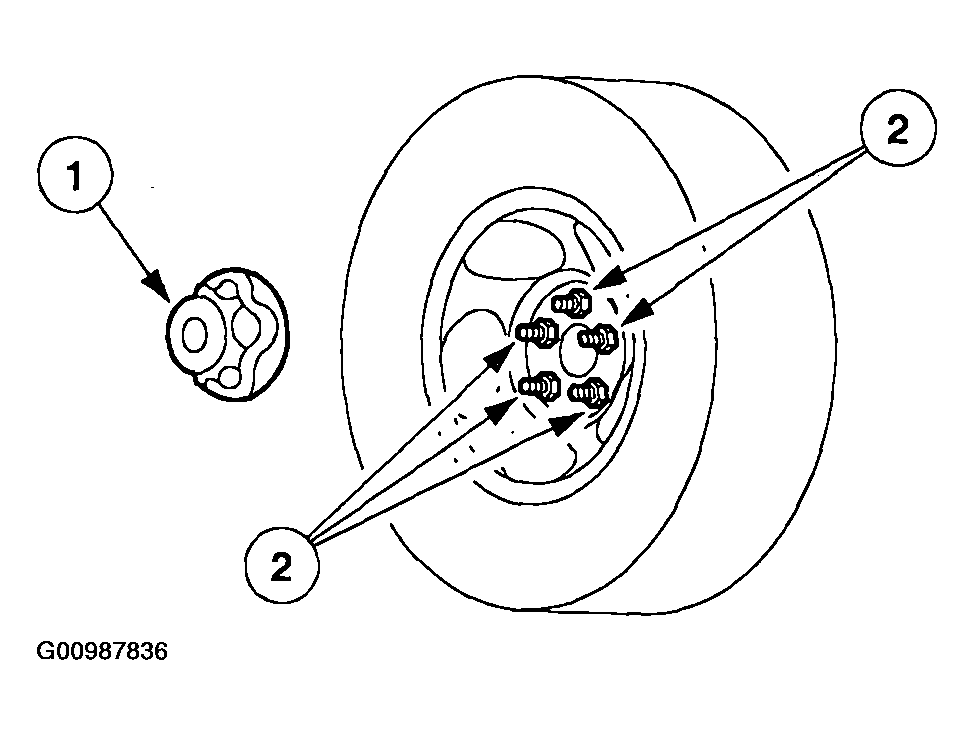

    Fig 1: Removing Wheel & Tire Assembly
    G00987836Courtesy of MAZDA MOTORS CORP.
  3. CAUTION: Use of a brake drum puller or a torch is not recommended. Brake drum distortion can occur.

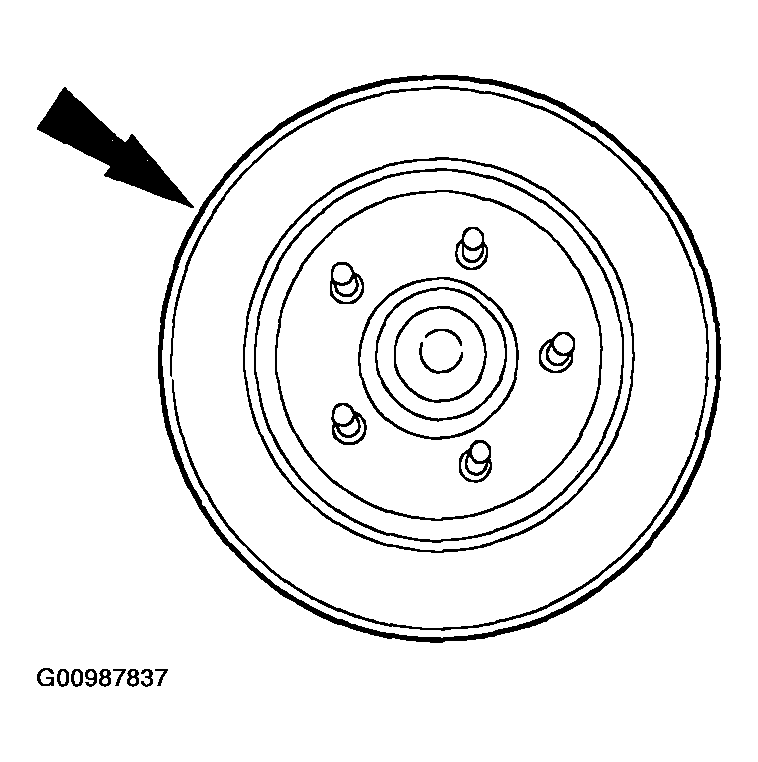

    Fig 2: Removing Brake Drum
    G00987837Courtesy of MAZDA MOTORS CORP.
  4. Remove the brake drum.
    • If equipped, remove the brake drum retaining clips.
  5. If the brake drum will not come off, follow these steps:
    • Move the brake shoe adjusting lever off the brake adjuster screw.
      Fig 3: Identifying Brake Shoe Adjuster Lever & Screw
      G00987838Courtesy of MAZDA MOTORS CORP.
    • Loosen the brake shoe adjuster screw nut by adjusting the nut upward.
  6. CAUTION: Anti-seize compound must be applied to the halfshaft before removing the nut to avoid damaging the halfshaft.

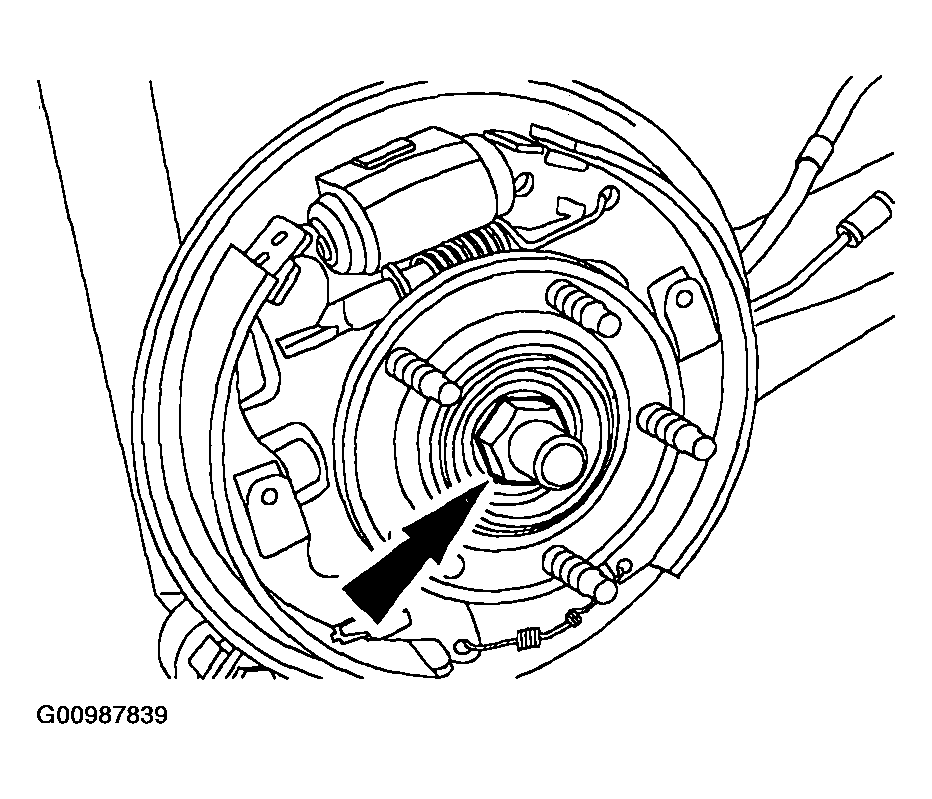

    Fig 4: Identifying Rear Halfshaft Nut
    G00987839Courtesy of MAZDA MOTORS CORP.
  7. Remove the rear halfshaft nut and discard.
  8. Using the special tool, loosen the halfshaft from the wheel hub.

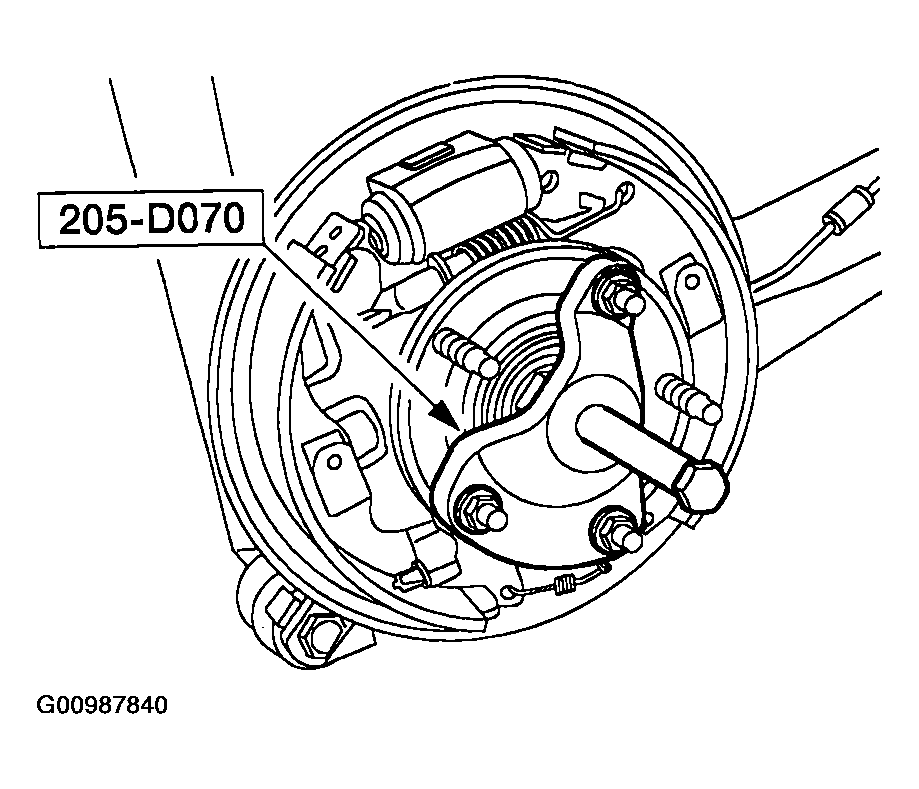

    Fig 5: Removing Halfshaft
    G00987840Courtesy of MAZDA MOTORS CORP.
  9. Using the special tool, remove the wheel hub.

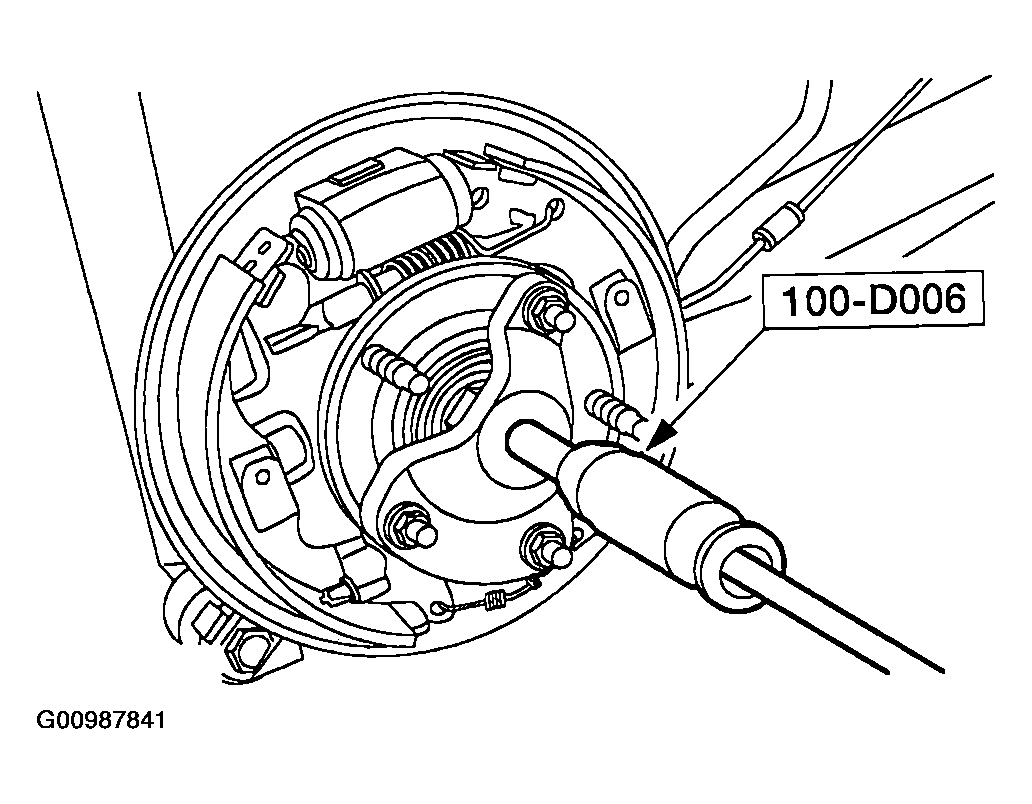

    Fig 6: Removing Wheel Hub
    G00987841Courtesy of MAZDA MOTORS CORP.
  10. NOTE: This step may not be necessary if the inner wheel bearing race remains in the wheel knuckle, after removing the wheel hub.

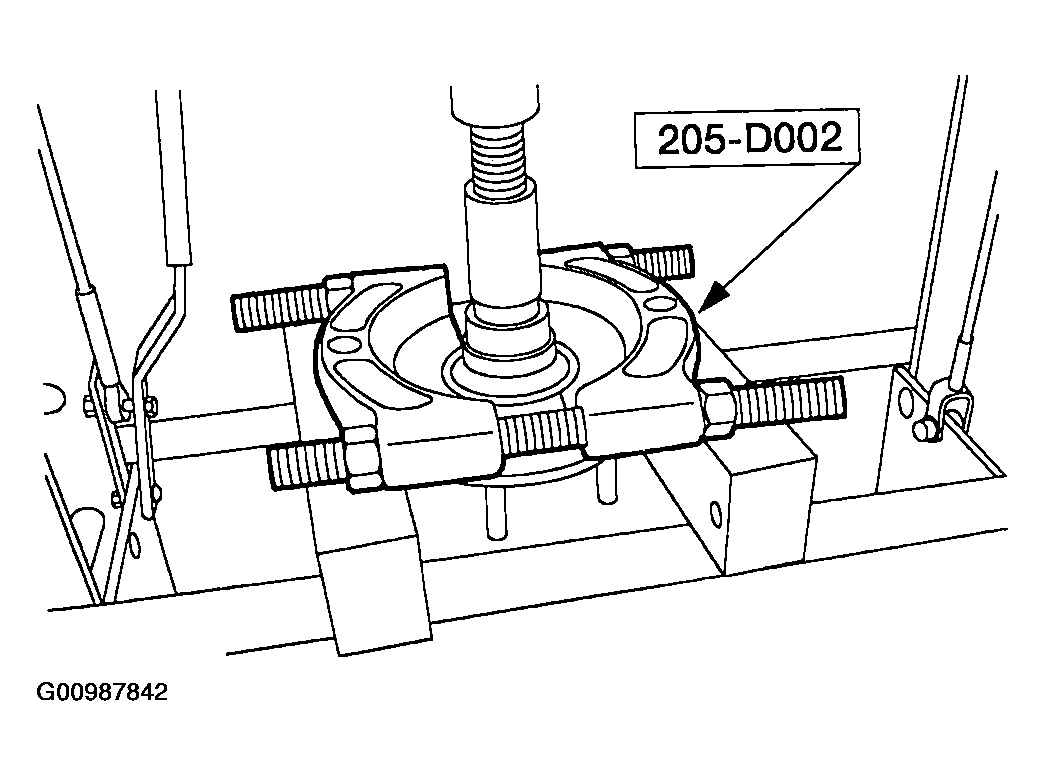

    Fig 7: Removing Inner Bearing Race
    G00987842Courtesy of MAZDA MOTORS CORP.
  11. Using the special tool, press the inner wheel bearing race from the wheel hub.
  12. Remove the snap ring.

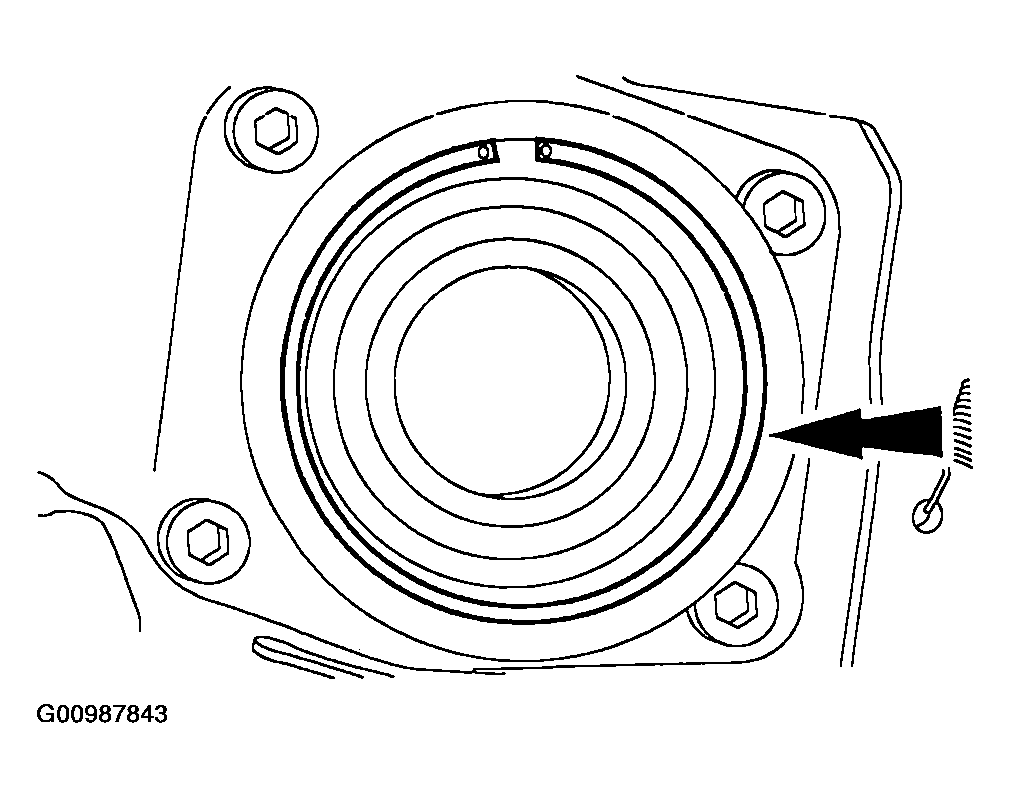

    Fig 8: Identifying Snap Ring
    G00987843Courtesy of MAZDA MOTORS CORP.

    Vehicles with ABS

  13. On vehicles with Anti-Lock Brake (ABS), position the ABS sensor aside.
    • Remove the ABS sensor bolt and bracket bolts.

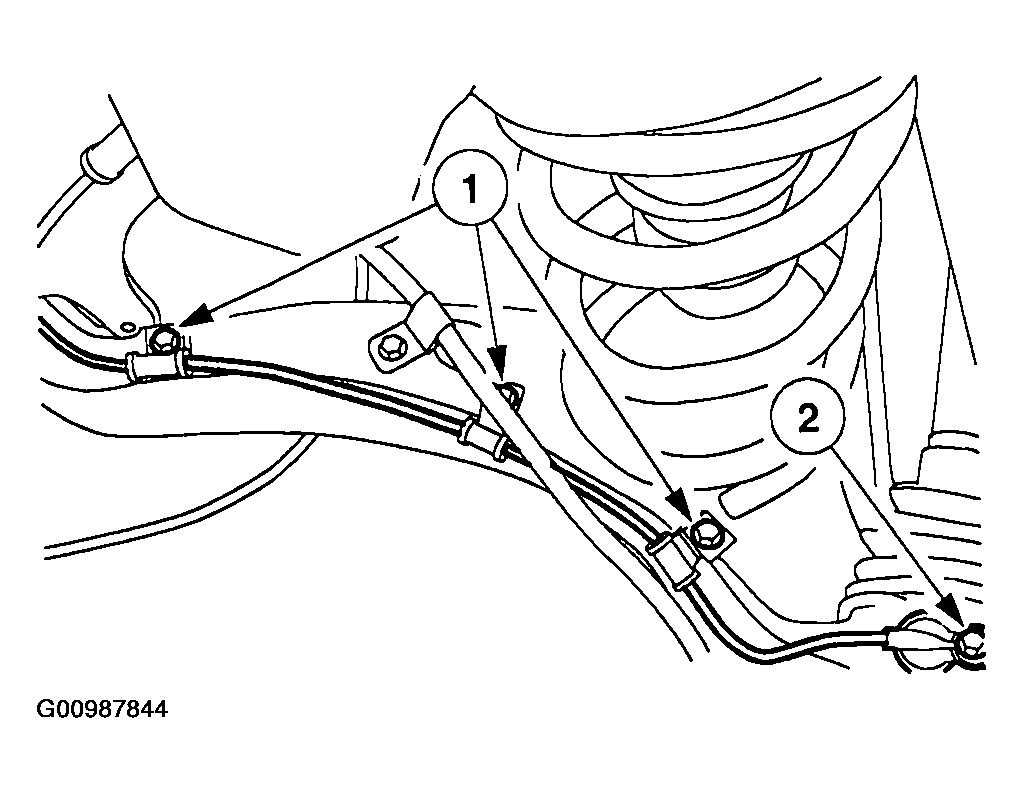

      Fig 9: Identifying ABS Sensor & Bracket Bolts
      G00987844Courtesy of MAZDA MOTORS CORP.
    • Position the ABS sensor aside.
  14. Disconnect the parking brake cable.
    • Remove the parking brake cable bolt from the wheel knuckle.

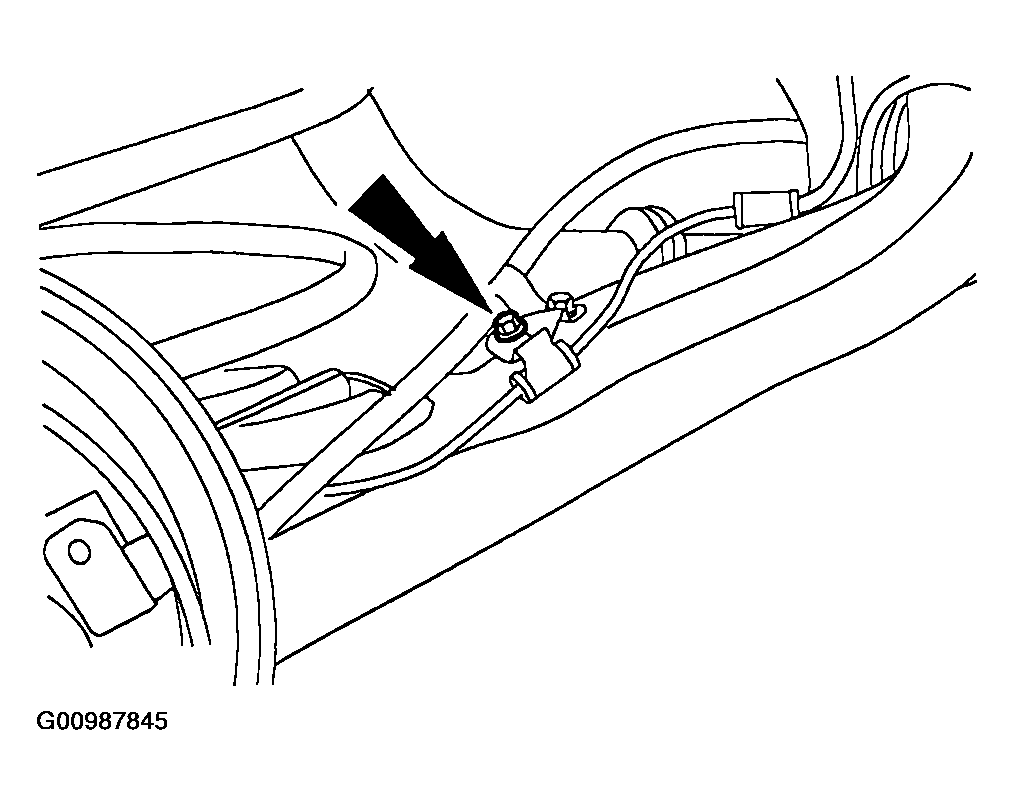

      Fig 10: Identifying Parking Brake Cable Bolt
      G00987845Courtesy of MAZDA MOTORS CORP.
  15. Remove brake line bracket bolt.

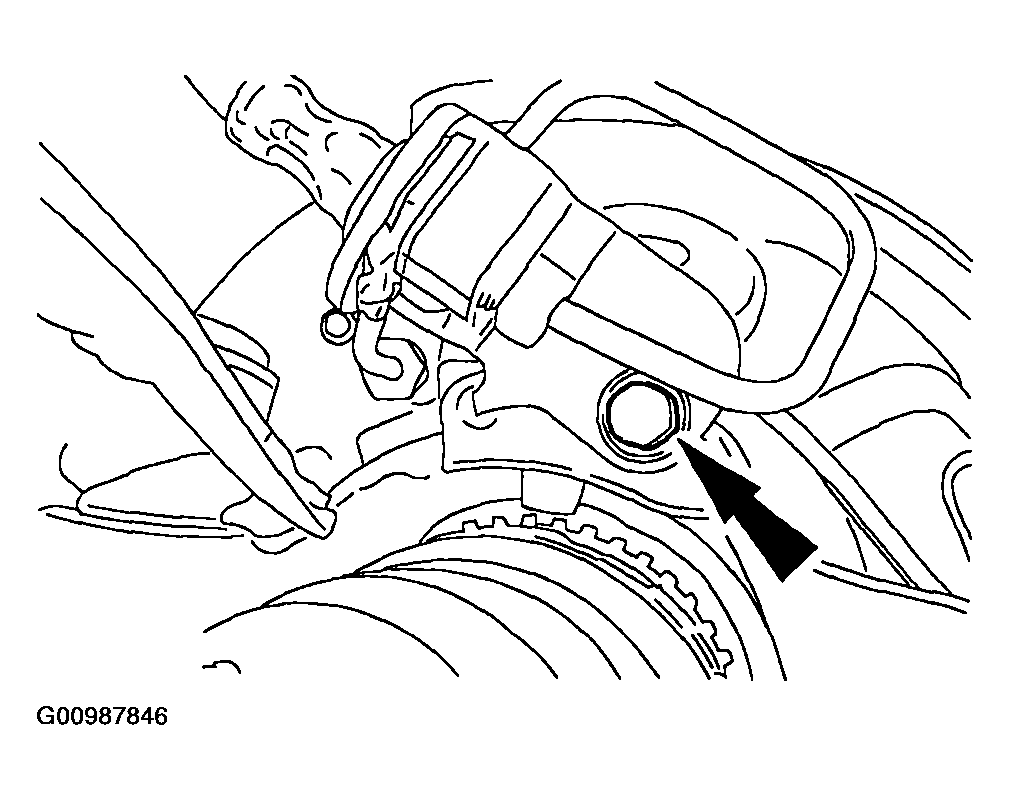

    Fig 11: Identifying Brake Line Bracket Bolt
    G00987846Courtesy of MAZDA MOTORS CORP.
  16. Support the wheel knuckle.

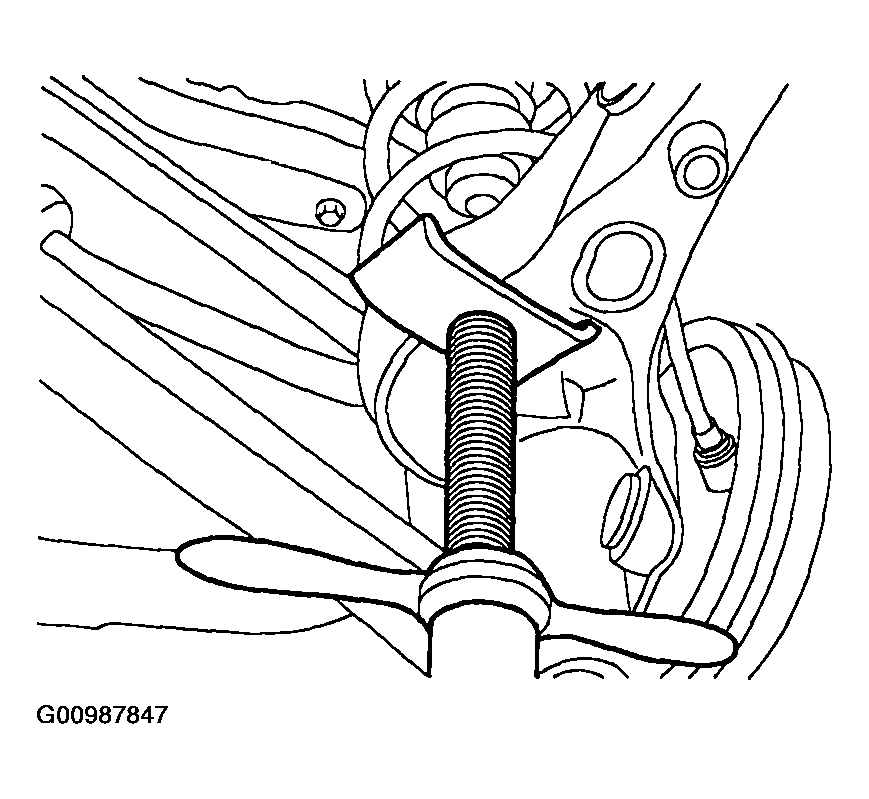

    Fig 12: Supporting Wheel Knuckle
    G00987847Courtesy of MAZDA MOTORS CORP.
  17. Remove the lower shock absorber bolt.

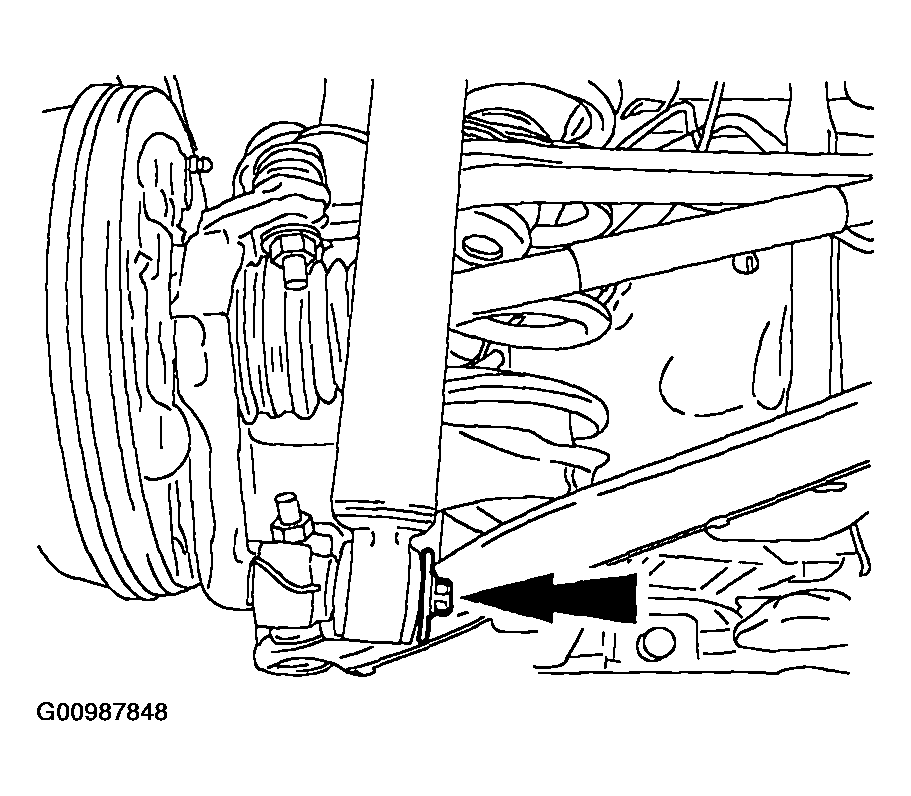

    Fig 13: Identifying Lower Shock Absorber Bolt
    G00987848Courtesy of MAZDA MOTORS CORP.
  18. NOTE: It may be necessary to hold the ball joint stud to keep it from turning while removing the nut.
  19. Disconnect the lower ball joint.
    • Remove the nut.

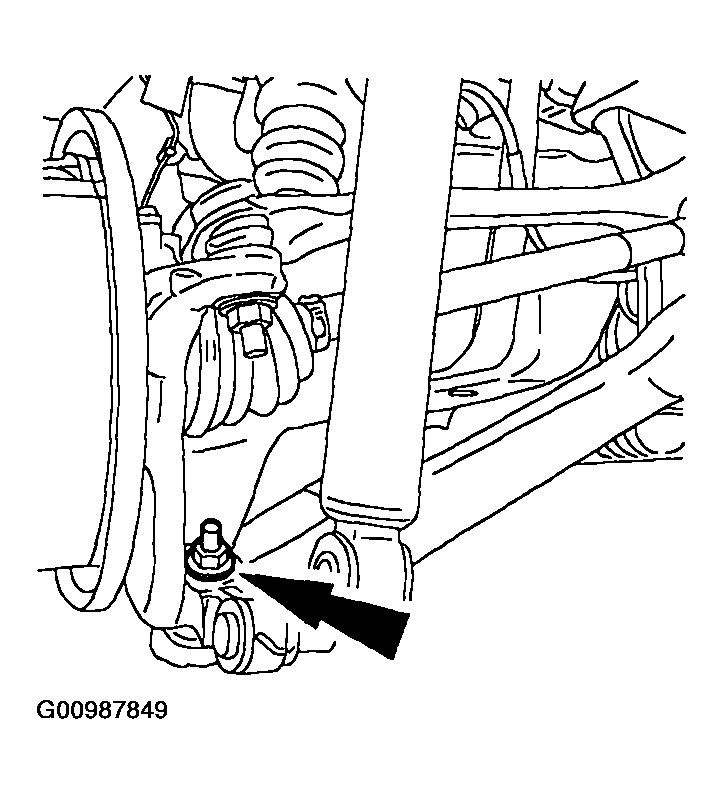

      Fig 14: Identifying Lower Ball Joint Nut
      G00987849Courtesy of MAZDA MOTORS CORP.
  20. NOTE: It may be necessary to hold the ball joint stud to keep it from turning while removing the nut.
  21. Disconnect the upper ball joint.
    • Remove the nut.

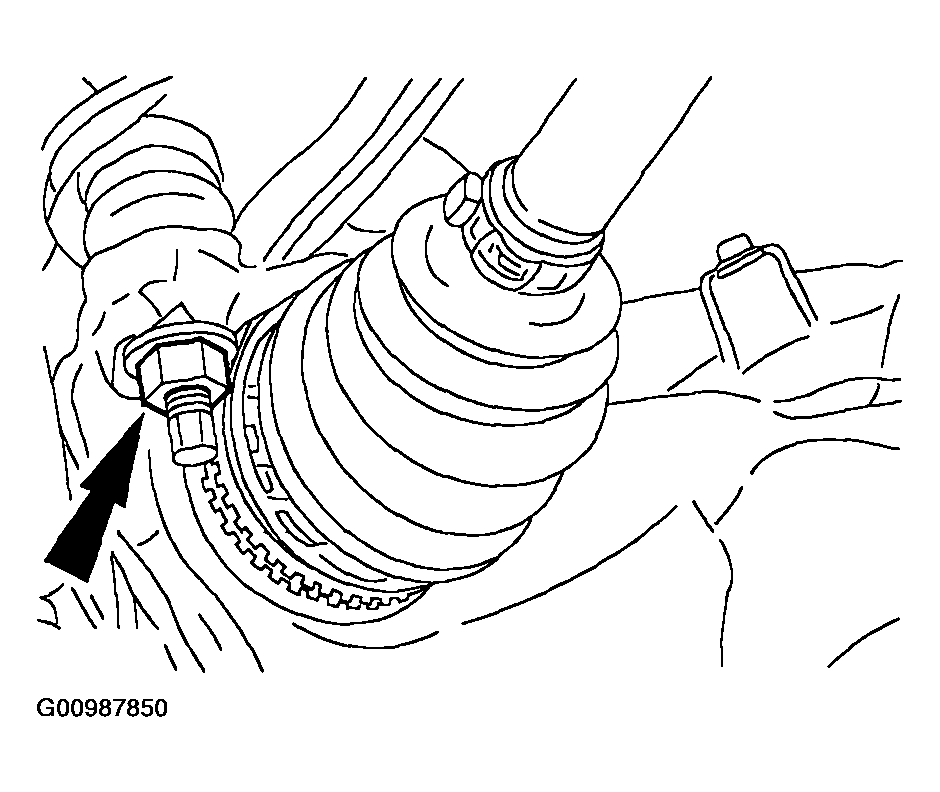

      Fig 15: Identifying Upper Ball Joint Nut
      G00987850Courtesy of MAZDA MOTORS CORP.
  22. NOTE: Note the position of the spring insulator and spring for installation. Note the position of the spring insulator and spring for installation.

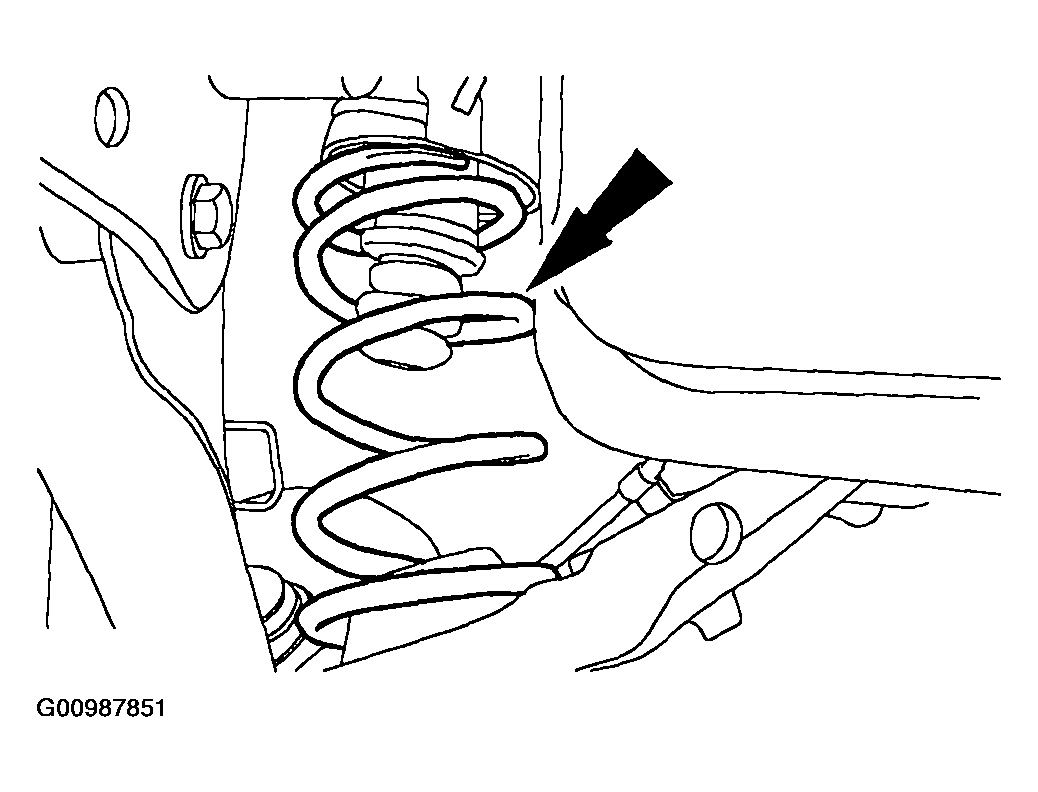

    Fig 16: Identifying Rear Coil Spring
    G00987851Courtesy of MAZDA MOTORS CORP.
  23. Remove the spring.
    • Lower the support to the wheel knuckle.
  24. Remove the wheel knuckle cam bolt and nut.
    • Mark the position of the adjustment cam notch.
    • Remove the wheel knuckle cam bolt and nut.

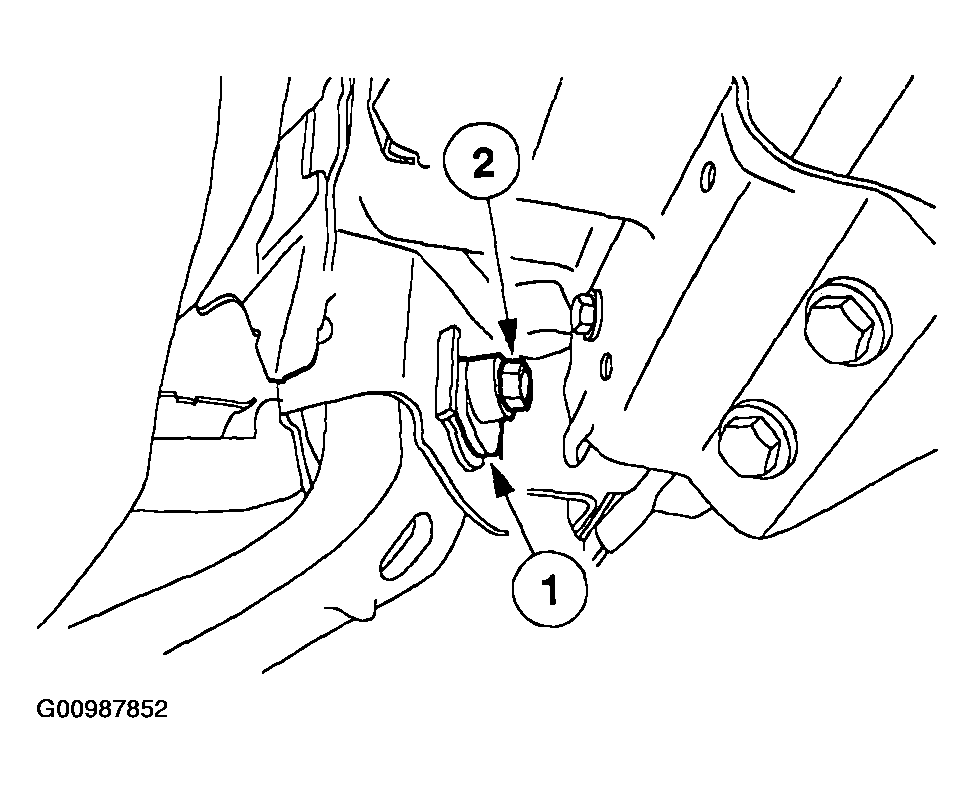

    Fig 17: Identifying Wheel Knuckle Cam Bolt & Nut
    G00987852Courtesy of MAZDA MOTORS CORP.
  25. Remove the wheel knuckle.
    • Remove the wheel knuckle cam.

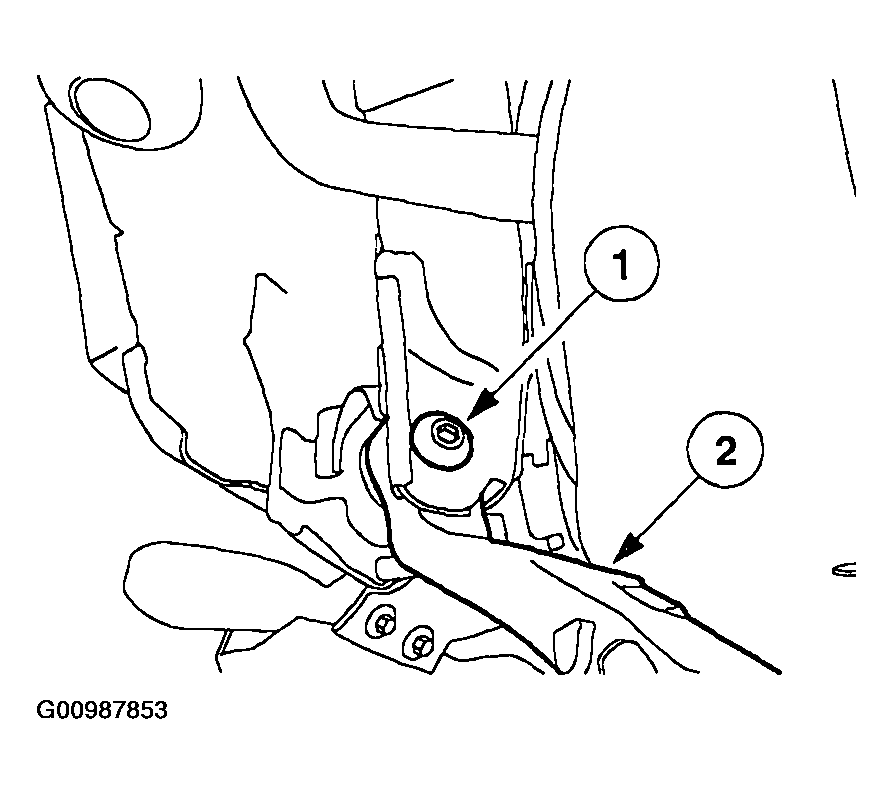

      Fig 18: Identifying Wheel Knuckle & Cam
      G00987853Courtesy of MAZDA MOTORS CORP.
    • Remove the wheel knuckle.
  26. Remove the brake backing plate from the wheel knuckle.
    • Remove the bolts.

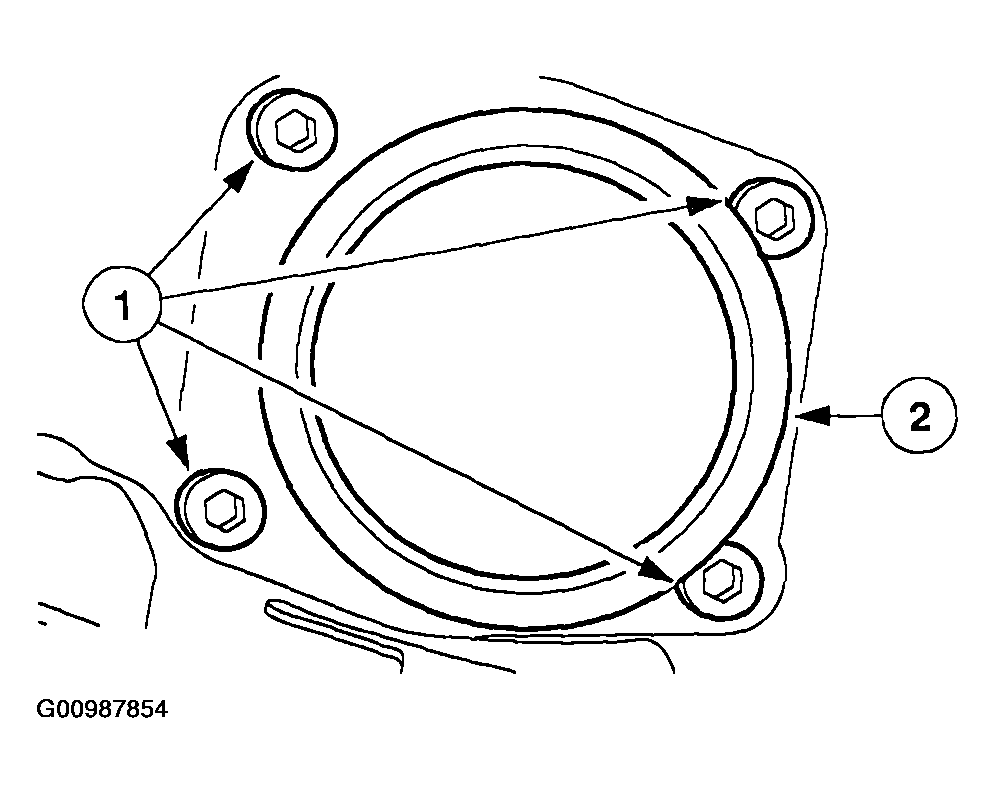

      Fig 19: Identifying Backing Plate Bolts
      G00987854Courtesy of MAZDA MOTORS CORP.
    • Remove the brake backing plate from the wheel knuckle.
