Wheel Bearing - 4WD: Installation

WARNING: This page is about a different car, the 2004 Mazda Tribute, 2003 Mazda Tribute, and 2002 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.

Using the special tools, install a new wheel bearing into the wheel knuckle.

Fig 1: Installing New Bearing Into Wheel Knuckle
Courtesy of MAZDA MOTORS CORP.

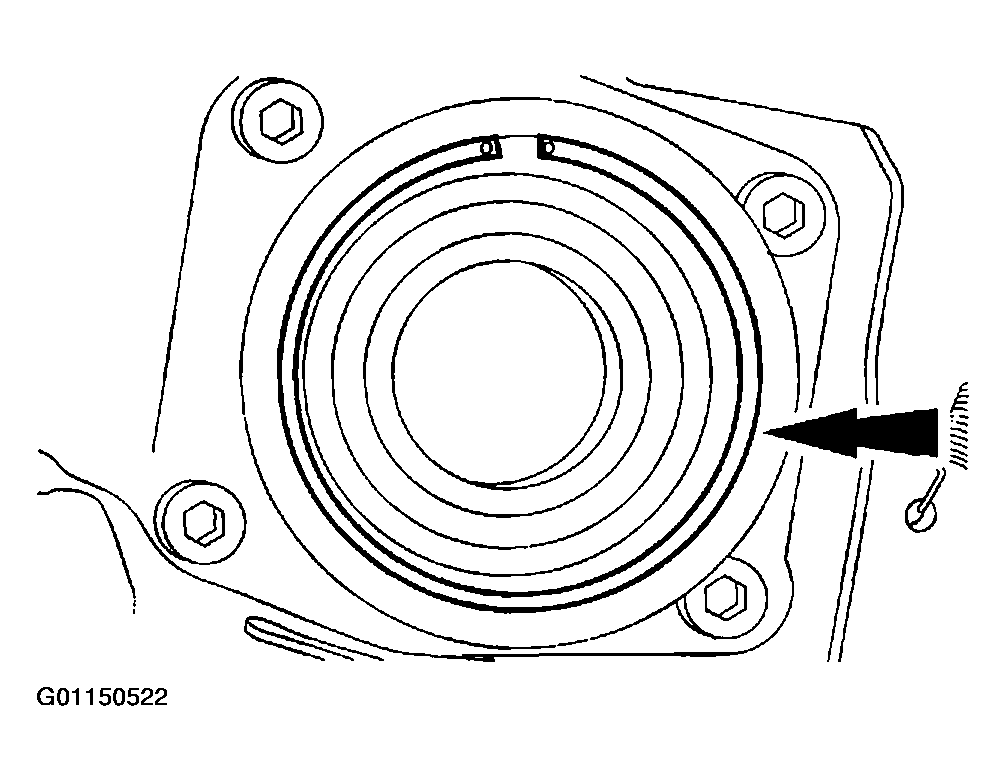

Install the snap ring into the wheel knuckle.

Fig 2: Identifying Snap Ring
Courtesy of MAZDA MOTORS CORP.

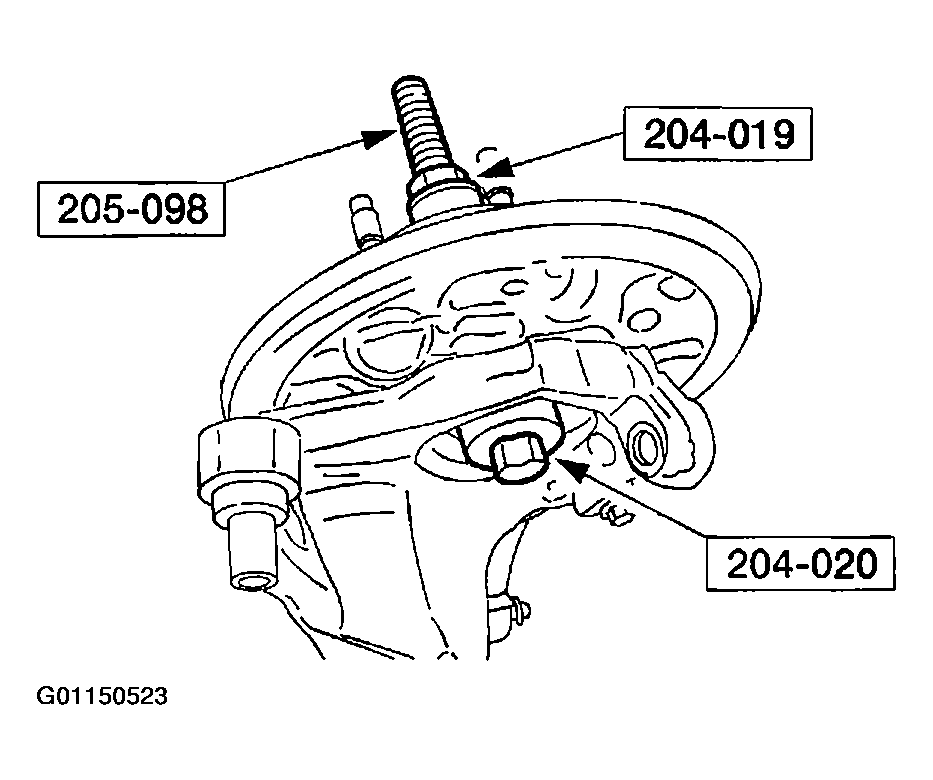

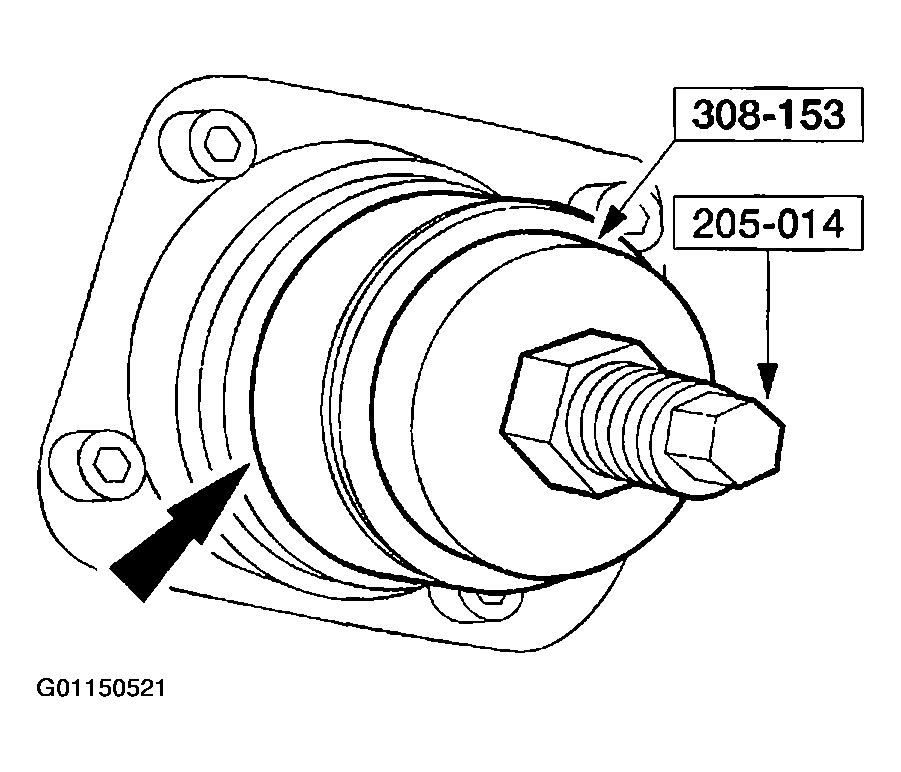

Using the special tools, install the wheel hub.

Fig 3: Installing Wheel Hub
Courtesy of MAZDA MOTORS CORP.
Position the wheel knuckle and install the wheel knuckle cam.
- Position the halfshaft into the wheel hub.

  Fig 4: Identifying Wheel Knuckle & Cam
  Courtesy of MAZDA MOTORS CORP.

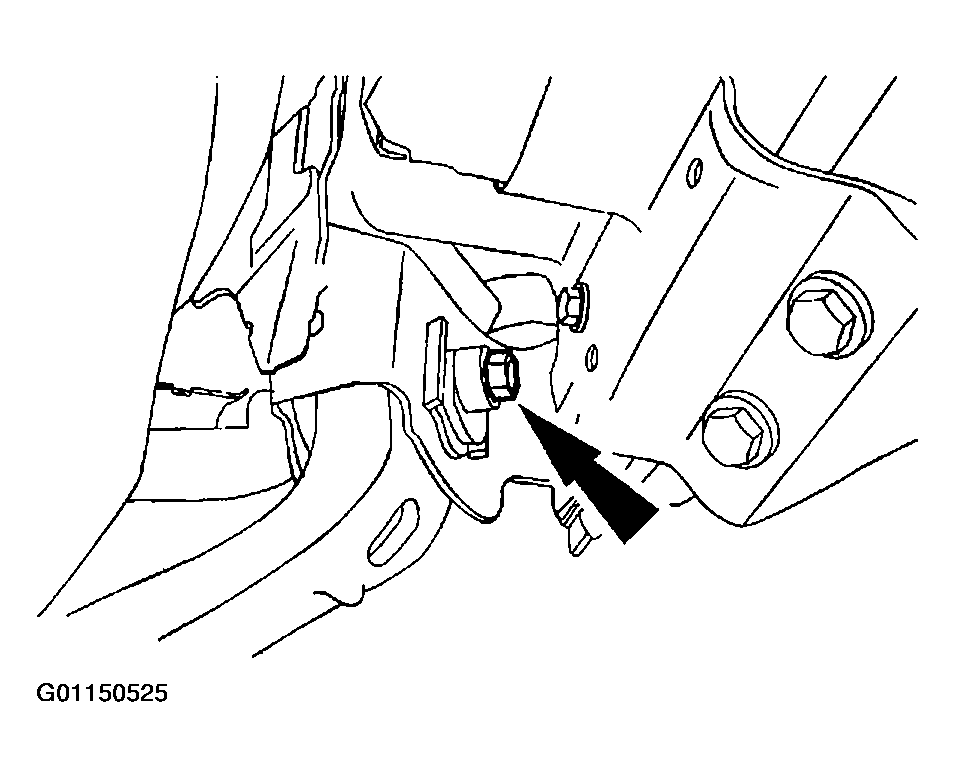

Install the wheel knuckle cam bolt loosely.

Fig 5: Identifying Wheel Knuckle Cam Bolt/Nut
Courtesy of MAZDA MOTORS CORP.

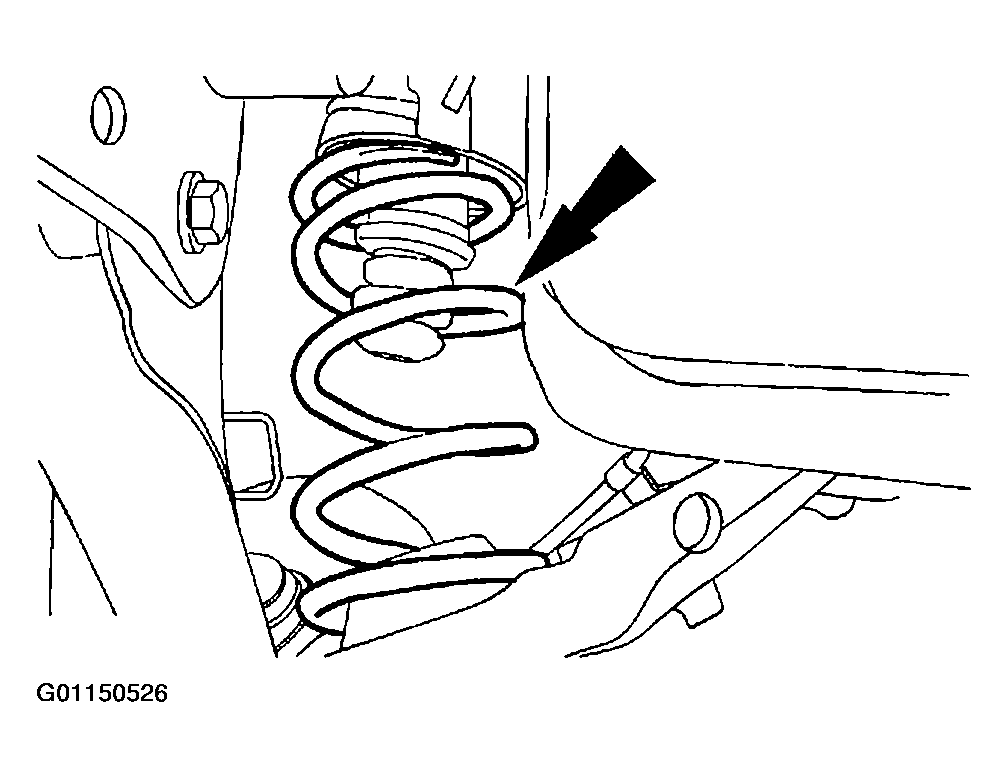

Support the wheel knuckle and install the spring.

Fig 6: Installing Rear Coil Spring
Courtesy of MAZDA MOTORS CORP.

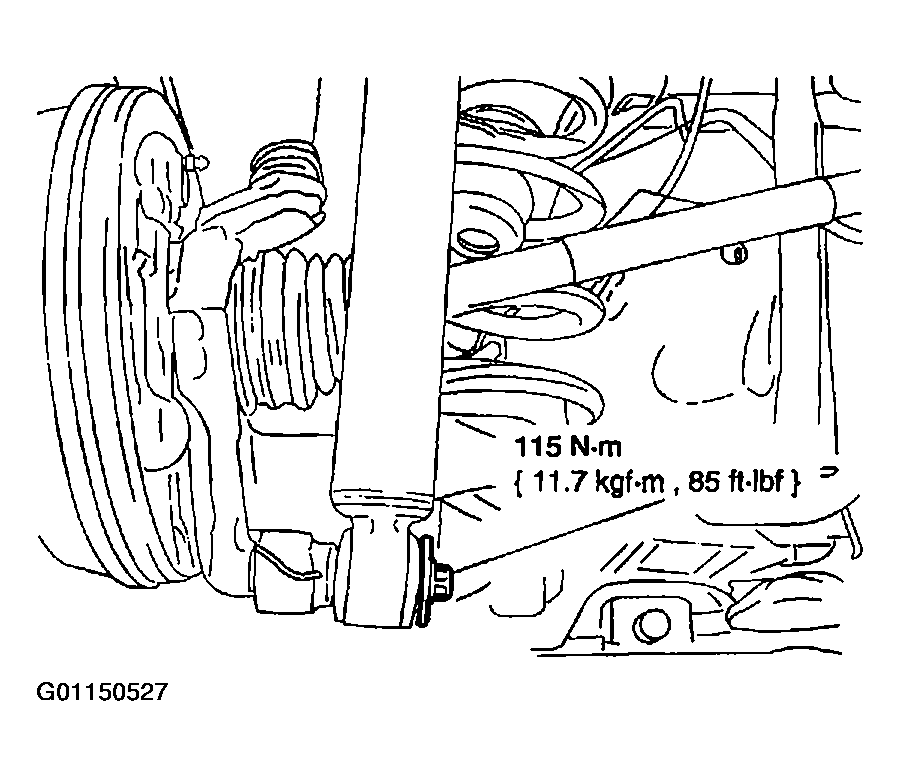

Install the lower shock absorber bolt.

Fig 7: Tightening Lower Shock Absorber Bolt
Courtesy of MAZDA MOTORS CORP.
Install the upper ball joint.
- Install the nut.

  Fig 8: Tightening Upper Ball Joint Nut
  Courtesy of MAZDA MOTORS CORP.

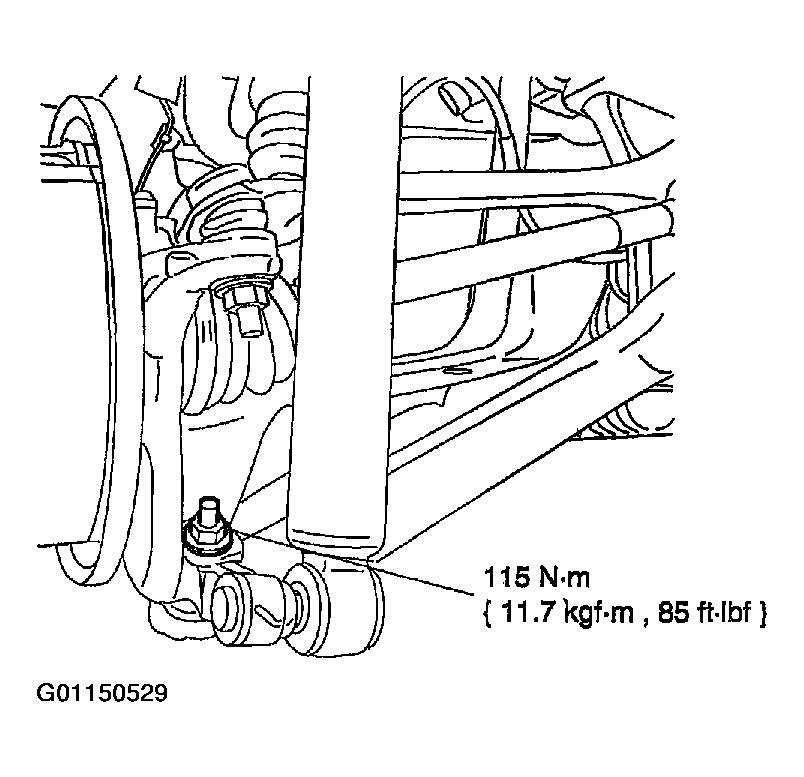

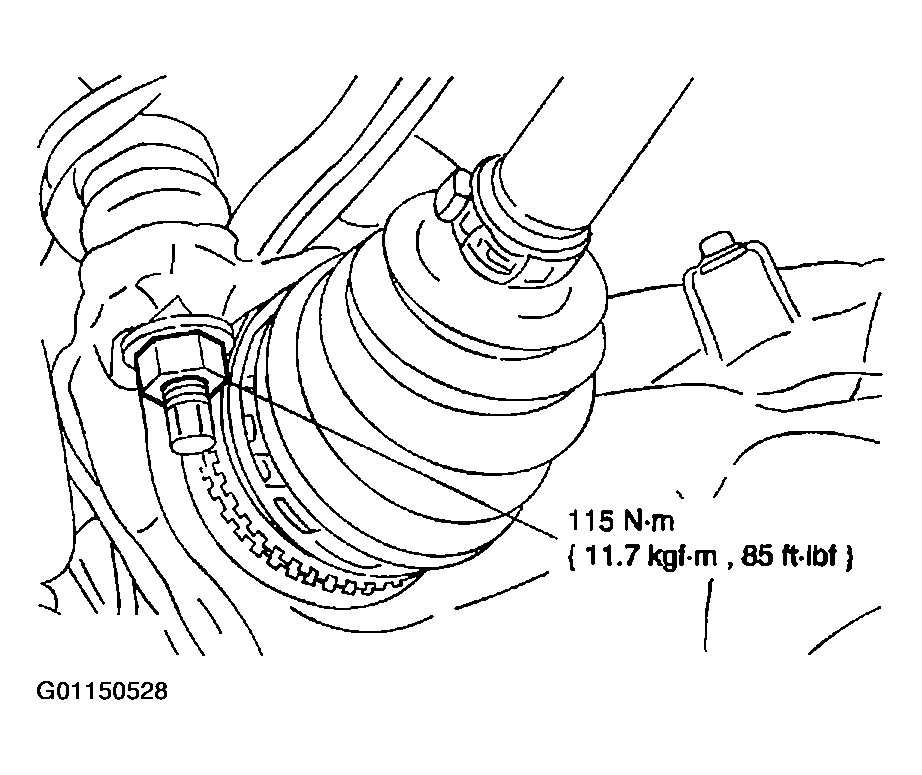

Install the lower ball joint.
- Install the nut.

  Fig 9: Tightening Lower Ball Joint Nut
  Courtesy of MAZDA MOTORS CORP.

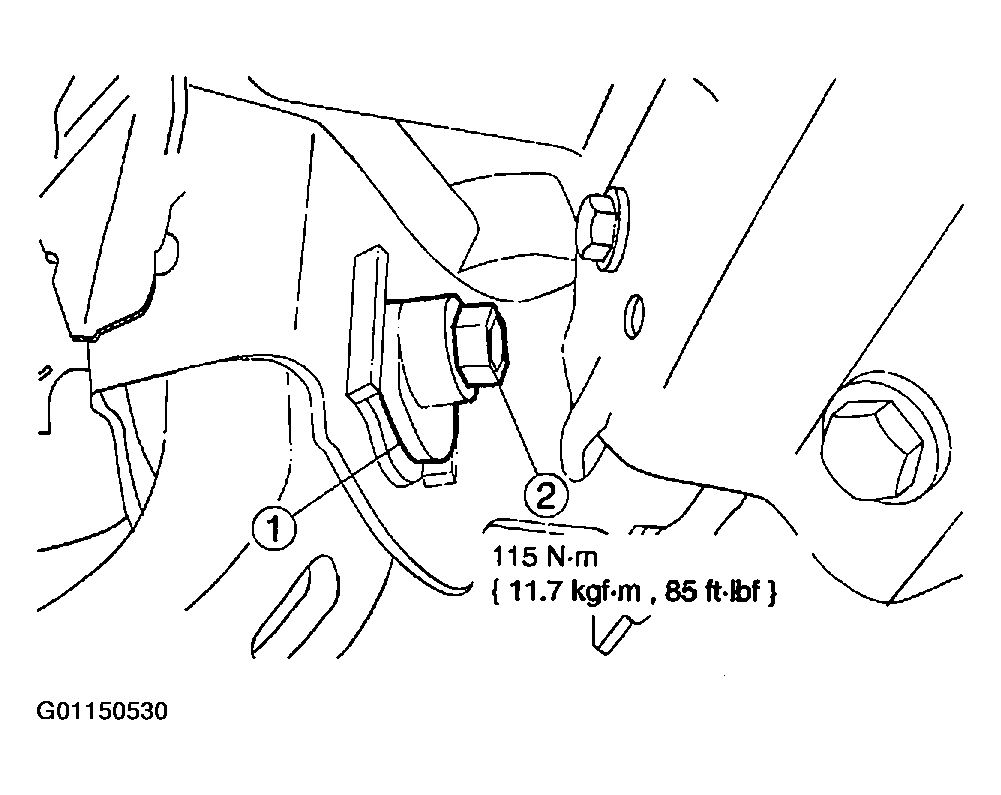

Tighten the wheel knuckle cam bolt.
- Align the wheel knuckle cam.
- Tighten the wheel knuckle cam bolt.

  Fig 10: Tightening Wheel Knuckle Cam Bolt
  Courtesy of MAZDA MOTORS CORP.
Install the brake line to the wheel cylinder.
- Install the brake line bracket bolt.

  Fig 11: Tightening Brake Line Nut & Bracket Bolt
  Courtesy of MAZDA MOTORS CORP.

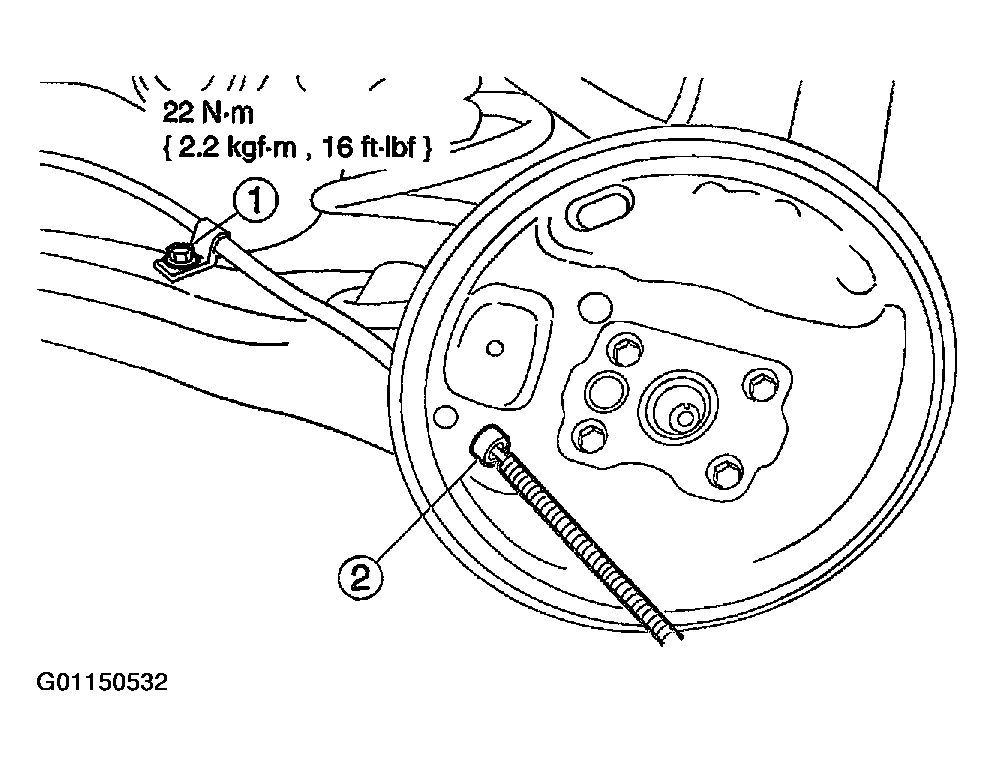

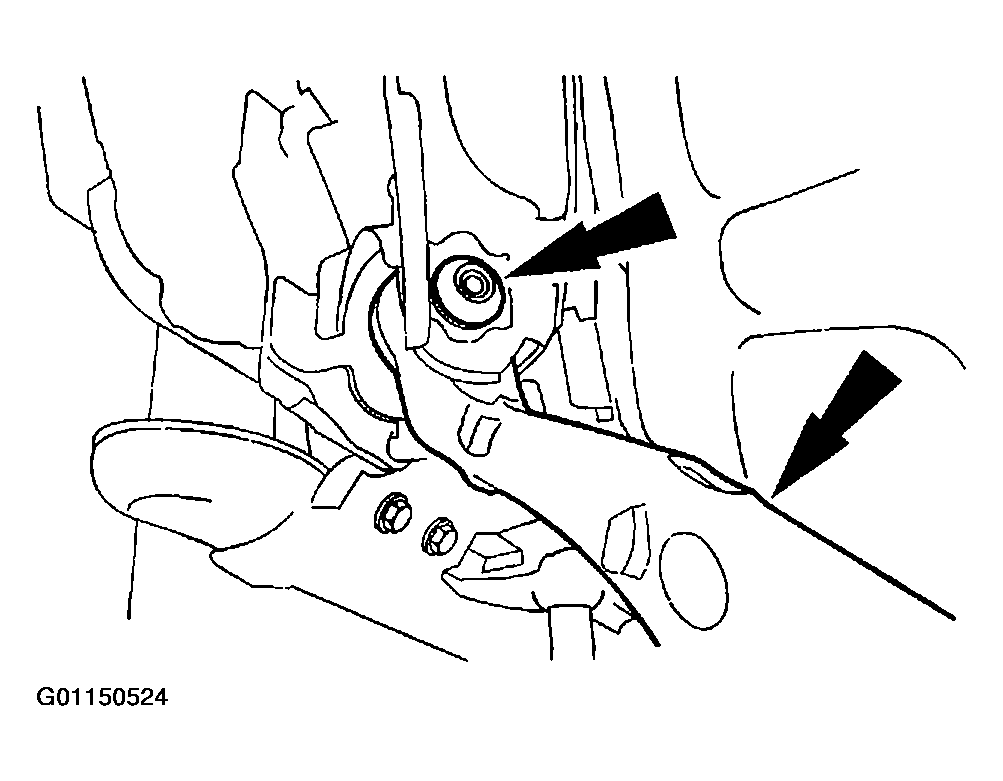

Install the parking brake cable onto the backing plate.
- Install the bolt.
- Install the parking brake cable onto the backing plate.

  Fig 12: Installing Parking Brake Cable & Bolt
  Courtesy of MAZDA MOTORS CORP.

Vehicles With ABS

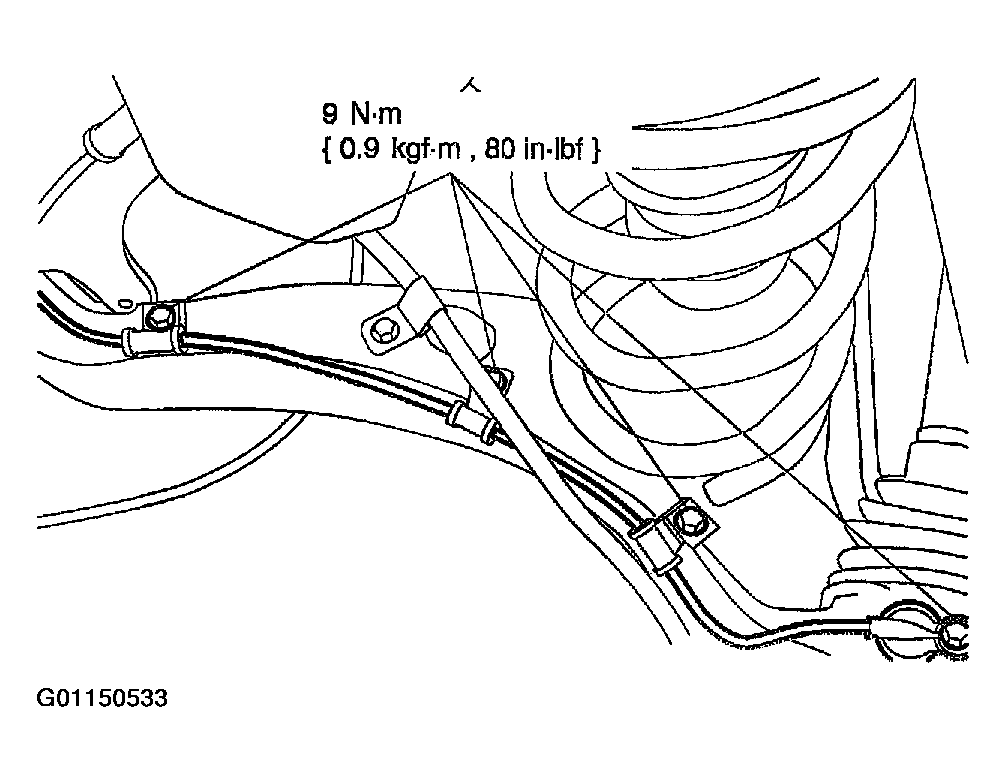

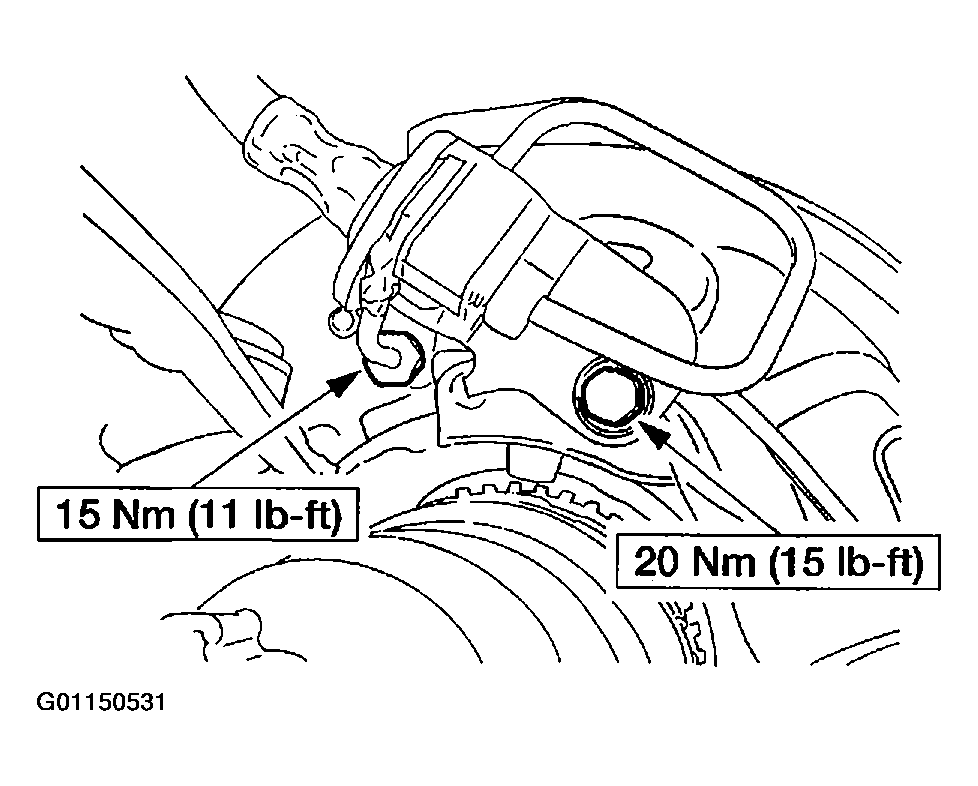

Position the anti-lock (ABS) brake sensor and bracket bolts.
- Install the bolts.

  Fig 13: Installing ABS Brake Sensor & Bracket Bolts
  Courtesy of MAZDA MOTORS CORP.

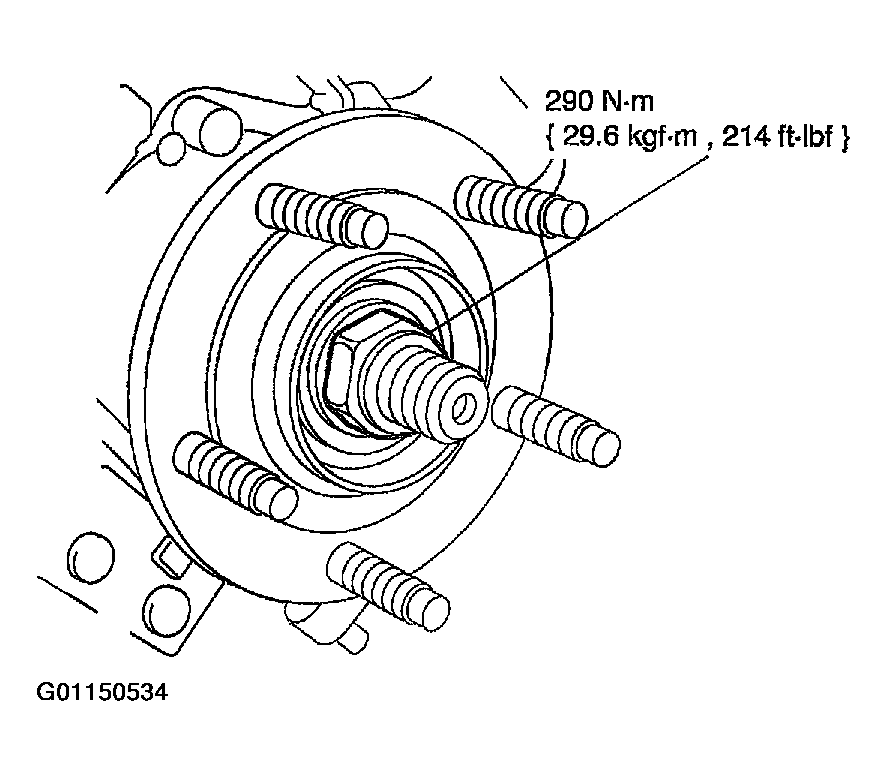

NOTE: Halfshaft must be clean and free of debris before installing the halfshaft nut.

Fig 14: Installing Halfshaft Nut

Courtesy of MAZDA MOTORS CORP.

Install a new halfshaft nut.
Install the brake shoes. Refer to REAR BRAKE DRUM SHOES .
Bleed the brake system. Refer to BLEEDING BRAKE SYSTEM .
Check and adjust the wheel alignment as necessary. Refer to the following:
- For 2002 models, see SPECIFICATIONS & PROCEDURES .
- For 2003 models, see WHEEL ALIGNMENT .
- For 2004 models, see WHEEL ALIGNMENT
