Diagnostic Trouble Codes Table

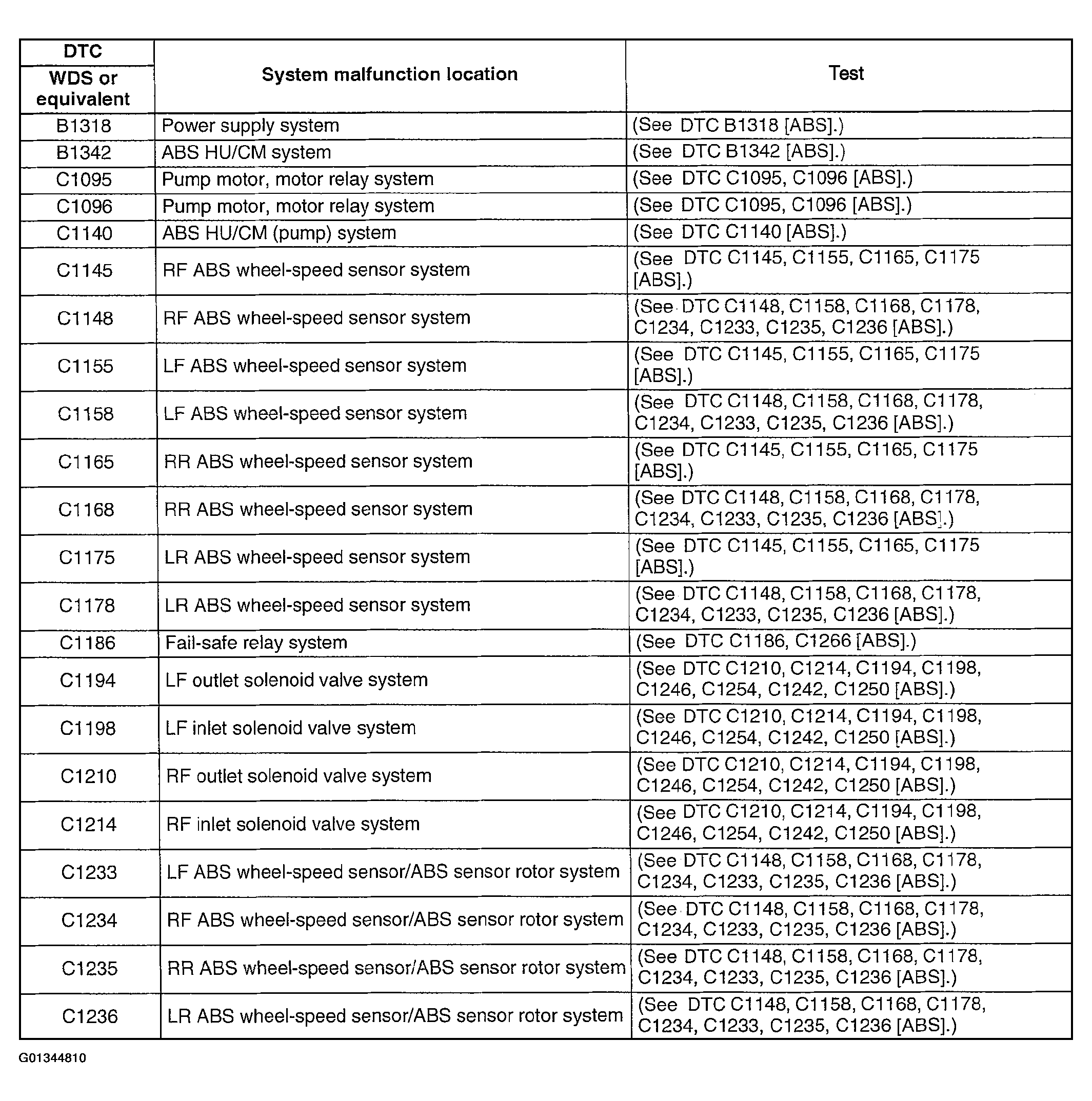

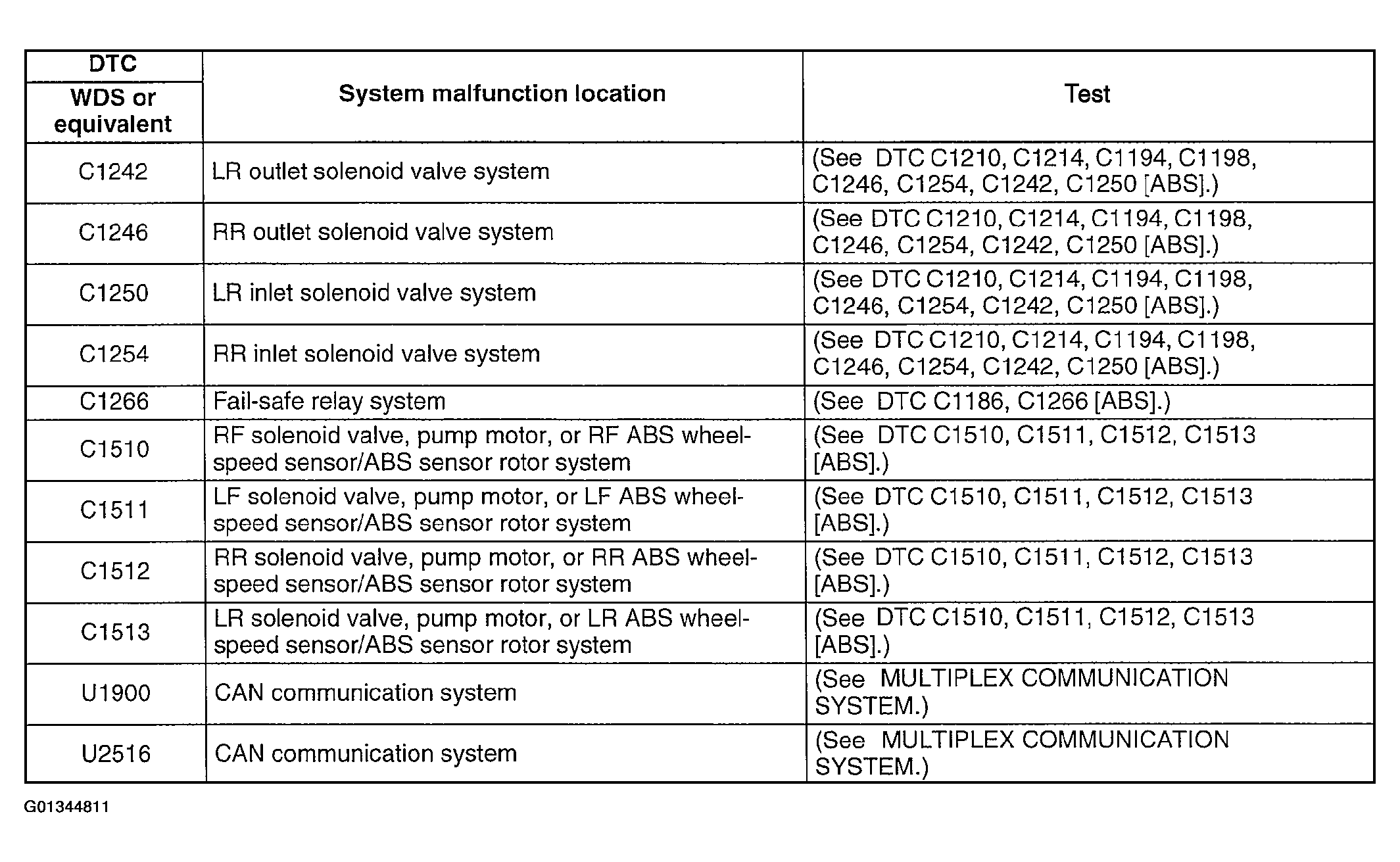

DIAGNOSTIC TROUBLE CODES (DTC) LIST
| DTC | Description |
|---|---|
| DTC B1318 | POWER SUPPLY |
| DTC B1342 | ABS HU/CM |
| DTC C1095 & C1096 | PUMP MOTOR, MOTOR RELAY |
| DTC C1140 | ABS HU/CM (PUMP) |
| DTC C1145, C1155, C1165 & C1175 | ABS WHEEL-SPEED SENSOR |
| DTC C1148, C1158, C1168, C1178, C1234, C1233, C1235 & C1236 | ABS WHEEL-SPEED SENSOR/SENSOR ROTOR |
| DTC C1186 & C1266 | FAIL-SAFE RELAY |
| DTC C1210, C1214, C1194, C1198, C1246, C1254, C1242 & C1250 | INLET/OUTLET SOLENOID VALVE |
| DTC C1510, C1511, C1512 & C1513 | SOLENOID VALVE, PUMP MOTOR OR ABS WHEEL-SPEED SENSOR/SENSOR ROTOR |
