Symptom Troubleshooting [Brakes)
>>
No. 10 Abs Or TCS Operates Frequently/TCS Does Not Work Correctly
>>
Diagnostic procedure
Diagnostic procedure

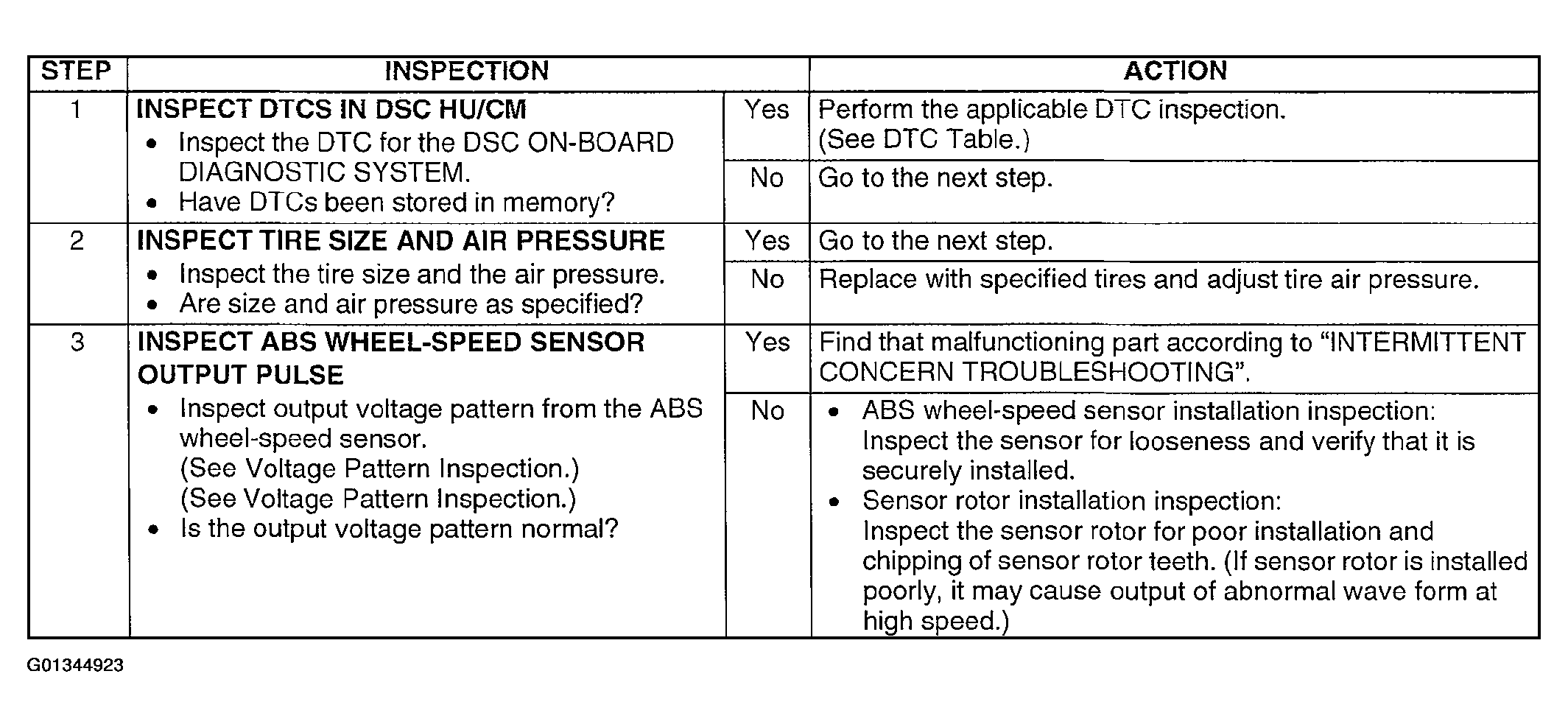

Fig 1: No. 10 ABS Or TCS Operates Frequently/TCS Does Not Work Correctly - Diagnostic Procedure
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
