Rear Seat Removal/Installation

  1. Lift the point A in the direction of the arrow, then remove the rear seat cushion.

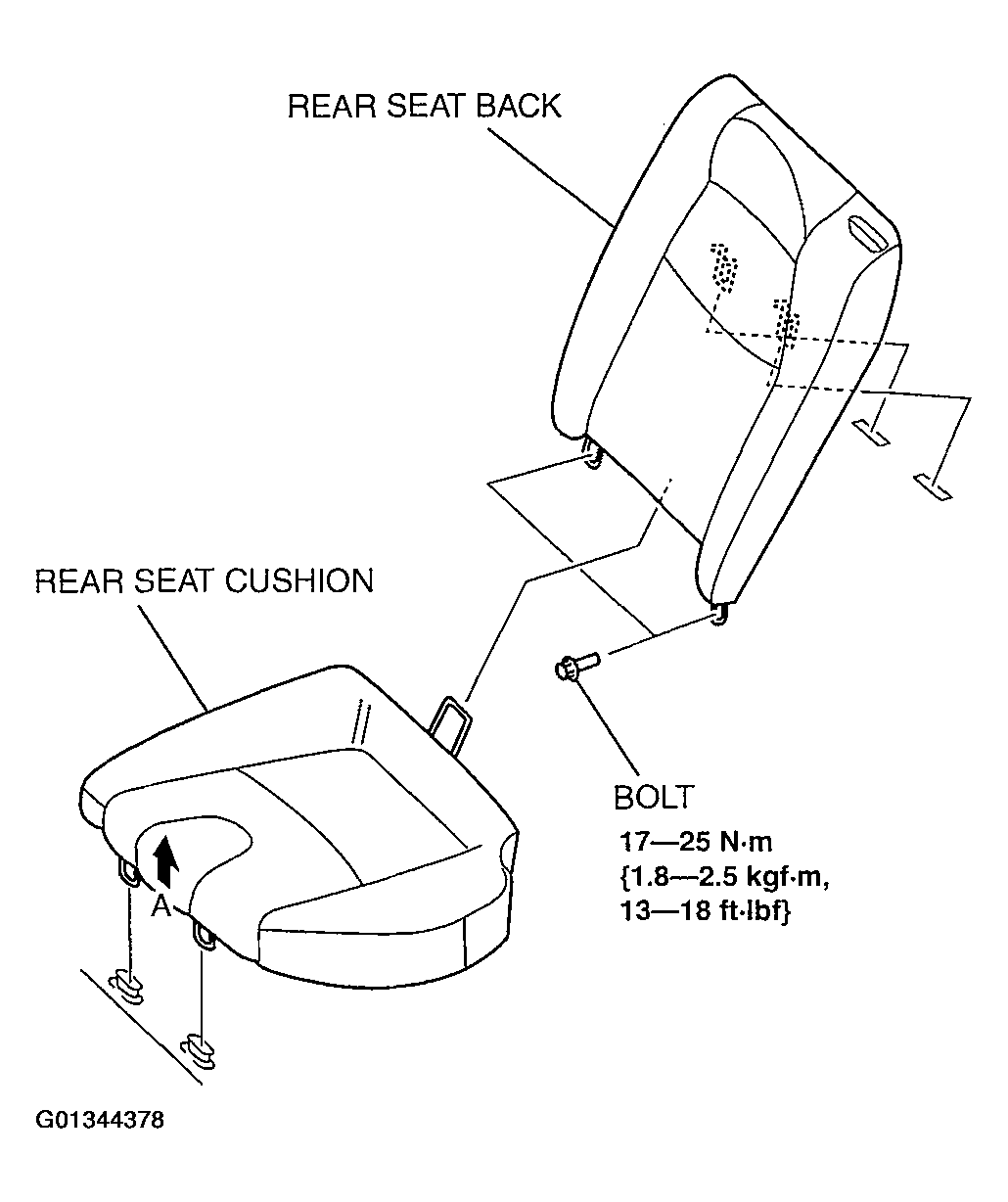

    Fig 1: Removing/Installing Rear Seat
    G01344378Courtesy of MAZDA MOTORS CORP.
  2. Remove the bolts, then remove the rear seat back.
  3. Install in the reverse order of removal.
