Relay No. 3 (5-Pin)

  1. Verify continuity exists between relay terminals. See Fig 1 .
  2. If continuity is not as specified, replace relay.

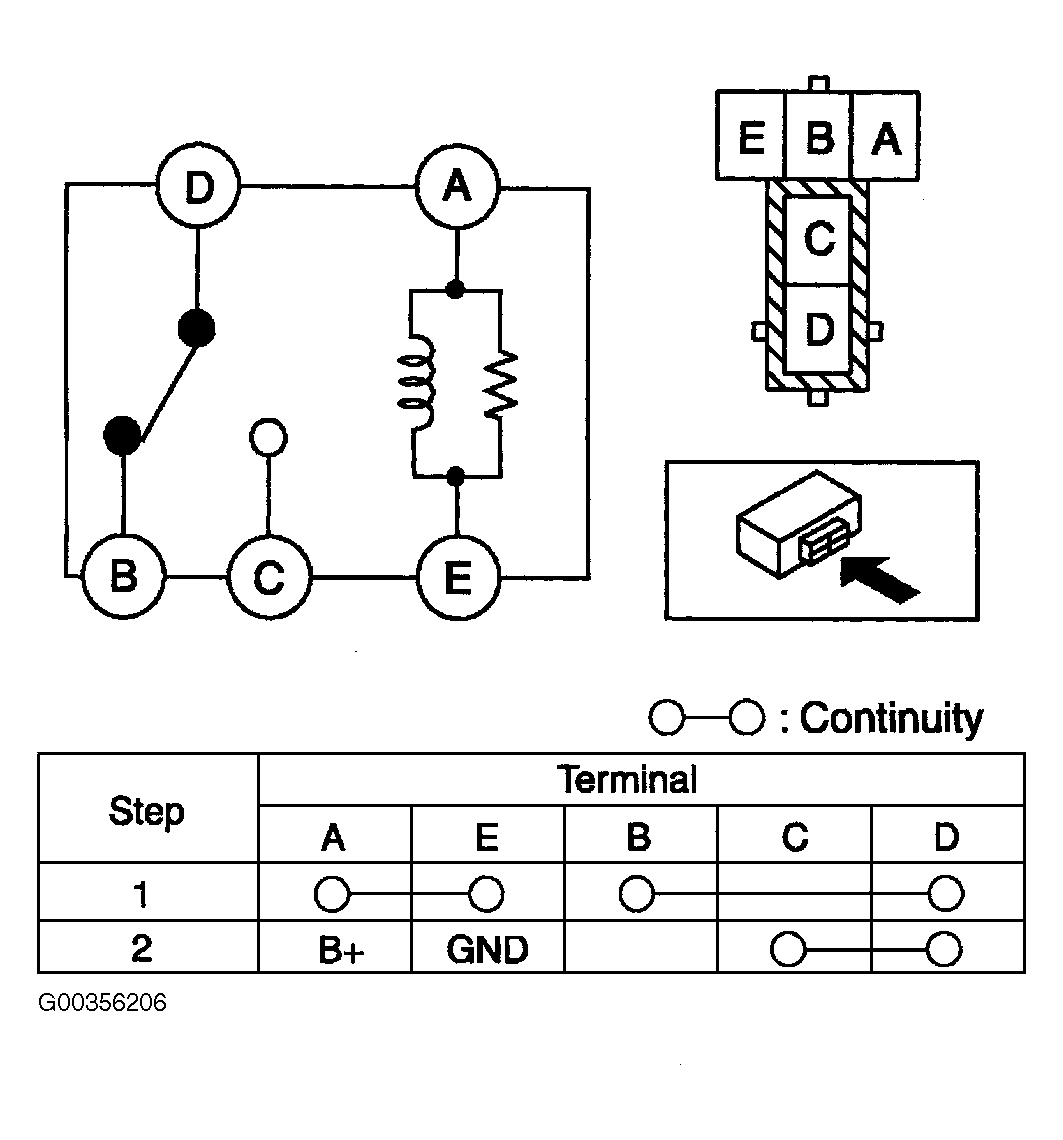

Fig 1: Testing Cooling Fan Relay No. 3
G00356206Courtesy of MAZDA MOTORS CORP.
