Relay No. 1 & 2 (4-Pin)

  1. Verify continuity exists between relay terminals. See Fig 1 .
  2. If continuity is not as specified, replace relay.

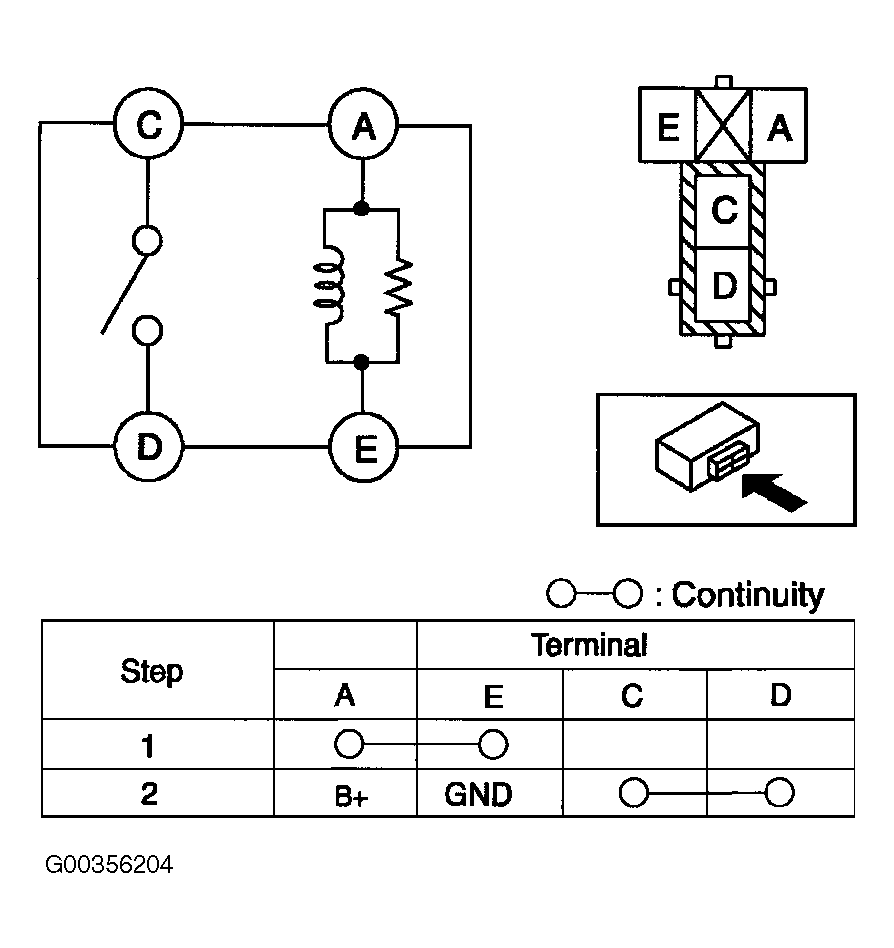

Fig 1: Testing Cooling Fan Relays No. 1 & 2
G00356204Courtesy of MAZDA MOTORS CORP.
