Cooling Fan Motor
- Verify battery is fully charged.

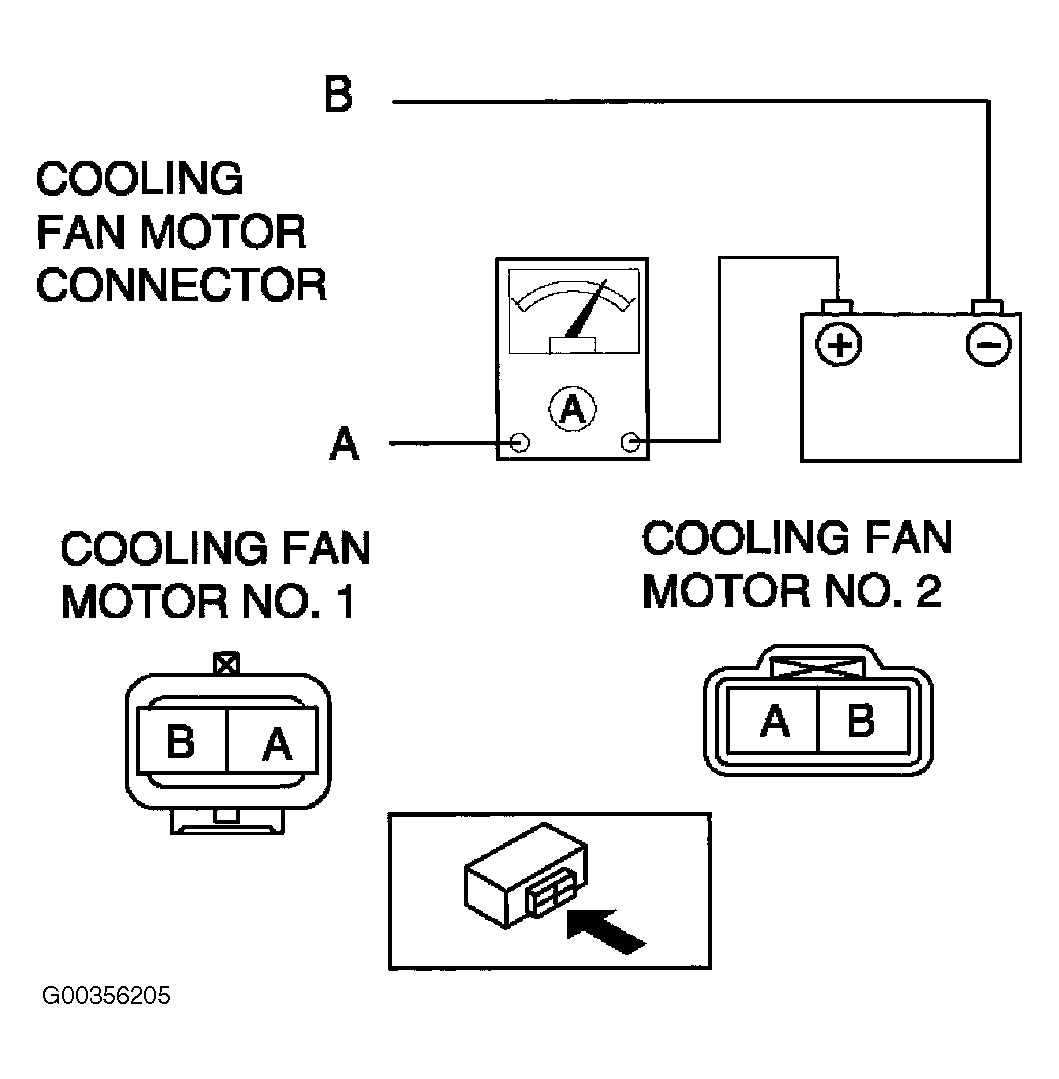

- Install ammeter and battery to the cooling fan motor connector. See Fig 1 .
- Verify that each fan motor operates smoothly at current specified. See COOLING FAN MOTOR CURRENT DRAW table.
- If there is any malfunction, replace the applicable part.
COOLING FAN MOTOR CURRENT DRAW
| Application | Current Draw - Amps |
|---|---|
| Cooling Fan No. 1 | 8.9-11.9 |
| Cooling Fan No. 2 | 4.0-7.0 |
