Wheel Bearing Looseness Inspection

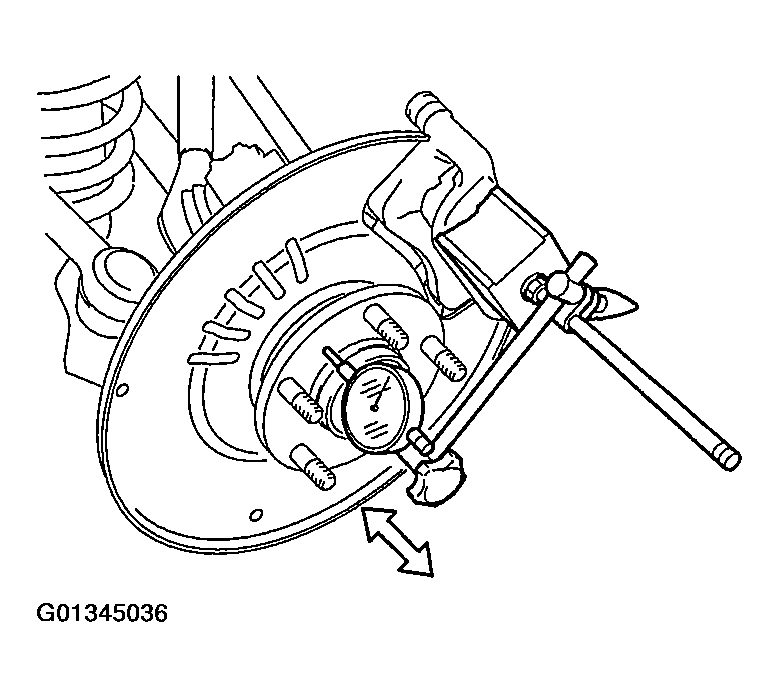

- Install the magnetic vase and dial gauge as shown in the figure, and inspect the wheel bearing for axial looseness.
- If it exceeds the maximum specification replace the wheel hub component.
Maximum wheel bearing play
0.05 mm {0.002 in}
