Technical Data [Driveline/Axles): Driveline/Axles

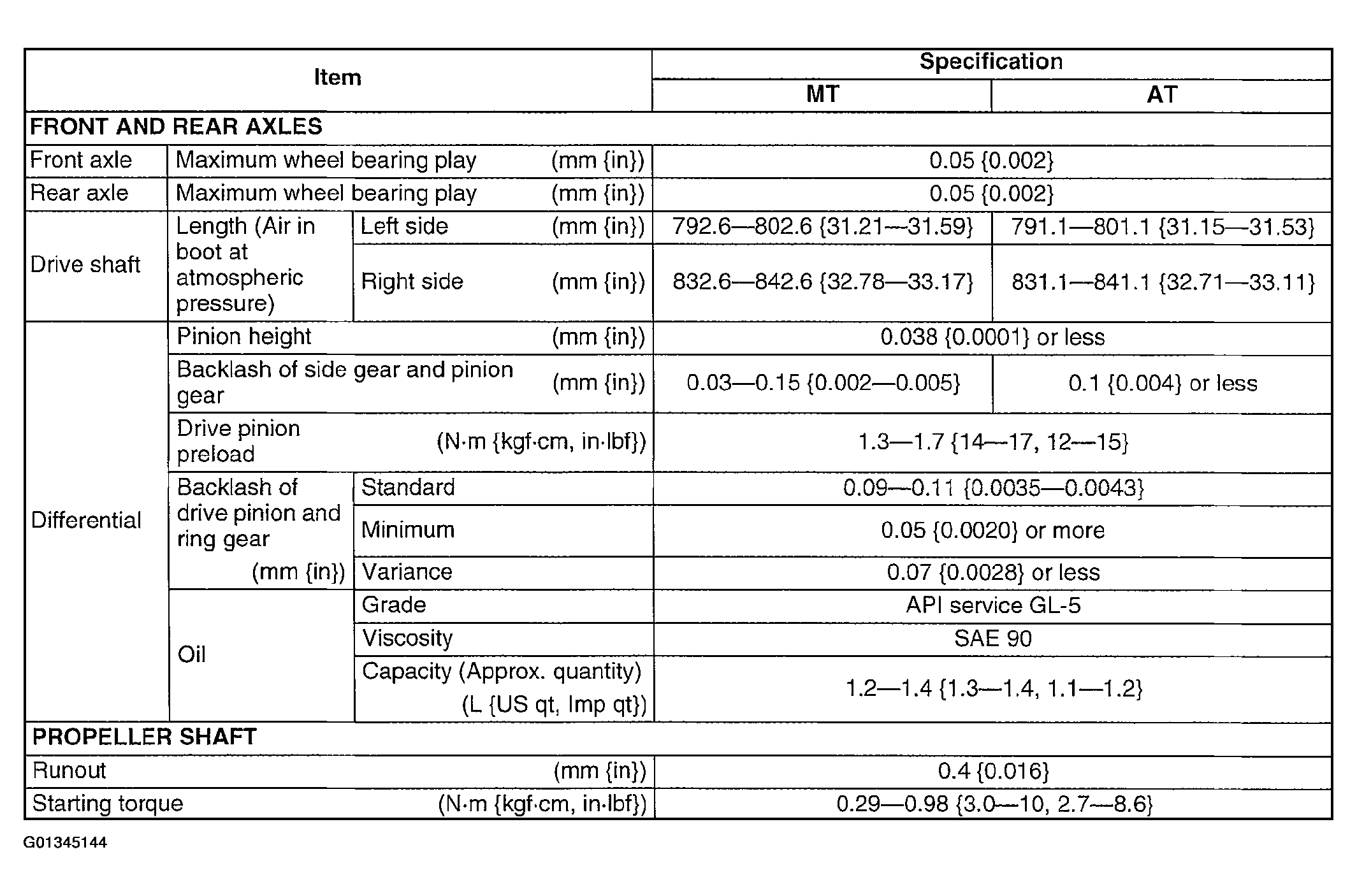

Fig 1: Driveline/Axles Technical Data Table

G01345144

Courtesy of MAZDA MOTORS CORP.
