Diagnostic procedure

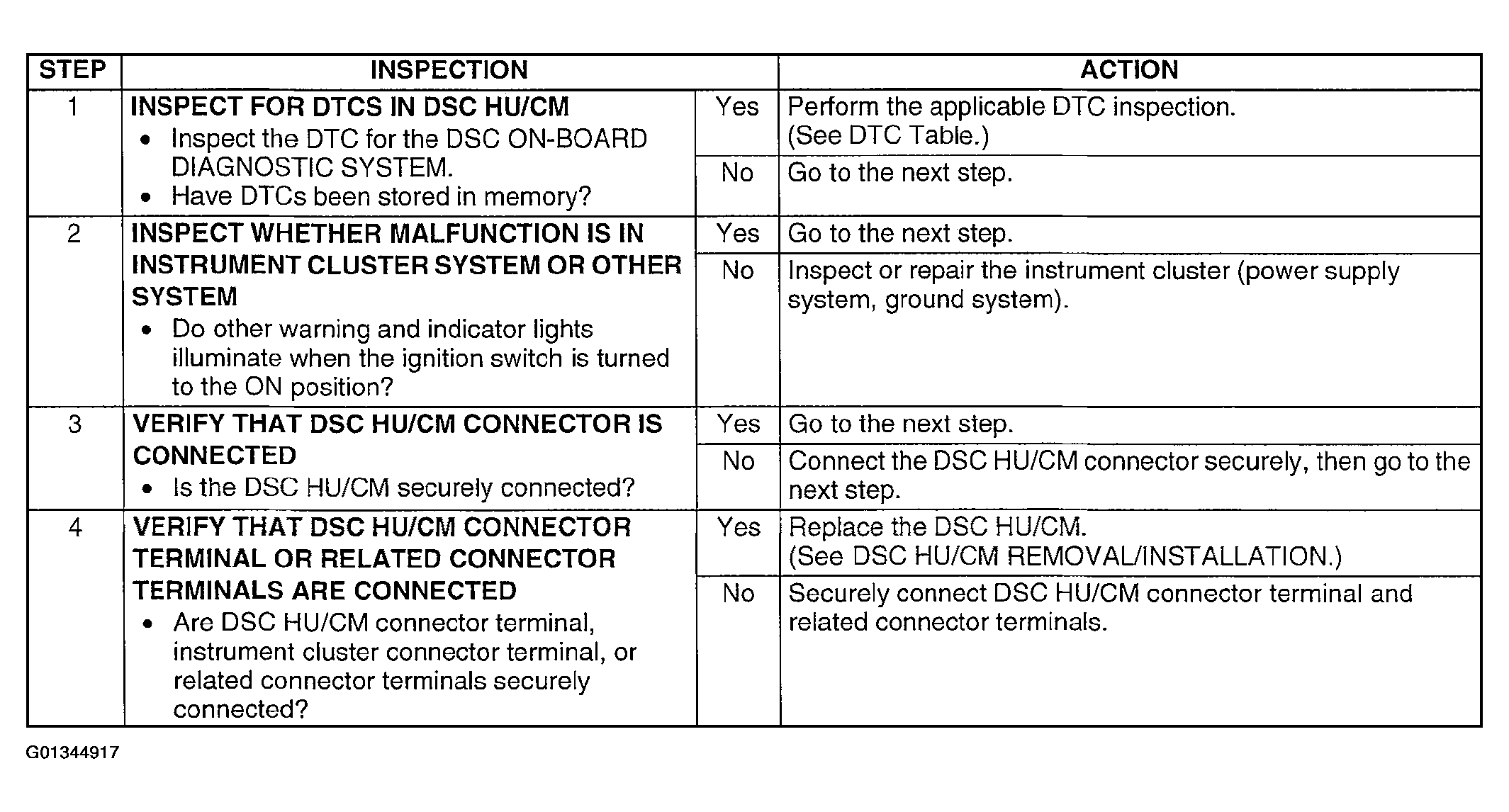

Fig 1: No. 7 Any Of The Following Lights Do Not Illuminate When Ignition Switch Turned To On Position: (ABS Warning Light, Brake System Warning Light, DSC Indicator Light And/Or DSC Off Light) - Diagnostic Procedure
G01344917Courtesy of MAZDA MOTORS CORP.
