Diagnostic procedure

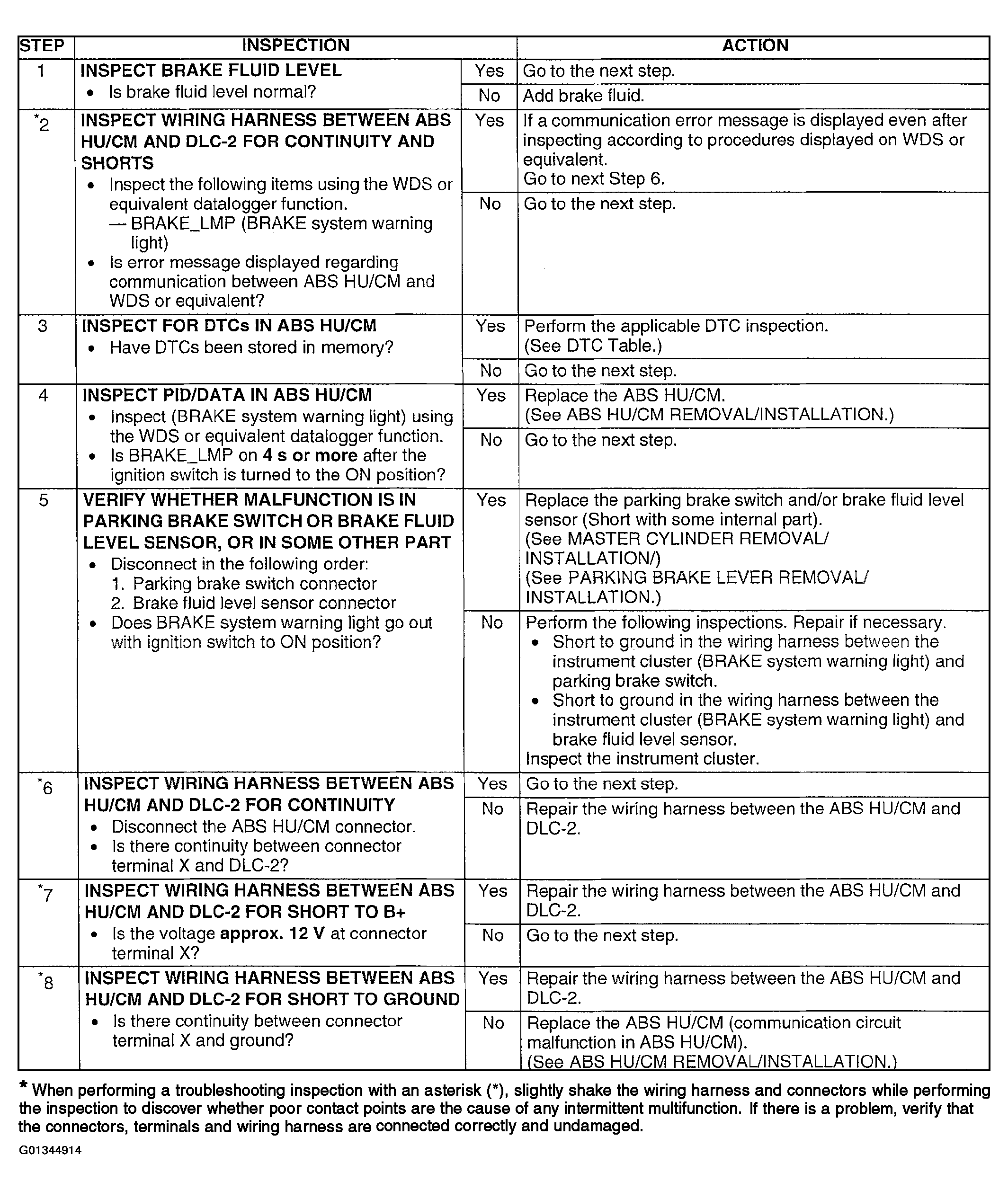

Fig 1: No. 6 Brake System Warning Light Stays On 4 Seconds Or More When Ignition Switch Turned To On Position - Diagnostic Procedure (Steps 1-8)

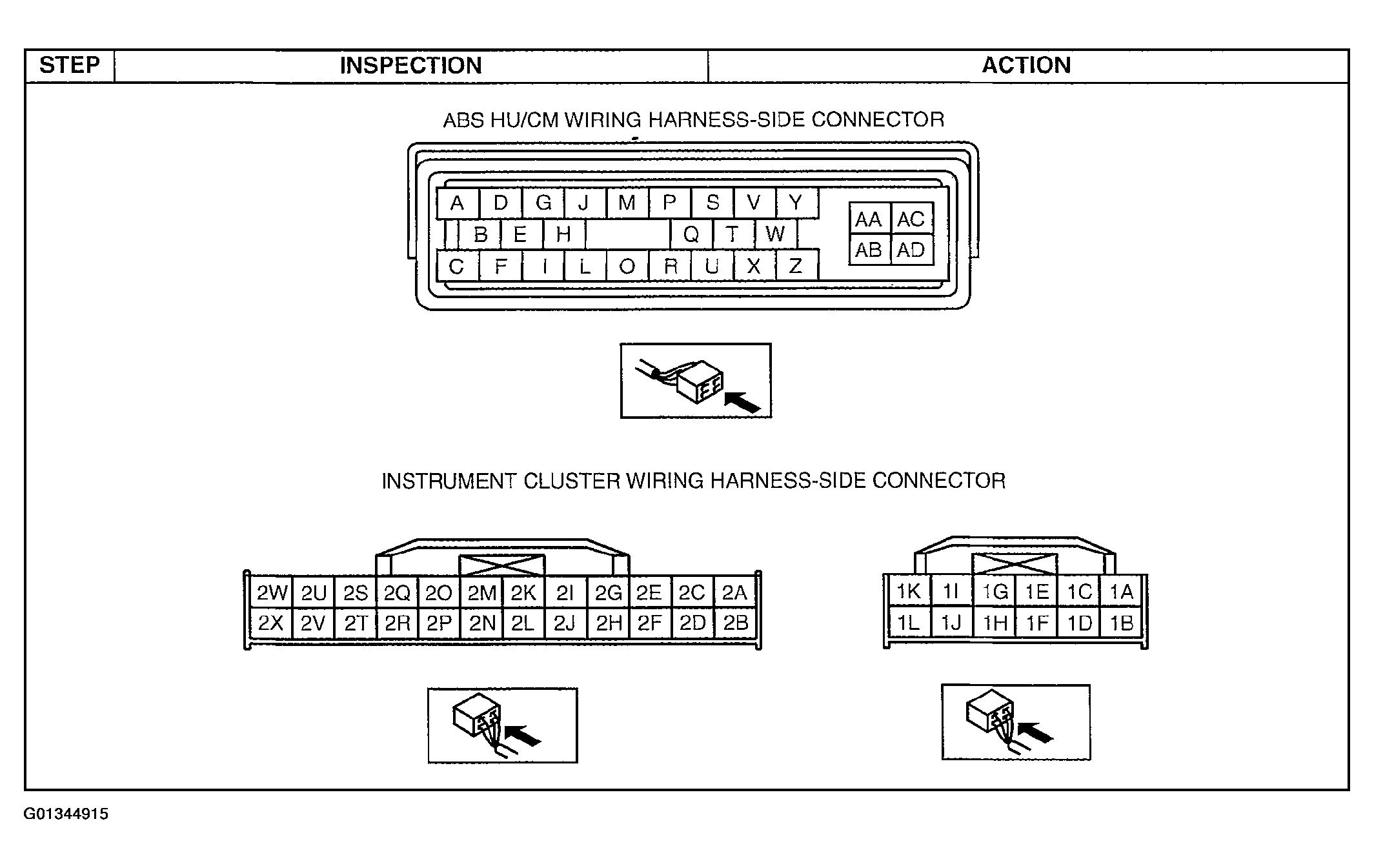

Fig 2: No. 6 Brake System Warning Light Stays On 4 Seconds Or More When Ignition Switch Turned To On Position - Diagnostic Procedure (Connector Views)
- When performing a troubleshooting inspection with an asterisk (* ), slightly shake the wiring harness and connectors while performing the inspection to discover whether poor contact points are the cause of any intermittent malfunctions. If there is a problem, verify that the connectors, terminals and wiring harness are connected correctly and undamaged.
