DTC C1279, C1280, C1281, C1282, C1951, C1952, C1959, C2768: Combined Sensor
>>
Diagnostic Procedure
Diagnostic Procedure

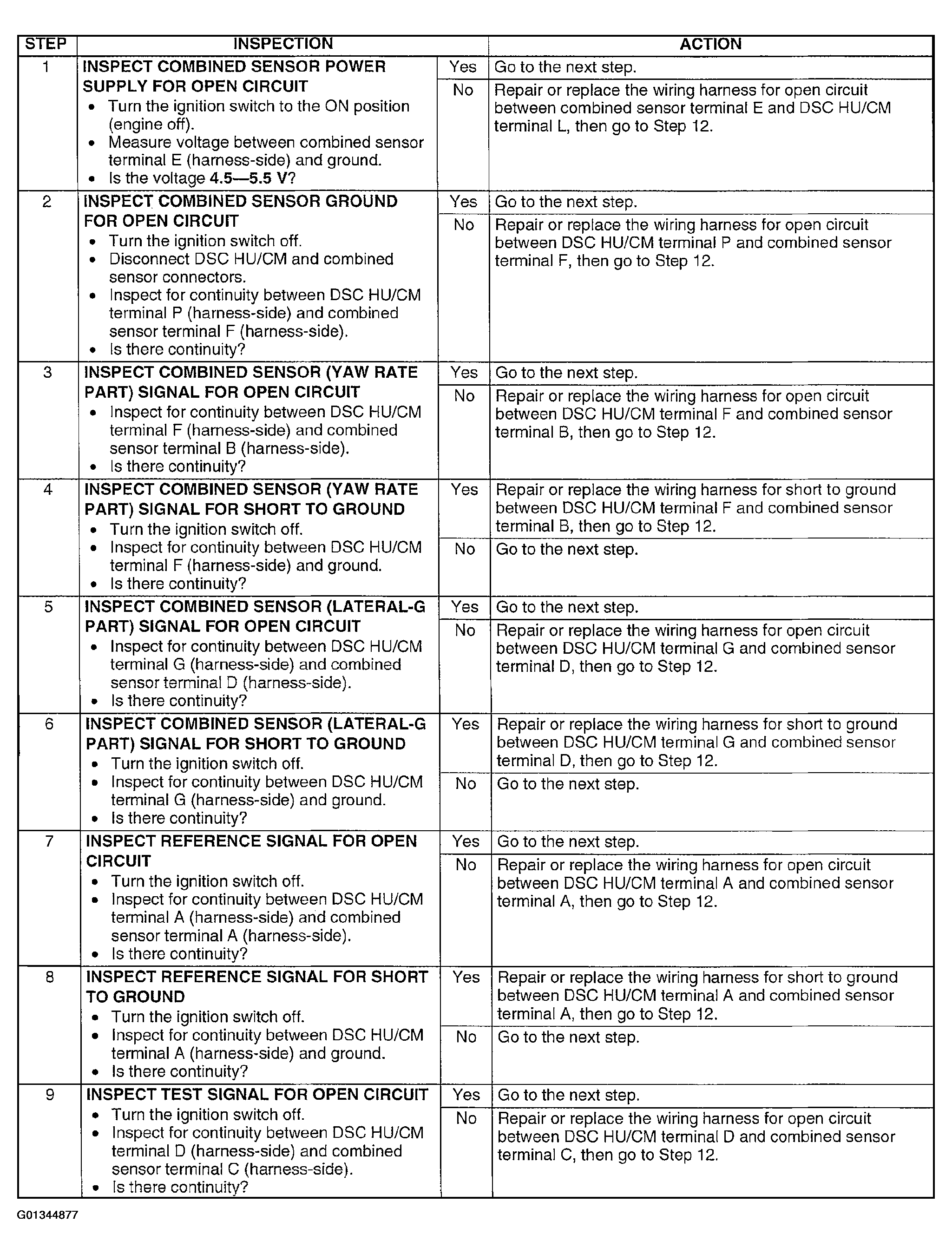

Fig 1: DTC C1279, C1280, C1281, C1282, C1951, C1952, C1959, C2768: Diagnostic Procedure (1 Of 2)
Courtesy of MAZDA MOTORS CORP.

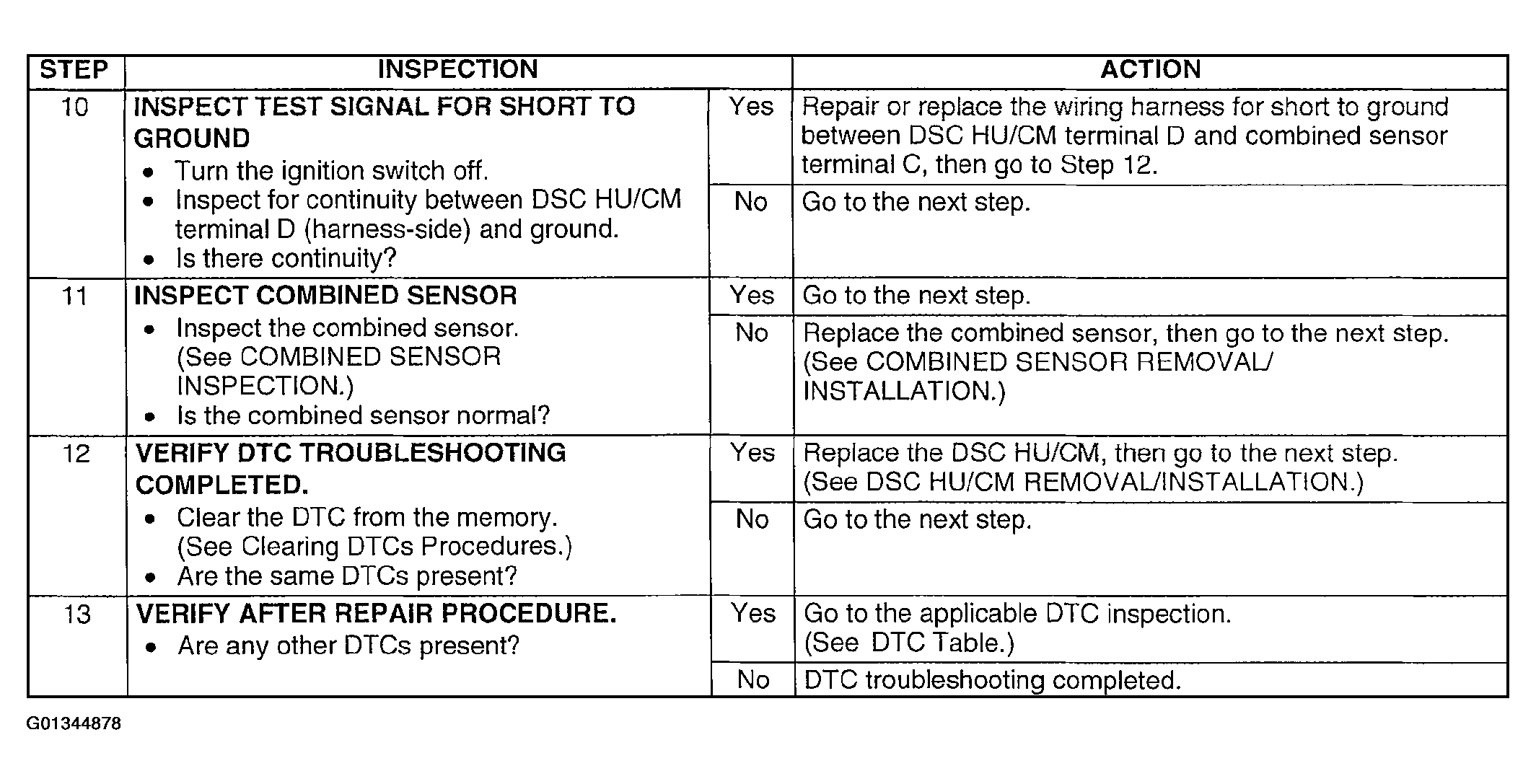

Fig 2: DTC C1279, C1280, C1281, C1282, C1951, C1952, C1959, C2768: Diagnostic Procedure (2 Of 2)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
