Home >> Mazda >> 2004 >> RX-8 1.3 3 >> Repair and Diagnosis (Single Page) >> Brakes >> Traction Control >> On-Board Diagnostic (Abs) >> On-Board Diagnostic >> DTC C1194, C1198, C1210, C1214, C1242, C1246, C1250, C1254, C1400, C1410, C1957, C1958: Inlet/Outlet Solenoid Valve, Traction Switch Solenoid Valve & DSC Switch Solenoid Valve >> Notes

DTC C1194, C1198, C1210, C1214, C1242, C1246, C1250, C1254, C1400, C1410, C1957, C1958: Inlet/Outlet Solenoid Valve, Traction Switch Solenoid Valve & DSC Switch Solenoid Valve: Notes

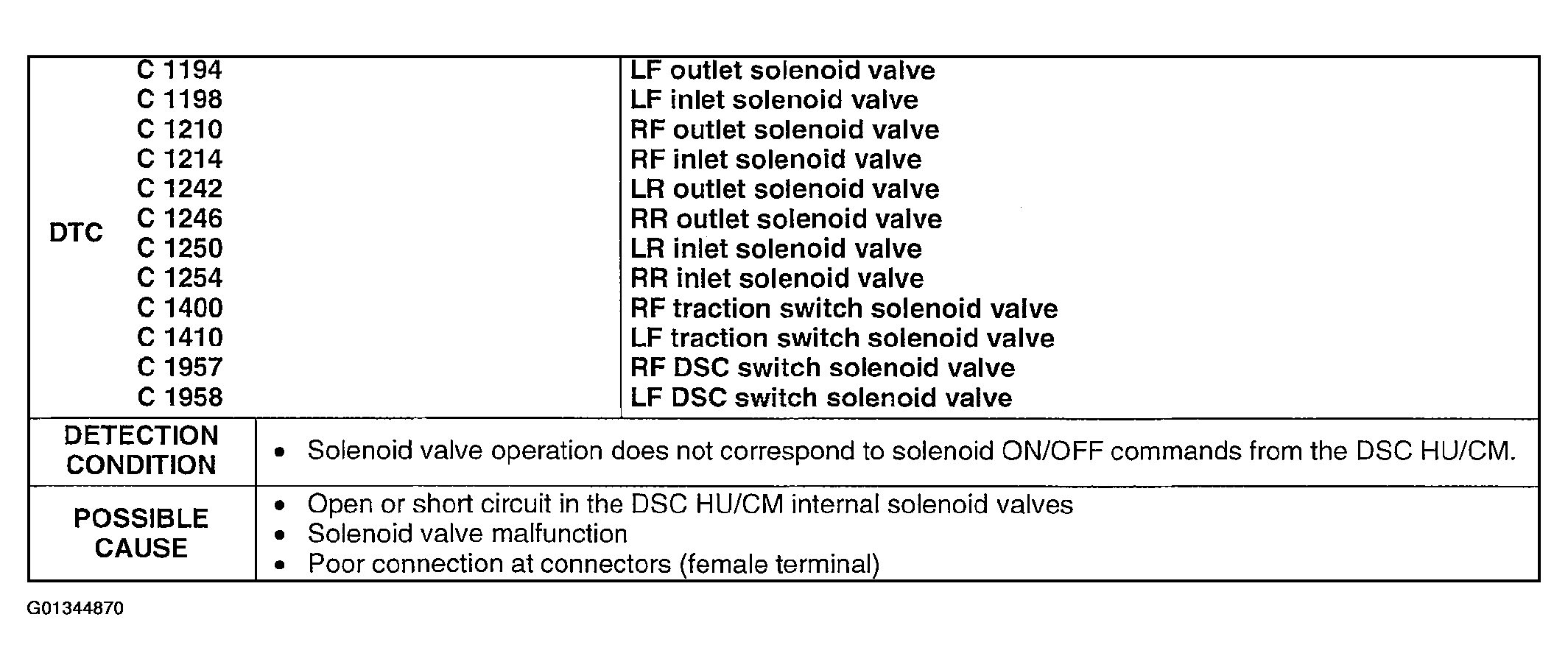

Fig 1: DTC C1194, C1198, C1210, C1214, C1242, C1246, C1250, C1254, C1400, C1410, C1957, C1958 [DYNAMIC STABILITY CONTROL]
G01344870Courtesy of MAZDA MOTORS CORP.
