DTC C1194, C1198, C1210, C1214, C1242, C1246, C1250, C1254, C1400, C1410, C1957, C1958: Inlet/Outlet Solenoid Valve, Traction Switch Solenoid Valve & DSC Switch Solenoid Valve
>>
Diagnostic Procedure
Diagnostic Procedure

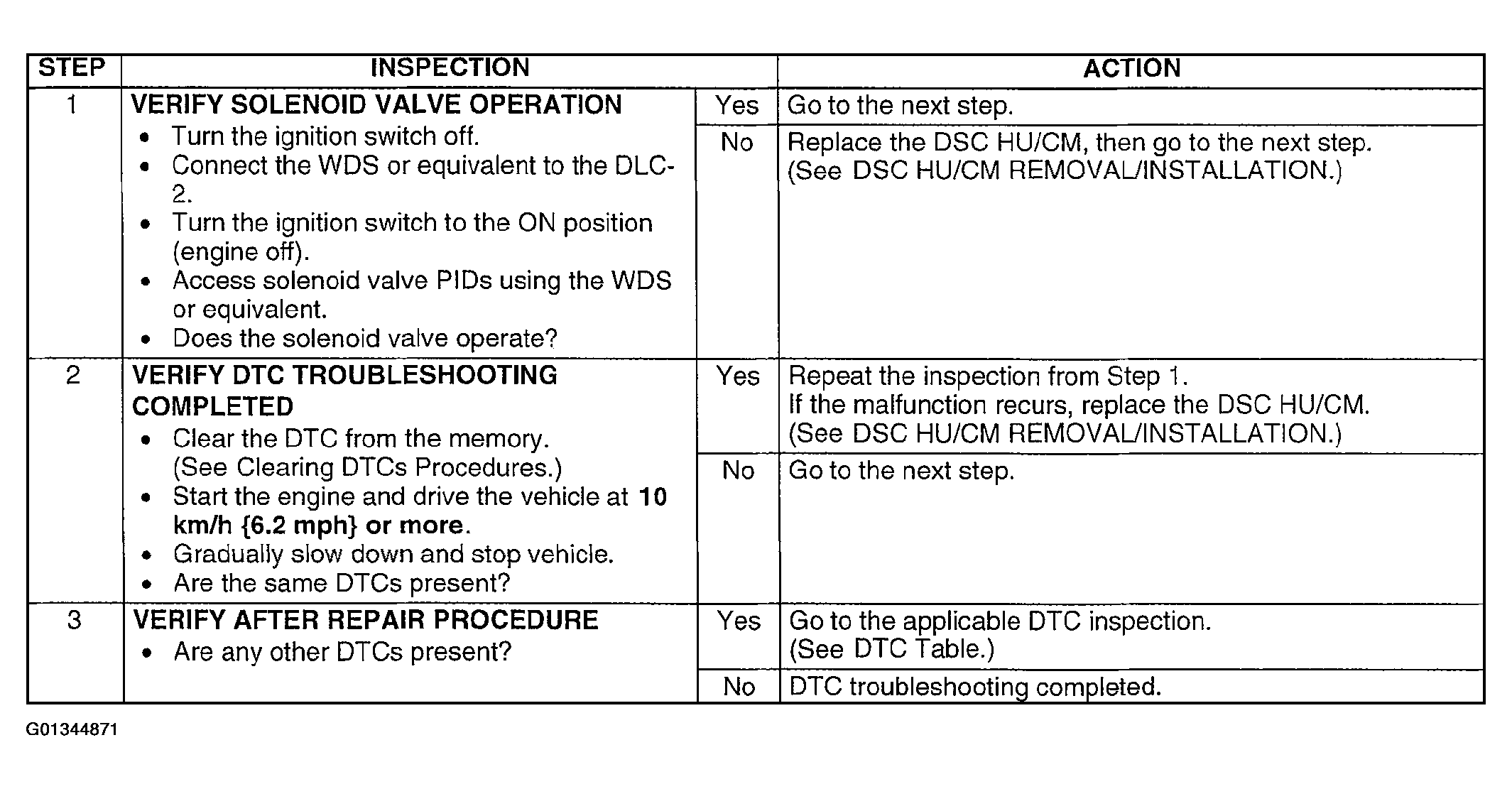

Fig 1: DTC C1194, C1198, C1210, C1214, C1242, C1246, C1250, C1254, C1400, C1410, C1957, C1958: Diagnostic Procedure
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
