DTC C1210, C1214, C1194, C1198, C1246, C1254, C1242 & C1250: Inlet/Outlet Solenoid Valve: Notes

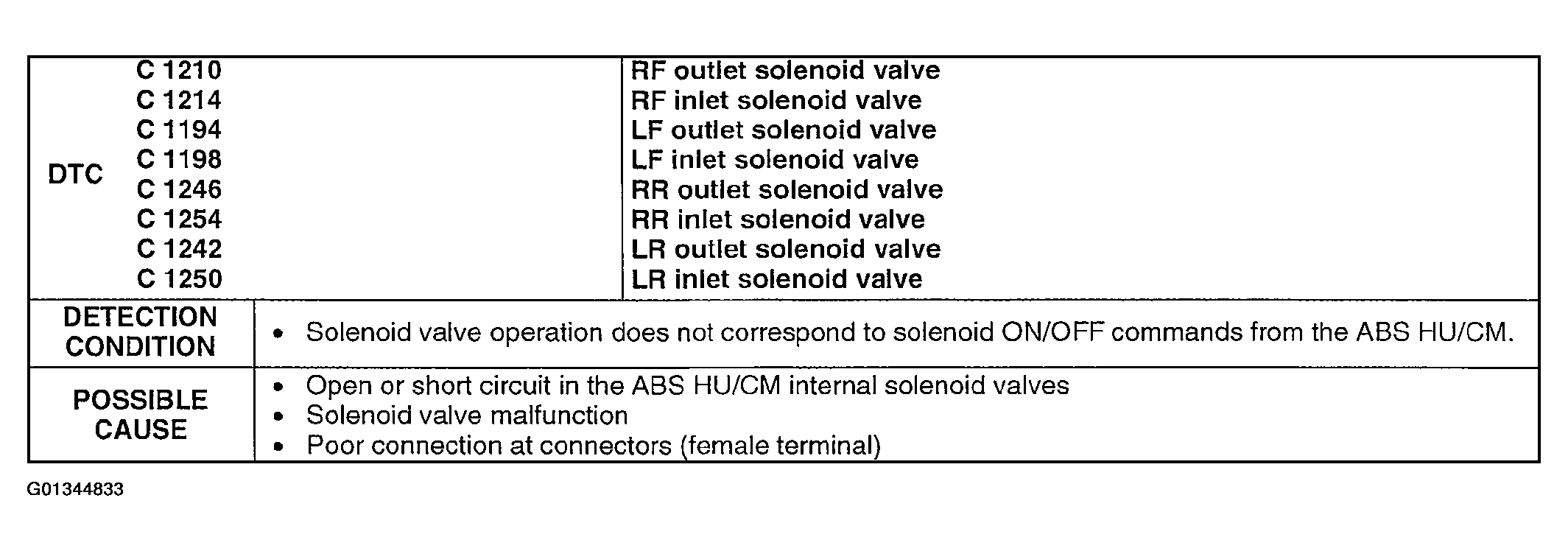

Fig 1: DTC C1210, C1214, C1194, C1198, C1246, C1254, C1242, C1250: Detection Condition & Possible Cause
G01344833Courtesy of MAZDA MOTORS CORP.
