Repair and Diagnosis (Single Page)
>>
Brakes
>>
Anti-Lock Brakes
>>
Symptom Troubleshooting [Brakes)
>>
Symptom Troubleshooting
>>
Vehicle with DSC
Vehicle with DSC

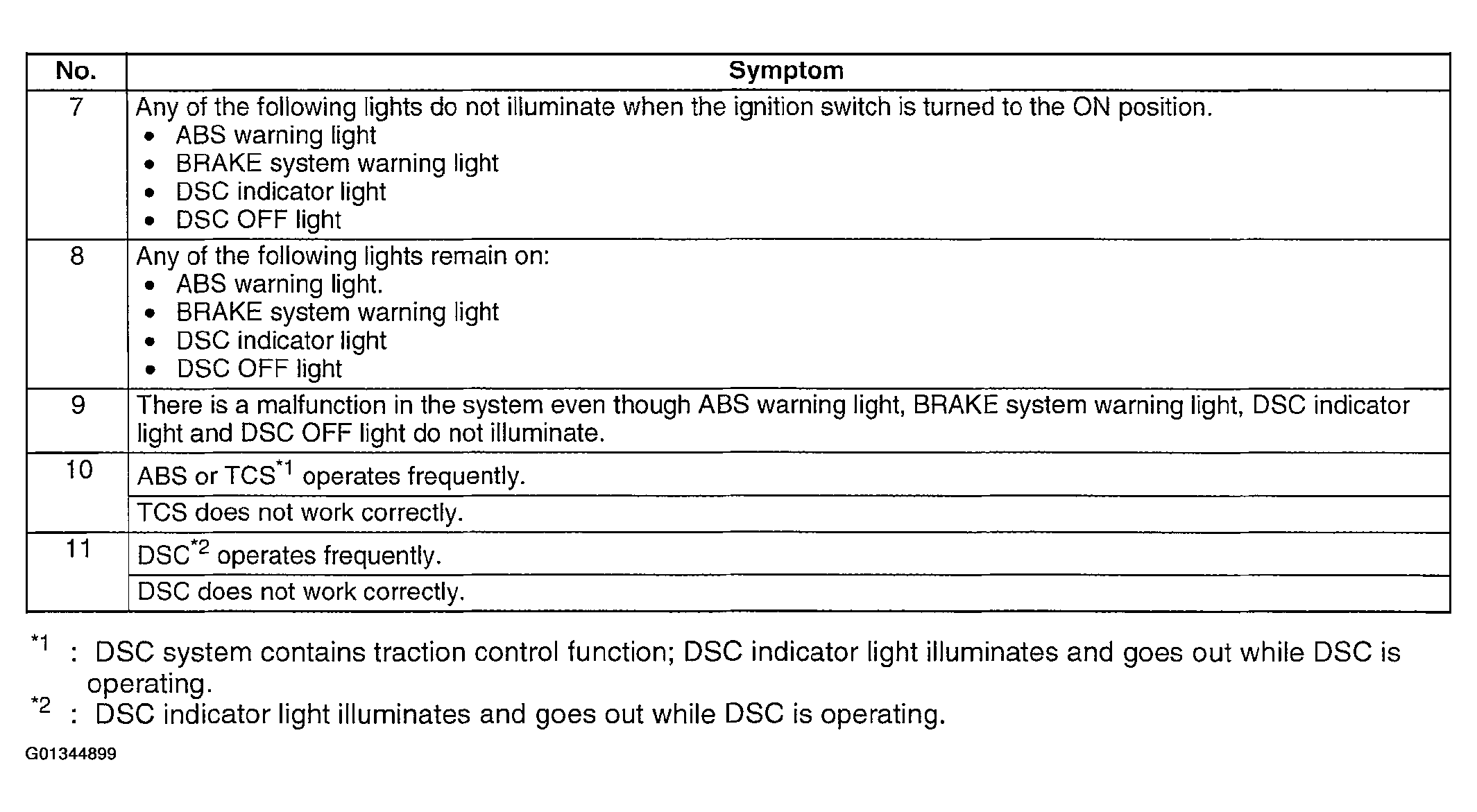

Fig 1: Symptom Troubleshooting (Vehicle With DSC)
Courtesy of MAZDA MOTORS CORP.

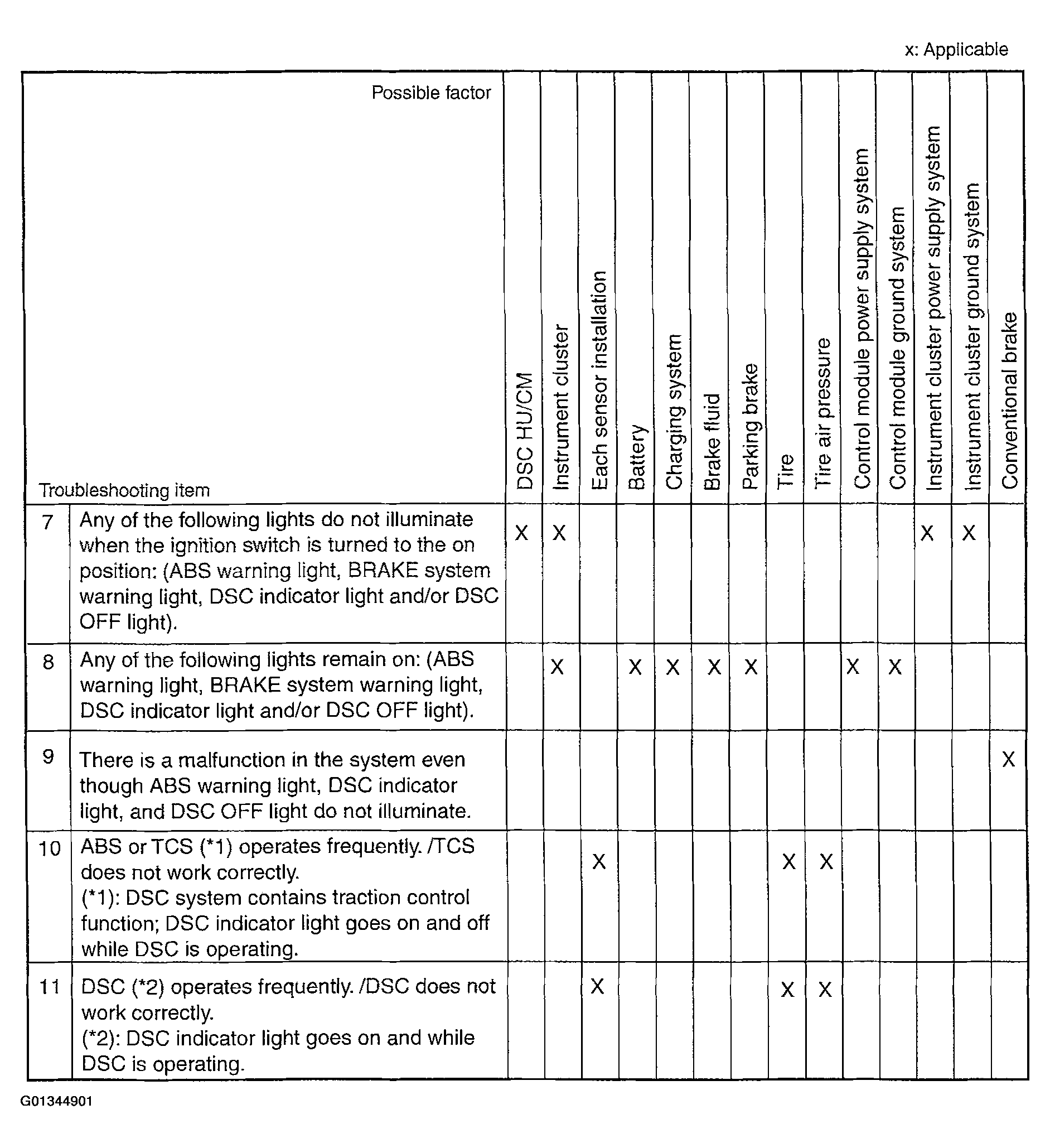

Fig 1: Possible Factor (Vehicle With DSC)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
