No. 1 Neither Abs Warning Light Nor Brake System Warning Light Illuminate When Ignition Switch Turned To On Position

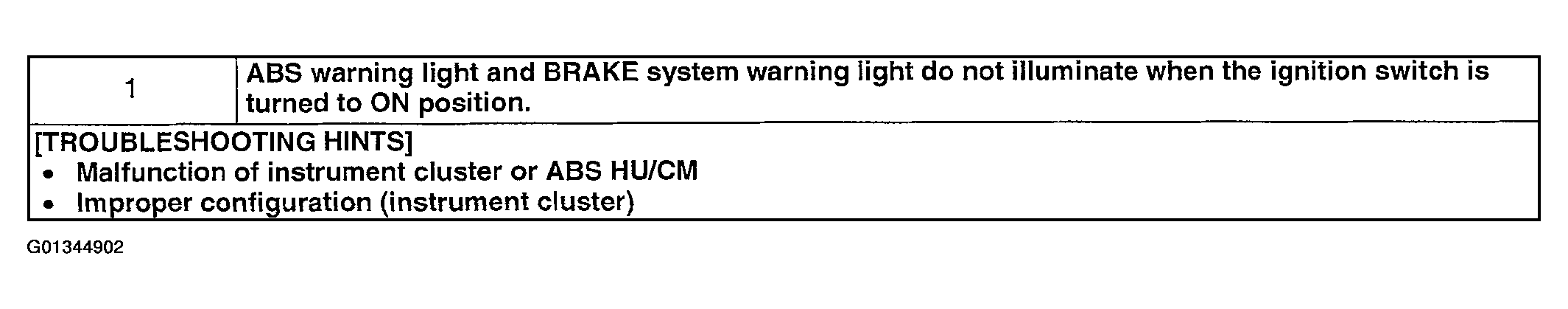

Fig 1: No. 1 Neither ABS Warning Light Nor Brake System Warning Light Illuminate When Ignition Switch Turned To On Position - Troubleshooting Hints

Courtesy of MAZDA MOTORS CORP.

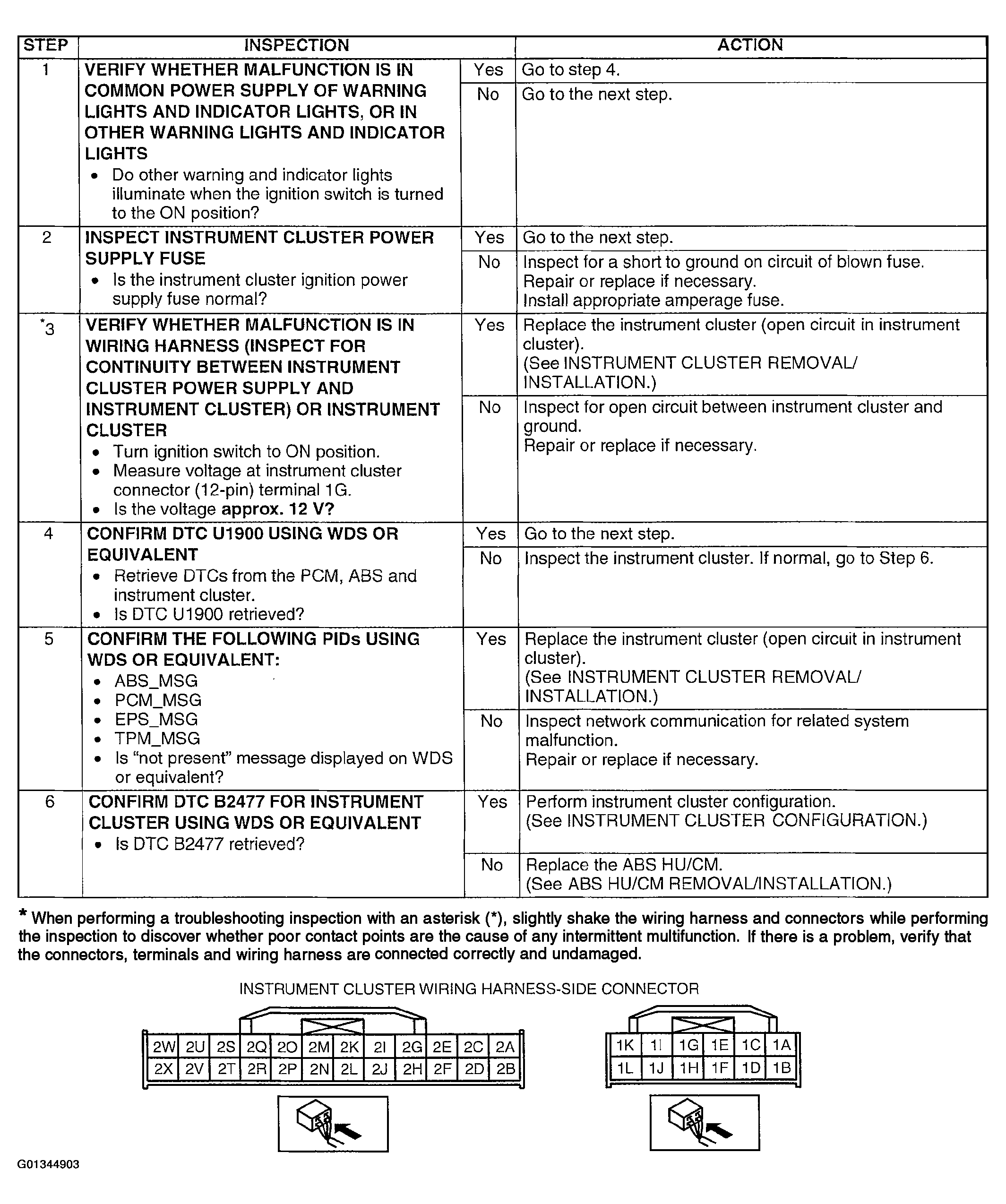

Fig 2: No. 1 Neither ABS Warning Light Nor Brake System Warning Light Illuminate When Ignition Switch Turned To On Position - Diagnostic Procedure

Courtesy of MAZDA MOTORS CORP.
